KitchenAid KEBS277DAL2 Manual de usuario

OVEN PARTS

For Models:KEBS277DBL2, KEBS277DWH2, KEBS277DAL2

(BLACK) (WHITE) (ALMOND)

1−97 Litho in U.S.A.(dmz) Part No. 885273

27" BUILT−IN ELECTRIC

DOUBLE OVEN

THERMAL CONVECTION

SELF−CLEAN

OVEN PARTS

For Models:KEBS277DBL2, KEBS277DWH2, KEBS277DAL2

(BLACK) (WHITE) (ALMOND)

885273

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

NOTE: The screws and nuts

required to attach a part are

listed immediately following

that part.

1 Trim, Side

4450850 RH Black

4450851 RH White

4450852 RH Almond

4450853 LH Black

4450854 LH White

4450855 LH Almond

Screw

4449747 Black Model

4449041 White & Almond

4 4448520 Bumper, Door

6 4451038 Divider, Vent

4449809 Screw

7 4451165 Partition

4449809 Screw

9 4449009 Tube, Vent

4449154 Screw

11 4448972 Oven Light Assy

4449748 Screw

14 4450416 Frame, Front

4449040 Screw

15 4449371 Gasket, Door

19 4450541 Support, Insulation

4449809 Screw

21 Rail, Side

4450581 Right Side

4450582 Left Side

4448444 Grommet

4449154 Screw

22 4451036 Shield, Latch

4450289 Screw

23 4450051 Deflector, Latch

4449154 Screw

24 4454710 Latch Assy

4449809 Screw

25 4450528 Side, Chassis

(R.H. & L.H.)

4449809 Screw

26 4454728 Back, Chassis

4449809 Screw

27 Liner, Oven

(Not serviceable)

29 4450026 Sensor

4449154 Screw

31 4450819 Switch, Door

32 4449369 Vent Box Assy.

4449809 Screw

34 4449049 Vent, Center

37 Thermostat (TOD)

4450934 Upper

4450249 Lower

4449809 Screw

43 4450526 Base, Chassis

4449809 Screw

49 4448933 Retainer, Gasket

4449154 Screw

50 4450544 Cover, Back

4449809 Screw

51 Trim, Bottom

4448458 Black Model

4448459 White Model

4448460 Almond Model

4450289 Screw

52 Extension, Vent

4450797 Lower Oven

4450795 Upper Oven

53 4449845 Support, Bracket

4449809 Screw

54 4451002 Spacer, Harness

4449809 Screw

FOLLOWING PARTS

NOT ILLUSTRATED

INSULATION

4449315 Insulation, Wrap

4450364 Insulation, Back

CONTROL PANEL PARTS

For Models:KEBS277DBL2, KEBS277DWH2, KEBS277DAL2

(BLACK) (WHITE) (ALMOND)

885273

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

NOTE: The screws and nuts

required to attach a part are

listed immediately following

that part.

1 Control Panel Assy.

W/Membrane Switch

4451291 Black Model

4451292 White Model

4451293 Almond Model

2 4451033 Gasket,

Control Panel

4159465 Screw

3 4448871 Microcomputer

4449745 Screw

LITERATURE PARTS

LIT4450410

Installation

Instructions

LIT4450571

Use & Care Guide

(Oven)

LIT4449066

Cookbook

(T/C Oven)

LIT4454771

Tech Sheet (Oven)

LIT4449264

Easy Set Guide

OVEN DOOR PARTS

For Models:KEBS277DBL2, KEBS277DWH2, KEBS277DAL2

(BLACK) (WHITE) (ALMOND)

885273

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

NOTE: The screws and nuts

required to attach a part are

listed immediately following

that part.

1 4450428 Door Liner

2 4451173 Hinge, Door

4449743 Screw

3 4449253 Glass, Inner

4 4448679 Insulation, Top

and Bottom Door

5 4450422 Retainer, Glass

4449809 Screw

7 4449257 Glass, Inner (2)

9 4450470 Retainer, Glass

4449809 Screw

12 Door Glass,Outer

4450696 Black Model

4450697 White Model

4450698 Almond Model

13 Door Handle

4448411 Black Model

4448412 White Model

4448413 Almond Model

14 4450813 Bracket, Handle

4451040 Screw

18 4448707 Insulation, Sides

19 4450361 Shield, Heat

4449809 Screw

20 4449031 Retainer, Glass

4449809 Screw

21 4450836 Seal, Door Top

22 4450838 Seal, Side

23 Retainer, Clip

4450863 Black Model

4450864 White Model

4450865 Almond Model

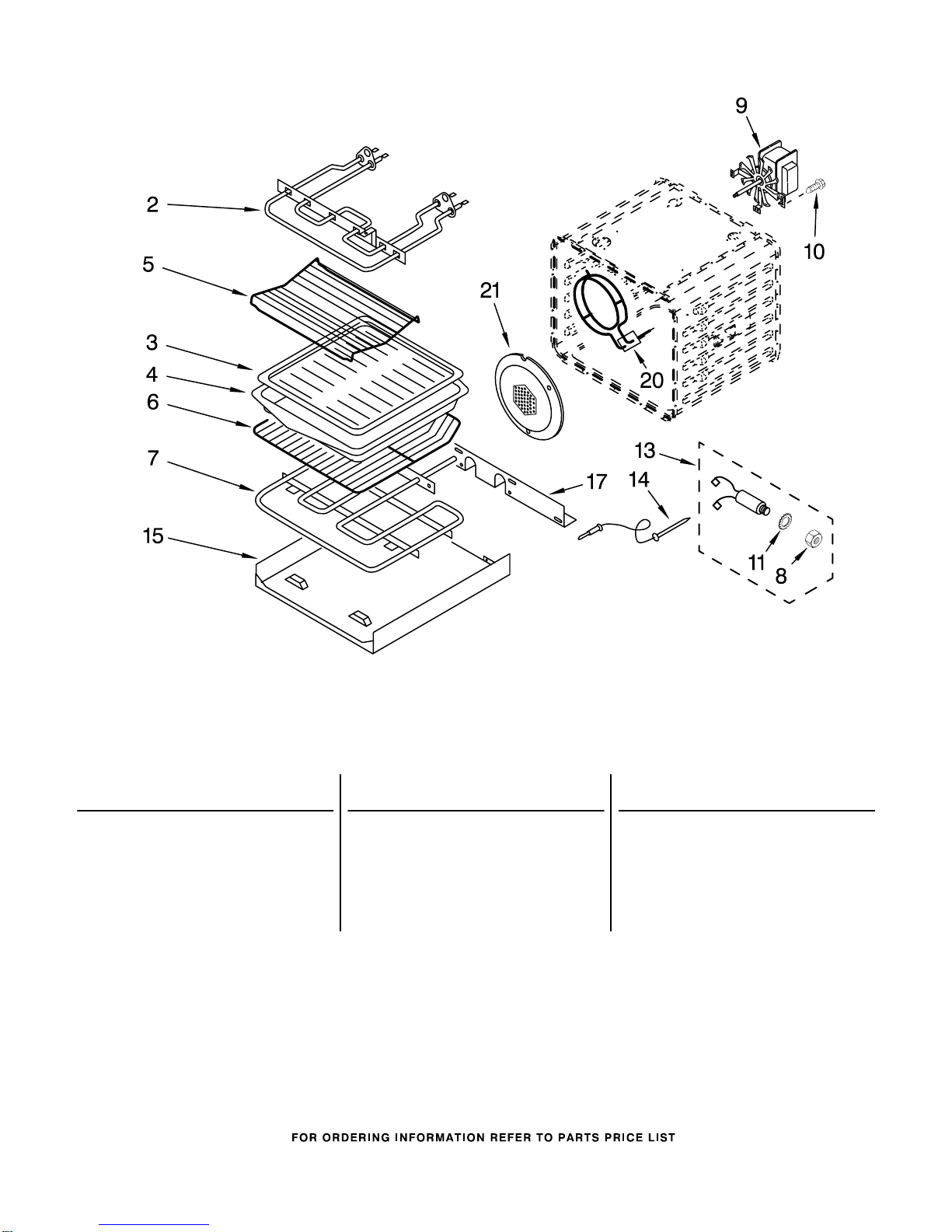

INTERNAL OVEN PARTS

For Models:KEBS277DBL2, KEBS277DWH2, KEBS277DAL2

(BLACK) (WHITE) (ALMOND)

885273

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

2 4448701 Element, Broil

4449154 Screw

3 3147563 Grill, Broiler

4 3147845 Pan, Broiler

5 3181534 Rack, Roasting

6 4448715 Rack, Oven

7 4448695 Element, Bake

8 4448881 Nut, Hex

9 4448952 Convection Motor

10 4449154 Screw

11 4448882 Washer, Lock

13 4448949 Jack, Meat Probe

14 4448948 Probe, Meat

15 4448722 Tray, Bake

17 4450039 Cover, Bake Tray

4449809 Screw

20 4448841 Element,

Convection

4449154 Screw

21 4448418 Cover, Fan

4449154 Screw

TOP VENTING PARTS

For Models:KEBS277DBL2, KEBS277DWH2, KEBS277DAL2

(BLACK) (WHITE) (ALMOND)

885273

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

NOTE: The screws and nuts

required to attach a part are

listed immediately following

that part.

2 3182384 Foam, Block

3 4450920 Blower

(Upper & Lower)

4449809 Screw

4 4450066 Bracket,

Transformer

5 4450329 Transformer,

(Lights)

4449809 Screw

6 4450366 Exhaust Duct

4449809 Screw

8 4450291 Transformer, Control

4449809 Screw

11 4449868 Block, Terminal

3196181 Screw

13 4448551 Vent,

(Control Panel)

4450038 Screw

14 Side, Control Top

4448371 Right

4448372 Left

4449809 Screw

4449154 Screw

15 4450658 Back, Control

4449809 Screw

16 4450550 Cover, Top Rear

4449809 Screw

17 4448664 Clamp

4449809 Screw

112432 Nut

18 4450553 Cover, Top Front

4449809 Screw

19 4450545 Bracket, Blower

4449809 Screw

OPTIONAL PARTS

For Models:KEBS277DBL2, KEBS277DWH2, KEBS277DAL2

(BLACK) (WHITE) (ALMOND)

885273

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

PAINT, TOUCH−UP (1/2oz.)

72017 White

261869 Cord Brown

72032 Black

PAINT, SPRAY

350930 White

261900 Citrine White

830864 Black

ADHESIVE

591014 Adhesive

Loctite (1/3 oz.)

482338 Sealer, Silastic

(3 oz.)

SPLICING WIRES−−25FT.

LENGTH

242828 Wire (12 Ga.

150 c Black)

242820 Wire (14 Ga.

150 c Black)

242821 Wire (14 Ga.

150 c Blue)

242822 Wire (14 Ga.

150 c Brown)

242830 Wire (14 Ga.

200 c Brown)

242823 Wire (14 Ga.

150 c Green)

242824 Wire (14 Ga.

150 c Orange)

242829 Wire (12 Ga.

150 c Red)

242825 Wire (14 Ga.

150 c Red)

242831 Wire (14 Ga.

200 c Red)

242826 Wire (14 Ga.

150 c White)

242827 Wire (14 Ga.

150 c Yellow)

242832 Wire (14 Ga.

200 c Yellow)

WIRING HARNESS PARTS

4450951 Harness, S/C

Switch, Door

488366 Clamp

4449809 Screw

4454709 Harness, Wire

(Latch)

4454797 Harness, Wire

(Main)

4450953 Conduit

4448664 Clamp

4450800 Screw, Ground

4450815 Fuse Assy

(Service Only)

Miscellaneous

814381 Pin Hinge Kit

814387 Roll Tape,

Exhaust Duct

4448950 Screw, Install (4)
