KitchenAid KEBS276YWH1 Manual de usuario

UPPER OVEN PARTS

SUPERBA

27" BUILT−IN ELECTRIC

DOUBLE OVEN

Self Clean Upper and Lower Oven

For Model: KEBS276YWH1

(WHITE)

2−93 Litho in U.S.A. Part No. 4174282

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

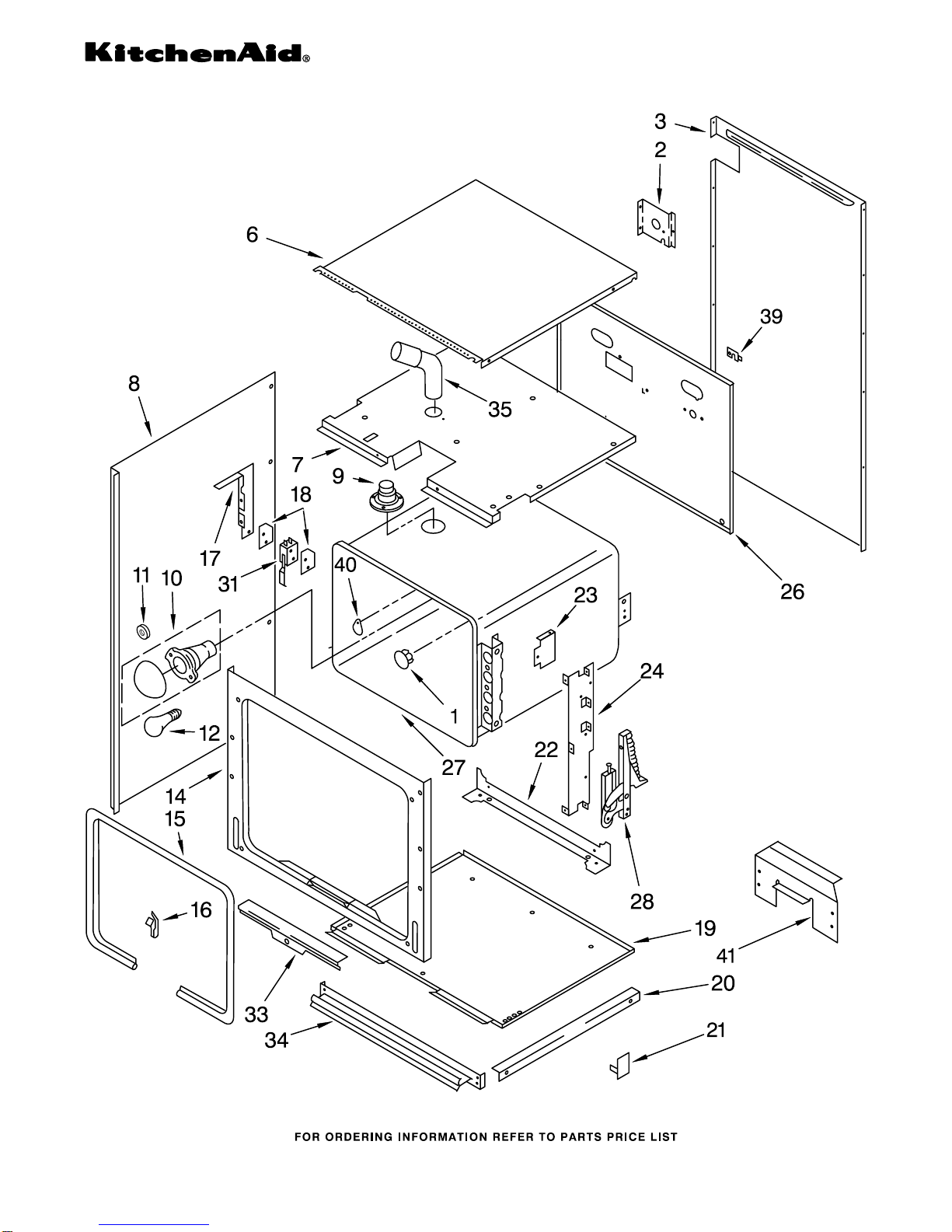

UPPER OVEN PARTS

NOTE: The screws and nuts

required to attach a part are

listed immediately following

that part.

FOLLOWING PARTS

NOT ILLUSTRATED

INSULATION

OPTIONAL PARTS (NOT INCLUDED)

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

FOLLOWING PARTS

NOT ILLUSTRATED

SPLICING WIRES−−25FT.

LENGTH

PAINT, TOUCH−UP (1/2oz.)

PAINT, PRESSURIZED SPRAY

(13 oz.)

PAINT, BULK (1 qt.)

ADHESIVE

ACCESSORY PARTS

For Model: KEBS276YWH1

(WHITE)

4174282

1 3185085 Button, Plug

2 3177545 Bracket, Mounting

3 3177623 Cabinet, Back

3148443 Screw

6 3178142 Cabinet, Top

3148443 Screw

7 3183748 Top, Module

3148443 Screw

8 Side, Cabinet

3177440 Left Hand

3177438 Right Hand

300890 Screw (18)

9 3181699 Tube, Vent

3185383 Screw (3)

10 3150505 Oven Light Assy.

11 3184533 Gasket, Light

12 311255 Bulb, Oven

Light

14 3177682 Frame, Front

15 3179813 Seal, Door

16 3179848 Clip, Oven Seal

17 3177681 Bracket, Switch

18 3177923 Insulator, Switch

19 3177621 Bottom, Module

20 3179220 Rail, Support (2)

3148443 Screw

21 3181733 Insert, Middle

Vent Trim

3148443 Screw

22 3177434 Support, Oven

3148443 Screw

23 3178612 Shield, Radiation

3148443 Screw

24 3177433 Bracket, Hinge

3179795 Screw (6)

3148443 Screw

26 3177560 Back, Module

3148443 Screw

27 3185562 Liner, Oven

28 3178298 Hinge, Door (2)

3178000 Screw (4)

31 4173553 Switch, Door

4159117 Nut (2)

313489 Screw (2)

33 3179587 Retainer, Seal

4159450 Screw (2)

3179776 Screw (4)

34 3181968 Vent, Middle Trim

3180022 Screw (6)

4168863 Screw (6)

35 3183791 Vent, Tube

39 4168203 Cover, Cap Tube

4159445 Screw

40 305135 Plate, Cover

3177991 Screw

41 3183752 Bracket, Mounting

Control Panel

3148443 Screw

3185551 Insulation, Wrap

3177872 Insulation, Back

18 Ga. 80 c Rating

350806 Yellow

16 Ga. 80 c Rating

242829 Blue

14 Ga. 150 c Rating

242820 Black

242821 Blue

242822 Brown

242823 Green

242824 Orange

242825 Red

242826 White

242827 Yellow

14 Ga. 200 c Rating

242830 Brown

242831 Red

242832 Yellow

12 Ga. 150 c Rating

242828 Black

242829 Red

72017 White

72107 Almond

72110 Harvest Gold

72112 Toast

72113 Platinum

72032 Black

261869 Citrine White

350930 White

350956 Almond

261890 Harvest Gold

285365 Toast

285366 Platinum

830864 Black

350942 Primer

350941 Leveler (Primer)

799344 White

978883 Almond

261891 Harvest Gold

285367 Toast

285368 Platinum

482338 Sealer, Silastic

(3 Oz.)

591014 Adhesive, Loctite

(1/3 Oz.)

799832 Kit, Porcelain

Repair (White)

832985 Rack, Cooking

(Bi−Level)

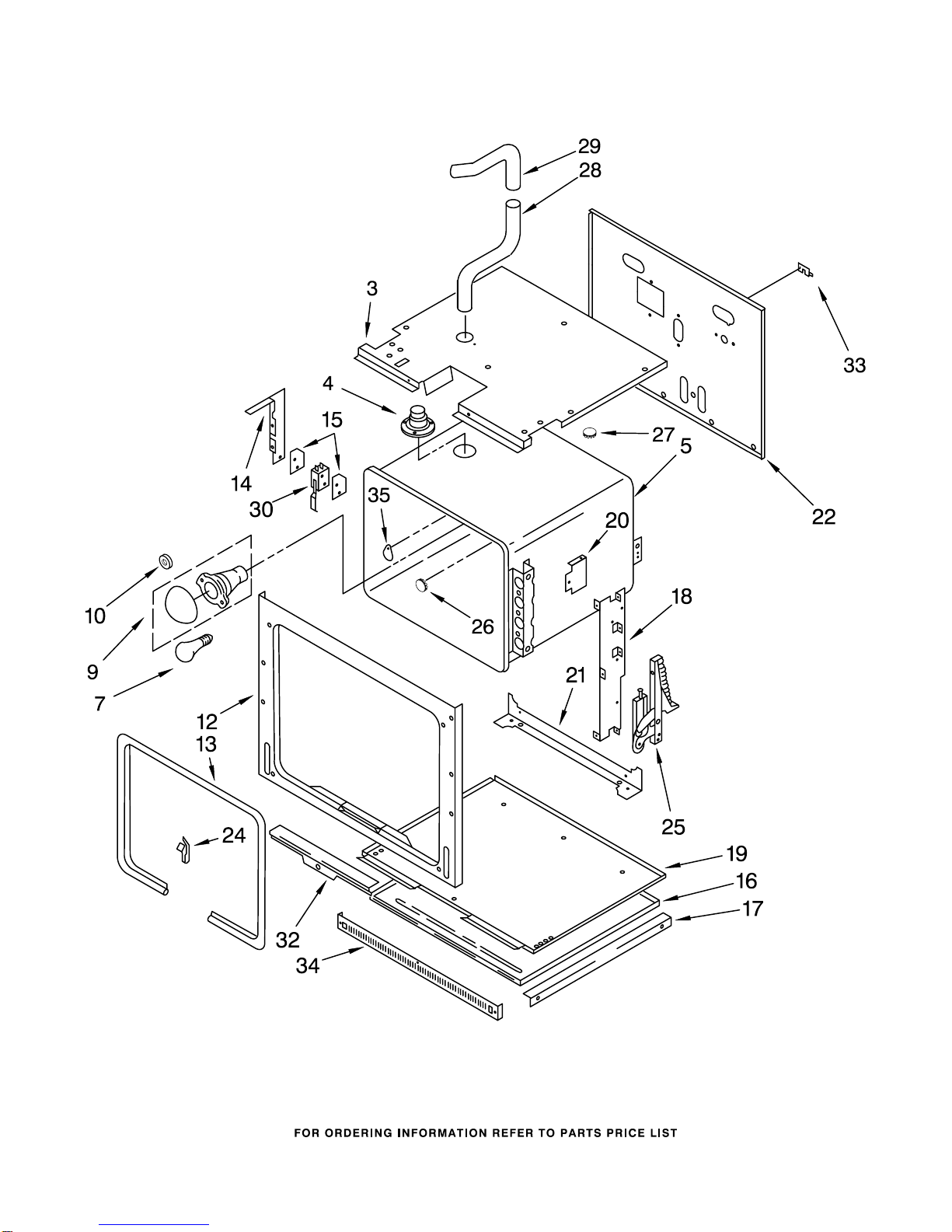

LOWER OVEN PARTS

For Model: KEBS276YWH1

(WHITE)

4174282

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

LOWER OVEN PARTS

NOTE: The screws and nuts

required to attach a part are

listed immediately following

that part.

FOLLOWING PARTS

NOT ILLUSTRATED

For Model: KEBS276YWH1

(WHITE)

4174282

3 3183748 Top, Module

3148443 Screw

4 3181699 Tube, Vent

3185383 Screw (3)

5 3185562 Liner, Oven

7 311255 Bulb, Oven Light

9 3150505 Oven Light Assy.

10 3184533 Gasket, Light

12 3177684 Frame, Front

13 3179813 Seal, Door

14 3177681 Bracket, Switch

3177991 Screw (2)

15 3177923 Insulator, Switch

16 3177551 Bottom, Oven

17 3179220 Rail, Support (2)

3148443 Screw

18 3177433 Bracket Hinge (2)

3179795 Screw (6)

3148443 Screw

19 3177621 Bottom, Module

20 3178612 Shield, Radiation

3179795 Screw (6)

3148443 Screw

21 3177434 Support, Oven

3148443 Screw

22 3177560 Back, Module

3148443 Screw

24 3179848 Clip, Seal (3)

25 3178298 Hinge, Door (2)

3178000 Screw (4)

26 3182814 Button, Plug

27 3185085 Button, Plug

28 3182159 Tube, Vent (Male)

3148443 Screw

29 3182160 Tube, Vent (Female)

30 4173553 Switch, Door

4159117 Nut (2)

313489 Screw (2)

32 3179587 Retainer, Seal

4159450 Screw (2)

3179776 Screw (4)

33 4168203 Cover, Cap Tube

4159445 Screw

34 3177789 Trim, Lower Vent

35 305135 Plate, Cover

3177991 Screw

3185551 Insulation, Wrap

3177872 Insulation, Back

Illus. Part

No. No. DESCRIPTION

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

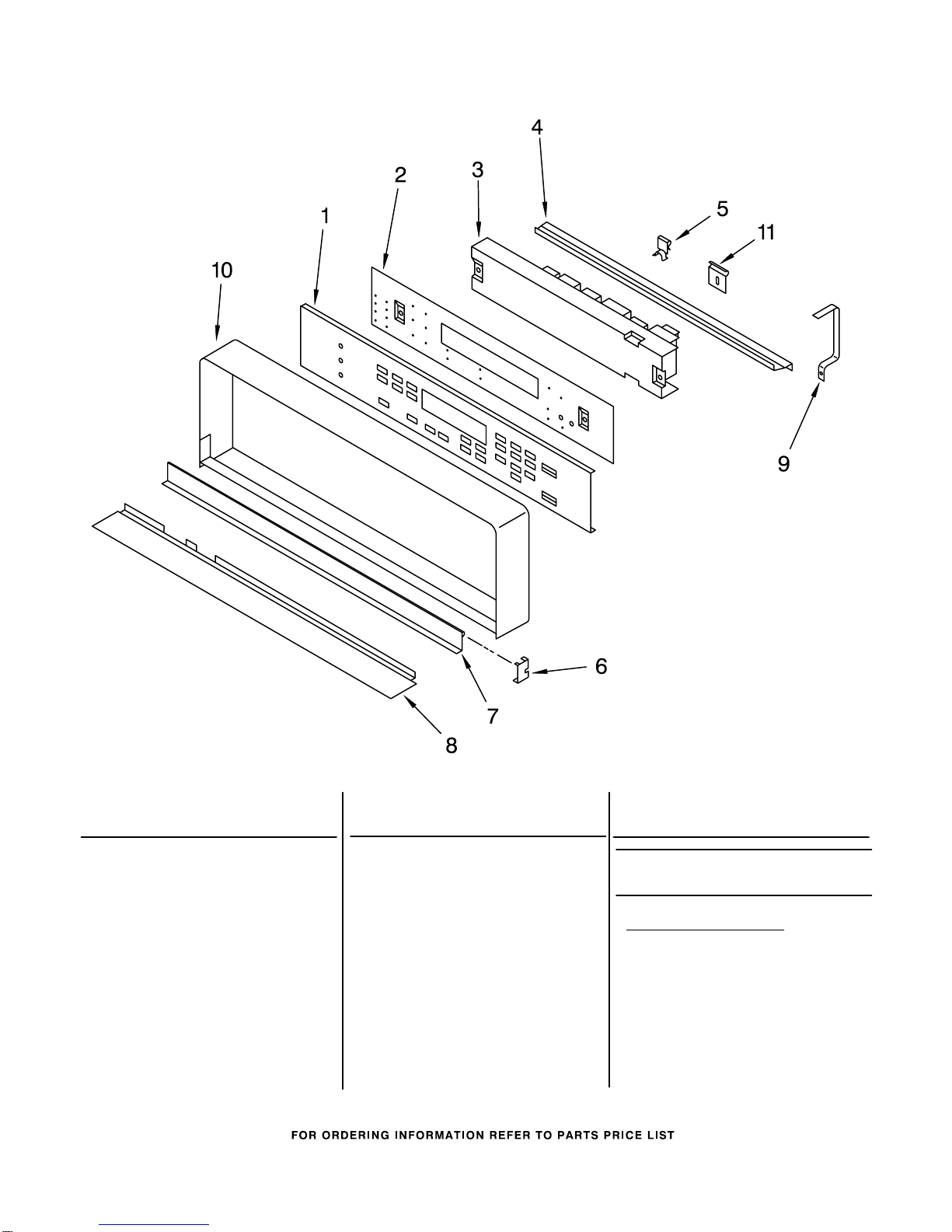

CONTROL PANEL PARTS

NOTE: The screws and nuts

required to attach a part are

listed immediately following

that part.

FOLLOWING PARTS

NOT ILLUSTRATED

LITERATURE PARTS

For Model: KEBS276YWH1

(WHITE)

4174282

1 3184778 Membrane, Switch

2 3181889 Bracket, Mounting

Switch Membrane

3 3181706 Microcomputer

3179117 Screw

4 3183705 Retainer, Bracket

3182939 Screw

5 3182985 Clip, Retainer

6 3182162 Trim, Door (2)

7 3182154 Door, Latch Handle

3179847 Screw

8 3183702 Trim, Panel

3148443 Screw

9 3184321 Bracket

3182939 Screw

10 3182148 Frame, Control

Panel

11 3184567 Clip, Control

Frame

LIT4174282 Repair Parts List

LIT3182133 Tech Sheet

LIT3183659 Installation

Instructions

LIT3182136 Use & Care Guide

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

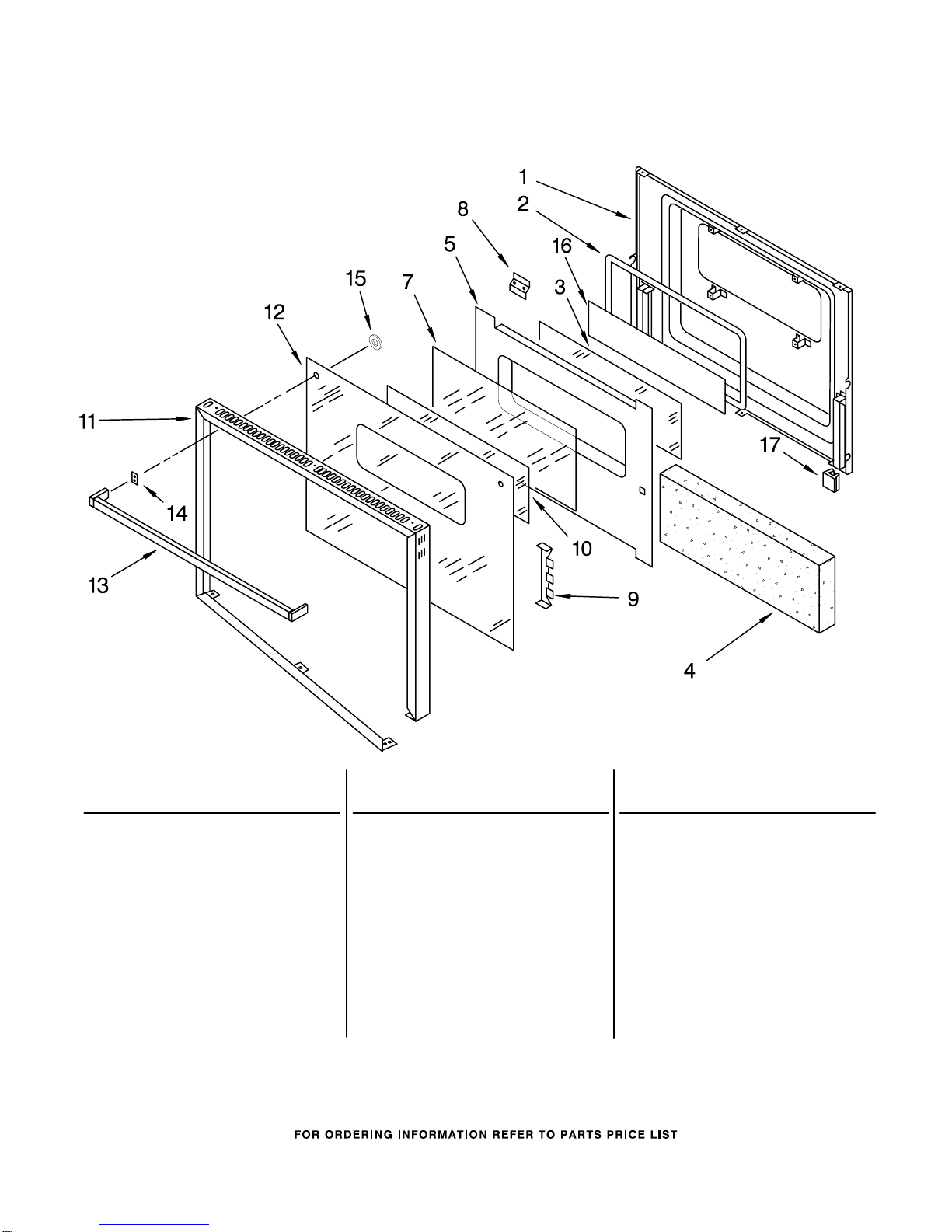

OVEN DOOR PARTS

NOTE: The screws and nuts

required to attach a part are

listed immediately following

that part.

For Model: KEBS276YWH1

(WHITE)

4174282

1 3185497 Liner, Door

4168863 Screw (6)

2 3185462 Gasket, Window

3 3185457 Glass−Clear

4 3185460 Insulation, Door

5 3185437 Insulation

Retainer

4173601 Screw

7 3185458 Glass, Reflective

8 3185438 Plate, Latch

Strike

9 3185439 Retainer, Glass

10 3185459 Glass−Clear

11 3181402 Frame, Door

12 3185476 Glass, Door

13 3182168 Handle, Door

14 3182138 Spacer, Door

Handle

15 3185456 Bushing, Door

Handle

3181637 Screw

247326 Screw

16 3185470 Foil, Adhesive

Backed

17 3181701 Bumper, Door

Glass

Illus. Part

No. No. DESCRIPTION

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

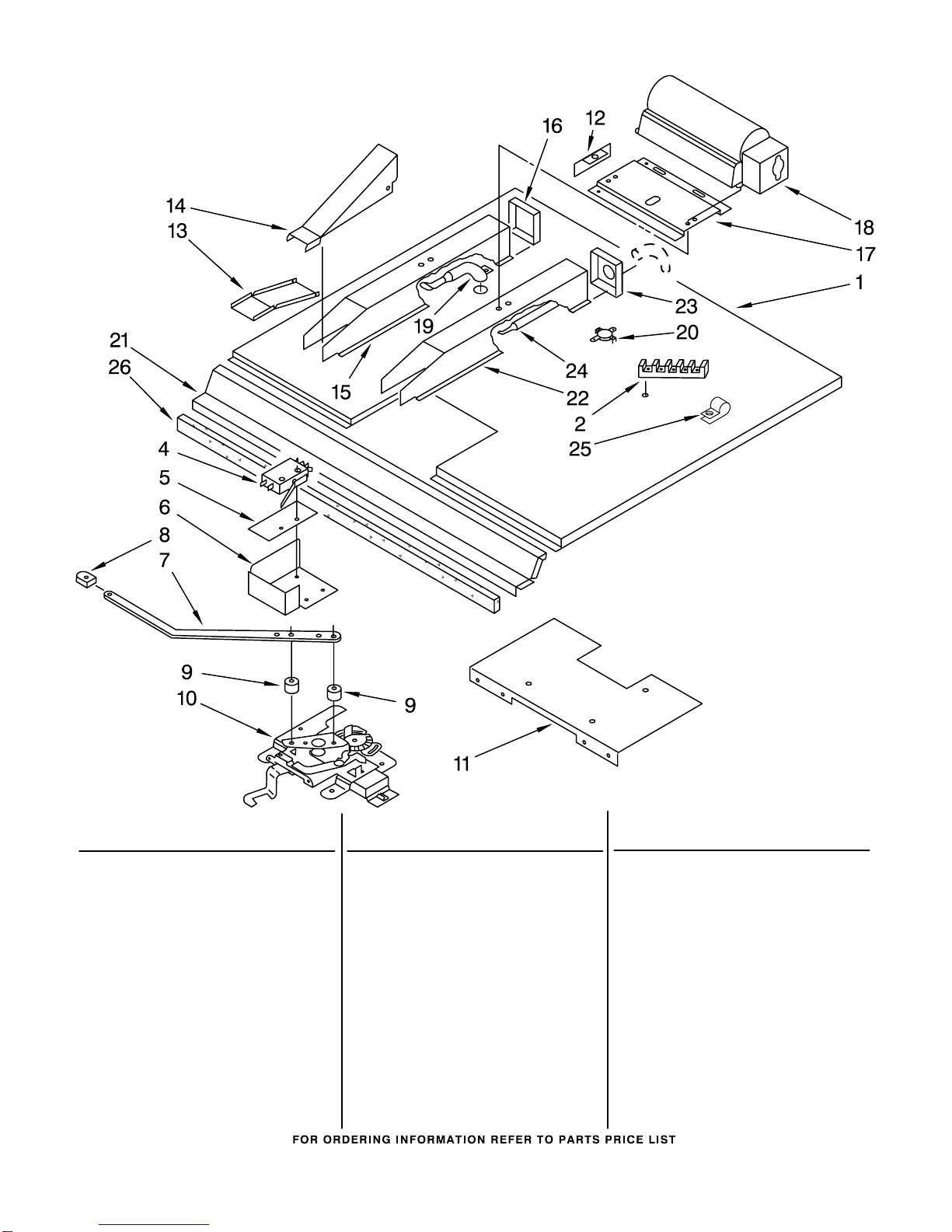

LATCH AND VENT PARTS

NOTE: The screws and nuts

required to attach a part are

listed immediately following

that part.

For Model: KEBS276YWH1

(WHITE)

4174282

1 3183748 Module, Top

2 3184673 Block, Terminal

308043 Screw

4 3183784 Switch, Latch

98106 Screw

5 3178185 Insulator, Switch

6 3177662 Guard, Latch

7 Handle, Latch

3177969 Upper Oven

3184037 Screw (2)

3181963 Lower Oven

3179950 Screw (2)

8 3184039 Knob, Latch Handle

3183294 Screw

9 3184040 Spacer, Latch

Handle

3184037 Screw

10 3178410 Latch Mechanism

11 3177496 Plate, Mounting

3177991 Screw

12 3185455 Baffle

311773 Screw

13 3183954 Nozzle, Vent

Bottom

14 3183955 Nozzle, Vent Top

15 3183999 Box, Vent

16 3183964 End, Vent Box

3148443 Screw

17 3183533 Bracket, Mounting

3177991 Screw

18 3183720 Blower, Fan

19 3183791 Tube, Vent

3148443 Screw

20 3149650 SPST Thermostat

3148443 Screw

21 3183785 Shield, Heat

3177991 Screw

22 3183953 Box, Vent

23 3183965 End, Box Vent

3148443 Screw

24 3183793 Tube, Vent

3148443 Screw

25 3183532 Clamp, Tube

3148443 Screw

26 313755 Seal, Foam

Illus. Part

No. No. DESCRIPTION

UNIT PARTS

NOTE: The screws and nuts

required to attach a part are

listed immediately following

that part.

For Model: KEBS276YWH1

(WHITE)

4174282

1 3185562 Liner, Oven

2 661415 Element, Broil

3 3147563 Grill, Broiler

4 3147845 Pan, Broiler

5 3185307 Rack, Offset

6 3185308 Rack, Oven

7 661416 Element, Bake

3185383 Screw (2)

8 4167277 Nut, Meat Probe

9 305289 Gasket, Meat Probe

10 4167266 Probe Cover

11 4159557 Washer

12 3179672 Spacer, Tubing

13 3150107 Meat Probe Jack

14 3150144 Meat Probe

15 313570 Clamp, Tube

19 3180694 Bracket, Element

3185383 Screw (4)

20 3148440 Sensor, Heat

3185383 Screw

21 3149652 SPST Thermostat

3148443 Screw

Illus. Part

No. No. DESCRIPTION

WIRING HARNESS PARTS

For Model: KEBS276YWH1

(WHITE)

4174282

1 3183655 Harness Wire

(Door Switch

Upper)

2 3183656 Harness Wire

(Door Switch

Lower)

3 3183359 Harness Wire

(Lower Oven)

4 3185552 Harness Wire

(Upper Oven)

5 3183976 Harness, Wire

Latch Assy.

(Upper)

6 3179668 Standoff, Wire

3148443 Screw

8 313438 Clip

112432 Nut (3)

10 3183361 Harness, Wire

Latch Assy.

(Lower)
