KitchenAid KV25G0XGC5 Manual de usuario

c2007 KITCHENAID

4−07 Litho in U.S.A. (skr) Part No. W10136426 Rev. A

5 QT. STAND MIXER

PROFESSIONAL 5 PLUS BOWL LIFT

MODELS:

KV25G0XWW5 (White on White)

KV25G0XWH5 (White)

KV25G0XBU5 (Cobalt Blue)

KV25G0XCV5 (Caviar)

KV25G0XCY5 (Bing Cherry)

KV25G0XER5 (Empire Red)

KV25G0XGR5 (Imperial Grey)

KV25G0XMC5 (Metallic Chrome)

KV25G0XOB5 (Onyx Black)

KV25G0XBW5 (Blue Willow)

KV25G0XGC5 (Gloss Cinnamon)

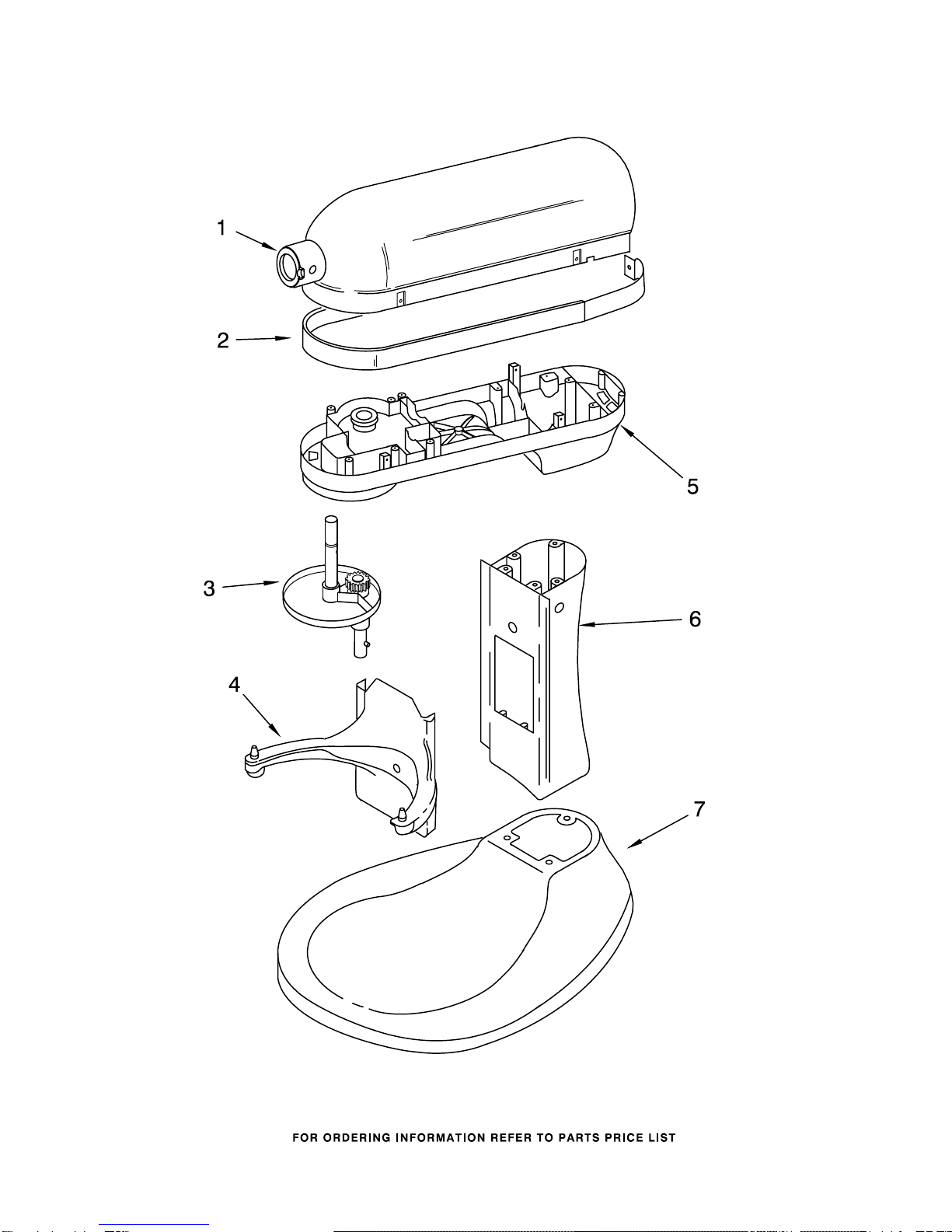

COLOR VARIATION PARTS

For Model: KV25G0X__5

W10136426

COLOR VARIATION PARTS

For Model: KV25G0X__5

W10136426

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

Colors Subject To Change.

Any Color Not Listed is

No Longer Available.

If Additional Colors Are Added,

This Page Will Be Updated.

1 Motor Housing

9703311 White

9703433 Metallic Chrome

9705296 Onyx Black

9705300 Empire Red

9705380 Cobalt Blue

9703531 Imperial Grey

9705693 Caviar

9708813 Bing Cherry

W10114574

Blue Willow

W10114555

Gloss Cinnamon

2 Trim Band

9708264 White on White

9708312 Grey

9708010 Black

3 Planetary

9708172 White

9708175 Metallic Chrome

9708176 Onyx Black

9708180 Empire Red

9708182 Cobalt Blue

9708173 Imperial Grey

9708183 Caviar

9708817 Bing Cherry

W10114578

Blue Willow

W10114559

Gloss Cinnamon

4 Bowl Supprt & Pins

9703674 White

9705356 Onyx Black

9703397 Metallic Chrome

9705360 Empire Red

9705390 Cobalt Blue

9703519 Imperial Grey

9705682 Caviar

9708824 Bing Cherry

W10114585

Blue Willow

W10114566

Gloss Cinnamon

5 Lower Gearcase

9706047 White

9706306 Metallic Chrome

9706311 Onyx Black

9706331 Empire Red

9706341 Cobalt Blue

9706296 Imperial Grey

9706346 Caviar

9708820 Bing Cherry

W10114581

Blue Willow

W10114562

Gloss Cinnamon

6 Column

9703673 White

9703349 Metallic Chrome

9705320 Onyx Black

9705324 Empire Red

9705384 Cobalt Blue

9703525 Imperial Grey

9705679 Caviar

9708827 Bing Cherry

W10114588

Blue Willow

W10114569

Gloss Cinnamon

7 Base And Foot

Assembly

9703690 White

9703346 Metallic Chrome

9705344 Onyx Black

9705348 Empire Red

9705388 Cobalt Blue

9703510 Imperial Grey

9705676 Caviar

9708830 Bing Cherry

W10114591

Blue Willow

W10114572

Gloss Cinnamon

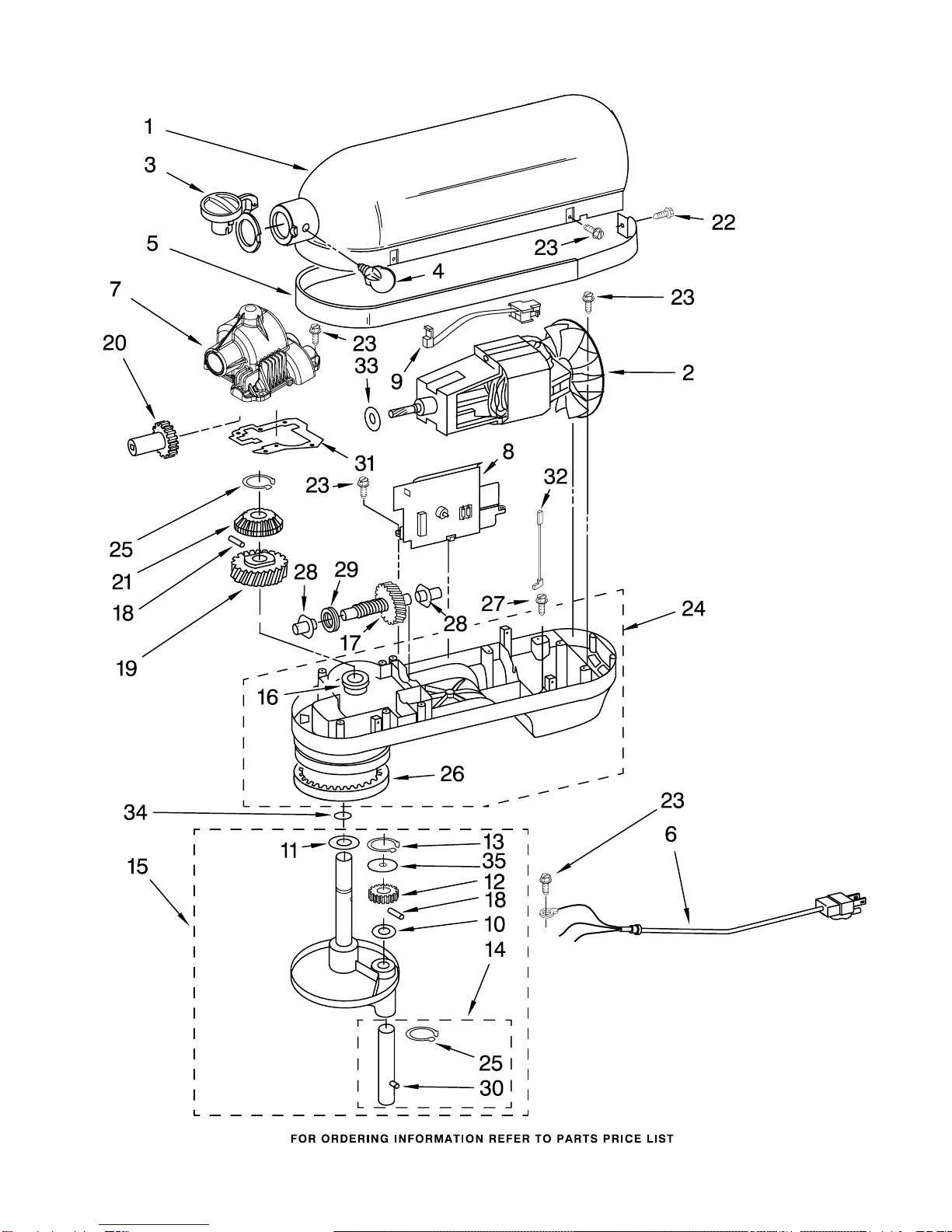

CASE, GEARING AND PLANETARY UNIT

For Model: KV25G0X__5

W10136426

CASE, GEARING AND PLANETARY UNIT

For Model: KV25G0X__5

W10136426

Illus. Part

No. No. DESCRIPTION

1 Gearcase Motor Housing

2 9707507 Motor (10 Tooth)

3 9703315 Cap, Attachment

Hub (Hinged)

4 Thumb Screw

9709196 Grey

9709194 Black

5Band, Trim

6 Power Cord

9706551 White

9706552 Black

7 9709125 Transmission

Housing Assembly

8 Control Assembly

9706648 Black Knob

9706649 Grey Knob

9 9703312 Sensor, Hall

Effect

10 9706090 Washer

11 9703434 Washer, Fiber

12 9707627 Gear, Pinion

13 9703438 Clip, Retaining

14 9708191 Shaft, Agitator

15 Planetary Assembly

16 16897 Bearing, Lower

Center

17 9709231 Gear, Worm

18 9707223 Pin, Retaining

19 9706529 Gear, Worm

Follower

20 9703338 Gear, Attachment

Hub Bevel

21 9703337 Gear, Bevel

22 3400617 Screw

23 3400814 Screw

24 Lower Gear Case

25 9703680 Retaining Clip

26 9703339 Gear, Internal

27 3400200 Screw

28 Bearing

9703560 Front

9703570 Rear

29 9703445 Bearing, Thrust

30 9704677 Pin, Groove

31 9709511 Gasket,

Transmission

32 9706036 Lead, Motor to

Control

33 9706247 Seal, Motor Shaft

34 67500−55 "O" Ring

35 8533910 Washer

Refer To Pages 2 & 3

Color Variation Parts

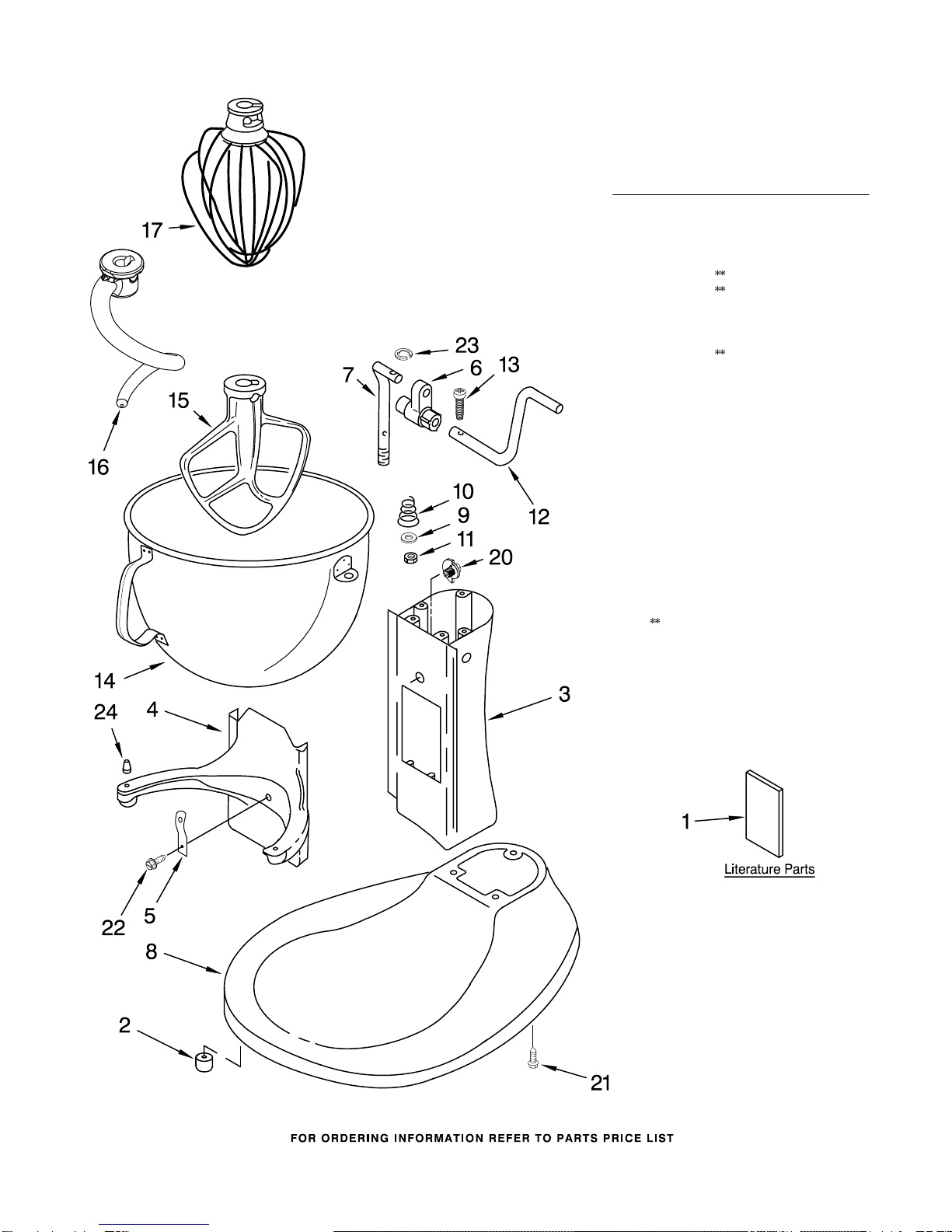

BASE AND PEDESTAL UNIT

For Model: KV25G0X__5

W10136426

Illus. Part

No. No. DESCRIPTION

1 Literature Parts

9708307 Use & Care Guide

W10136426

Repair Parts List

2 9708649 Foot, Rubber

3Column Assembly

4Bowl Support

5 9703474 Latch, Bowl Spring

6 9706885 Arm, Bowl Lift

7 9706787 Rod, Bowl Lift

8Base And Foot

Supports

9 9703439 Washer

10 9237 Spring

11 8533907 Nut

12 9706788 Handle, Bowl Lift

13 3400863 Screw

14 9703550 Bowl (5 Qt)

15 9708610 Beater, Flat

16 9703656 Hook, Dough

17 9703491 Whip, Wire

20 9703426 Cam, Adjusting

21 3400200 Screw

22 3400018 Screw

23 9703307 Clip

24 240185 Pin, Bowl Locating

Refer To Pages 2 & 3

Color Variation Parts

ACCESSORY PARTS

For Model: KV25G0X__5

W10136426

Illus. Part

No. No. DESCRIPTION

4164778 Mixer Attachment

Pak (Includes Food

Grinder (FG−A),

Food Strainer

(FVSP), And

Vegetable Slicer,

(RVS−A)

(FPP−A)

4164749 Food Grinder

(FG−A)

8211924 Grain Mill

(KGMA)

4164768 Pasta Maker And

Food Grinder

(Includes SNP

Pasta Maker

Plates)

(SN/FG−A)

4164775 Fruit/Vegetable

Strainer Parts (Use

With FG−A Model

Only) (FVSP)

4164750 Rotor Slicer/Shredder

(With 4 Standard

Cones) Fine Shredder,

Coarse Shredder,

Thick Slicer, And

Thin Slicer (RVS−A)

4164824 Pasta Maker Plates

(SNP−A)

4164774 Fruit/Vegetable

Strainer And Food

Grinder (FVS/FG−A)

4162838 Food Tray (FT)

4164748 Juicer (JE)

4164747 Can Opener (CO)

4164803 Sausage Stuffer

Kit (SSA)

4160588 Grease, Planetary

8212519 Ice Cream Maker

(KICA0WH0)
