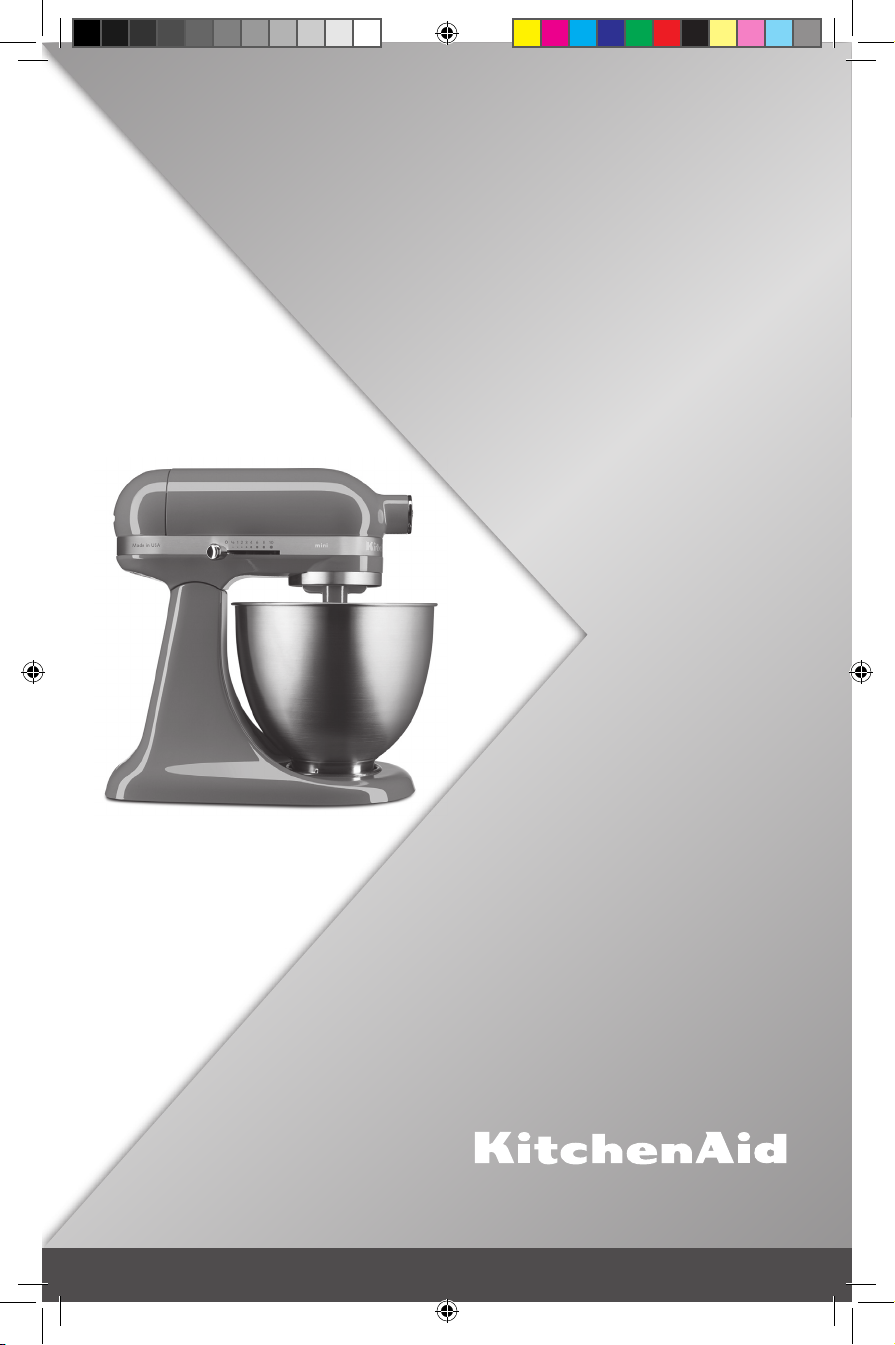

KitchenAid KEA25A Manual de usuario

5KSM3311X

7KSM3311X

KEA25A

W10920194C.indb 1 5/10/2018 12:37:27 PM

2 | PARTS AND FEATURES

PARTS AND FEATURES

PARTS AND ACCESSORIES

Pouring shield*

Flex Edge

beater*

Wire whip

Dough hook

Speed control

*Accessory sold separately

Motor head

Attachment hub

Beater shaft

Flat

beater

Bowl

W10920194C.indb 2 5/10/2018 12:37:28 PM

ENGLISH

STAND MIXER SAFETY | 3

STAND MIXER SAFETY

IMPORTANT SAFEGUARDS

When using electrical appliances, basic safety

precautions should always be followed, including

the following:

1. Read all instructions. Misuse of appliance may result

in personal injury.

2. To protect against risk of electrical shock, do not put

Stand Mixer in water or other liquid.

3. This appliance is not intended for use by persons

(including children) with reduced physical, sensory, or

mental capabilities, or lack of experience and

knowledge, unless they have been given supervision

or instruction concerning use of the appliance by a

person responsible for their safety.

4. Unplug Stand Mixer from outlet when not in use,

before putting on or taking off parts and before

cleaning.

5. Avoid contacting moving parts. Keep hands, hair,

clothing, as well as spatulas and other utensils away

from beater during operation to reduce the risk of

injury to persons and/or damage to the Stand Mixer.

W10920194C.indb 3 5/10/2018 12:37:28 PM

4 | STAND MIXER SAFETY

STAND MIXER SAFETY

6. Do not operate Stand Mixer with a damaged cord

or plug or after the Stand Mixer malfunctions, or is

dropped, or damaged in any manner.

7. The use of attachments not recommended or sold by

KitchenAid may cause re, electrical shock or injury.

8. Do not use the Stand Mixer outdoors.

9. Do not let the cord hang over edge of table or counter.

10. Remove at beater, wire whip, or dough hook fro

Stand Mixer before washing.

11. Children should be supervised to ensure that they do

not play with the appliance.

12. If the supply cord is damaged, it must be replaced

by the manufacturer, its service agent, or similarly

qualied persons in order to avoid a hazard.

13. Never leave the appliance unattended while it is in

operation.

14. To avoid product damage, do not use the Stand Mixer

bowls in areas of high heat such as an oven,

microwave, or on a stovetop.

15. Refer to the “Care and Cleaning” section for

instructions on cleaning the surfaces in contact with

food.

16. This appliance is intended to be used in household and

similar applications such as:

- staff kitchen areas in shops, ofces, or other working

environments;

- farmhouses;

- by clients in hotels, motels and other residential type

environments;

- bed and breakfast type environments.

SAVE THESE INSTRUCTIONS

W10920194C.indb 4 5/10/2018 12:37:28 PM

ENGLISH

STAND MIXER SAFETY | 5

STAND MIXER SAFETY

ELECTRICAL REQUIREMENTS

Electrical Shock Hazard

Plug into an earthed outlet.

Do not remove earth prong.

Do not use an adapter.

Do not use an extension cord.

Failure to follow these

instructions can result in

death, fire, or electrical shock.

5KSM3311X

Voltage: 220-240 V~

Frequency: 50-60 Hz

Wattage: 250 W

7KSM3311X

Voltage: 127 V~

Frequency: 60 Hz

Wattage: 250 W

NOTE: The power rating for your

Stand Mixer is printed on the serial plate.

Do not use an extension cord. If the power

supply cord is too short, have a qualified

electrician or serviceman install an outlet

near the appliance.

The maximum rating is based on the

attachment that draws the greatest

load (power). Other recommended

attachments may draw significantly

less power.

*Accessory sold separately

W10920194C.indb 5 5/10/2018 12:37:28 PM

6 | USING THE STAND MIXER

USING THE STAND MIXER

SPEED CONTROL GUIDE

All speeds have the Soft Start feature, which automatically starts the Stand Mixer

at a lower speed to help avoid ingredient splash-out and “ﬂour puff” at start-up,

then quickly increases to the selected speed for optimal performance.

SPEED ACCESSORY ACTION DESCRIPTION

½STIR For starting all mixing procedures, slow

stirring, combining, and mashing. Use to

add ﬂour and dry ingredients to batter,

and to add liquids to dry ingredients.

Do not use Speed 1 to mix or knead

yeast doughs.

2SLOW MIXING For slow mixing, mashing, faster stirring.

Use to mix and knead yeast doughs,

heavy batters, and candies; start

mashing potatoes or other vegetables;

cut shortening into flour; mix thin or

splashy batters.

4MIXING,

BEATING For mixing semi-heavy batters, such

as cookies. Use to combine sugar and

shortening, and to add sugar to egg

whites for meringues. Medium speed

for cake mixes.

6BEATING,

CREAMING For medium-fast beating (creaming),

or whipping. Use to finish mixing cake,

doughnut, and other batters. High

speed for cake mixes.

8FAST BEATING,

WHIPPING For whipping cream, egg whites,

and boiled frostings.

10 FAST WHIPPING For whipping small amounts of cream,

or egg whites; for final whipping of

mashed potatoes.

NOTE: The speed control can be set between the speeds listed in the chart to obtain

speeds 1, 3, 5, 7, and 9 if a finer adjustment is required. Do not exceed Speed 2 when

preparing yeast doughs as this may cause damage to the Stand Mixer.

W10920194C.indb 6 5/10/2018 12:37:29 PM

ENGLISH

USING THE STAND MIXER | 7

USING THE STAND MIXER

ACCESSORY GUIDE

ACCESSORY USE TO MIX DESCRIPTION

FLAT BEATER

FLEX EDGE BEATER*

Normal

to heavy

mixtures

Cakes, creamed frostings, candies,

cookies, biscuits, pie pastry, meat loaf,

mashed potatoes

WIRE WHIP Mixtures

that need air

incorporated

Eggs, egg whites, heavy cream,

boiled frostings, sponge cakes,

mayonnaise

DOUGH HOOK Mixing and

kneading yeast

doughs

Breads, rolls, pizza dough, buns

ASSEMBLING THE STAND MIXER

1Check to be sure that the Stand

Mixer is unplugged, and the speed

control is turned to “0”. 2

Raise the motor head: Slide the

locking lever to the unlock position

and lift the motor head. Once lifted,

slide the locking lever to the lock

position to keep the motor head up.

NOTE: To move the speed control lever

with ease, lift slightly up as you move it

across the settings in either direction.

W10920194C.indb 7 5/10/2018 12:37:29 PM

8 | USING THE STAND MIXER

USING THE STAND MIXER

Attach the bowl: Place the bowl on

the bowl clamping plate and gently

turn it in a clockwise direction to

lock it into place.

Attach any accessory: Slip the

accessory onto the beater shaft and

press upward as far as possible. Turn

the accessory counterclockwise to

hook the accessory over the pin on

the shaft.

Lower the motor head: Slide the

locking lever to the unlock position

and guide the motor head down.

Make sure motor head is completely

down, then slide the locking lever

to the lock position. Before mixing,

test lock by attempting to raise the

motor head.

W10920194C.indb 8 5/10/2018 12:37:30 PM

ENGLISH

USING THE STAND MIXER | 9

USING THE STAND MIXER

IMPORTANT: Your Stand Mixer is adjusted at the factory so that the ﬂat beater just

clears the bottom of the bowl. If, for any reason, the ﬂat beater hits the bottom of

the bowl or is too far away from the bowl, you can easily adjust the clearance.

NOTE: When properly adjusted, the flat beater will not strike on the bottom or sides

of the bowl. If the flat beater or the wire whip is so close that it strikes the bottom of

the bowl, coating may wear off the beater or wires on the whip may wear.

(OPTIONAL) To adjust beater to

bowl clearance: Tilt the motor head

back; then turn the screw slightly

counterclockwise (left) to raise the

beater, or clockwise (right) to lower the

beater. Adjust the beater so that it just

clears the surface of the bowl. If you

overadjust the screw, the bowl lock

lever may not lock into place.

(OPTIONAL) Place the pouring shield*:

Slide the pouring shield* from the

front of the Stand Mixer over the

bowl until the pouring shield* is

centred. The bottom rim of the

pouring shield* fits inside of the bowl.

The pouring chute will be just to the

right of the attachment hub as you face

the Stand Mixer.

*Accessory sold separately

W10920194C.indb 9 5/10/2018 12:37:30 PM

10 | USING THE STAND MIXER

USING THE STAND MIXER

OPERATING THE STAND MIXER

NOTE: The Stand Mixer may warm up during use. Under heavy loads with extended

mixing time, the top of the unit may become hot. This is normal.

Plug the Stand Mixer into

a grounded outlet. Always set

the speed control lever on lowest

speed to start, then gradually

increase speed to avoid splashing

ingredients. See the “Speed control

guide” to select the best speed for

your recipe.

Do not scrape the bowl while the

Stand Mixer is operating. The bowl

and beaters are designed to provide

thorough mixing without frequent

scraping. Scraping the bowl once

or twice during mixing is usually

sufficient.

NOTE: To move the speed control lever

with ease, lift slightly up as you move it

across the settings in either direction.

Electrical Shock Hazard

Plug into an earthed outlet.

Do not remove earth prong.

Do not use an adapter.

Do not use an extension cord.

Failure to follow these

instructions can result in

death, fire, or electrical shock.

W10920194C.indb 10 5/10/2018 12:37:30 PM
