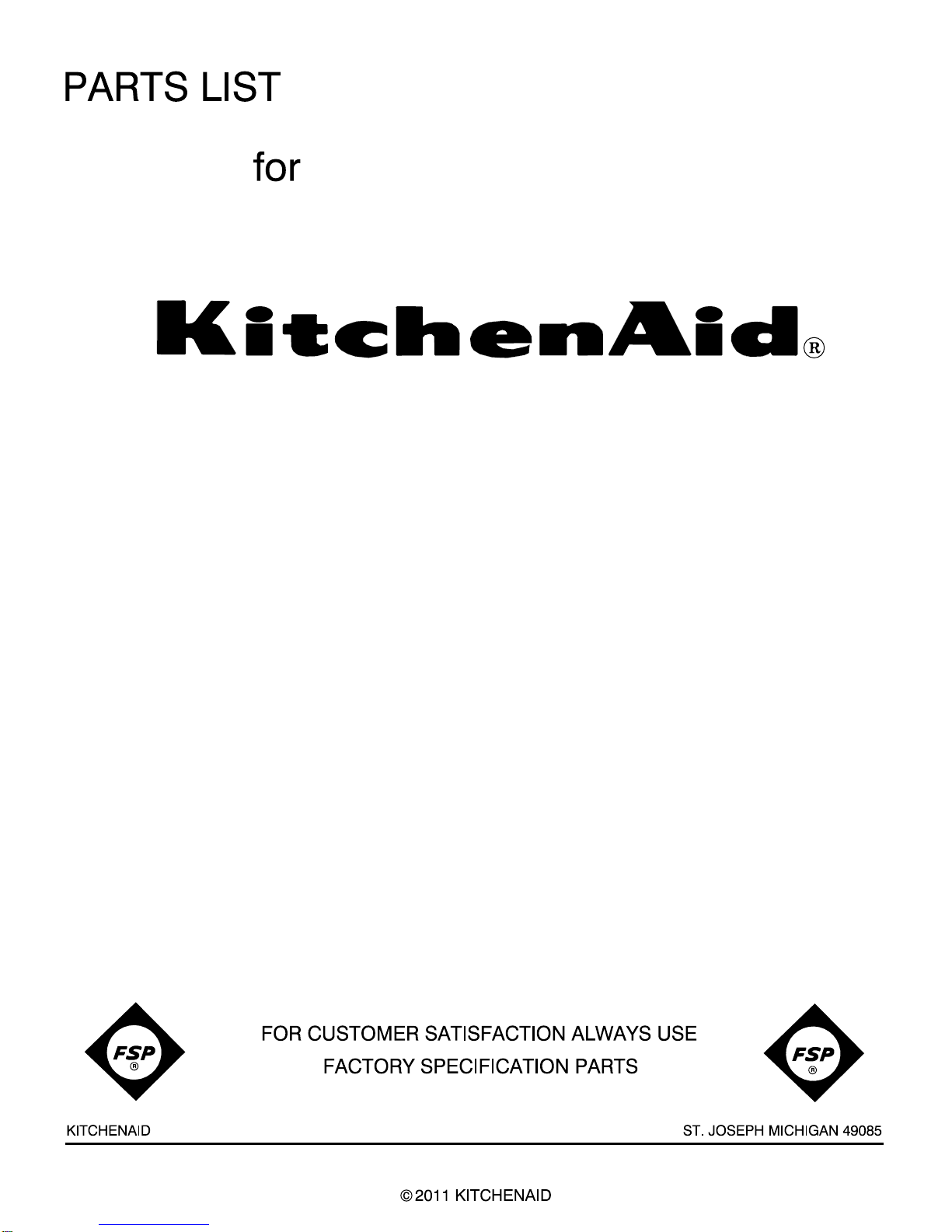

KitchenAid KSM150AGBCS Manual de usuario

5 QT. STAND MIXER − TILT HEAD

ARCHITECT SERIES − GLASS BOWL

MODELS:

3−11 Litho in U.S.A. (skr) (psw) Part No. W10325324 Rev. B

KSM150AGBCA0 (Candy Apple)

KSM150AGBCS0 (Cocoa Silver)

KSM150AGBRI0 (Raspberry Ice)

KSM150AGBES0 (Espresso)

COLOR VARIATION PARTS

For Models: KSM150AGB__0

3−11 Litho in U.S.A. (skr) (psw) Part No. W10325324 Rev. B

COLOR VARIATION PARTS

For Models: KSM150AGB__0

W10325324

Illus. Part

No. No. DESCRIPTION

1 Motor Housing

W10239115

Candy Apple

W10171586

Cocoa Silver

W10384420

Raspberry Ice

W10383627

Espresso

2 Trim Band

W10171580

Dk. Platinum

3 End Cover

W10239110

Candy Apple

W10171581

Cocoa Silver

W10384429

Raspberry Ice

W10383633

Espresso

4 Planetary

W10239112

Candy Apple

W10171583

Cocoa Silver

W10384425

Raspberry Ice

W10383631

Espresso

5 Lower Gearcase

W10239118

Candy Apple

W10171589

Cocoa Silver

W10384415

Raspberry Ice

W10383623

Espresso

6 Pedestal w/Feet

W10239121

Candy Apple

W10171592

Cocoa Silver

W10392122

Raspberry Ice

W10403051

Espresso

Colors Subject To Change.

Any Color Not Listed is

No Longer Available.

If Additional Colors Are Added,

This Page Will Be Updated.

CASE, GEARING AND PLANETARY UNIT

For Models: KSM150AGB__0

W10325324

CASE, GEARING AND PLANETARY UNIT

For Models: KSM150AGB__0

W10325324

Illus. Part

No. No. DESCRIPTION

1 Gearcase Motor

Housing

2 Cap, Attachment

Hub

242765−2 Chrome

W10163146

Satin Chrome

3 Thumb Screw

9709194 Black

4Band, Trim

W10323373

Washer

W10112253

Gear, Worm

7 240308 Bracket, Worm Gear

and Bearing

8 9705444 Pin

9 240210−2 Shaft & Pinion

10 9705130 Gear, Attachment

Hub Level

11 9709627 Bevel Pinion

Center Gear

12 240026 Shaft, Vertical

Center

13 240018−1 Pin (Vertical

Center Shaft)

14 9705443 Pin, Groove

15 4162324 Gasket, Transmissn

16 67500−55 O−Ring

W10323378

Washer

18 Lower Gearcase

19 103994 Screw

20 4176067 Shaft, Agitator

21 9703438 Ring, Retaining

22 9704677 Pin, Groove

23 4162914 Screw

24 Cover, End

25 311932 Screw

26 3400022 Screw

27 240309−2 Gear, Worm

and Bracket

28 4160474 Shaft, Center &

O−Ring

29 8533914 Washer, Spring

Lock

30 3400025 Screw

31 3400203 Screw, Set

32 9703903 Pinion, Gear

Agitator Shaft

33 9706090 Washer

34 Planetary

35 240285 Ring, Planetary

Drip

36 89411 Screw, Adjusting

37 9703904 Gear, Internal

Refer to Pages 2 & 3

MOTOR AND CONTROL PARTS

For Models: KSM150AGB__0

W10325324

MOTOR AND CONTROL PARTS

For Models: KSM150AGB__0

W10325324

Illus. Part

No. No. DESCRIPTION

1 110679 Screw, Pivot

2 116241 Washer, Spring

3 Lever, Speed

Control Assy

9709276 Black

4 3183680 Spring, Control

Plate

5 9704324 Washer, Ball

Bearing (Front)

6 9708315 Armature & Bearing

W10323376

Washer

8 16998 Stud, Governor

Drive

9 3180526 Bracket, Bearing

Assembly

10 240775−1 Seal, End

W10131078

Nut

12 3180238 Washer

13 240769 Screw

W10068270

Washer

15 3184176 Speed Link & Cam

16 240205 Spring, Flat

17 9702695 Field Assembly

18 4162634 Sleeve, Motor Stud

W10380496

Brush w/Spring

20 9707926 Screw, Set

21 4162546 Brush Holder

22 3179908 Housing, Brush

Holder

23 240680 Insert, Brush

Holder

24 116286 Cap, Spring Seat

25 116287 Spring, Cap

26 Cap, Brush Holder

3184212 Black

W10068260

Screw

W10119326

Control Plate Assy

W10330804

Governor Assembly

W10325124

Phase Control Brd

31 Cord, Power

W10164883

Black

32 3184609 Screw, Self Tap

BASE AND PEDESTAL UNIT

For Models: KSM150AGB__0

W10325324

Illus. Part

No. No. DESCRIPTION

1 Literature Parts

9709785 Use & Care/Triling

W10325324

Repair Parts List

W10220977

Ring, Thread

3 Beater, Flat

9707572 Burnished

W10154769

Bowl, 5 Qt Glass

5 3400020 Screw

W10191926

Cap, Screw Bowl

7 9709707 Foot, Base

8 9704329 Whip, Wire

9 9706626 Hook, Dough

10 9709055 Latch

11 24452 Latch, Link &

Lever

12 110679 Screw, Pivot

13 116241 Washer, Spring

14 8533912 Washer

15 103993 Screw, Latch

Bearing

16 24450 Link, Latch

17 Lever, Latch

9709280 Black

18 16910 Pin, Hinge

19 Pedestal

REFER TO PAGES 2 & 3

ACCESSORY PARTS

For Models: KSM150AGB__0

W10325324

Illus. Part

No. No. DESCRIPTION

FOLLOWING PARTS

NOT ILLUSTRATED

4164839 Speed Disc

(Service Tool)

4176597 Grease, Planetary

4164778 Mixer Attachment

Pak (Includes Food

Grinder (FGA),

Food Strainer

(FVSP), And

Vegetable Slicer,

(RVSA)

(FPPA)

4164749 Food Grinder

(FGA)

W10318099

Grain Mill

(KGM−0)

4164768 Pasta Maker And

Food Grinder

(Includes SNP

Pasta Maker

Plates)

(SNFGA)

4164775 Fruit/Vegetable

Strainer Parts

(Use With FGA

Model Only) (FVSP)

4164750 Rotor Slicer/

Shredder(With

4 Standard Cones)

Fine Shredder,

Coarse Shredder,

Thick Slicer,and

Thin Slicer

(RVSA)

9709923 Pouring Shield

(KN1PS0)

SNPA−0 Pasta Maker Plates

4164774 Fruit/Vegetable

Strainer and Food

Grinder (FVSFGA)

4396709 Cover, Quilted

(KMCC1WH)

241675 Food Tray (FT)

4164748 Juicer (JE)

4164747 Can Opener (CO)

4164803 Sausage Stuffer

Kit (SSA)

8212519 Ice Cream Maker

(KICA0WH0)

9709314 Bowl Cover,

(KBC90N1)

W10154769

Bowl, Glass

5 Qt. (K5GB)

W10223140

Cover, Glass Bwl

KPEXTA Pasta Extruder

w/6 Discs
