KitchenAid KHHC2090SBL0 Manual de usuario

CONTROL BOARD PARTS

For Models: KHHC2090SWH0, KHHC2090SBL0, KHHC2090SSS0, KHHC2090SBT0

(White) (Black) (Stainless Steel) (Biscuit)

12−07 Litho In U.S.A. (rk) Part No. 8188450

MICROWAVE

HOOD

COMBINATION

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Literature Parts

8205291 Use & Care Guide

8205293 Tech Sheet

8205743 Quick Reference

2 8206039 Support, Cavity

(Left)

3 8206040 Plate, Protection

(Left)

4 Side Panel, Left

8206478 White

8206479 Black

8206480 Biscuit

8206481 Stainless Steel

5 Button

8206482 White

8206483 Black

8206484 Biscuit

8206485 Stainless Steel

6 8206486 Hood/Light Switch

Board

7 Side Panel, Right

8206489 White

8206490 Black

8206491 Biscuit

8206492 Stainless Steel

8 8206602 Control Board,

(Relay)

9 8206061 Plate, Protection

(Right)

W10113785

Plate, Chassis

11 8206065 Support, Cavity

(Right)

12 8206603 Board, Relay

13 8206053 Holder,

Microcomputer

14 8206062 AC Line Filter

15 8206060 Holder, Filter

W10113782

Resistor (50W)

W10113783

Resistor (25W)

W10113784

Spacer (6)

19 8169499 Glass, Lamp

20 8169646 Frame, Glass

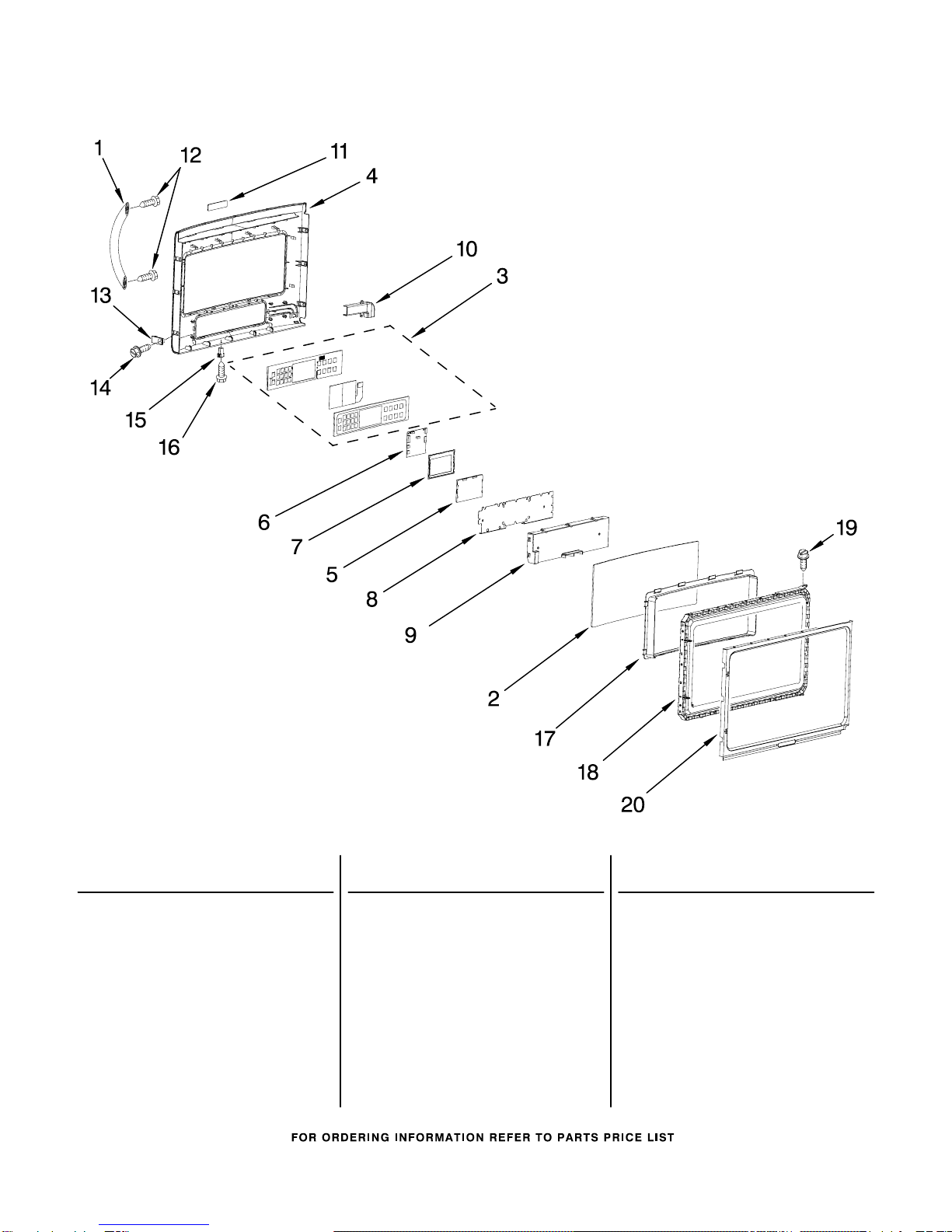

DOOR PARTS

For Models: KHHC2090SWH0, KHHC2090SBL0, KHHC2090SSS0, KHHC2090SBT0

(White) (Black) (Stainless Steel) (Biscuit)

8188450

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Handle

8206501 White

W10110267

Black

8206503 Biscuit

W10116265

Stainless Steel

2 8206528 Outer Door Glass

W10116267

Control Panel

4 Outer Door Frame

8206518 White

8206519 Black

8206520 Biscuit

8206521 Stainless Steel

W10116269

LCD Frame

W10116268

Board, User

(Interface)

W10113793

LCD Module

8 8206511 Cntrl Panel Plate

9 8206512 Cntrl Panel Cover

10 8206527 Cable Cover, Door

11 Logo

8206514 White

8206515 Black

8206516 Biscuit

8206517 Stainless Steel

12 8206513 Screw (2)

13 Spacer, Side (6)

8206522 White

8206523 Black

8206524 Biscuit

8206525 Stainless Steel

14 8206215 Screw (6)

15 8206178 Spacer, Bottom (2)

16 8206179 Screw (2)

17 8206529 Cover, Choke

W10112215

Door Plate Assy

19 8206181 Hinge Screw

20 8206531 Dr Innr Frm Assy

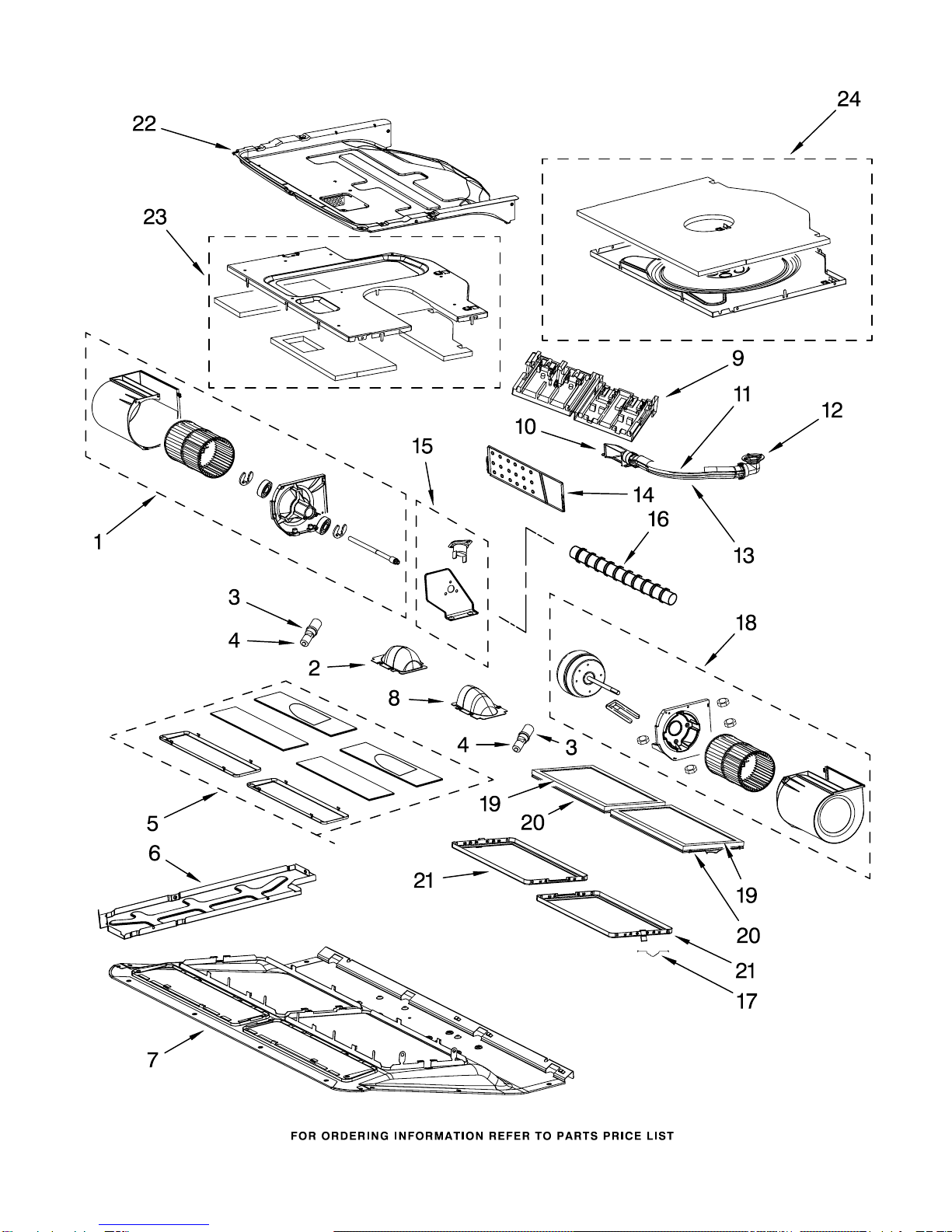

VENTILATION PARTS

For Models: KHHC2090SWH0, KHHC2090SBL0, KHHC2090SSS0, KHHC2090SBT0

(White) (Black) (Stainless Steel) (Biscuit)

8188450

VENTILATION PARTS

For Models: KHHC2090SWH0, KHHC2090SBL0, KHHC2090SSS0, KHHC2090SBT0

(White) (Black) (Stainless Steel) (Biscuit)

8188450

Illus. Part

No. No. DESCRIPTION

1 8206092 Housing, Blower

(Left)

2 8184194 Reflector, Lamp

3 8204670 Lamp (2)

4 8206033 Socket, Lamp (2)

(Left)

5 Frame, Glass

W10113788

Left

W10113789

Right

6 8206097 Plate, Separator

(Left)

7 8206497 Plate, Bottom

8 8184132 Reflector, Lamp

9 8206103 Cover, Terminal

10 8206104 Diffuser

11 8206105 Cover, Duct

12 8206106 Connector, Duct

13 8206107 Holder, Duct

W10115582

Shield

15 8206212 Support & Base

Thermostat Assy

16 8206263 Connector Shaft

17 8206499 Spring

18 8206112 Housing, Blower

(Right)

19 8205998 Filter, Charcoal

20 8205997 Filter, Grease

W10113792

Spring, Hook

22 8206020 Air Guide,

Center Hood

23 8206007 Plate, Insltn Top

24 8206099 Plate, Insltn Bttm

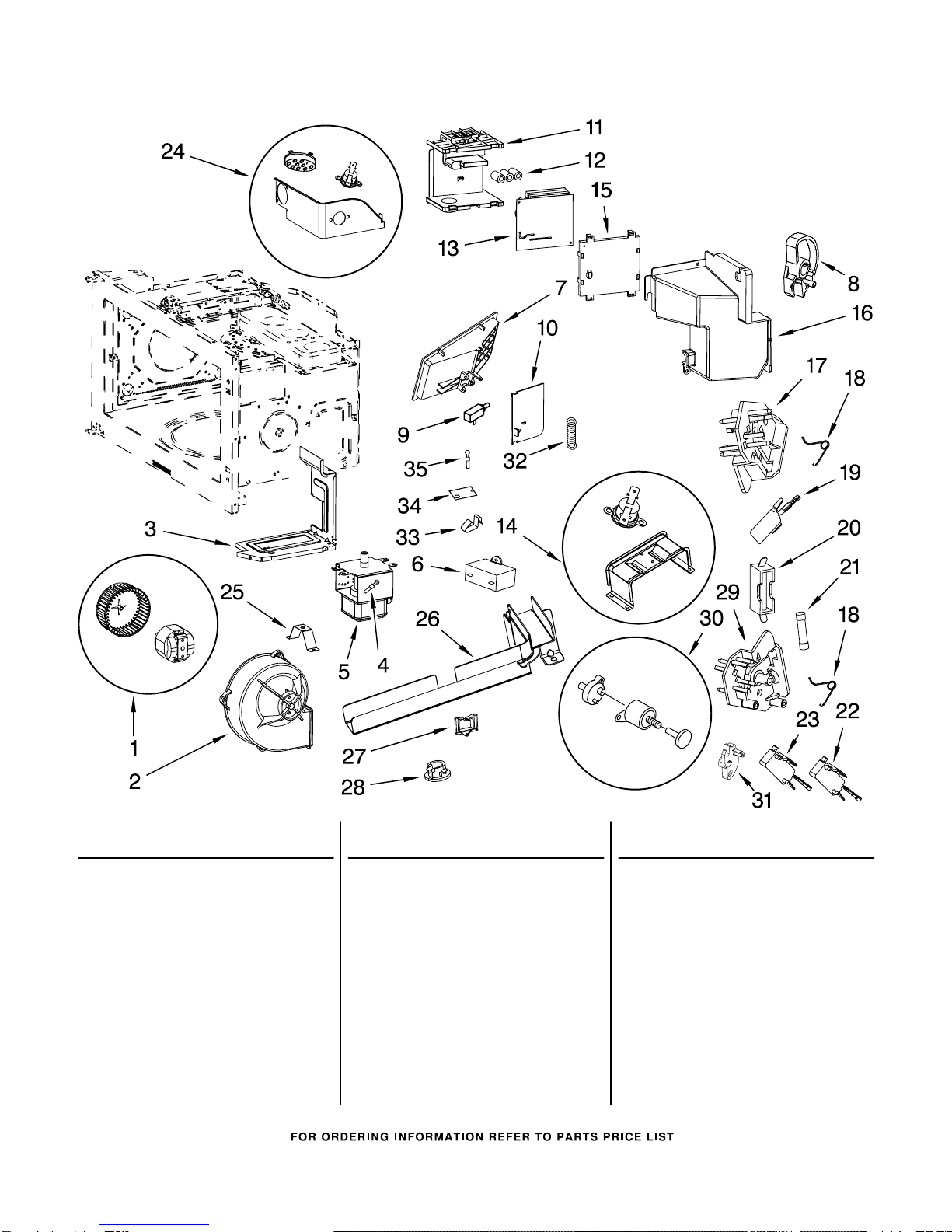

INTERIOR AND AIR FLOW PARTS

For Models: KHHC2090SWH0, KHHC2090SBL0, KHHC2090SSS0, KHHC2090SBT0

(White) (Black) (Stainless Steel) (Biscuit)

8188450

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 8206075 Fan Motor Assy

2 8206076 Housing, Fan

3 8206077 Plate, Divider

W10115577

Thermistor,

Magnetron

5 8206079 Magnetron

6 8206080 Motor, Capacitor

7 8206081 Housing, Valve

W10113786

Cam Plate (Upper)

9 8206082 Solenoid

10 8206083 Lid, Valve

11 8206085 Cover, Inverter

12 8206086 Ferrite Ring

13 8206087 Inverter

14 8206035 Thermostat,

Base Assembly

15 8206089 Holder, Inverter

16 8206494 Air Guide,

Magnetron

17 4393595 Support, Interlock

18 8206091 Spring, Interlock

19 8206345 Switch, Micro

(Secondary)

20 8184312 Holder, Fuse

21 4393308 Fuse

22 8206347 Switch, Micro

(Monitor)

23 8206352 Switch, Micro

(Primary)

24 8206026 Humidity Sensor

& Thermostat Assy

25 8206031 Support, Air Guide

26 8206477 Protector, Wire

27 8206037 Clip, Saddle

28 8206038 Clip, Round

29 8206209 Support, Interlock

30 8206210 Piston Assembly

W10113787

Cam Plate (Lower)

32 8206084 Spring, Valve

33 8206223 Clip, Sensor

34 8206224 Cover

35 8206023 Sensor, Temp

RACK AND TURNTABLE PARTS

For Models: KHHC2090SWH0, KHHC2090SBL0, KHHC2090SSS0, KHHC2090SBT0

(White) (Black) (Stainless Steel) (Biscuit)

8188450

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 8205995 Rack, Convection

2 8206264 Rack, Grill

3 8204670 Lamp, Cavity

W10113781

Holder, Lamp

5 8205980 Deflector, Air

6 8206451 Steamer

7 8205239 Cover, Protector

8 8184839 Heater, Quartz

9 8184838 Quartz Tube,

Softstart

10 8184837 Browner, Halogen

11 8206024 Cover, Insulation

(Grill)

12 8205996 Plate, Crisp

W10113773

Turntable

14 8206222 Ring, Turntable

15 8205994 Driver, Turntable

W10106520

Handle, Crisp Plt

17 8206034 Clip, Cavity Lamp

18 8206101 Spacer

19 8206102 Motor, Turntable

20 4393832 Screw

21 8206025 Thermostat,

Grill

22 8206066 Cover, Inlet

23 8206476 Lid, Lamp

CABINET AND INSTALLATION PARTS

For Models: KHHC2090SWH0, KHHC2090SBL0, KHHC2090SSS0, KHHC2090SBT0

(White) (Black) (Stainless Steel) (Biscuit)

8188450

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Case, Outer

8206027 White

8206028 Black

8206029 Biscuit

W10116264

Stainless Steel

2 8206442 Damper

3 8184897 Lid, Power Cord

4 4393472 Screw

5 8206475 Vent Screen

(Middle)

6 Support,

Vent Screen

8206011 White

W10115568

Black

8206015 Biscuit

W10116263

Stainless Steel

7 8206207 Vent Screen

(Left)

8 8206051 Plate, Back

9 8206319 Plate, Mounting

10 8206182 Cord, Power

11 4393836 Screw

12 8206206 Vent Screen

(Right)

W10115570

Insulation Assy

W10107810

Mounting Nut (2)

Miscellaneous

8205979 Installation,

Magnetron

Hardware

8206487 Template, Upper

W10113776

Harns−Wire,#70 RCB

W10115594

Main Harness

8206185 Ground Wire

W10113777

Harns−Wire,

RCB − Inverter

8206189 Hood/Light Control

Harns−Wire #74

W10113778

Hood/Light Control

Harns−Wire #73

W10113779

Harns−Wire #75

P64 RCB

W10113780

Harns−Wire #76

P2 RCB

8206468 Harns−Wire #77

P3 LCD to UIB

8206186 Harns−Wire, HV

W10115595

Harns−Wire,

P56−P66

CONVECTION PARTS

For Models: KHHC2090SWH0, KHHC2090SBL0, KHHC2090SSS0, KHHC2090SBT0

(White) (Black) (Stainless Steel) (Biscuit)

8188450

Illus. Part

No. No. DESCRIPTION

1 8206068 Thermostat

2 8206069 Impeller Assy

W10115572

Bracket, Motor

4 8206071 Heater Assembly

5 8206073 Washer

6 8206074 Fan Wheel

W10115575

Plate, Spring Lock

W10115573

Washer, Adjustable
