CABINET LINER AND DOOR PARTS

For Models: KUIS15NRTW3, KUIS15NRTT3, KUIS15NRTB3, KUIS15NRTS3

(White) (Biscuit) (Black) (Stainless Steel)

12−09 Litho In U.S.A. (mjb) (psw) Part No. W10308005 Rev.A

ICE CUBE

MAKER

CABINET LINER AND DOOR PARTS

For Models: KUIS15NRTW3, KUIS15NRTT3, KUIS15NRTB3, KUIS15NRTS3

(White) (Biscuit) (Black) (Stainless Steel)

W10308005

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Literature Parts

W10206423

Use & Care Guide

W10206442

Service &

Wiring Sheet

2 3400886 Screw

3 2185742 Bin, Door

4 2185678 Spacer

5 2217394 Cover, Wiring

6 489442 Screw

7 Door

2932803W White

2932803T Biscuit

2932803B Black

2932803BS

Stainless Steel

8 2185695 Cam, Door

9 2217393 Assembly,

Magnetic Catch

10 2151652 Plug, Hole

11 2208136 Clamp

13 2217367 Gasket, Bottom

14 489503 Clamp

15 2217294 Gasket, Door

16 2185640 Sleeve, Hinge

17 Nameplate

W10046670

White

W10046700

Biscuit

W10046640

Black

W10046610

Grey

18 2185710 Hinge, Top

19 2185709 Shim, Hinge

20 Handle, Door

2208492W White

2208492T Biscuit

2208492B Black

W10136199

Assembly,

Unit Cover

23 Screw

8281188 White

8281187 Biscuit

8281186 Black

24 Filler, Endcap

Left Side

2185655W White

2185655T Biscuit

2185655B Black

Right Side

2185656W White

2185656T Biscuit

2185656B Black

25 2185756 Pad, Foam

26 2185691 Channel, Wiring

28 2185989 Tube, Drain

29 585158 Scoop

30 3400884 Screw

33 2185711 Hinge, Bottom

34 2185712 Pin, Hinge

35 489048 Screw, Ground

37 3400240 Nut,

Leg Leveler

38 348689 Screw

39 8281265 Screw

40 2185927 Holder, Scoop

41 8281228 Thumbscrew

42 3374849 Leg, Leveler (4)

43 2155774 Strap

44 Top

2929700W White

2929700T Biscuit

2929700B Black

45 2185690 Shield, Electrical

46 2217293 Gasket, Top Panel

47 Grill, Front

2185571W White

2185571T Biscuit

2185571B Black

48 489474 Screw

49 Cabinet & Liner

(NOT SERVICED)

EVAPORATOR, ICE CUTTER GRID AND WATER PARTS

For Models: KUIS15NRTW3, KUIS15NRTT3, KUIS15NRTB3, KUIS15NRTS3

(White) (Biscuit) (Black) (Stainless Steel)

W10308005

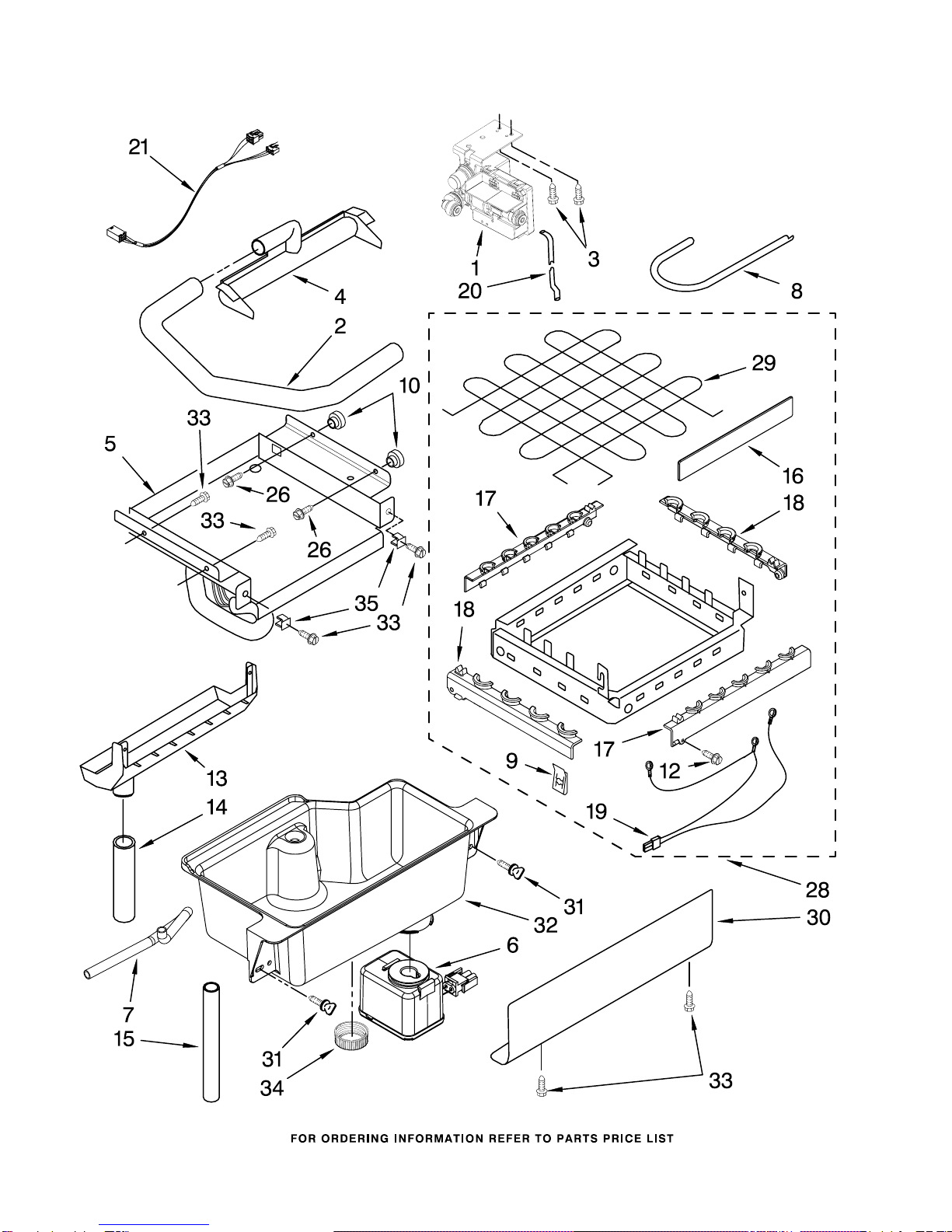

EVAPORATOR, ICE CUTTER GRID AND WATER PARTS

For Models: KUIS15NRTW3, KUIS15NRTT3, KUIS15NRTB3, KUIS15NRTS3

(White) (Biscuit) (Black) (Stainless Steel)

W10308005

Illus. Part

No. No. DESCRIPTION

W10163596

Valve, Complete

Water

2 2217286 Tube, Plastic

3 488208 Screw

4 2185523 Dispenser, Water

W10218037

Evaporator

6 2313705 Pump, Drain

7 2313851 Tube, Reservoir

Pump

W10122016

Tube, Water Fill

9 488660 Nut, Speed

10 836667 Spacer

12 489443 Screw

13 2185625 Reservoir,

Water Slide

14 2185626 Tube

15 2313890 Hose, Overflow

16 2313604 Guide−Ice, Grid

17 2313603 Bracket, Rear

W10136175

Bracket, Front

18 2313602 Bracket, Side

Left and Right

W10218014

Harness, Grid

W10218065

Tube

21 2310169 Wire Assembly

(Valve)

26 3400886 Screw

W10218012

Grid Assembly

(Complete)

29 2174754 Wire, Grid Cutter

30 2185570 Cover, Grid

31 8281228 Thumbscrew

32 2324334 Reservoir, Water

33 3400884 Screw

34 2185696 Cap, Drain

35 3400909 Nut, Push−In

PUMP PARTS

For Models: KUIS15NRTW3, KUIS15NRTT3, KUIS15NRTB3, KUIS15NRTS3

(White) (Biscuit) (Black) (Stainless Steel)

W10308005

Illus. Part

No. No. DESCRIPTION

1 2313628 Pump−Recirculating

2 3400884 Screw 8−18 X 5/8

3 2185677 Cover, Pump

4 2313844 Bracket, Connector

Assembly

5 2313627 Bracket−Pump

6 2313643 Sensor−Water Level

8 2310092 Wiring Harness

Main To Pump

9 2313702 Pump Assembly

CONTROL PANEL PARTS

For Models: KUIS15NRTW3, KUIS15NRTT3, KUIS15NRTB3, KUIS15NRTS3

(White) (Biscuit) (Black) (Stainless Steel)

W10308005

Illus. Part

No. No. DESCRIPTION

1 2185738 Box, Control

2 2310139 Transformer

3 2304122 Assembly, Switch

(ALSO ORDER #4)

W10206463

Overlay

W10226156

Control Board

6 2149705 Switch, Plunger

Grid/Light

7 2187585 Wire Assy. Active

Overlay Jumper

9 745362 Bulb

12 2313633 Thermostat, Bin

13 2185825 Clamp

15 3400884 Screw

18 3400850 Screw

20 2313635 Thermister,

Ice Control

UNIT PARTS

For Models: KUIS15NRTW3, KUIS15NRTT3, KUIS15NRTB3, KUIS15NRTS3

(White) (Biscuit) (Black) (Stainless Steel)

W10308005

UNIT PARTS

For Models: KUIS15NRTW3, KUIS15NRTT3, KUIS15NRTB3, KUIS15NRTS3

(White) (Biscuit) (Black) (Stainless Steel)

W10308005

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 2185532 Bracket, Fan Mtg.

2 2185675 Pad, Foam

3 2188935 Blade, Fan

4 2315558 Motor & Mounting

Plate Assembly

W10193296

Wiring Harness,

Complete Unit

(Includes

Power Cord)

6 304392 Screw

W10136195

Compressor

(Includes

Illus. 11 & 23)

8 3405028 Clip, Mounting

9 A201441 Shim (4)

10 1115375 Clip−Wiring

11 Grommet (4)

2217318 Production

4387558 Service

12 2208415 Tube, Process

13 8281265 Screw

14 489472 Screw

W10206473

Coil, Solenoid

16 2313806 Hot Gas Valve

17 2187629 Wiring Harness,

Condenser Fan

W10136197

Start Relay and

Overload

Combo Device

19 851095 Strap

23 Drier

2319826 Production

W10183199

Service

24 2313624 Condenser

26 2319835 Grommet−Cond.(1)

27 2217397 Pad, Foam (2)

28 2185960 Clamp−Power Cord

29 8281197 Screw

30 2217388 Base, Unit

31 8281196 Screw

32 304392 Screw

33 488500 Ground Screw

REFRIGERANT CHARGE

6.5 OZ. (R134A)

OPTIONAL PARTS (NOT INCLUDED)

For Models: KUIS15NRTW3, KUIS15NRTT3, KUIS15NRTB3, KUIS15NRTS3

(White) (Biscuit) (Black) (Stainless Steel)

W10308005

Illus. Part

No. No. DESCRIPTION

Parts Not Illustrated and

Optional Parts (Not Included)

8171307 Cleaner, Icemaker

503695 Sealer, Cork

(1/4 Pound)

797403 Cement, Insulation

(1 Oz.)

505587 Sealer, Mastic

(1 Qt.)

212643 Sealer, Gum

(22 Pcs. 3/16" x 7")

479976 Kit, Insulation

(5 Pcs. 3" x 24"

x 48")

8537055 Cleaner,

Stainless Steel

978025 Valve, Access

(1/4")

978026 Valve, Access

(5/16")

978027 Valve, Access

(3/8")

978028 Valve, Access

(1/2")

978029 Valve, Access

(5/8")

978030 Valve, Access

(3/4")
