CABINET LINER AND DOOR PARTS

For Models:

KUIS155HWH0, KUIS155HBT0, KUIS155HBL0, KUIS155HBS0

(WHITE) (BISCUIT) (BLACK) (STAINLESS STEEL)

8-99 Litho In U.S.A. (RJS) Part No. 4398302 Rev.A

ICE CUBE MAKER

CABINET LINER AND DOOR PARTS

For Models:

KUIS155HWH0, KUIS155HBT0, KUIS155HBL0, KUIS155HBS0

(WHITE) (BISCUIT) (BLACK) (STAINLESS STEEL)

4398302

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Literature Parts

LIT2185699

Use & Care Guide

LIT2185734

Service &

Wiring Sheet

2 3400886 Screw 8-18 X 1 1/4

3 2185742 Bin, Door

4 2185678 Spacer

5 2185575 Cover, Wiring

6 489442

7 Door

2932800W White

2932800T Biscuit

2932800B Black

2932800S Stainless Steel

8 2185695 Cam, Door

9 2185859 Assembly,

Magnetic Catch

10 941839 Plug, Hole

11 488163 Screw #8 X 1

13 2185777 Gasket, Bottom

14 596023 Clamp

15 2185776 Gasket, Door

16 2185640 Sleeve, Hinge

17 Nameplate

2188149 White

2200935 Biscuit

2188151 Black

18 2185710 Hinge, Top

19 2185709 Shim, Hinge

20 Handle, Door

2185862W White

2185862T Biscuit

2185862B Black

21 3400887 Screw 8-18 X 1/2

24 Filler, Endcap

Left Side

2185655W White

2185655T Biscuit

2185655B Black

Right Side

2185656W White

2185656T Biscuit

2185656B Black

25 2185756 Pad, Foam

26 2185691 Channel, Wiring

28 2185671 Tube, Drain

29 585158 Scoop

30 3400884 Screw 8-18 X 5/8

33 2185711 Hinge, Bottom

34 2185712 Pin, Hinge

35 489048 Screw, Ground

38 348689 Screw 8-18 X 3/4

39 489423 Screw 10-32X11/16

42 3376439 Leg, Leveler

44 Top

2929700W White

2929700T Biscuit

2929700B Black

45 2185690 Shield, Electrical

46 2185645 Gasket, Top Panel

47 Grill, Front

2185571W White

2185571T Biscuit

2185571B Black

48 3400880 Screw 8-18 X 1

49 Cabinet & Liner

(NOT SERVICED)

Parts Not Illustrated and

Optional Parts (Not Included)

8171307 Cleaner, Icemaker

503695 Sealer, Cork

(1/4 Pound)

797403 Cement, Insulation

(1 Oz.)

505587 Sealer, Mastic

(1 Qt.)

212643 Sealer, Gum

(22 Pcs. 3/16" x 7")

479976 Kit, Insulation

(5 Pcs. 3" x 24"

x 48")

978025 Valve, Access

(1/4")

978026 Valve, Access

(5/16")

978027 Valve, Access

(3/8")

978028 Valve, Access

(1/2")

978029 Valve, Access

(5/8")

978030 Valve, Access

(3/4")

Screw

8-32 X 1/2

22 2185730 Assembly,

Unit Cover

8281137 White

8281140 Biscuit

8281138 Black

Screw, Handle

EVAPORATOR, ICE CUTTER GRID AND WATER PARTS

For Models:

KUIS155HWH0, KUIS155HBT0, KUIS155HBL0, KUIS155HBS0

(WHITE) (BISCUIT) (BLACK) (STAINLESS STEEL)

4398302

EVAPORATOR ICE CUTTER GRID AND WATER PARTS

For Models:

KUIS155HWH0, KUIS155HBT0, KUIS155HBL0, KUIS155HBS0

(WHITE) (BISCUIT) (BLACK) (STAINLESS STEEL)

4398302

Illus. Part

No. No. DESCRIPTION

1 2185758 Valve, Complete

Water

2 2185669 Tube, Plastic

3 488687 Screw 8-15 X 5/8

4 2185523 Dispenser, Water

5 2185684 Evaporator

6 627018 Nut, Compression

7 841707 Insert, Tube

8 2174662 Tube, Water Fill

9 488660 Nut, Speed

10 836667 Spacer

11 2208329 Fastener,

Pushnut

12 489443 Screw

13 2185625 Reservoir,

Water Slide

14 2185626 Tube

15 2185673 Hose, Overflow

17 2185615 Bracket, Front

and Rear

18 2185611 Bracket, Side

Left and Right

19 2185681 Harness, Grid

26 3400886 Screw 8-18 X 1 1/4

28 2185614 Grid Assembly

(Complete)

39 2174754 Wire, Grid Cutter

41 2185570 Cover, Grid

43 2185624 Reservoir, Water

44 3400884 Screw 8-18 X 5/8

45 2185696 Cap, Drain

42 681534 Thumb Screw

46 3400909 Nut, Push-In

PUMP PARTS

For Models:

KUIS155HWH0, KUIS155HBT0, KUIS155HBL0, KUIS155HBS0

(WHITE) (BISCUIT) (BLACK) (STAINLESS STEEL)

4398302

Illus. Part

No. No. DESCRIPTION

1 2185531 Pump, Water

(Complete)

2 3400884 Screw 8-18 X 5/8

3 3400885 Screw 8-16 x 1/2

4 2185752 Housing, Motor

5 2185753 Blade, Fan

6 2185748 Motor, Pump

7 4388318 Wiring Harness

8 2185751 Bracket, Pump

9 3400883 Screw 8-32 X 1/2

10 2185750 Sleeve

11 3400909 Nut, Push-In

12 2185677 Cover, Pump

13 2185585 Bracket, Connector

Assembly

14 2185754 Impeller, Pump

15 2185749 Cap, Pump

For Models:

KUIS155HWH0, KUIS155HBT0, KUIS155HBL0, KUIS155HBS0

(WHITE) (BISCUIT) (BLACK) (STAINLESS STEEL)

4398302

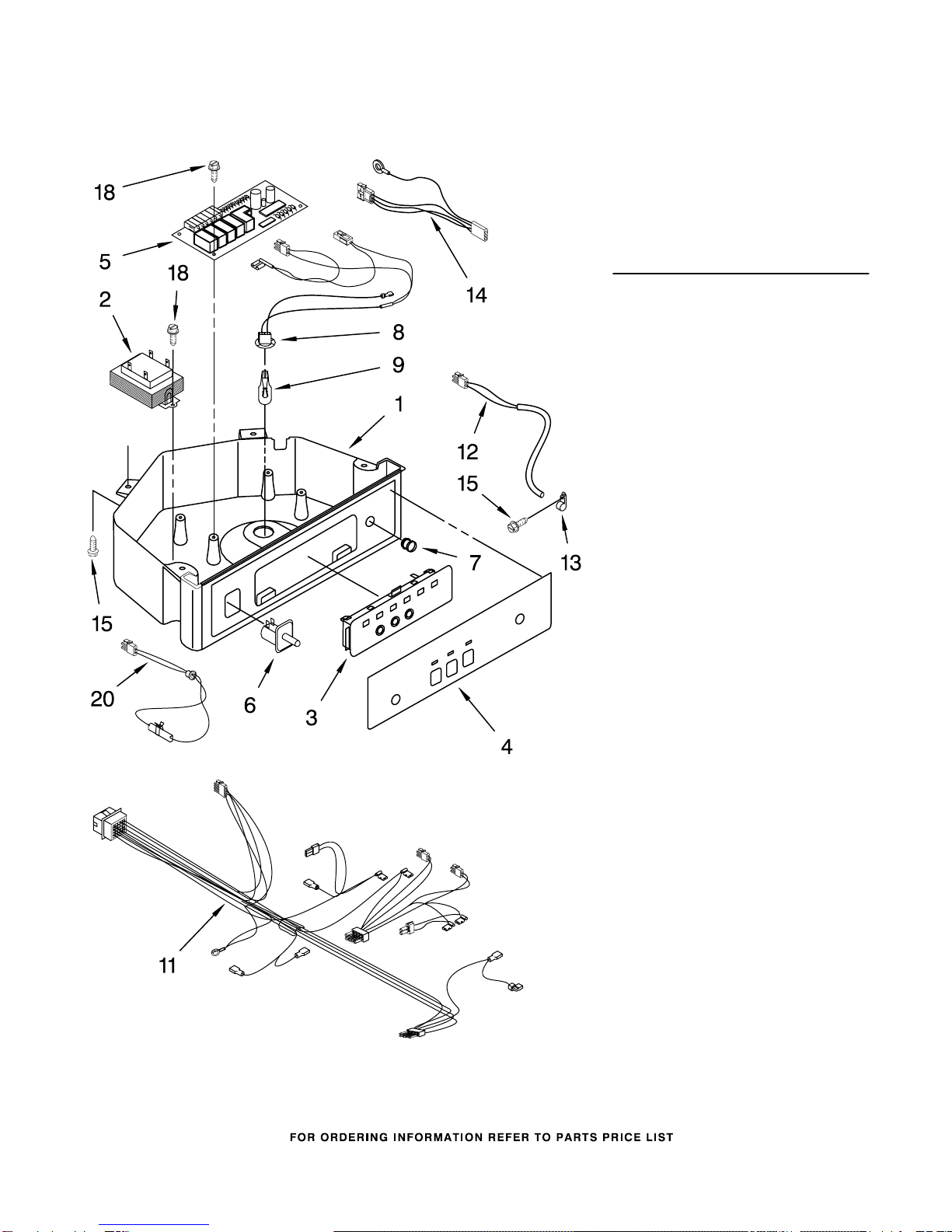

Illus. Part

No. No. DESCRIPTION

1 2185738 Box, Control

2 2185657 Transformer

3 2185592 Assembly, Switch

(ALSO ORDER #4)

4 2185805W Overlay

5 2185621 P.C. Board

6 2149705 Switch, Plunger

7 2185694 Lens, LED

8 2185692 Wiring Harness

Grid/ Light

9 745362 Bulb

11 2185589 Wiring Harness,

Control Box

12 2185679 Thermostat, Bin

13 2185825 Clamp

14 2185703 Wiring Harness,

Main to Pump,

15 3400884 Screw 8-18 X 5/8

20 2185680 Thermister,

Ice Control

CONTROL PANEL PARTS

18 3400850 Screw 8-16 X 3/8

UNIT PARTS

For Models:

KUIS155HWH0, KUIS155HBT0, KUIS155HBL0, KUIS155HBS0

(WHITE) (BISCUIT) (BLACK) (STAINLESS STEEL)

4398302

UNIT PARTS

For Models:

KUIS155HWH0, KUIS155HBT0, KUIS155HBL0, KUIS155HBS0

(WHITE) (BISCUIT) (BLACK) (STAINLESS STEEL)

4398302

Illus. Part

No. No. DESCRIPTION

1 2185532 Bracket, Fan Mtg.

2 2185675 Pad, Foam

3 2190685 Blade, Fan

4 2183437 Motor, Fan

5 2185702 Wiring Harness,

Unit (Power Cord)

6 304392 Screw 8-18 X 1/2

7 2176659 Compressor

8 8173857 Clip, Mounting

9 8173859 Shim (8)

10 2185960 Clamp (Power Cord)

11 8173837 Grommet (4)

12 2185548 Tube, Process

13 489423 Screw

14 489472 Screw

15 759112 Coil, Solenoid

16 759113 Valve, Body

17 2187260 Wiring Harness,

Condenser Fan

18 2183404 Overload

20 2183410 Relay, Start

21 2162358 Cover, Terminal

23 2180801 Drier

24 2185529 Condenser

25 2180807 Accumulator

27 2185858 Pad, Foam (2)

28 3370389 Screw 10-32X15/16

29 489199 Screw, Ground

8-36 X 3/8

30 2185511 Base, Unit

31 302819 Wheel

32 486692 Nut, Speed

33 489494 Screw 8-32 X 3/4

REFRIGERANT CHARGE

6.5 OZ. (R134A)
