KitchenAid KUIC15NLTS0 Manual de usuario
CABINET LINER AND DOOR PARTS
1
For Model: KUIC15NLTS0
(Stainless Steel)
5−09 Litho In U.S.A. (rrm)(bay) Part No. W10128170 Rev.A
ICE CUBE
MAKER
CABINET LINER AND DOOR PARTS
2
For Model: KUIC15NLTS0
(Stainless Steel)
W10128170
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
1 Literature Parts
2313814 Use & Care Guide
2324311 Service &
Wiring Sheet
2 3400886 Screw
3 2185742 Bin, Door
4 2185678 Spacer
5 2217394 Cover, Wiring
6 489442 Screw
7 2932803B Door
8 2185695 Cam, Door
9 2217393 Assembly,
Magnetic Catch
10 941839 Plug, Hole
11 2208136 Clamp
12 2313816 Wrap, Door
13 2217367 Gasket, Bottom
14 489503 Clamp
15 2217294 Gasket, Door
16 2185640 Sleeve, Hinge
17
W10046610
Nameplate
18 2185710 Hinge, Top
19 2185709 Shim, Hinge
20 9872207S Handle, Door
21 8281184 Screw
22 2185730 Assembly,
Unit Cover
23 8281186 Screw
24 Filler, Endcap
2185655B Left Side
2185656B Right Side
25 2185756 Pad, Foam
26 2185691 Channel, Wiring
27 2185964 Grommet,
Edge Guard (2)
28 2185989 Tube, Drain
29 585158 Scoop
30 3400884 Screw
31 3400037 Screw
32 2189000 Plug, Handle
33 2185711 Hinge, Bottom
34 2185712 Pin, Hinge
35 489048 Screw, Ground
36 692400 Nut, Push−In
37 3400240 Nut,
Leg Leveler
38 348689 Screw
39 489423 Screw
40 2185927 Holder, Scoop
41 8281228 Thumbscrew
42 3374849 Leg, Leveler (4)
43 2155774 Strap
44 2929700B Top
45 2185690 Shield, Electrical
46 2217293 Gasket, Top Panel
47 2185571B Grill, Front
48 489474 Screw
49 Cabinet & Liner
(NOT SERVICED)
3
EVAPORATOR, ICE CUTTER GRID AND WATER PARTS
For Model: KUIC15NLTS0
(Stainless Steel)
W10128170
EVAPORATOR, ICE CUTTER GRID AND WATER PARTS
4
For Model: KUIC15NLTS0
(Stainless Steel)
W10128170
Illus. Part
No. No. DESCRIPTION
1 2313741 Valve, Complete
Water
2 2217286 Tube, Plastic
3 488208 Screw
4 2185523 Dispenser, Water
5
W10218037
Evaporator
6 2313705 Pump, Drain
7 2313851 Tube, Reservoir
Pump
8 2172593 Tube, Water Fill
9 488660 Nut, Speed
10 836667 Spacer
11 2208539 Fastener,
Pushnut
12 489443 Screw
13 2185625 Reservoir,
Water Slide
14 2185626 Tube
15 2313890 Hose, Overflow
16 2313604 Guide−Ice, Grid
17 2313603 Bracket, Front
and Rear
18 2313602 Bracket, Side
Left and Right
19 2185681 Harness, Grid
20 2324305 Tube
21 2310169 Wire Assembly
(Valve)
26 3400886 Screw
28 2313637 Grid Assembly
(Complete)
29 2174754 Wire, Grid Cutter
30 2185570 Cover, Grid
31 8281228 Thumbscrew
32 2313834 Reservoir, Water
33 3400884 Screw
34 2185696 Cap, Drain
35 3400909 Nut, Push−In

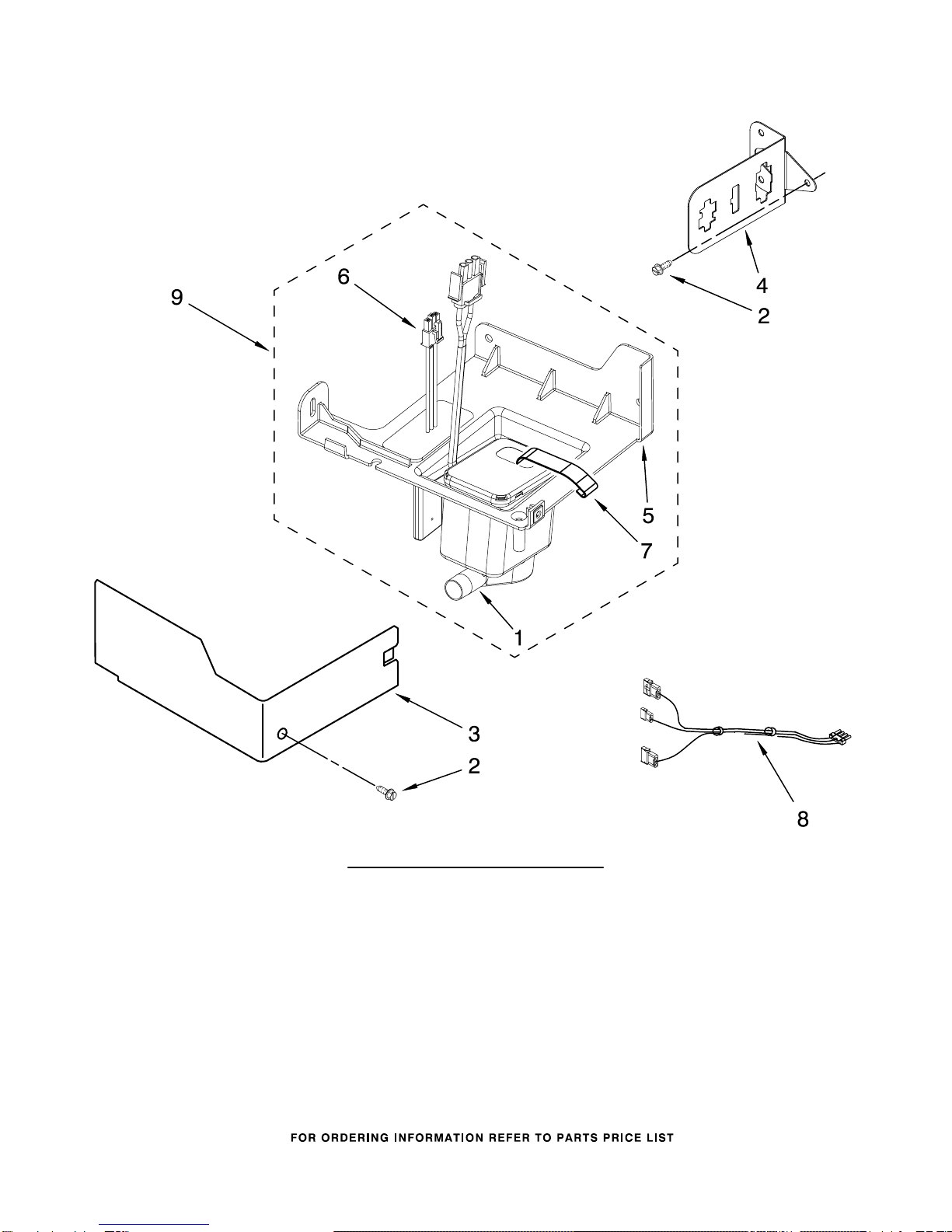

PUMP PARTS
5
For Model: KUIC15NLTS0
(Stainless Steel)
W10128170
Illus. Part
No. No. DESCRIPTION
1 2313628 Pump−Recirculating
2 3400884 Screw 8−18 X 5/8
3 2185677 Cover, Pump
4 2313844 Bracket, Connector
Assembly
5 2313627 Bracket−Pump
6 2313643 Sensor−Water Level
7 2324307 Clip−Retainer (3)
8 2310092 Wiring Harness
Main To Pump
9 2313702 Pump Assembly
6
CONTROL PANEL PARTS
For Model: KUIC15NLTS0
(Stainless Steel)
W10128170
Illus. Part
No. No. DESCRIPTION
1 2185738 Box, Control
2 2310139 Transformer
3 2304122 Assembly, Switch
(ALSO ORDER #4)
4 2313693 Overlay
5 2321774 Control Board
6 2149705 Switch, Plunger
Grid/Light
9 745362 Bulb
12 2313633 Thermostat, Bin
13 2185825 Clamp
15 3400884 Screw
18 3400850 Screw
20 2313635 Thermister,
Ice Control
UNIT PARTS
7
For Model: KUIC15NLTS0
(Stainless Steel)
W10128170
UNIT PARTS
8
For Model: KUIC15NLTS0
(Stainless Steel)
W10128170
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
1 2185532 Bracket, Fan Mtg.
2 2185675 Pad, Foam
3 2188935 Blade, Fan
4 2315558 Motor & Mounting
Plate Assembly
5 2310125 Wiring Harness,
Complete Unit
(Includes
Power Cord)
6 304392 Screw
7 2313858 Compressor
(Includes
Illus. 11,18,
20,21 & 23)
8 A201435 Clip, Mounting
9 A201441 Shim (4)
10 2185960 Clamp−Service Cord
11 Grommet (4)
2217318 Production
4387558 Service
12 2208415 Tube, Process
13 489423 Screw
14 489472 Screw
15 759112 Coil, Solenoid
16 2313806 Hot Gas Valve
17 2187629 Wiring Harness,
Condenser Fan
18 Overload
2217223 Production
4387938 Service
(Includes
Start−Relay)
19 2155774 Strap
20 Relay, Start
2217224 Production
4387938 Service
(Includes
Overload)
21 Cover, Terminal
2208371 Production
4387731 Service
22
W10005420
Clamp
23 Drier
2319826 Production
4387019 Service
24 2313624 Condenser
25 3400884 Screw
26 2319835 Grommet−Cond.(1)
27 2217397 Pad, Foam (2)
29 8281197 Screw
30 2217388 Base, Unit
31 8281196 Screw
32 1115375 Clip−Wiring
REFRIGERANT CHARGE
6.5 OZ. (R134A)
OPTIONAL PARTS (NOT INCLUDED)
9
For Model: KUIC15NLTS0
(Stainless Steel)
W10128170
Illus. Part
No. No. DESCRIPTION
Parts Not Illustrated and
Optional Parts (Not Included)
8171307 Cleaner, Icemaker
503695 Sealer, Cork
(1/4 Pound)
797403 Cement, Insulation
(1 Oz.)
505587 Sealer, Mastic
(1 Qt.)
212643 Sealer, Gum
(22 Pcs. 3/16" x 7")
479976 Kit, Insulation
(5 Pcs. 3" x 24"
x 48")
8537055 Cleaner,
Stainless Steel
978025 Valve, Access
(1/4")
978026 Valve, Access
(5/16")
978027 Valve, Access
(3/8")
978028 Valve, Access
(1/2")
978029 Valve, Access
(5/8")
978030 Valve, Access
(3/4")
ACCESSORIES
Previous Architect
Series Handle Kit
2217442S Stainless Steel
