KitchenAid KUIS18PNTB0 Manual de usuario

CABINET LINER AND DOOR PARTS

ICE CUBE

MAKER

5−09 Litho In U.S.A. (rrm) (psw) Part No. W10128643 Rev.A

For Models: KUIS18PNTW0, KUIS18PNTB0

(White) (Black)

CABINET LINER AND DOOR PARTS

For Models: KUIS18PNTW0, KUIS18PNTB0

(White) (Black)

W10128643

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Literature Parts

2313820 Use & Care Guide

2324311 Service &

Wiring Sheet

2 3400886 Screw 8−18 x 1 1/4

3 2208354 Bin, Door

4 2185678 Spacer

5 2217394 Cover, Wiring

6 489442 Screw

7 Panel, Exterior

2208352W White

2208352B Black

8 2217298 Panel, Interior

10 2208377 Insulation

11 2217227 Ballast−Back, I.M.

12 941839 Hole Plug

13 Bracket, Door

2217466 (Left Side)

2217465 (Right Side)

14 489503 Clamp

15 2217295 Gasket, Door

16 2208535 Clip

17 Nameplate

W10046670

White

W10046640

Black

18 Hinge

2208425 (Left Side)

2208426 (Right Side)

19 2208401 Shim, Hinge

20 Handle, Icemaker

2208440W White

2208440B Black

22 2208399 Assembly,

Unit Cover

23 Screw, Handle

8281188 White

8281186 Black

25 2217225 Pad, Foam

26 2185691 Channel, Wiring

27 Endcap, Door

2208350W White

2208350B Black

28 2208459 Tube, Drain

29 2208386 Scoop

30 3400884 Screw 8−18 x 5/8

31 692400 Nut, Push−In

32 Panel, Lower

2208382W White

2208382B Black

33 2208487 Bracket, Spring

34 2208417 Pin, Hinge

35 489048 Screw, Ground

36 2208480 Spring, Hinge

37 Endcap, Panel

2208383W White

2208383B Black

38 2208529 Dampener, Spring

39 489423 Screw

40 2208449 Holder, Scoop

42 3374849 Leg, Leveler (4)

43 2208384 Insulation

44 Top

2929701W White

2929701B Black

45 2185690 Shield, Electrical

46 2217296 Gasket, Top Panel

47 Grill, Front

2217206W White

2217206B Black

48 489474 Screw 8−18 x 1

49 Cabinet & Liner

(NOT SERVICED)

52 3400240 Nut,

Leg Leveler

53 2208434 Strike, Magnet

54 3400916 Washer

55 8281191 Screw

58 488208 Screw

59 2217467 Tube−Vent

60 2208367 Clamp−Half

61 8281265 Screw

62 489505 Clamp

EVAPORATOR, ICE CUTTER GRID AND WATER PARTS

For Models: KUIS18PNTW0, KUIS18PNTB0

(White) (Black)

W10128643

EVAPORATOR, ICE CUTTER GRID AND WATER PARTS

For Models: KUIS18PNTW0, KUIS18PNTB0

(White) (Black)

W10128643

Illus. Part

No. No. DESCRIPTION

1 2313741 Valve, Complete

Water

2 2217286 Tube, Plastic

3 488208 Screw

4 W10218037 Dispenser, Water

5 2217269 Evaporator

6 2313705 Pump, Drain

7 2313851 Tube, Reservoir

Pump

8 2172593 Tube, Water Fill

9 488660 Nut, Speed

10 836667 Spacer

11 2208539 Fastener, Pushnut

12 489443 Screw

13 2185625 Reservoir,

Water Slide

14 2185626 Tube

15 2313890 Hose, Overflow

16 2217378 Bracket−Reservoir

17 2313603 Bracket, Front

and Rear

18 2313602 Bracket, Side

Left and Right

19 2185681 Harness, Grid

20 2208427 Support, Bracket

Evaporator/Grid

21 2313604 Guide, Ice Grid

22 2324305 Tube

24 2310169 Wire Assembly

(Valve)

25 8281193 Screw

26 3400886 Screw 8−18 x 1 1/4

28 2313637 Grid Assembly

(Complete)

29 2174754 Wire, Grid Cutter

30 8281192 Screw

31 2208365 Cover, Grid

32 8281228 Thumbscrew

33 2324334 Reservoir, Water

34 3400884 Screw 8−18 x 5/8

35 2185696 Cap, Drain

36 3400909 Nut, Push−In

PUMP PARTS

For Models: KUIS18PNTW0, KUIS18PNTB0

(White) (Black)

W10128643

Illus. Part

No. No. DESCRIPTION

1 2313628 Pump−Recirculating

2 3400884 Screw 8−18 x 5/8

3 2185677 Cover, Pump

4 2313844 Bracket, Connector

Assembly

5 2313627 Bracket−Pump

6 2313643 Sensor−Motor

7 2324307 Clip−Retainer (3)

8 2310092 Wiring Harness

Main To Pump

9 2313702 Pump Assembly

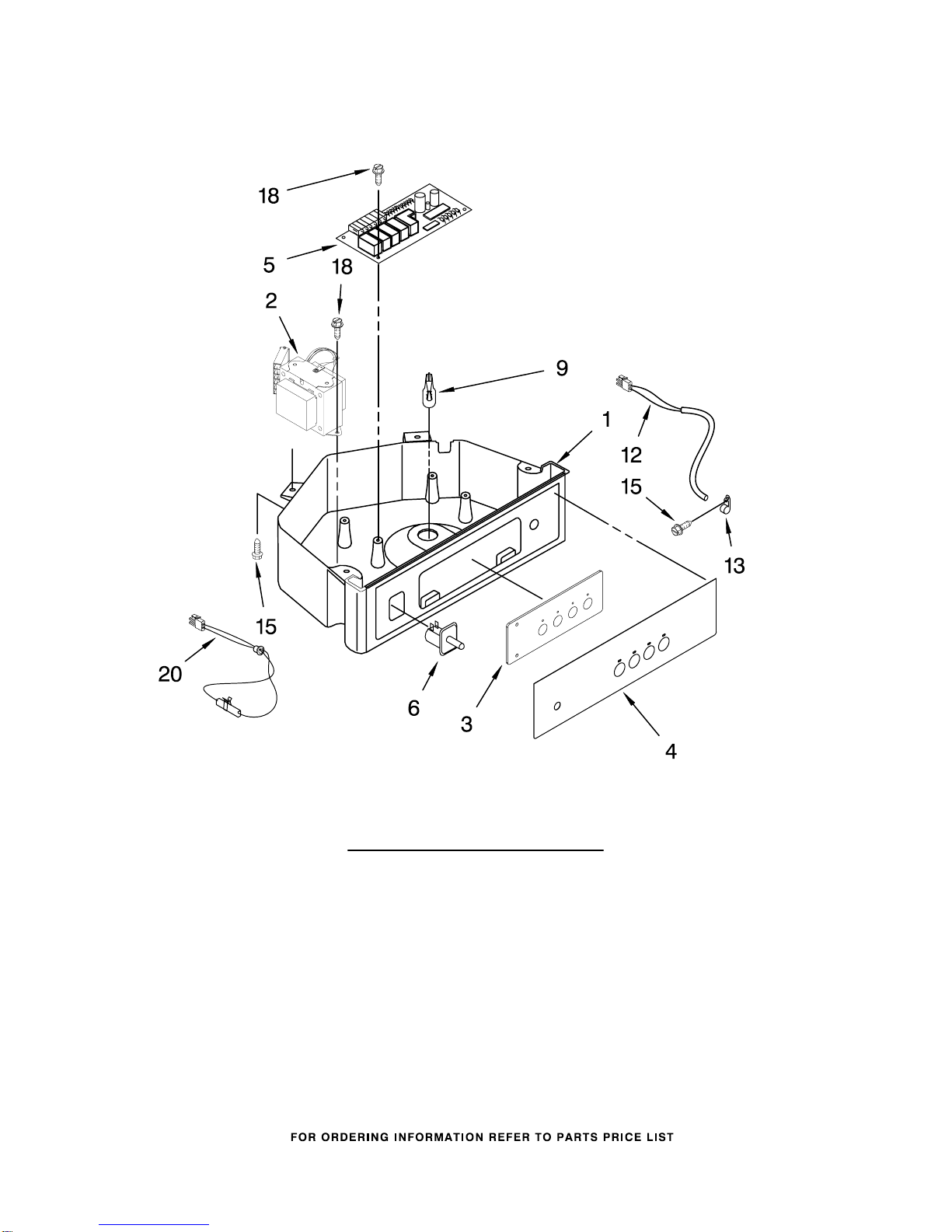

CONTROL PANEL PARTS

For Models: KUIS18PNTW0, KUIS18PNTB0

(White) (Black)

W10128643

Illus. Part

No. No. DESCRIPTION

1 2185738 Box, Control

2 2310139 Transformer

3 2304122 Assembly, Switch

(ALSO ORDER #4)

4 2313693 Overlay

5 2321774 Control Board

6 2149705 Switch, Plunger

Grid/ Light

9 745362 Bulb

12 2313633 Thermostat, Bin

13 2185825 Clamp

15 3400884 Screw 8−18 x 5/8

18 3400850 Screw 8−16 x 3/8

20 2313635 Thermister,

Ice Control

UNIT PARTS

For Models: KUIS18PNTW0, KUIS18PNTB0

(White) (Black)

W10128643

UNIT PARTS

For Models: KUIS18PNTW0, KUIS18PNTB0

(White) (Black)

W10128643

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 2185532 Bracket, Fan Mtg.

2 2185675 Pad, Foam

3 2188935 Blade, Fan

4 2315558 Motor & Mounting

Plate Assembly

5 2310125 Wiring Harness,

Complete Unit

(Includes

Power Cord)

6 304392 Screw 8−18 x 1/2

7 2313858 Compressor

(Includes

Illus. 11,18,

20,21 & 23)

8 A201435 Clip, Mounting

9 A201441 Shim (4)

10 2185960 Clamp (Power Cord)

11 Grommet (4)

2217318 Production

4387558 Service

12 2208415 Tube, Process

13 489423 Screw

14 489472 Screw

15 759112 Coil, Solenoid

16 2313806 Hot Gas Valve

17 2187629 Wiring Harness,

Condenser Fan

18 Overload

2217223 Production

4387938 Service

(Includes Relay)

19 2155774 Strap

20 Relay, Start

2217224 Production

4387938 Service

(Includes

Overload)

21 Cover, Terminal

2208371 Production

4387731 Service

23 Drier

2319826 Production

4387019 Service

24 2313624 Condenser

25 1115375 Clip−Wiring

26 488500 Screw

27 2217397 Pad, Foam (2)

28 2185788 Clamp−Cable

29 8281197 Screw

30 2217423 Base, Unit

31 8281196 Screw

32 2208534 Pump, Drain

33 2208432 Tube, Outlet

34 2319835 Grommet−Cond.(1)

35 3400884 Screw

REFRIGERANT CHARGE

6.5 OZ. (R134A)

OPTIONAL PARTS

For Models: KUIS18PNTW0, KUIS18PNTB0

(White) (Black)

W10128643

Illus. Part

No. No. DESCRIPTION

Parts Not Illustrated and

Optional Parts (Not Included)

503695 Sealer, Cork

(1/4 Pound)

797403 Cement, Insulation

(1 Oz.)

505587 Sealer, Mastic

(1 Qt.)

212643 Sealer, Gum

(22 Pcs. 3/16" x 7")

479976 Kit, Insulation

(5 Pcs. 3" x 24"

x 48")

8537055 Cleaner,

Stainless Steel

978025 Valve, Access

(1/4")

978026 Valve, Access

(5/16")

978027 Valve, Access

(3/8")

978028 Valve, Access

(1/2")

978029 Valve, Access

(5/8")

978030 Valve, Access

(3/4")
