KitchenAid 5KSMSIA Manual de usuario
W11499128A
SHAVE ICE ATTACHMENT
5KSMSIA
PRODUCT GUIDE
2
PARTS AND FEATURES
3
2
1
7
5 6
8
4
1. Detachable Ice Cup
2. Ice Cup Pusher
3. Main Upper Housing
4. Convenient Storage Box
5. Fine Shave Blade
6. Coarse Shave Blade
7. Ice Cup Sleeve
8. Plastic Ice Mold with Lid (x4)
EN
3
PRODUCT SAFETY
Your safety and the safety of others are very important.
We have provided many important safety messages in this manual and on your
appliance. Always read and obey all safety messages.
This is the safety alert symbol.
This symbol alerts you to potential hazards that can kill or hurt you
and others.
All safety messages will follow the safety alert symbol and either
the word “DANGER” or “WARNING.” These words mean:
DANGER You can be killed or seriously injured
if you don't immediately follow
instructions.
WARNING You can be killed or seriously injured
if you don’t follow instructions.
All safety messages will tell you what the potential hazard is, tell you how to reduce
the chance of injury, and tell you what can happen if the instructions are not
followed.
IMPORTANT SAFEGUARDS
When using electrical appliances, basic safety precautions
should always be followed, including the following:
1. Read all instructions. Misuse of appliance may result in
personal injury.
2. European Union Only: Appliances can be used by persons with
reduced physical, sensory or mental capabilities or lack of
experience and knowledge if they have been given supervision
or instruction concerning use of the appliance in a safe way
and understand the hazards involved.
3. European Union Only: This appliance shall not be used by
children. Keep the appliance and its cord out of reach of
children.
4. This appliance is not intended for use by persons, including
children, with reduced physical, sensory or mental capabilities,
or lack of experience and knowledge, unless they have been
given supervision or instruction concerning use of the
appliance by a person responsible for their safety.
4
5. This appliance can be used by children aged 8 years and
above and persons with reduced physical, sensory, or mental
capabilities, or lack of experience and knowledge if they have
been given supervision or instructions concerning use of the
appliance in a safe way and understand the hazards involved.
Children shall not play with the appliance. Cleaning and user
maintenance shall not be made by children without
supervision.
6. Children should be supervised to ensure that they do not play
with the appliance.
7. Never leave the appliance unattended while it is in operation.
8. Turn the appliance off (OFF/0), unplug from outlet, and detach
the Shave Ice Attachment from appliance before cleaning and
when not in use. Turn the appliance off and make sure the
motor stops completely before putting on or taking off parts.
9. The use of accessories/attachments not recommended by the
appliance manufacturer may result in fire, electric shock or
injury to persons.
10. Do not use the appliance outdoors.
11. Avoid contacting moving parts. Keep fingers out of discharge
opening.
12. Do not operate any appliance with a damaged cord or plug, or
after the appliance malfunctions, or is dropped or damaged in
any manner. Return appliance to the nearest Authorised
Service Facility for examination, repair, or electrical or
mechanical adjustment.
13. Also see the Important Safeguards section included in the
Stand Mixer “Owner’s Manual”.
14. Allow the appliance to cool completely before putting on or
taking off parts, and before cleaning the appliance.
15. Blades are sharp. Handle Carefully.
16. Refer to the “Care and Cleaning” section for instructions on
cleaning the surfaces in contact with food.
EN
5
17. This appliance is intended to be used in household and similar
applications such as:
■staff kitchen areas in shops, offices and other working
environments;
■farmhouses;
■by clients in hotels, motels and other residential type
environments;
■bed and breakfast type environments.
SAVE THESE INSTRUCTIONS
For complete details on product information, instructions and
videos, including Guarantee information, visit
www.KitchenAid.co.uk or www.KitchenAid.eu. This may save
you the cost of a service call. To receive a free printed copy of the
information online, call 00 800 381 040 26.
GETTING STARTED
The Shave Ice Attachment is compatible with all household KitchenAid Stand Mixers. Set the
Blades to Shave Ice as per requirement.
NAME PART ICON INTENDED
USE SPEED
Coarse Shave
Blade
For coarser ice
shaving / ice
chips.
10
Fine Shave
Blade
For a fine, fluffy,
snow-like ice
shaving texture.
NOTE: For detailed instructions on swapping blades, please see “CHANGING THE BLADE”
section.
TEMPERING THE ICE PUCKS
Tempering Ice means allowing the ice to adjust at room temperature until it
develops a glossy, wet look and is clear from all sides. Tempering is an important
step for producing the lightest and fluffiest shave ice. Many factors determine the
amount of time it takes to temper. In most cases, your ice puck should be ready
to use in 10 minutes or less.
NOTE: Ice pucks made with plain water require tempering. For mixed base recipes, refer to
the recipe details for tempering instructions.
The Ice Molds are used for best performance for both coarse and fine shaving. It's easy to get
shave ice from tempered ice out of the molds.
TIP: For the fluffiest shave ice, we recommend tempering the ice puck for 10 minutes, and
then using the Fine Shaving Blade.
6
PRODUCT USAGE
ICE PUCK PREPARATION
1. Fill the ice mold with water or flavored ice base mixture of your choice.
NOTE: To keep the mold from overflowing while freezing, be sure not to fill past the fill line
visible just below the rim of the mold.
2. Affix the lid to the top of the mold and place it in the freezer for 12 to 24 hours.
NOTE: Freezing time may vary and will depend both on the temperature of your freezer as
well as the sugar or alcohol content of your mixture.
NOTE: See “Tips for Great Results” section below for more details on Ice Puck
Preparation.
SET UP & ASSEMBLY - PREPARING TO MAKE SHAVE ICE
Before using your Shave Ice Attachment, clean it by following the detailed instructions in
“CARE & CLEANING” section.
1. After removing the ice molds from the freezer, press firmly on the bottom and sides to help
release the puck from the mold.
EN
7

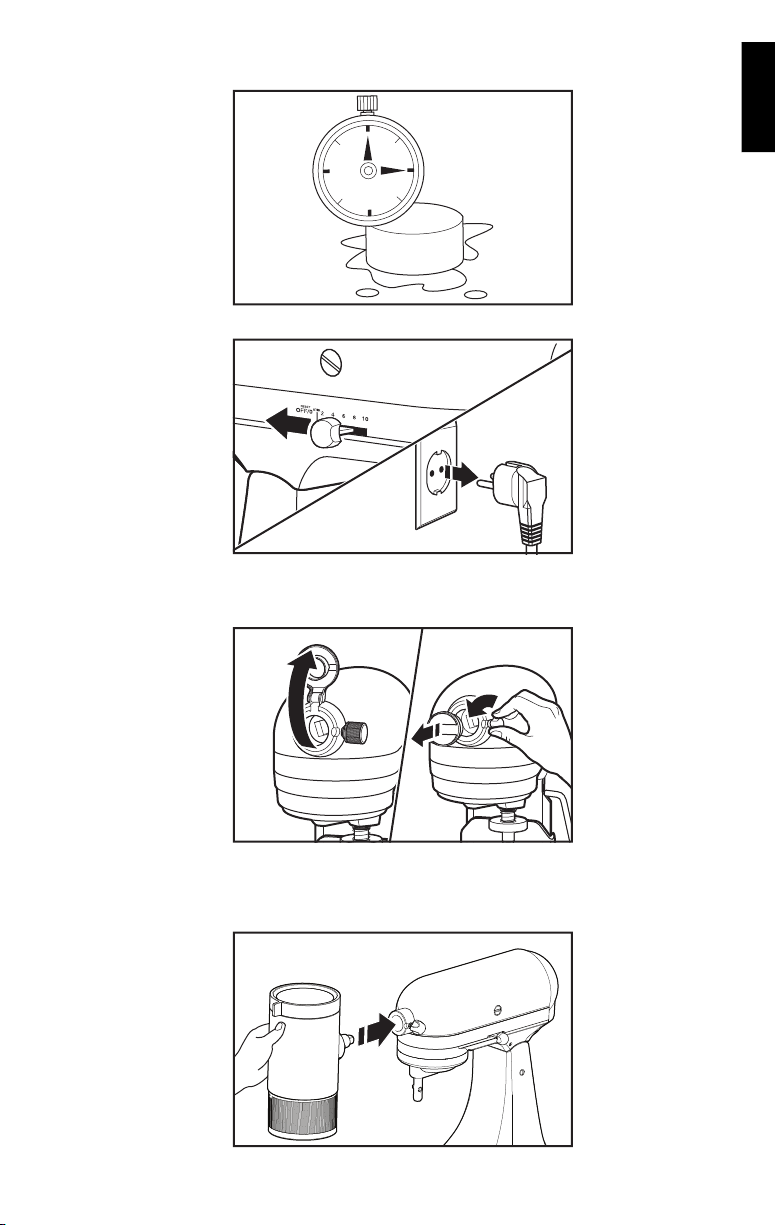

2. For Plain Ice recipes, allow ice to rest for up to 10 minutes - this is called “Tempering” and
is recommended to achieve ideal Shave Ice results.
3. Turn the Stand Mixer off (OFF/0) and then unplug.
4. For Stand Mixer with a hinged attachment hub cover: Flip up to open.
For Stand Mixer with a removable attachment hub cover: Turn the attachment knob
counterclockwise to remove the attachment hub cover.
5. Insert the Main Housing into the attachment hub, make sure the power shaft fits into the
square hub socket. If necessary, rotate the attachment back and forth for proper fitment.
The pin on the attachment housing will fit into the notch of the hub rim when in the proper
position.
8
6. Tighten the Stand Mixer attachment hub knob clockwise until the attachment is completely
secured into the Stand Mixer.
7. Ensure that the upper lever of the housing is rotated all the way to the left. If not, rotate it to
the left until it clicks into place. This will ready the attachment for use and must be
completed before loading the Ice Puck into the Ice Cup and attaching it to the housing.
8. Remove the Ice Cup from the housing by rotating it to the right and pulling downward. Take
note of the small indicator arrow which must line up with the Lock and Unlock symbols on
the housing.
OPTIONAL: If you wish to change the blade, grip the blade from the bottom and rotate it to
right to unlock and remove.
EN
9
ASSEMBLY
1. Grip the blade from the bottom and slowly insert it into the bottom of the Ice Cup by
aligning the interlocking tabs. Once inserted, rotate the blade to the left until you hear a
“Click“, to properly lock the blade in place.
NOTE: Each of the interlocking tabs is a unique size, ensuring the blade can only be
installed in the correct position.
2. Insert the Ice Cup Sleeve into the Detachable Ice Cup, then insert a prepared Ice Puck. Be
sure to insert the ice puck with the cross hatches facing upward.
3. Attach the Detachable Ice Cup to the bottom side of the main housing, rotating it to the left
to lock it in place.
NOTE: The small indicator arrow on the Detachable Ice Cup should line up with the Lock
and Unlock symbols on the main housing.
10
4. Release the top lever by gently rotating it to the right. The spring will engage as the Ice
Pusher clamps down on the ice puck. The Shave Ice Attachment is properly loaded and
ready to use.
SHAVING ICE
1. Place a serving dish of your choice beneath the Shave Ice Attachment. Do this before
starting the mixer.
