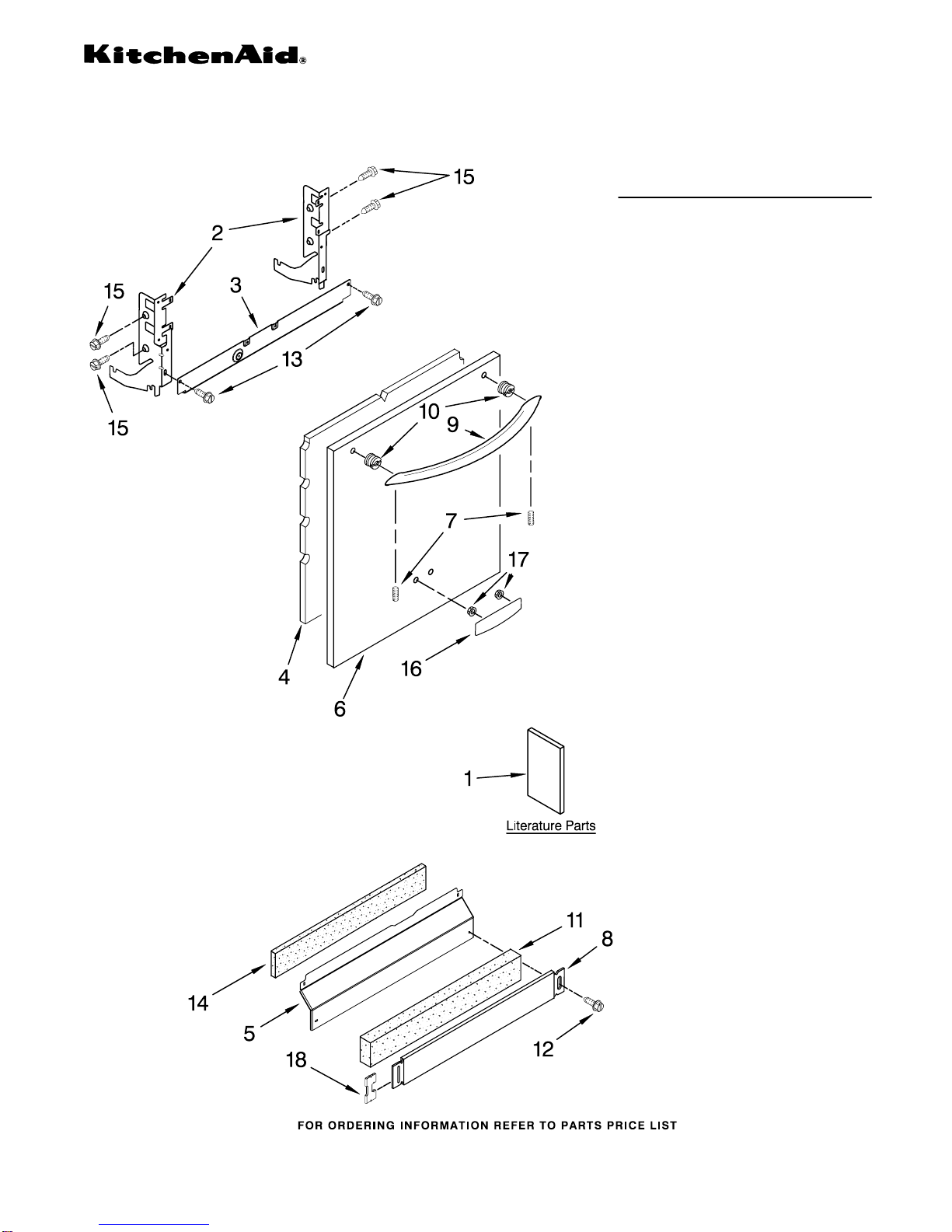

DOOR AND PANEL PARTS
1
For Models: KUDT03FTBL0, KUDT03FTWH0, KUDT03FTSS0
(Black) (White) (Stainless)
05−07 Litho in U.S.A. (els) Part No. W10129007 Rev. B
UNDERCOUNTER
DISHWASHER
Illus. Part
No. No. DESCRIPTION
1 Literature Parts
W10078153
Instructions,
Installation
W10111124
Energy Guide
8574093 Guide, Use & Care
W10078203
Guide, Consumer
Reference
W10082651
Tech Sheet
2 Arm, Hinge
8534854 Left
8534853 Right
3 8564886 Stiffener, Door
4 8542577 Insulation, Door
5 Access Panel
(Includes Item 14)
8558260 Black
8558261 White
6 Panel, Full Front
(Includes Items
4, 10, 16 & 17)
W10078007
Black
W10078008
White
W10078010
Stainless
7 8534008 Screw
8 Toe Panel
(Includes
Items 11 & 18)
8558252 Black
8558253 White
9 Handle Assy
(Includes Items 7)
W10083936
Black
W10083937
White
W10083935
Stainless
10 8564951 Stud, Mounting
11
W10073550
Insulation,
Toe Panel
12 Screw
302868 Black
3400836 White
13 304392 Screw
14
W10073540
Insulation,
Access Panel
15 3400071 Screw
16 Nameplate
W10021860
Black
W10021870
White
W10021850
Stainless
17 2004333 Nut
18 8269016 Clip, Grounding
CONTROL PANEL PARTS
2
For Models: KUDT03FTBL0, KUDT03FTWH0, KUDT03FTSS0
(Black) (White) (Stainless)
W10129007
Illus. Part
No. No. DESCRIPTION
1 Console Assembly
(Includes Insert)
W10078067
Black
W10078068
White
W10084133
Stainless
2 8546546 Clip, BI−Metal
3 661663 Bi−Metal
4 3369051 Screw (6)
5
W10077360
Latch Assembly
6 8575276 Control,
Electronic
7
W10134019
Switch, Door
DOOR AND LATCH PARTS
3
For Models: KUDT03FTBL0, KUDT03FTWH0, KUDT03FTSS0
(Black) (White) (Stainless)
W10129007
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
1 3369051 Screw, Door
2 8281217 Screw
3 8530900 Inner Door
Mastic Assembly
(Also Order
Item 6)
4
W10077883
Inlet, Air
5 8572611 Vent Assembly
(Also Order
Item 6)
6 8269259 Gasket, Vent
7
W10077877
Deflector, Vent
(Also Order
Item 6)
8
W10077882
Dispenser,
Assembly
9
W10077881
Knob, Rinse Aid
10 8545608 Harness, Vent
Motor
11
W10078202
Wiring Harness
12 8281154 Screw (6)
13 8535660 Seal,
Console/door
14 8535637 Bracket,
Dispenser
15 8531865 Shield,
Dispenser
LOWER WASHARM AND STRAINER PARTS
4
For Models: KUDT03FTBL0, KUDT03FTWH0, KUDT03FTSS0
(Black) (White) (Stainless)
W10129007
Illus. Part
No. No. DESCRIPTION
1
W10077965
Wash Arm Assembly
2
W10077899
Cap, Internal
Rear Feed
(Also Order
Item 3)
3 8268340 Seal, Sprayarm
4
W10077898
Hub, Lower
Sprayarm
(Also Order
Item 3)

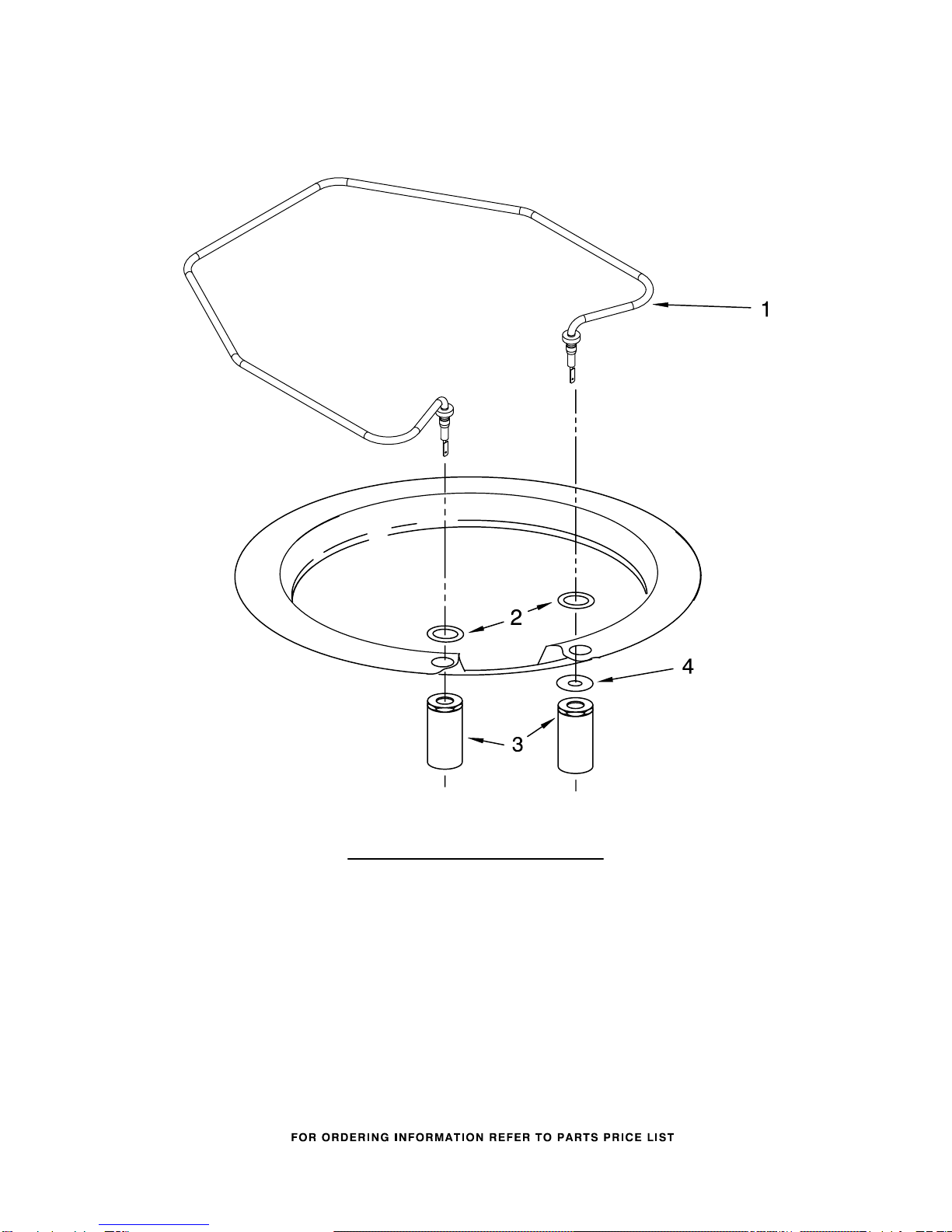

HEATER PARTS
5
For Models: KUDT03FTBL0, KUDT03FTWH0, KUDT03FTSS0
(Black) (White) (Stainless)
W10129007
Illus. Part
No. No. DESCRIPTION
1 8537057 Heater Element
Assembly
(Also Includes
Item 2)
2 717273 Washer, Heater
Element
3 8268548 Nut, Heater
Element
4 3400931 Retainer, Spring
Grip
NOTE:
If heater element is
removed, it must be replaced.

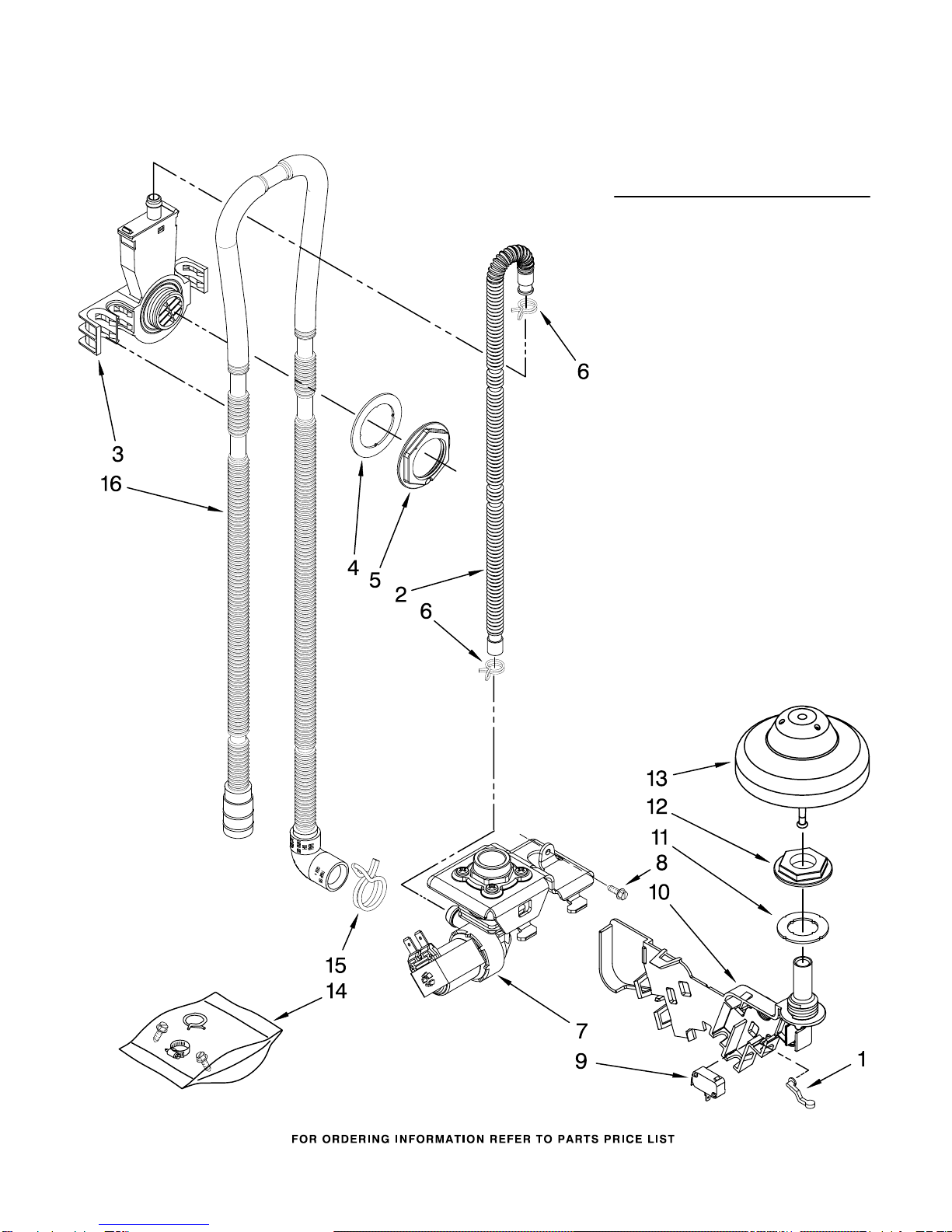

FILL, DRAIN, AND OVERFILL PARTS
6
For Models: KUDT03FTBL0, KUDT03FTWH0, KUDT03FTSS0
(Black) (White) (Stainless)
W10129007
Illus. Part
No. No. DESCRIPTION
1 8268892 Lever, Overfill
Switch
2 8531412 Hose, Inlet
3 8531325 Water Inlet
(Also Order
Item 4)
4 8531323 Gasket
5 8531327 Nut, Inlet
(Also Order
Item 4)
6 371505 Clamp, Hose
7 8563405 Fill Valve
Assembly
8 304392 Screw
9 8268909 Switch, Overfill
Control
10 8545946 Standpipe,
Overfill
(Includes Item 11)
11 8531743 Gasket, Flat
12 9741998 Nut, Standpipe
13
W10077871
Float & Retainer
Assembly
14 8269297 Miscellaneous
Parts Bag
15 356138 Clamp, Hose
16 8531022 Drain Loop
with Check Valve
TUB AND FRAME PARTS
7
For Models: KUDT03FTBL0, KUDT03FTWH0, KUDT03FTSS0
(Black) (White) (Stainless)
W10129007
TUB AND FRAME PARTS
8
For Models: KUDT03FTBL0, KUDT03FTWH0, KUDT03FTSS0
(Black) (White) (Stainless)
W10129007
Illus. Part
No. No. DESCRIPTION
1
W10053130
Tub Assembly
2 8574123 Barrier, Moisture
Undercounter
3
W10112096
Door Seal
4 8270119 Plug Tub (2)
5 8572661 Actuator Assembly
6 8559844 Motor, Wax
7 8269110 Seal, Cabinet
8 8573061 Strain Relief
9 8270021 Mount, Door
Balance
10 3367670 Screw
11 8269145 Bracket,
Undercounter
12 3400074 Screw (2)
13 3400924 Retainer, Push−in
14 3370389 Screw (2)
15 8268977 Wheel Leg
16 8524584 Leveler, Leg
17 8524474 Wheel, door
Balance
18 8270020 Spring, Door
Balance
19 3400892 Screw
20 8268991 Cover, Terminal
Box
21 8535568 Link, Door
Balance
22 8268587 Insulator, Sound
23 304666 Retainer, Push (2)
24 8573239 Shield, Sound
Tub
25 9742648 Bracket,
Thermostat
26 661566 Thermostat
27
W10077370
Strike, Latch
28 8537001 Shield, Side
29 8539404 Strap

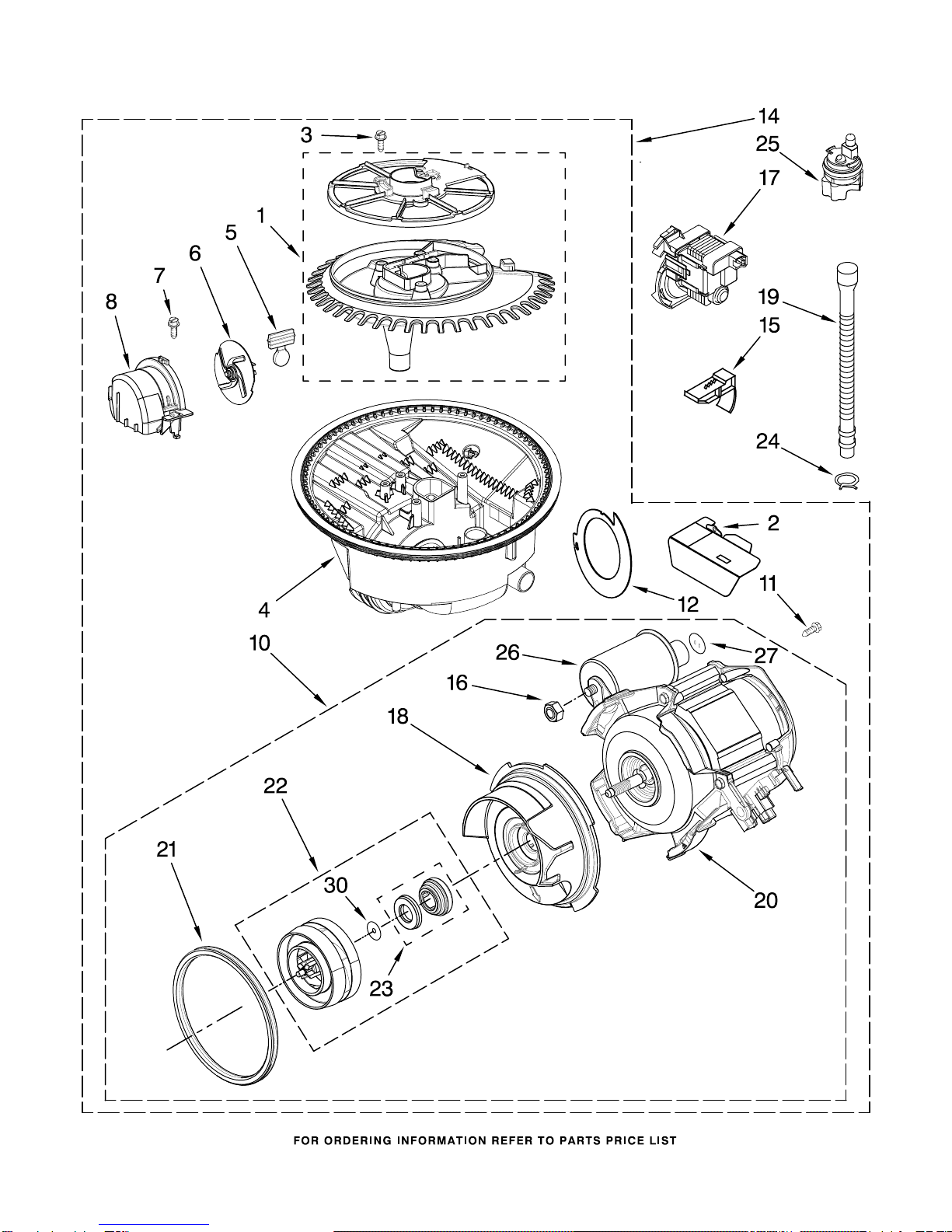

PUMP AND MOTOR PARTS
9
For Models: KUDT03FTBL0, KUDT03FTWH0, KUDT03FTSS0
(Black) (White) (Stainless)
W10129007
PUMP AND MOTOR PARTS
10
For Models: KUDT03FTBL0, KUDT03FTWH0, KUDT03FTSS0
(Black) (White) (Stainless)
W10129007
Illus. Part
No. No. DESCRIPTION
1 8534952 Accumulator Assy
2 8283527 Shield, Motor
3 3400069 Screw
4 8572618 Sump With Seal
5 8268375 Check Valve, Sump
6
W10083957
Chopper Assembly
7 9741232 Screw
8 8531857 Protector, Inlet
10 8535760 Motor Assembly
11 3400217 Screw
12 8268391 Screen, Separation
14
W10084107
Sump & Motor
Assembly
(Includes
Item 15)
15 8269524 Tab, Sump
16 8533949 Nut
17 661662 Pump, Drain
18 8531019 Volute, Back
(Also Order
Items 23 & 30)
19 8269144 Hose, Drain
20 8535759 Motor
21 8268397 Seal, Volute
22 8531017 Impeller Kit
23 8268403 Face Seal Assembly
(Also Order
Item 30)
24 356138 Clamp, Hose
25
W10082647
Optical Water
Indicator
26 8535474 Capacitor
27 8534946 Shield,
Capacitor
30 8531018 Washer
