KitchenAid KUDK03ITBL0 Manual de usuario
1
DOOR AND PANEL PARTS
For Models: KUDK03ITBL0, KUDK03ITWH0, KUDK03ITBT0, KUDK03ITBS0
(Black) (White) (Biscuit) (Stainless)
Illus. Part
No. No. DESCRIPTION
12−07 Litho in U.S.A. (els) Part No. W10128999 Rev. B
UNDERCOUNTER
DISHWASHER
1 Literature Parts
W10078153
Instructions,
Installation
W10111124
Energy Guide
8574093 Guide, Use & Care
W10077822
Guide, Consumer
Reference
W10082651
Tech Sheet
2 Arm, Hinge
8534854 Left
8534853 Right
3 8564886 Stiffener, Door
4 8542577 Insulation, Door
5 Access Panel
(Includes Item 7)
8558260 Black
8558261 White
8558262 Biscuit
6 Panel, Full Front
(Includes Items
4, 13 & 14)
W10077995
Black
W10077996
White
W10077997
Biscuit
W10137620
Stainless
7
W10073540
Insulation,
Access Panel
8 Toe Panel
(Includes
Items 9 & 15)
8558252 Black
8558253 White
8558254 Biscuit
9
W10073550
Insulation,
Toe Panel
10 Screw
302868 Black
3400836 White
3400865 Biscuit
11 304392 Screw
12 3400071 Screw (2)
13 Nameplate
W10021860
Black
W10021870
White
W10021880
Biscuit
W10021850
Stainless
14 2004333 Nut
15 8269016 Clip, Grounding
CONTROL PANEL PARTS
2
For Models: KUDK03ITBL0, KUDK03ITWH0, KUDK03ITBT0, KUDK03ITBS0
(Black) (White) (Biscuit) (Stainless)
W10128999
Illus. Part
No. No. DESCRIPTION
1 Console Assembly
(Includes Insert)
W10078016
Black
W10078017
White
W10078018
Biscuit
2 8268540 Spring, Handle
3 8546546 Clip, BI−Metal
4 3400412 Screw
5 8524471 Actuator, Latch
6 661663 BI−Metal
7 3369051 Screw (6)
8 Handle, Latch
8269117 Black
8269167 White
8269168 Biscuit
9 8524476 Bolt, Latch
10 8575277 Control,
Electronic
11 8269209 Switch, Door
DOOR AND LATCH PARTS
3
For Models: KUDK03ITBL0, KUDK03ITWH0, KUDK03ITBT0, KUDK03ITBS0
(Black) (White) (Biscuit) (Stainless)
W10128999
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
1 3369051 Screw, Door
2 8281217 Screw
3 8530900 Inner Door
Mastic Assembly
(Also Order
Item 6)
4
W10077883
Inlet, Air
5 8572583 Vent Assembly
(Also Order
Item 6)
6 8269259 Gasket, Vent
7
W10077877
Deflector, Vent
(Also Order
Item 6)
8
W10077882
Dispenser,
Assembly
9 8269258 Seal, Front
10 8545608 Harness, Vent
Motor
11 8574160 Seal, Side
12 8573176 Wiring Harness
13 8281154 Screw (6)
14 8535660 Seal,
Console/door
15 8535637 Bracket,
Dispenser
16 8531865 Shield,
Dispenser
17
W10077881
Knob, Rinse Aid
LOWER WASHARM AND STRAINER PARTS
4
For Models: KUDK03ITBL0, KUDK03ITWH0, KUDK03ITBT0, KUDK03ITBS0
(Black) (White) (Biscuit) (Stainless)
W10128999
Illus. Part
No. No. DESCRIPTION
1
W10077965
Wash Arm Assembly
2
W10077899
Cap, Internal
Rear Feed
(Also Order
Item 3)
3 8268340 Seal, Sprayarm
4
W10077898
Hub, Lower
Sprayarm
(Also Order
Item 3)
HEATER PARTS
5
For Models: KUDK03ITBL0, KUDK03ITWH0, KUDK03ITBT0, KUDK03ITBS0
(Black) (White) (Biscuit) (Stainless)
W10128999
Illus. Part
No. No. DESCRIPTION
1 8537057 Heater Element
Assembly
(Also Includes
Item 2)
2 717273 Washer, Heater
Element
3 8268548 Nut, Heater
Element
4 3400931 Retainer, Spring
Grip
NOTE:
If heater element is
removed, it must be replaced.
FILL AND OVERFILL PARTS
6
For Models: KUDK03ITBL0, KUDK03ITWH0, KUDK03ITBT0, KUDK03ITBS0
(Black) (White) (Biscuit) (Stainless)
W10128999
Illus. Part
No. No. DESCRIPTION
1 8268892 Lever, Overfill
Switch
2 8531412 Hose, Inlet
3 8531325 Water Inlet
(Also Order
Item 4)
4 8531323 Gasket
5 8531327 Nut, Inlet
(Also Order
Item 4)
6 371505 Clamp, Hose
7 8563405 Fill Valve
Assembly
8 304392 Screw
9 8268909 Switch, Overfill
Control
10 8545946 Standpipe,
Overfill
(Includes Item 11)
11 8531743 Gasket, Flat
12 9741998 Nut, Standpipe
13
W10077871
Float & Retainer
Assembly
14 8269297 Miscellaneous
Parts Bag
(Includes 2 Screws
& 2 Hose Clamps)
15 356138 Clamp, Hose
16 8531022 Drain Loop
with Check Valve

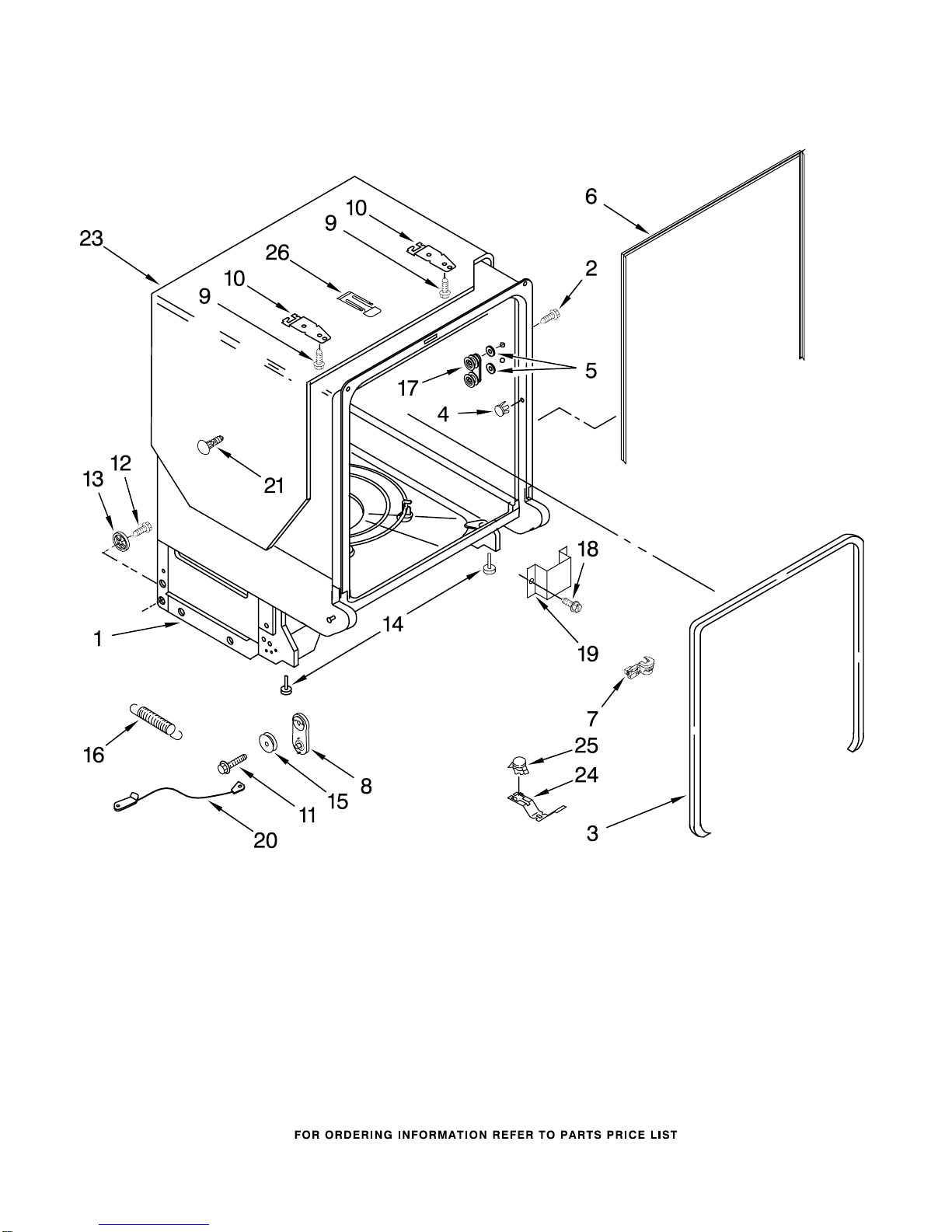

TUB AND FRAME PARTS
7
For Models: KUDK03ITBL0, KUDK03ITWH0, KUDK03ITBT0, KUDK03ITBS0
(Black) (White) (Biscuit) (Stainless)
W10128999
TUB AND FRAME PARTS
8
For Models: KUDK03ITBL0, KUDK03ITWH0, KUDK03ITBT0, KUDK03ITBS0
(Black) (White) (Biscuit) (Stainless)
W10128999
Illus. Part
No. No. DESCRIPTION
1
W10053090
Tub Assembly
2 3400072 Screw
3
W10112096
Door Seal
4 8270119 Plug Tub (2)
5 9743002 Gasket, Bracket
Mounting
6 8269110 Seal, Cabinet
7 8573061 Strain Relief
8 8270021 Mount, Door
Balance
9 3367670 Screw
10 8269145 Bracket,
Undercounter
11 3400074 Screw (2)
12 3370389 Screw (2)
13 8268977 Wheel Leg
14 8524584 Leveler, Leg
15 8524474 Wheel, door
Balance
16 8270020 Spring, Door
Balance
17
W10078083
Wheel & Mount
Assembly
(Also order #5)
18 3400892 Screw
19 8268991 Cover, Terminal
Box
20 8535568 Link, Door
Balance
21 304666 Retainer, Push (2)
23 8573241 Shield, Sound
Tub
24 9742648 Bracket,
Thermostat
25 661566 Thermostat
26 8580309 Strike, Latch
PUMP AND MOTOR PARTS
9
For Models: KUDK03ITBL0, KUDK03ITWH0, KUDK03ITBT0, KUDK03ITBS0
(Black) (White) (Biscuit) (Stainless)
W10128999
PUMP AND MOTOR PARTS
10
For Models: KUDK03ITBL0, KUDK03ITWH0, KUDK03ITBT0, KUDK03ITBS0
(Black) (White) (Biscuit) (Stainless)
W10128999
Illus. Part
No. No. DESCRIPTION
1 8534952 Accumulator Assy
2 8283527 Shield, Motor
3 3400069 Screw
4 8572618 Sump With Seal
5 8268375 Check Valve, Sump
6
W10083957
Chopper Assembly
7 9741232 Screw
8 8531857 Protector, Inlet
9 8535760 Motor Assembly
10 3400217 Screw
11 8268391 Screen, Separation
12
W10084107
Sump & Motor
Assembly
(Includes
Item 13)
13 8269524 Tab, Sump
14 8533949 Nut
15 661662 Pump, Drain
16 8531019 Volute, Back
(Also Order
Items 21 & 26)
17 8269144 Hose, Drain
18 8535759 Motor
19 8268397 Seal, Volute
20 8531017 Impeller Kit
21 8268403 Face Seal Assembly
(Also Order
Item 26)
22 356138 Clamp, Hose
23
W10082647
Optical Water
Indicator
24 8535474 Capacitor
25 8534946 Shield,
Capacitor
26 8531018 Washer
