KitchenAid KUDS50FVWH - Superba - 5 Cycle Dishw Guía de configuración

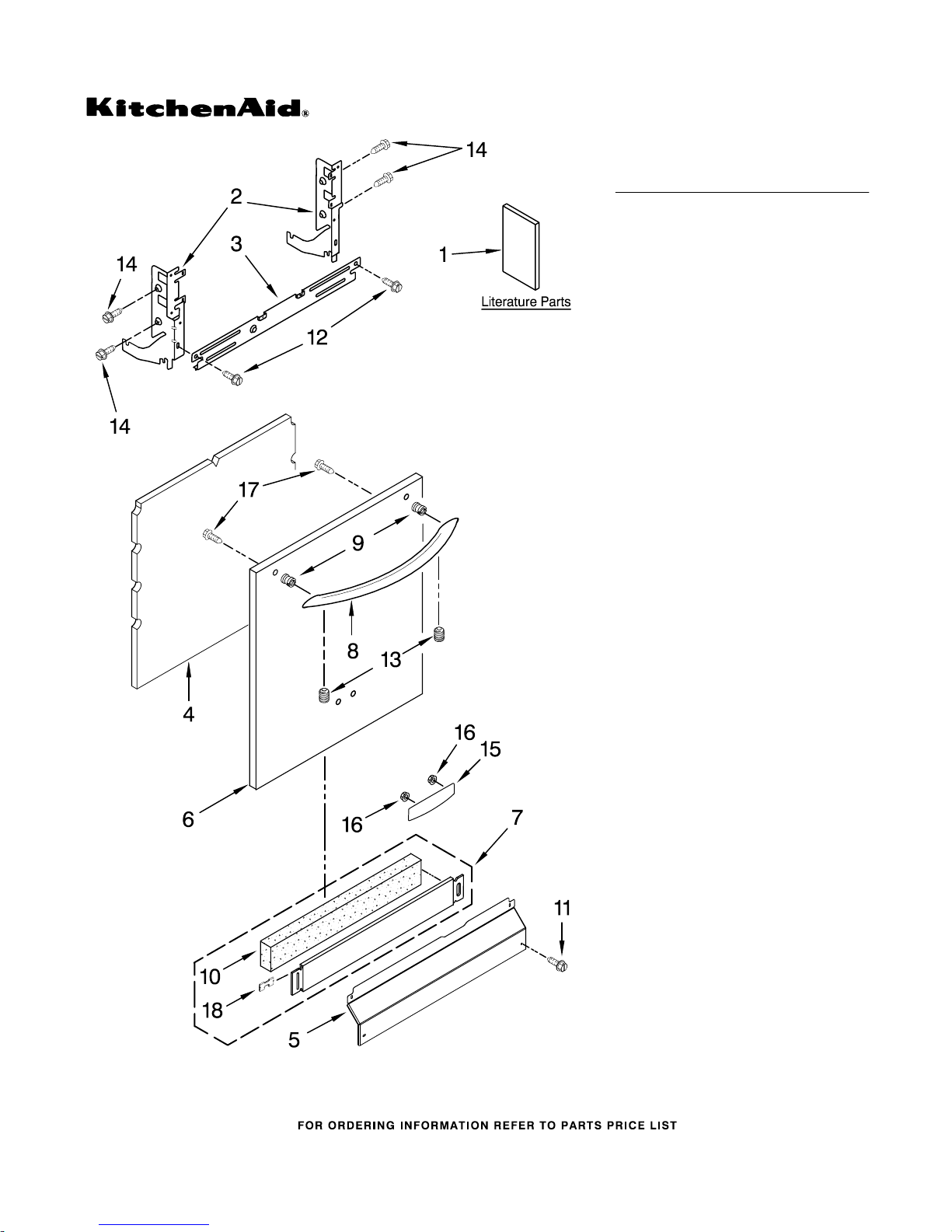

DOOR AND PANEL PARTS
1
For Models: KUDS50FVBL2, KUDS50FVWH2, KUDS50FVSS2
(Black) (White) (Stainless)
8−09 Litho In U.S.A. (els) (eeb) Part No. W10292697 Rev. A
UNDERCOUNTER
DISHWASHER
Illus. Part
No. No. DESCRIPTION
1 Literature Parts
W10056407
Instructions,
Installation
W10247455
Energy Guide
W10205938
Guide, Use & Care
Spanish
W10205937
Guide, Use & Care
English/French
W10142800
Tech Sheet
2 Arm, Hinge
8534854 Left
8534853 Right
3 8268983 Stiffener, Door
4
W10073520
Insulation, Door
5 Access Panel
8573255 Black
8573256 White
6 Panel, Full Front
(Includes Items
4, 9, 15 & 16)
W10078007
Black
W10078008
White
W10137623
Stainless
7 Toe Panel
(Includes
Items 10 & 18)
8558252 Black
8558253 White
8 Handle
(Includes
Items 13)
W10257146
Black
W10257147
White
W10257145
Stainless
9 8564951 Stud, Mounting
10 8268581 Insulation,
Toe Panel
11 Screw
302868 Black
3400836 White
12 304392 Screw
13 8534008 Screw
14 3400071 Screw
15 Nameplate
W10021860
Black
W10021870
White
W10021850
Stainless
16 2004333 Nut
17
W10123421
Screw
18 8269016 Clip, Ground

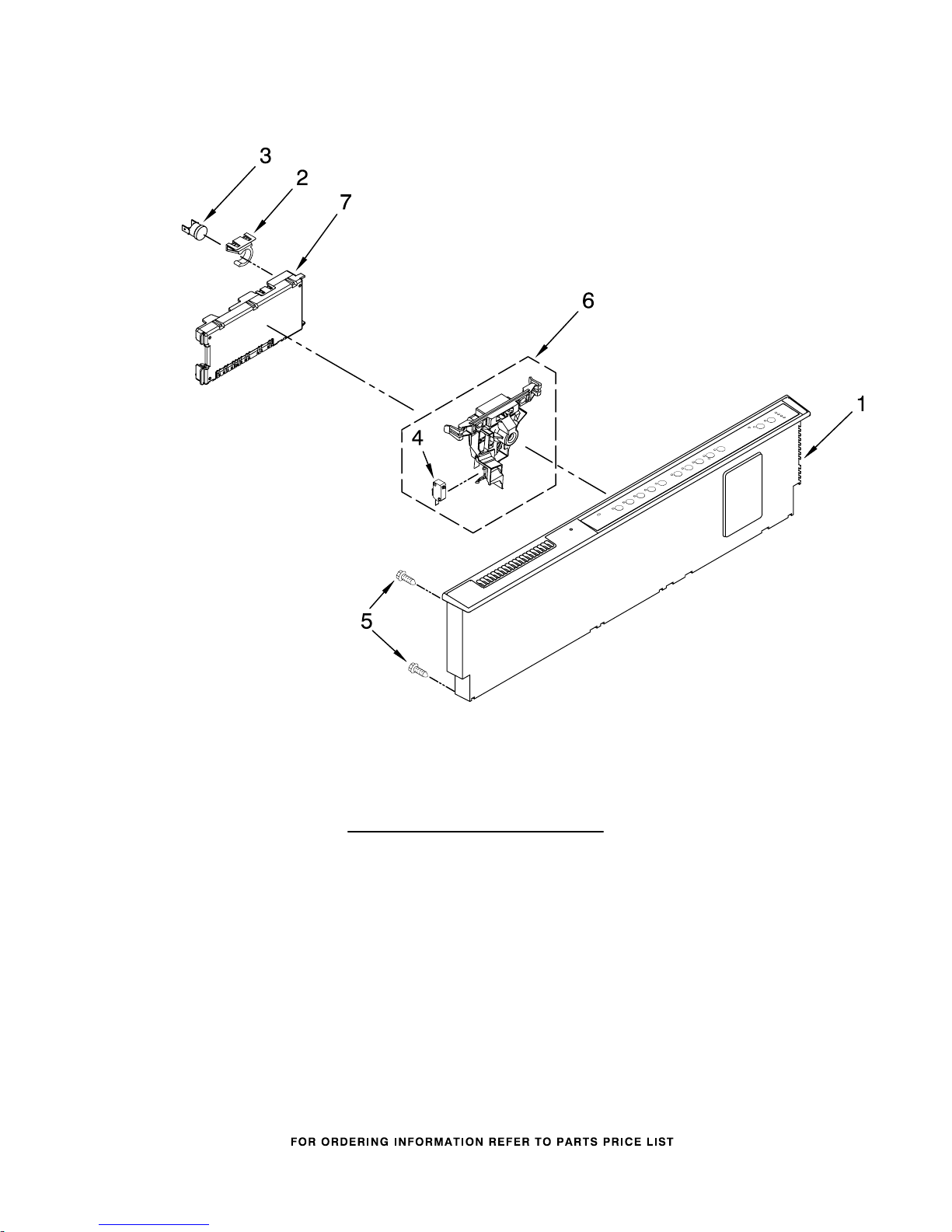

CONTROL PANEL PARTS
2
For Models: KUDS50FVBL2, KUDS50FVWH2, KUDS50FVSS2
(Black) (White) (Stainless)
W10292697
Illus. Part
No. No. DESCRIPTION
1 Console Assembly
W10249999
Black
W10250000
White
W10250001
Midnight Grey
2 8546546 Clip, BI−Metal
3 661663 BI−Metal
4
W10134019
Switch, Door
5 3369051 Screw
6
W10077360
Latch Assembly
7
W10208674
Control,
Electronic

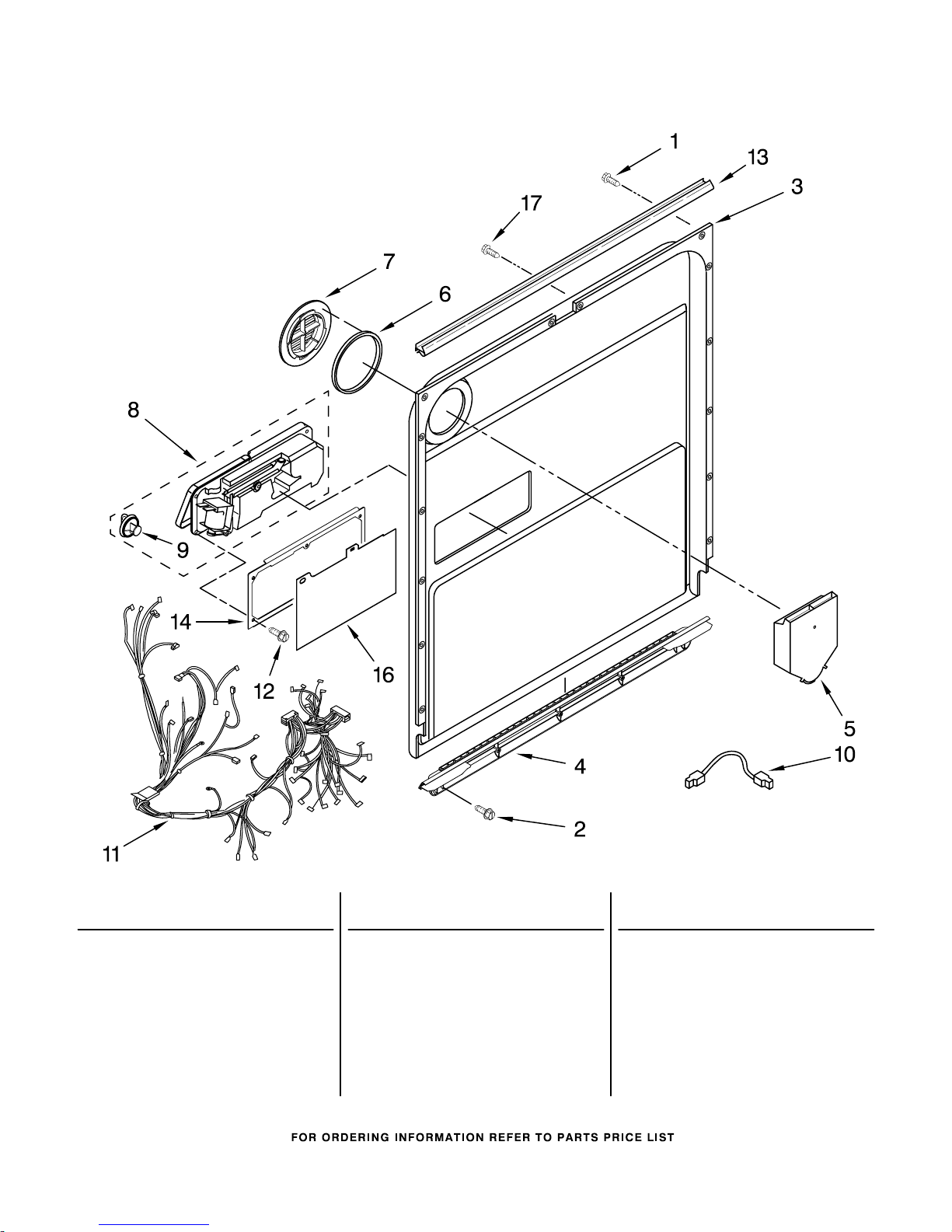

DOOR AND LATCH PARTS
3
For Models: KUDS50FVBL2, KUDS50FVWH2, KUDS50FVSS2
(Black) (White) (Stainless)
W10292697
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
1 3369051 Screw, Door
2 8281217 Screw
3
W10056249
Inner Door
Mastic Assembly
(Also Order
Item 6)
4
W10077883
Inlet, Air
5 8572611 Vent Assenbly
(Also Order
Item 6)
6 8269259 Gasket, Vent
7
W10077877
Deflector, Vent
(Also Order
Item 6)
8
W10224431
Dispenser,
Assembly
9
W10077881
Knob, Rinse Aid
10 8545608 Harness, Vent
Motor
11
W10224470
Wiring Harness
12
W10177098
Screw
13 8535660 Seal,
Console/door
14 8535637 Bracket,
Dispenser
16 8531865 Shield,
Dispenser
17 8533965 Screw

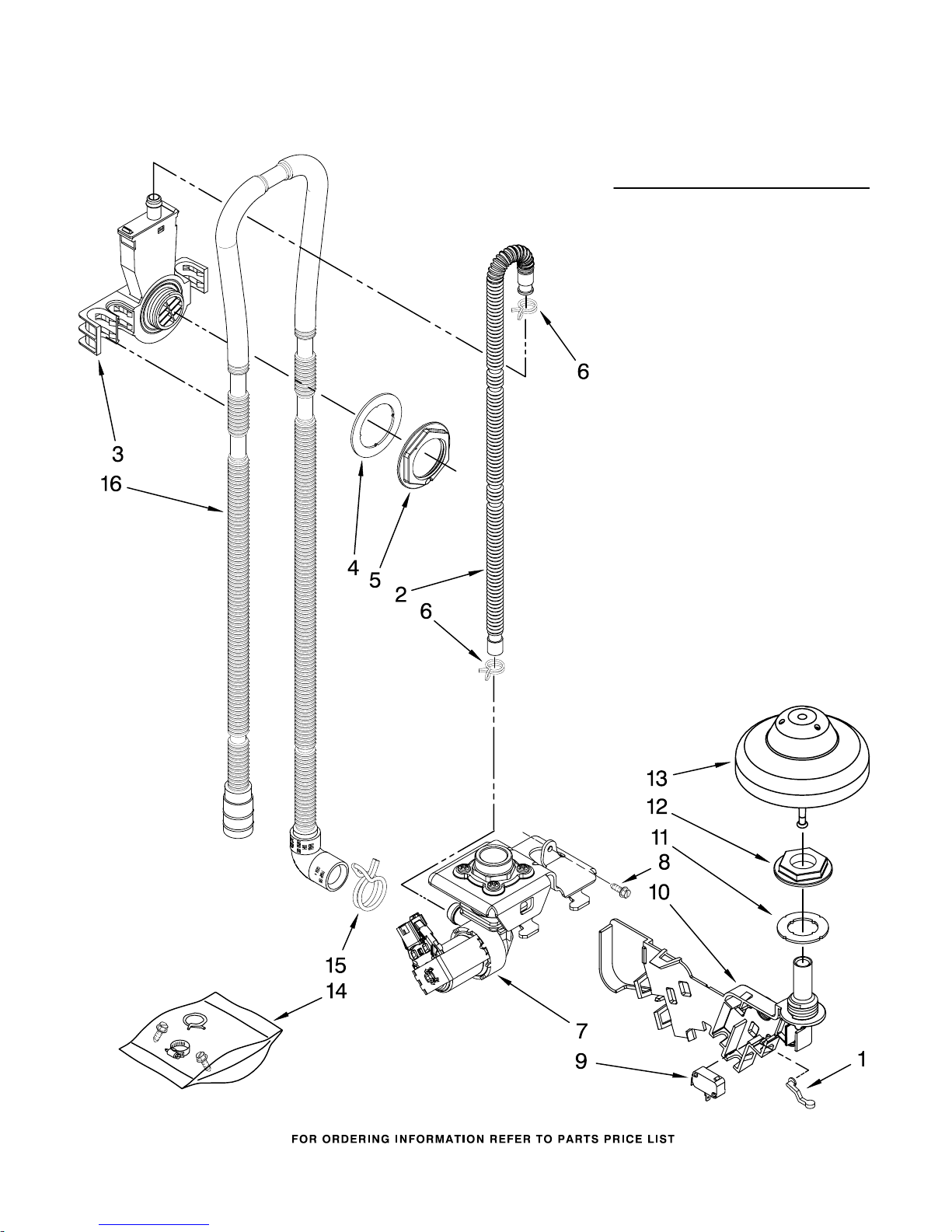

FILL, DRAIN AND OVERFILL PARTS
4
For Models: KUDS50FVBL2, KUDS50FVWH2, KUDS50FVSS2
(Black) (White) (Stainless)
W10292697
Illus. Part
No. No. DESCRIPTION
1 8268892 Lever, Overflow
Switch
2 8531412 Hose, Inlet
3 8531325 Water Inlet
(Also Order
Item 4)
4 8531323 Gasket
5
W10213826
Nut, Inlet
(Also Order
Item 4 & 5)
6 371505 Clamp, Hose
7
W10219505
Fill Valve
Assembly
8 304392 Screw
9 8268909 Switch, Overfill
Control
10 8545946 Standpipe,
Overfill
(Includes Item 11)
11 8531743 Gasket, Flat
12 9741998 Nut, Standpipe
13
W10077871
Float & Retainer
Assembly
14 8269297 Miscellaneous
Parts Bag
(Includes 2 Screws
& 2 Hose Clamps)
15 356138 Clamp, Hose
16
W10137608
Drain Loop
with Check Valve

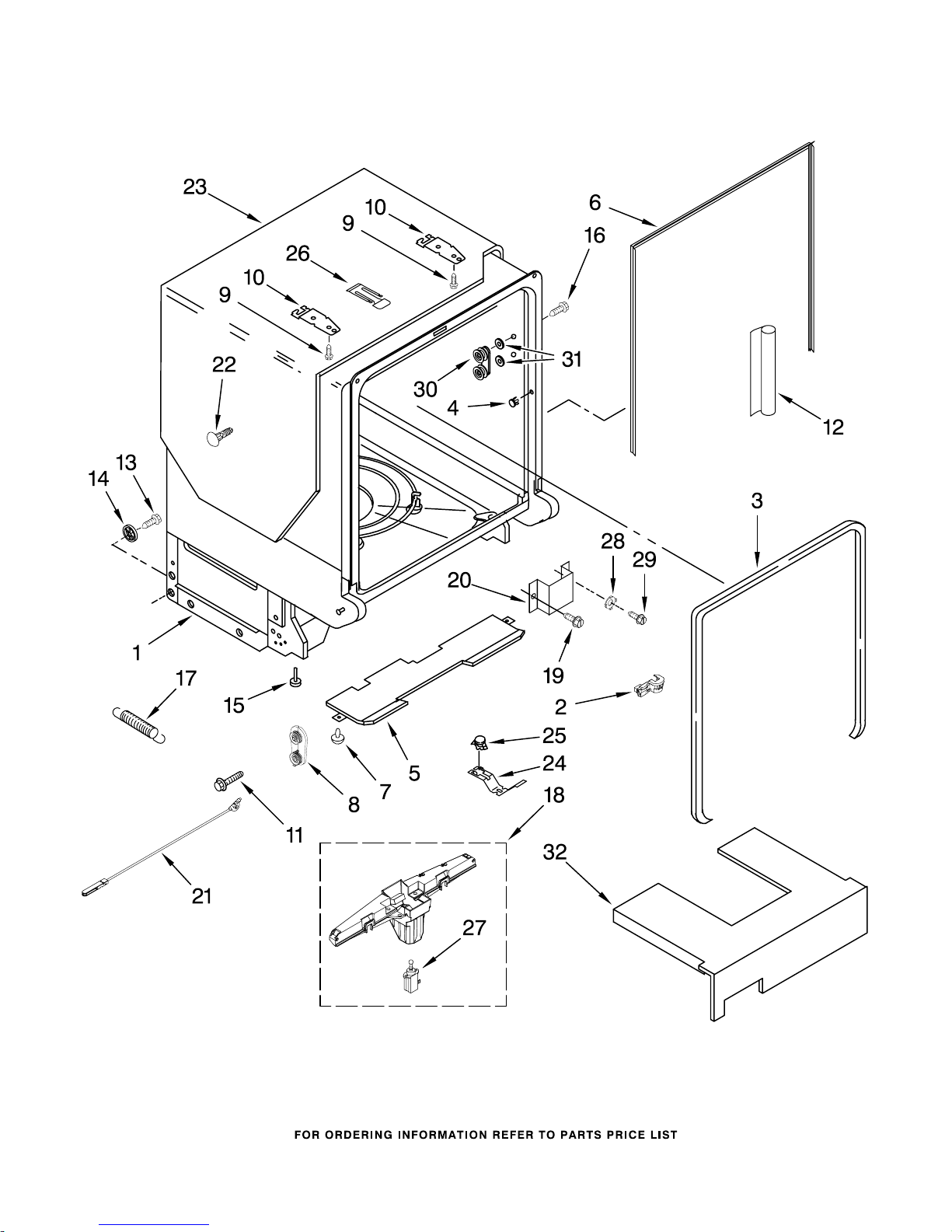

TUB AND FRAME PARTS
5
For Models: KUDS50FVBL2, KUDS50FVWH2, KUDS50FVSS2
(Black) (White) (Stainless)
W10292697
TUB AND FRAME PARTS
6
For Models: KUDS50FVBL2, KUDS50FVWH2, KUDS50FVSS2
(Black) (White) (Stainless)
W10292697
Illus. Part
No. No. DESCRIPTION
1
W10213823
Tub Assembly
(Includes Heater
Assembly)
2 8573061 Strain Relief
3
W10112096
Door Seal
4
W10082838
Plug Tub
5
W10266857
Insulator, Sound
6 8269110 Seal, Cabinet
7 3400924 Retainer, Push
8
W10084086
Door Balance
Assembly
9 3367670 Screw
10 8269145 Bracket,
Undercounter
11 3400074 Screw
12 8574123 Barrier, Moisture
Undercounter
13 3370389 Screw
14 8268977 Wheel, Leg
15 8524584 Leveler, Leg
16 3400072 Screw
Balance
17 8270020 Spring, Door
18 8572661 Actuator Assembly
19 3400892 Screw
20 8268991 Cover, Terminal
Box
21
W10158291
Cable, Door
Balance
22 304666 Retainer, Push
23 8573239 Shield, Sound
Tub
24 9742648 Bracket,
Thermostat
25 661566 Thermostat
26
W10077370
Strike, Latch
27
W10082769
Motor, Wax
28 3378128 Washer,
Pronged Cup
29 3400014 Screw
30
W10078083
Wheel & Mount
Assembly
(Also Order
Item 31)
31 9743002 Gasket, Bracket
Mounting
32
W10084568
Absorber, Sound

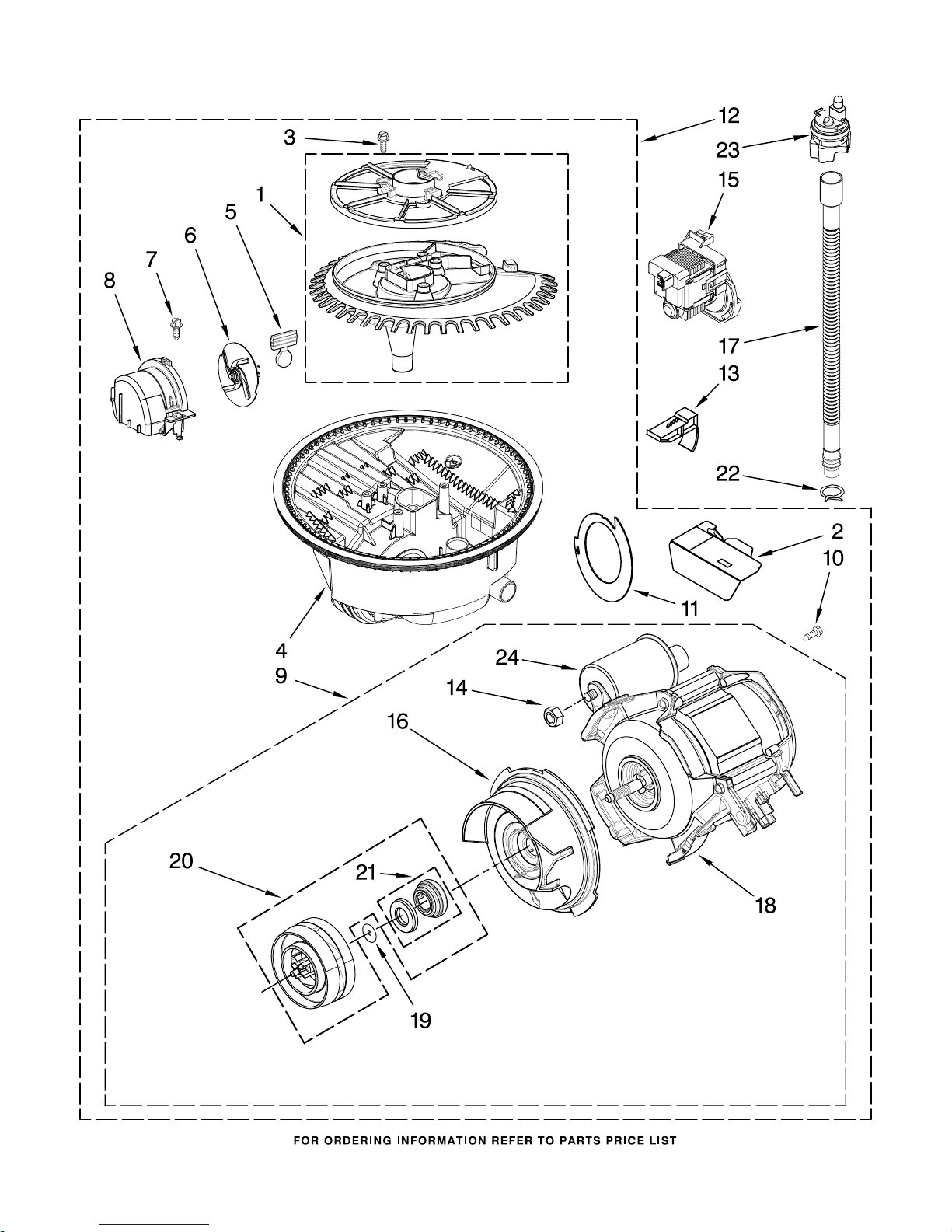

PUMP AND MOTOR PARTS
7
For Models: KUDS50FVBL2, KUDS50FVWH2, KUDS50FVSS2
(Black) (White) (Stainless)
W10292697
PUMP AND MOTOR PARTS
8
For Models: KUDS50FVBL2, KUDS50FVWH2, KUDS50FVSS2
(Black) (White) (Stainless)
W10292697
Illus. Part
No. No. DESCRIPTION
1 8534952 Accumulator Assy
2 8283527 Shield
3 3400069 Screw
4 8572618 Sump with Seal
5 8268375 Check Valve, Sump
6
W10083957
Chopper Assembly
7 9741232 Screw
8 8531857 Protector, Inlet
9
W10239404
Motor Assembly
10 3400217 Screw
11
W10084567
Screen, Separation
12
W10237169
Sump & Motor
Assembly
13 8269524 Tab, Sump
14 8533949 Nut
15 8558995 Pump, Drain
16
W10142656
Volute, W/Seal
(Also Order
Items 21 & 19)
17 8269144 Hose, Drain
18
W10239401
Motor
19 8531018 Washer
20 8531017 Impeller Kit
21 8268403 Face Seal Assembly
(Also Order
Item 19)
22 356138 Clamp, Hose
23
W10134017
Optical Water
Indicator
24
W10216724
Capacitor

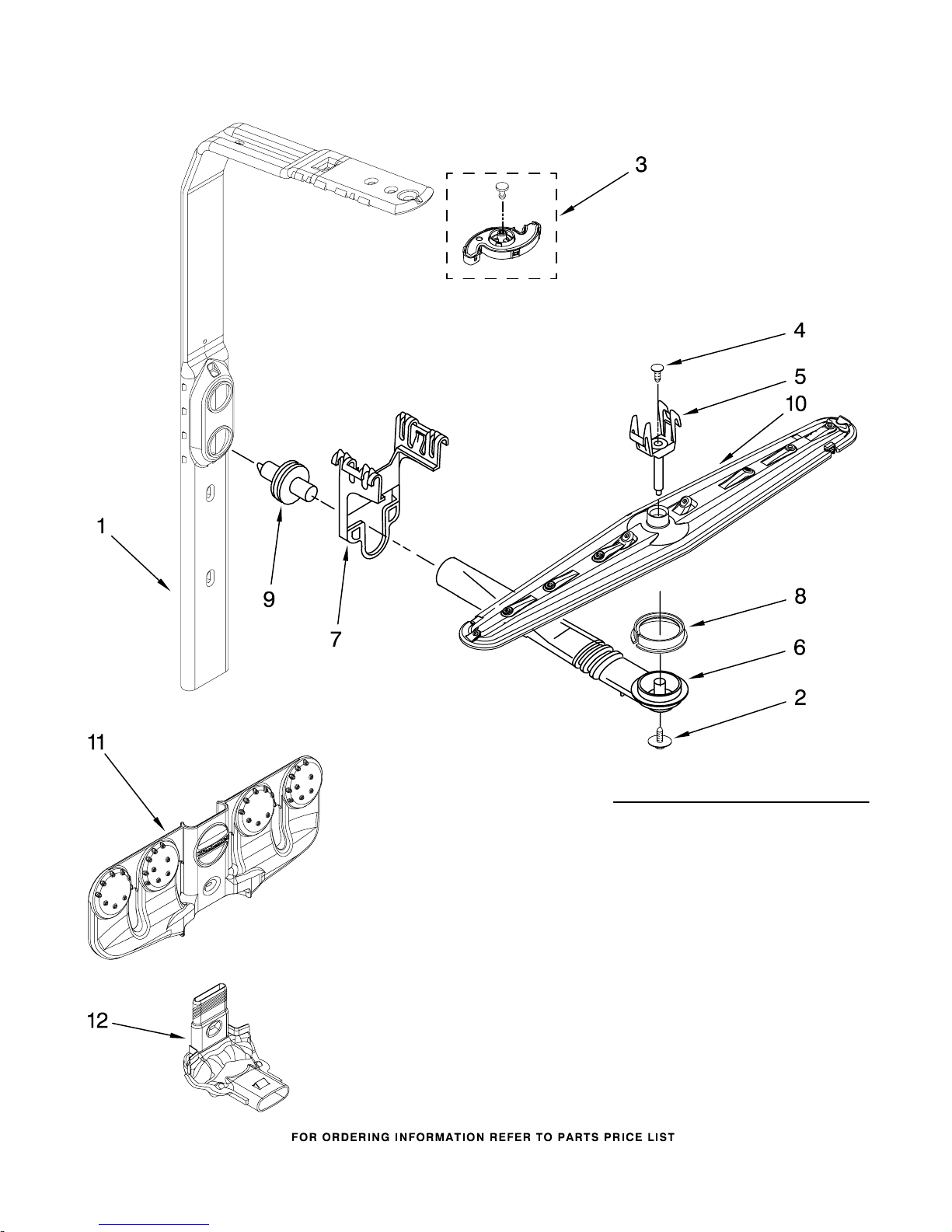

UPPER WASH AND RINSE PARTS
9
For Models: KUDS50FVBL2, KUDS50FVWH2, KUDS50FVSS2
(Black) (White) (Stainless)
W10292697
Illus. Part
No. No. DESCRIPTION
1
W10077859
Feed Tube
Assembly
(Also Includes
Item 3)
2 8533889 Screw
3 8557720 Sprayarm, 3rd
Level
4
W10118464
Cover, Screw
5
W10082867
Mount
6
W10082949
Manifold
7
W10082832
Hanger
8 8268433 Seal, Sprayarm
9
W10082831
Probe, Manifold
10
W10082841
Sprayarm
11
W10077600
Manifold, Spray
Zone
12
W10077903
Valve Assembly,
Manifold

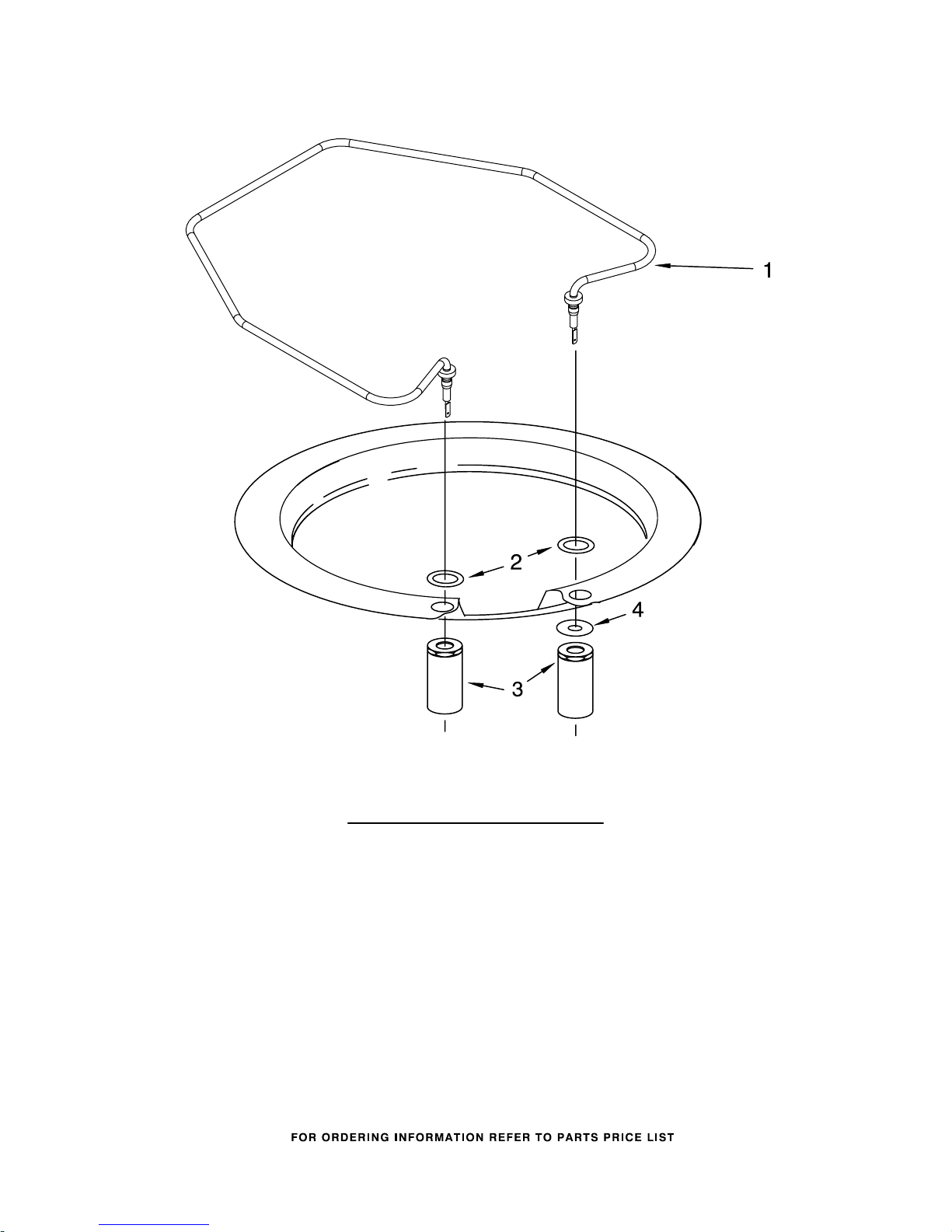

HEATER PARTS
10
For Models: KUDS50FVBL2, KUDS50FVWH2, KUDS50FVSS2
(Black) (White) (Stainless)
W10292697
Illus. Part
No. No. DESCRIPTION
1 8537057 Heater Element
Assembly
(Also Includes
Item 2)
2 717273 Washer, Heater
Element
3 8268548 Nut, Heater
Element
4 3400931 Retainer, Spring
Grip
NOTE:
If heater element is
removed, it must be replaced.
