DOOR AND PANEL PARTS
1
For Models: KUDP02IRBL2, KUDP02IRWH2, KUDP02IRBT2, KUDP02IRBS2
(Black) (White) (Biscuit) (Stainless)
7−06 Litho in U.S.A. (ebk) Part No. 8194482
UNDERCOUNTER
DISHWASHER
Illus. Part
No. No. DESCRIPTION
1 Literature Parts
8574116 Instructions,
Installation
W10077760
Energy Guide
8574093 Guide, Use & Care
8572287 Guide, Consumer
Reference
8572216 Tech Sheet
8564958 DVD, Use & Care
2 Arm, Hinge
8534854 Left
8534853 Right
3 8564886 Stiffener, Door
4 8542577 Insulation, Door
5 Access Panel
8558260 Black
8558261 White
8558262 Biscuit
6 Panel, Full Front
(Includes Items
16 & 17)
8572692 Black
8572693 White
8572694 Biscuit
8572695 Stainless
8 Toe Panel
(Includes Item 11)
8558252 Black
8558253 White
8558254 Biscuit
11 8268581 Insulation,
Toe Panel
12 302868 Screw
13 304392 Screw
15 3400071 Screw (2)
16 Nameplate
2005292 Black
2209118W White
2209118T Biscuit
17 2004333 Nut
18 8542578 Insulation,
Access Panel
CONTROL PANEL PARTS
2
For Models: KUDP02IRBL2, KUDP02IRWH2, KUDP02IRBT2, KUDP02IRBS2
(Black) (White) (Biscuit) (Stainless)
8194482
Illus. Part
No. No. DESCRIPTION
1 Console Assembly
(Includes Insert)
8572338 Black
8572339 White
8572340 Biscuit
3 8546546 Clip, BI−Metal
4 3400412 Screw
5 8524471 Actuator, Latch
6 661663 Fuse, Thermal
Electronic
7 8268540 Spring, Handle
8 3369051 Screw (6)
9 8524476 Bolt, Latch
10 Handle, Latch
8269117 Black
8269167 White
8269168 Biscuit
11
W10039770
Control,
Electronic
12 8269209 Switch, Door
DOOR AND LATCH PARTS
3
For Models: KUDP02IRBL2, KUDP02IRWH2, KUDP02IRBT2, KUDP02IRBS2
(Black) (White) (Biscuit) (Stainless)
8194482
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
1 3369051 Screw, Door
2 8281217 Screw
3 8530900 Inner Door
Mastic Assembly
(Also Order
Item 6)
4 8268937 Inlet, Air
5 8572583 Vent Assembly
(Also Order
Item 6)
6 8269259 Gasket, Vent
7 8545536 Deflector, Vent
(Also Order
Item 6)
8 8564772 Dispenser,
Assembly
9 8269258 Seal, Front
10 8545608 Harness, Vent
Motor
11 8574160 Seal, Side
12 8573176 Wiring Harness
13 8281154 Screw (6)
14 8535660 Seal,
Console/door
15 8535637 Bracket,
Dispenser
16 8531865 Shield,
Dispenser
17 8564929 Knob, Rinse Aid

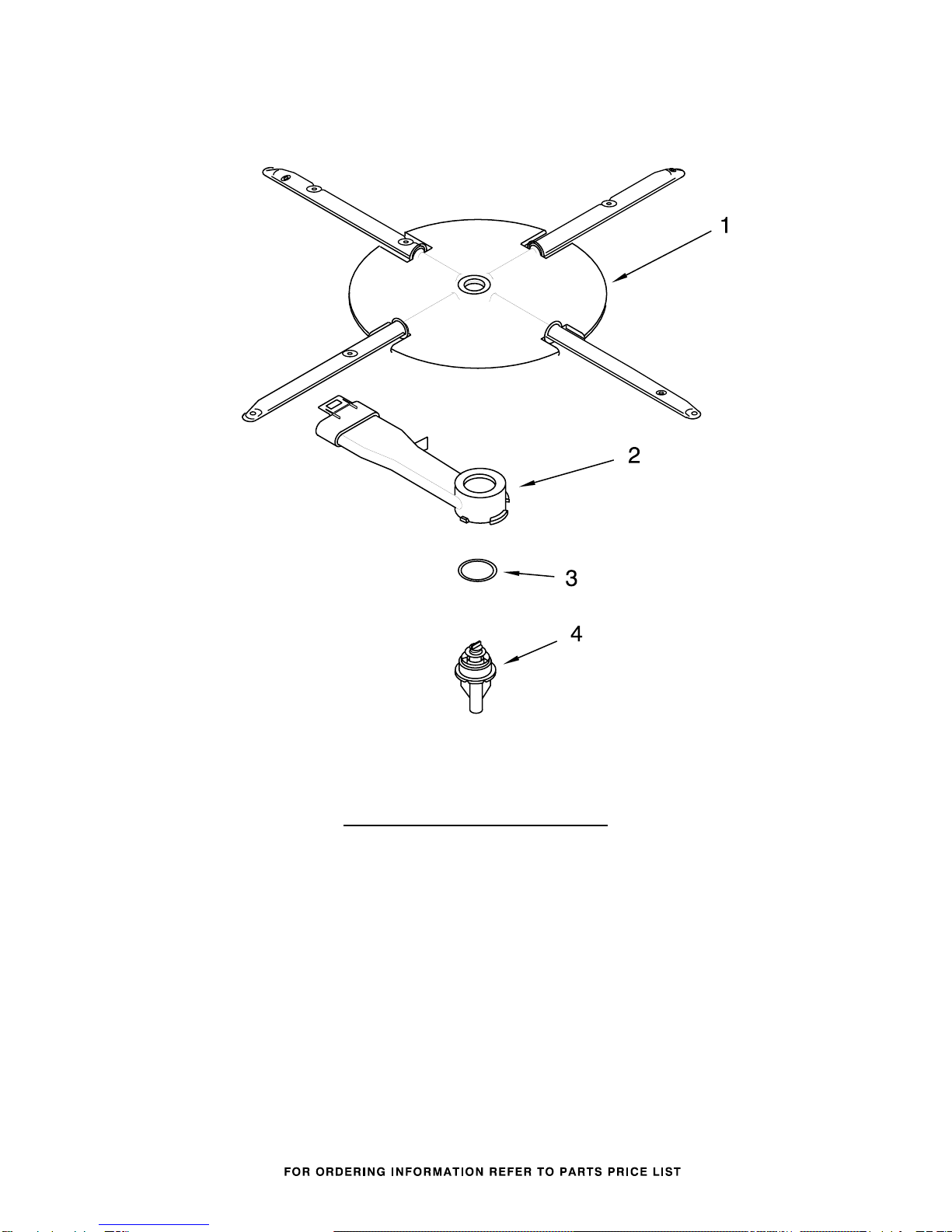

LOWER WASHARM AND STRAINER PARTS
4
For Models: KUDP02IRBL2, KUDP02IRWH2, KUDP02IRBT2, KUDP02IRBS2
(Black) (White) (Biscuit) (Stainless)
8194482
Illus. Part
No. No. DESCRIPTION
1 8572307 Wash Arm Assembly
2 8268343 Cap, Internal
Rear Feed
(Also Order
Item 3)
3 8268340 Seal, Sprayarm
4 8268342 Hub, Lower
Sprayarm
(Also Order
Item 3)
HEATER PARTS
5
For Models: KUDP02IRBL2, KUDP02IRWH2, KUDP02IRBT2, KUDP02IRBS2
(Black) (White) (Biscuit) (Stainless)
8194482
Illus. Part
No. No. DESCRIPTION
1 8537057 Heater Element
Assembly
(Also Includes
Item 2)
2 717273 Washer, Heater
Element
3 8268548 Nut, Heater
Element
5 3400931 Retainer, Spring
Grip
NOTE:
If heater element is
removed, it must be replaced.
FILL AND OVERFILL PARTS
6
For Models: KUDP02IRBL2, KUDP02IRWH2, KUDP02IRBT2, KUDP02IRBS2
(Black) (White) (Biscuit) (Stainless)
8194482
Illus. Part
No. No. DESCRIPTION
1 8545946 Control, Overfil
Assembly
2 8531412 Hose, Inlet
3 8531325 Water Inlet
(Also Order
Item 4)
4 8531323 Gasket
5 8531327 Nut, Inlet
(Also Order
Item 4)
6 371505 Clamp, Hose
7 8563405 Fill Valve
Assembly
8 3400014 Screw
9 3378128 Washer
11 8268909 Switch, Overfill
Control
13 8531743 Gasket, Flat
14 9741998 Nut, Standpipe
15 8268895 Float & Retainer
Assembly
16 8268892 Lever, Overflow
Switch
TUB AND FRAME PARTS
7
For Models: KUDP02IRBL2, KUDP02IRWH2, KUDP02IRBT2, KUDP02IRBS2
(Black) (White) (Biscuit) (Stainless)
8194482
TUB AND FRAME PARTS
8
For Models: KUDP02IRBL2, KUDP02IRWH2, KUDP02IRBT2, KUDP02IRBS2
(Black) (White) (Biscuit) (Stainless)
8194482
Illus. Part
No. No. DESCRIPTION
1
W10053090
Tub Assembly
3 8531629 Door Seal
4 8270119 Plug Tub (2)
5 8531022 Drain Loop
With Check Valve
7 8269110 Seal, Cabinet
8 8573061 Strain Relief
9 8270021 Mount, Door
Balance
10 3367670 Screw
11 8269145 Bracket,
Undercounter
12 3400074 Screw (2)
13 3400924 Retainer, Push−in
14 3370389 Screw (2)
15 8268977 Wheel Leg
16 8524584 Leveler, Leg
17 8524474 Wheel, door
Balance
18 8270020 Spring, Door
Balance
20 3400892 Screw
21 8268991 Cover, Terminal
Box
24 8535568 Link, Door
Balance
25 8268587 Insulator, Sound
26 304666 Retainer, Push (2)
27 8269016 Clip, Grounding
28 8573239 Shield, Sound
Tub
29 9742648 Bracket,
Thermostat
30 661566 Thermostat
31 8580309 Strike, Latch
48 356138 Clamp, Hose (1)
50 8269297 Miscellaneous
Parts Bag
(Includes 2 Screws
& 2 Hose Clamps)
PUMP AND MOTOR PARTS
9
For Models: KUDP02IRBL2, KUDP02IRWH2, KUDP02IRBT2, KUDP02IRBS2
(Black) (White) (Biscuit) (Stainless)
8194482
PUMP AND MOTOR PARTS
10
For Models: KUDP02IRBL2, KUDP02IRWH2, KUDP02IRBT2, KUDP02IRBS2
(Black) (White) (Biscuit) (Stainless)
8194482
Illus. Part
No. No. DESCRIPTION
1 8534952 Accumulator Assy
2 8283527 Shield, Motor
3 3400069 Screw
4 8572618 Sump With Seal
5 8268375 Check Valve, Sump
6 8268383 Chopper Assembly
7 9741232 Screw
8 8531857 Protector, Inlet
10 8535760 Motor Assembly
11 3400217 Screw
12 8268391 Screen, Separation
14 8572617 Sump & Motor
Assembly
(Includes
Item 15)
15 8269524 Tab, Sump
16 8533949 Nut
17 661662 Pump, Drain
18 8531019 Volute, Back
(Also Order
Items 23 & 30)
19 8269144 Hose, Drain
20 8535759 Motor
21 8268397 Seal, Volute
22 8531017 Impeller Kit
23 8268403 Face Seal Assembly
(Also Order
Item 30)
24 356138 Clamp, Hose
25
W10055980
Optical Water
Indicator
26 8535474 Capacitor
27 8534946 Shield,
Capacitor
30 8531018 Washer
