KitchenAid KUDS50FVPA - Fully Integrated Dishwasher Guía de configuración

DOOR AND PANEL PARTS

For Model: KUDS50FVPA2

Panel Ready

10−09 Litho In U.S.A. (els)(bay) Part No. W10304218 Rev.A

UNDERCOUNTER

DISHWASHER

Illus. Part

No. No. DESCRIPTION

1 Literature Parts

W10056407

Instructions,

Installation

W10247455

Energy Guide

W10205938

Guide, Use & Care

Spanish

W10205937

Guide, Use & Care

English/French

W10142800

Tech Sheet

2 Arm, Hinge

8534854 Left

8534853 Right

3 8268983 Stiffener, Door

4 8531882 Screws, Door Asm.

5 Access Panel

8573255 Black

6 Panel, Front

8535133 Black

7 8269016 Clip, Ground

8 Toe Panel

(Includes

Items 7 & 9)

8558252 Black

9 8268581 Insulation,

Toe Panel

10 Screw

302868 Black

11 304392 Screw

12 3400071 Screw

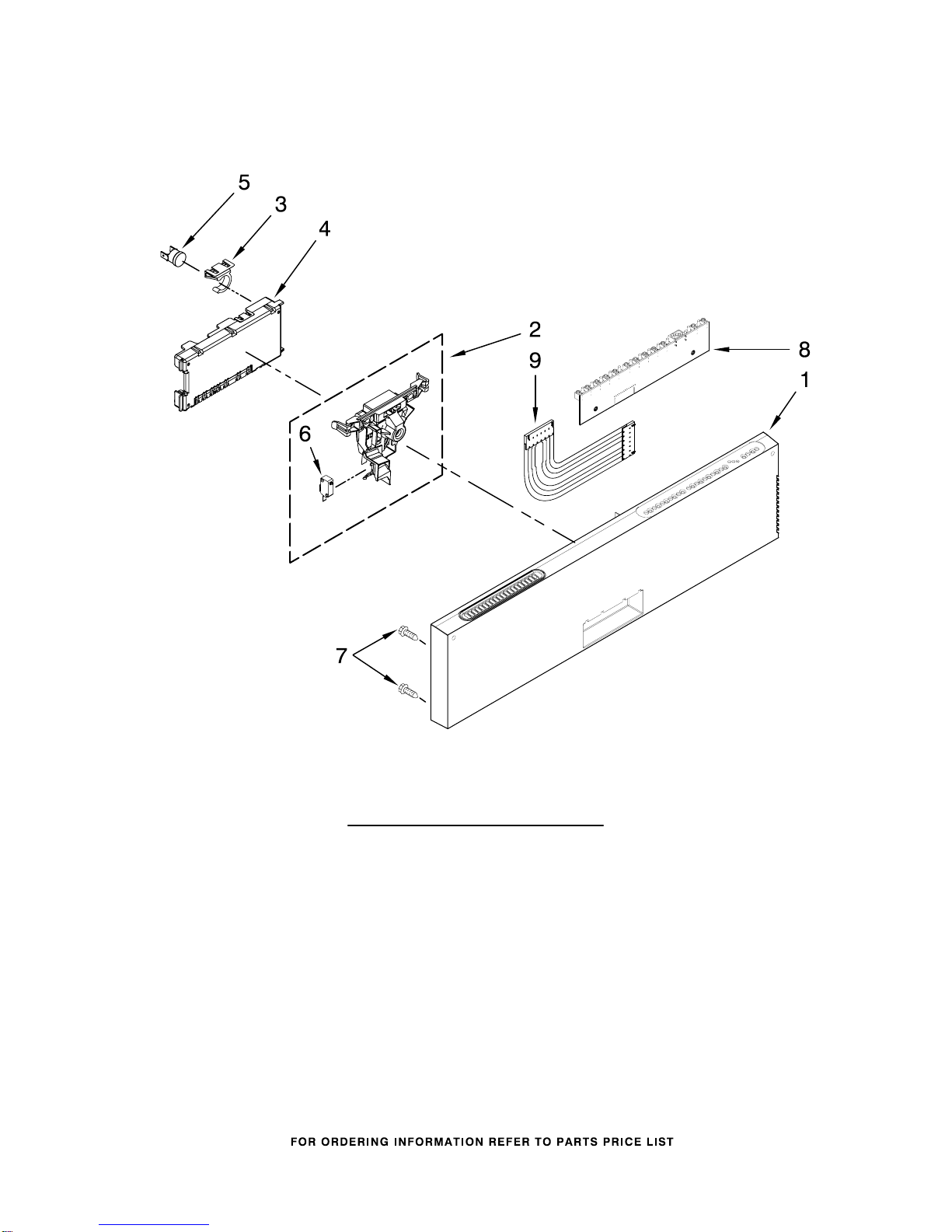

CONTROL PANEL PARTS

For Model: KUDS50FVPA2

Panel Ready

W10304218

Illus. Part

No. No. DESCRIPTION

1 Console Assembly

W10250002

Black

W10077360

Latch Assembly

3 8546546 Clip, BI−Metal

W10208674

Control,

Electronic

5 661663 BI−Metal

W10134019

Switch, Door

7 3369051 Screw

W10243170

User Interface

9 8524447 Cable, Ribbon

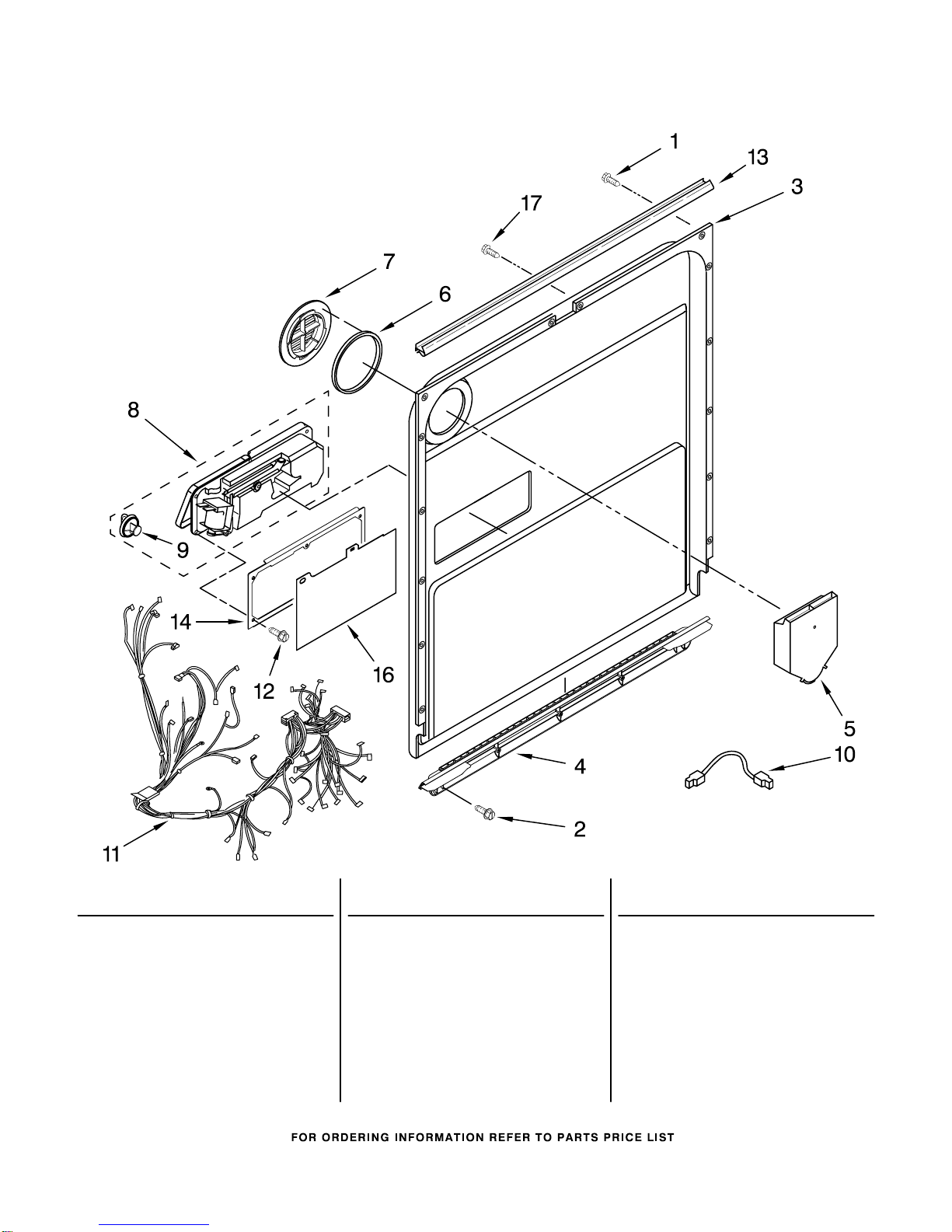

DOOR AND LATCH PARTS

For Model: KUDS50FVPA2

Panel Ready

W10304218

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 3369051 Screw, Door

2 8281217 Screw

W10056249

Inner Door

Mastic Assembly

(Also Order Item 6)

W10077883

Inlet, Air

5 8572611 Vent Assembly

(Also Order Item 6)

6 8269259 Gasket, Vent

W10077877

Deflector, Vent

(Also Order

Item 6)

W10224431

Dispenser,

Assembly

W10077881

Knob, Rinse Aid

10 8545608 Harness, Vent

Motor

W10224470

Wiring Harness

W10177098

Screw

13 8535660 Seal,

Console/door

14 8535637 Bracket,

Dispenser

16 8531865 Shield,

Dispenser

17 8533965 Screw

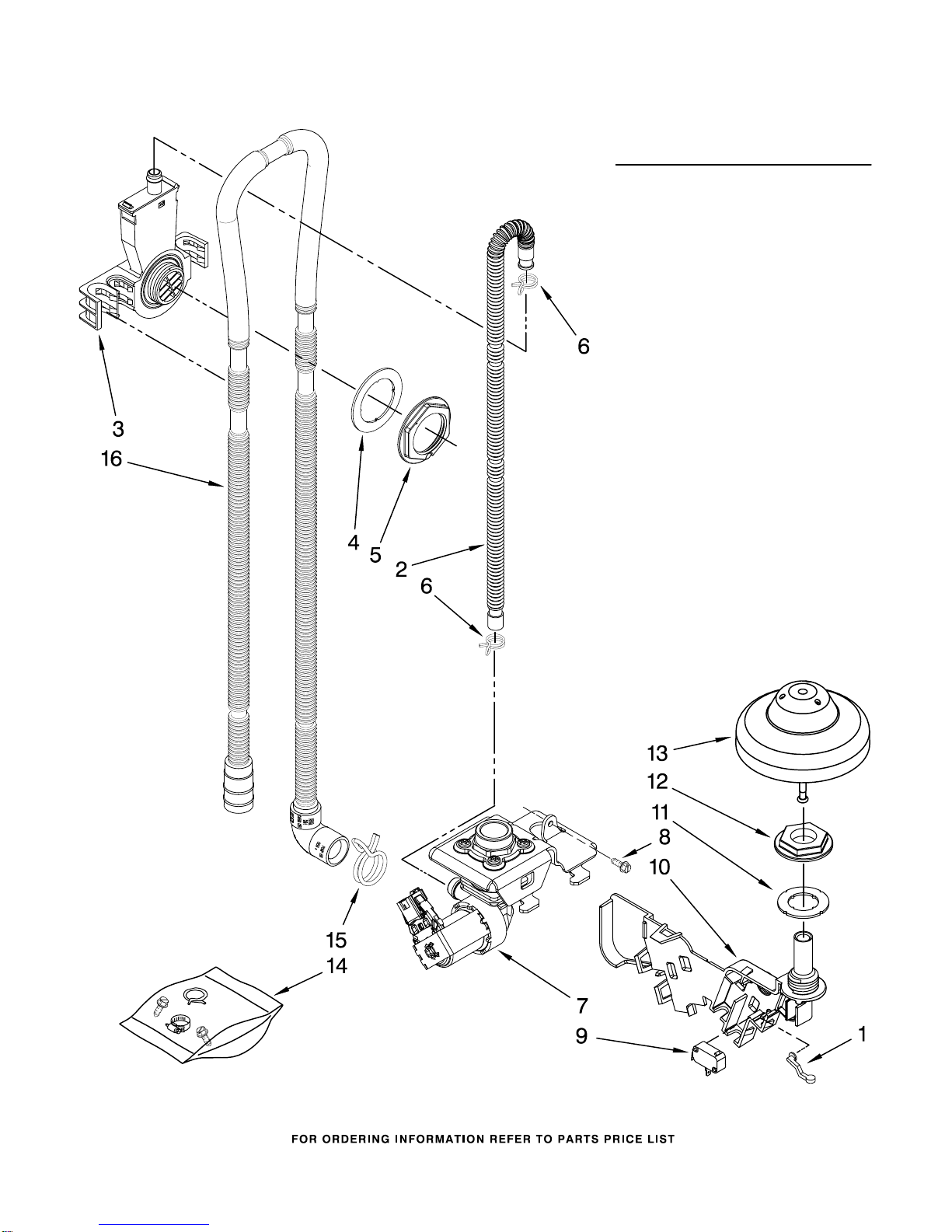

FILL, DRAIN AND OVERFILL PARTS

For Model: KUDS50FVPA2

Panel Ready

W10304218

Illus. Part

No. No. DESCRIPTION

1 8268892 Lever, Overflow

Switch

2 8531412 Hose, Inlet

W10195536

Water Inlet

(Also Order

Item 4)

4 8531323 Gasket

W10213826

Nut, Inlet

(Also Order

Item 4)

6 371505 Clamp, Hose

W10219505

Fill Valve

Assembly

8 304392 Screw

9 8268909 Switch, Overfill

Control

10 8545946 Standpipe,

Overfill

(Includes Item 11)

11 8531743 Gasket, Flat

12 9741998 Nut, Standpipe

W10077871

Float & Retainer

Assembly

14 8269297 Miscellaneous

Parts Bag

(Includes 2 Screws

& 2 Hose Clamps)

15 356138 Clamp, Hose

W10137608

Drain Loop

with Check Valve

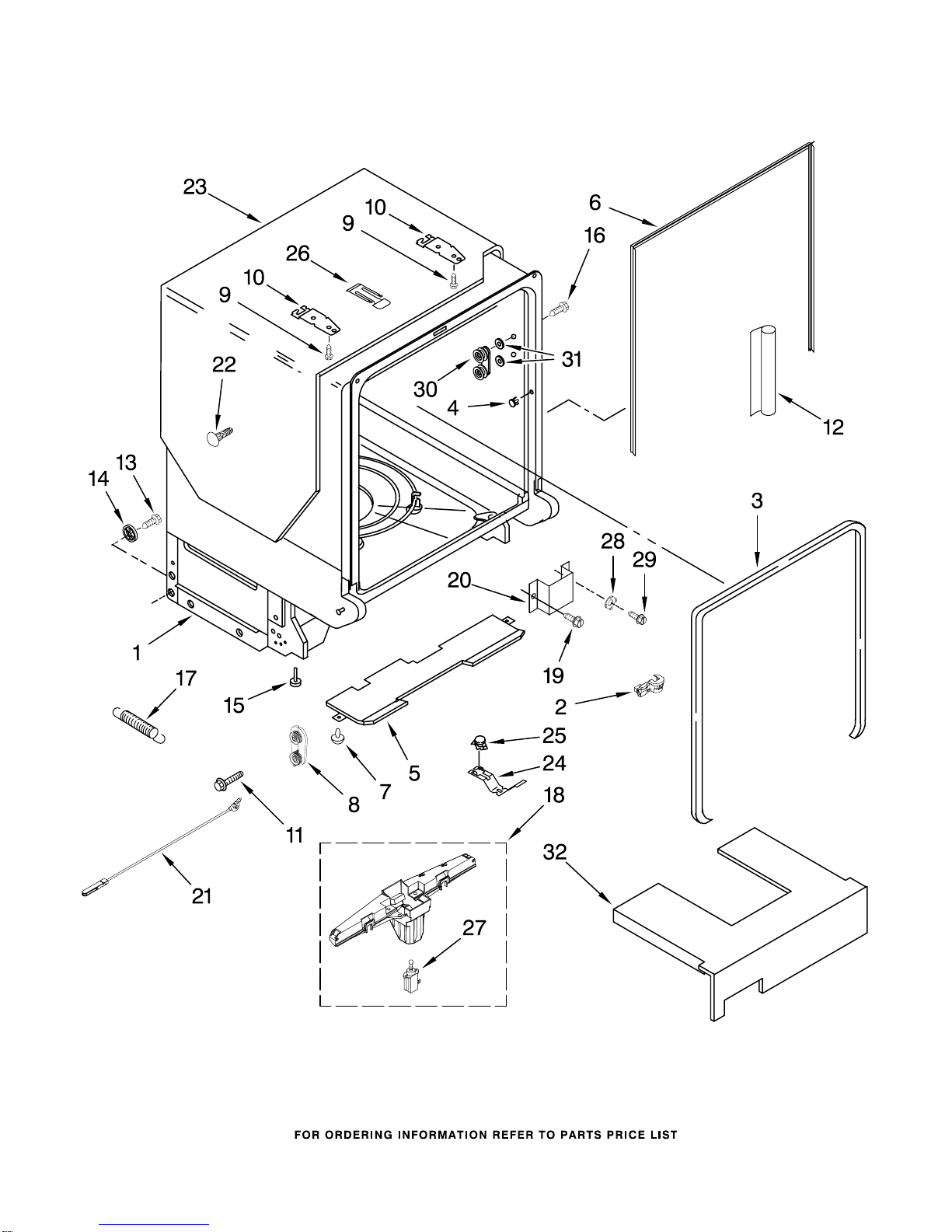

TUB AND FRAME PARTS

For Model: KUDS50FVPA2

Panel Ready

W10304218

TUB AND FRAME PARTS

For Model: KUDS50FVPA2

Panel Ready

W10304218

Illus. Part

No. No. DESCRIPTION

W10213823

Tub Assembly

(Includes Heater

Assembly)

2 8573061 Strain Relief

W10112096

Door Seal

W10082838

Plug Tub

W10266857

Insulator, Sound

6 8269110 Seal, Cabinet

7 3400924 Retainer, Push

W10084086

Door Balance

Assembly

9 3367670 Screw

10 8269145 Bracket,

Undercounter

11 3400074 Screw

12 8574123 Barrier, Moisture

Undercounter

13 3370389 Screw

14 8268977 Wheel, Leg

15 8524584 Leveler, Leg

16 3400072 Screw

17 8270020 Spring, Door

Balance

18 8572661 Actuator Assembly

19 3400892 Screw

20 8268991 Cover, Terminal

Box

W10158291

Cable, Door

Balance

22 304666 Retainer, Push

23 8573239 Shield, Sound

Tub

24 9742648 Bracket,

Thermostat

25 661566 Thermostat

W10077370

Strike, Latch

W10082769

Motor, Wax

28 3378128 Washer,

Pronged Cup

29 3400014 Screw

W10078083

Wheel & Mount

Assembly

(Also Order

Item 31)

31 9743002 Gasket, Bracket

Mounting

W10084568

Absorber, Sound

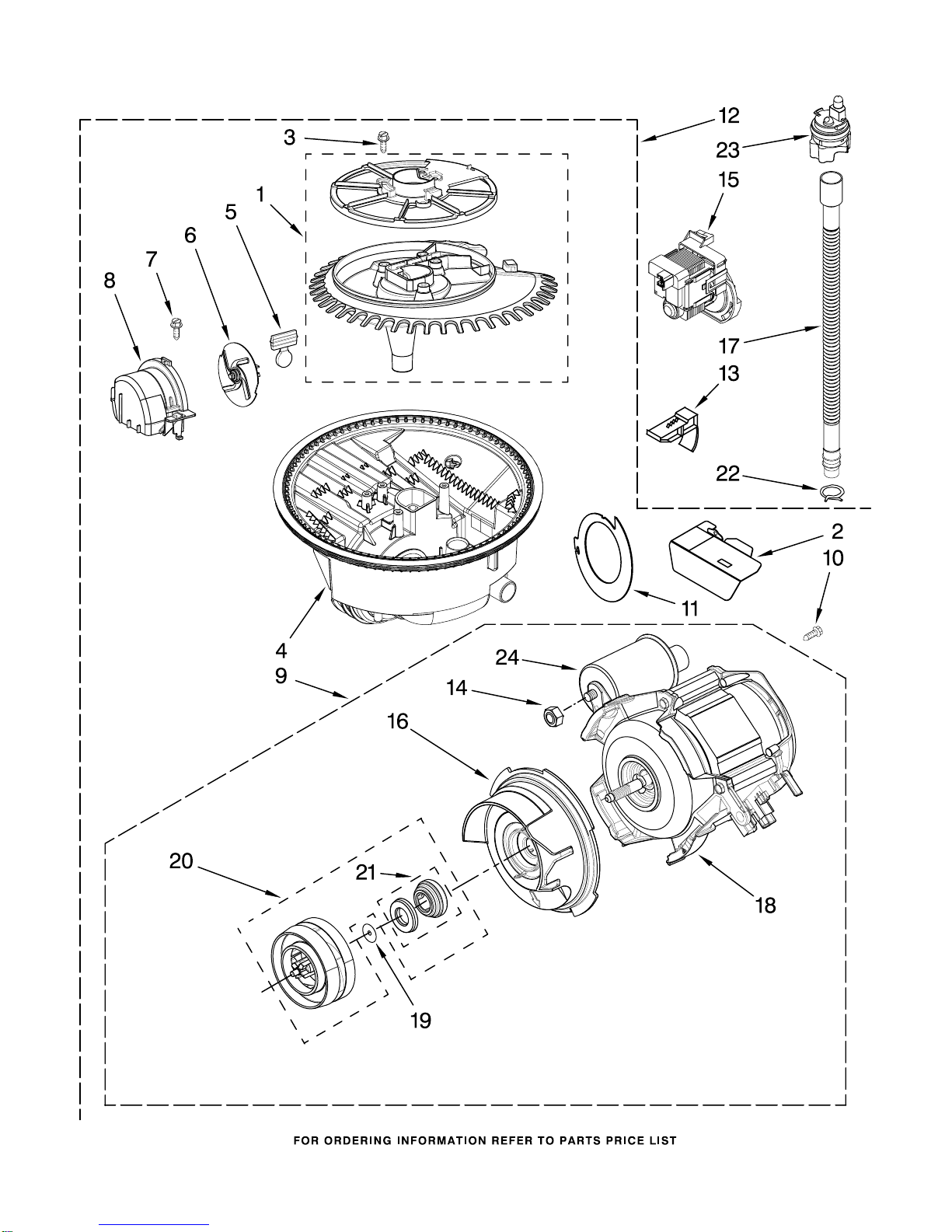

PUMP AND MOTOR PARTS

For Model: KUDS50FVPA2

Panel Ready

W10304218

PUMP AND MOTOR PARTS

For Model: KUDS50FVPA2

Panel Ready

W10304218

Illus. Part

No. No. DESCRIPTION

1 8534952 Accumulator Assy

2 8283527 Shield

3 3400069 Screw

4 8572618 Sump with Seal

5 8268375 Check Valve, Sump

W10083957

Chopper Assembly

7 9741232 Screw

8 8531857 Protector, Inlet

W10239404

Motor Assembly

10 3400217 Screw

W10084567

Screen, Separation

W10237169

Sump & Motor

Assembly

13 8269524 Tab, Sump

14 8533949 Nut

15 8558995 Pump, Drain

W10142656

Volute W/Seal

(Also Order

Items 19 & 21)

17 8269144 Hose, Drain

W10239401

Motor

19 8531018 Washer

20 8531017 Impeller Kit

21 8268403 Face Seal Assembly

(Also Order

Item 19)

22 356138 Clamp, Hose

W10134017

Optical Water

Indicator

W10216724

Capacitor

UPPER WASH AND RINSE PARTS

For Model: KUDS50FVPA2

Panel Ready

W10304218

Illus. Part

No. No. DESCRIPTION

W10077859

Feed Tube

Assembly

(Also Includes

Item 3)

2 8533889 Screw

3 8557720 Sprayarm, 3rd

Level

W10118464

Cover, Screw

W10082867

Mount

W10082949

Manifold

W10082832

Hanger

8 8268433 Seal, Sprayarm

W10082831

Probe, Manifold

W10082841

Sprayarm

W10077600

Manifold, Spray

Zone

W10077903

Valve Assembly,

Manifold

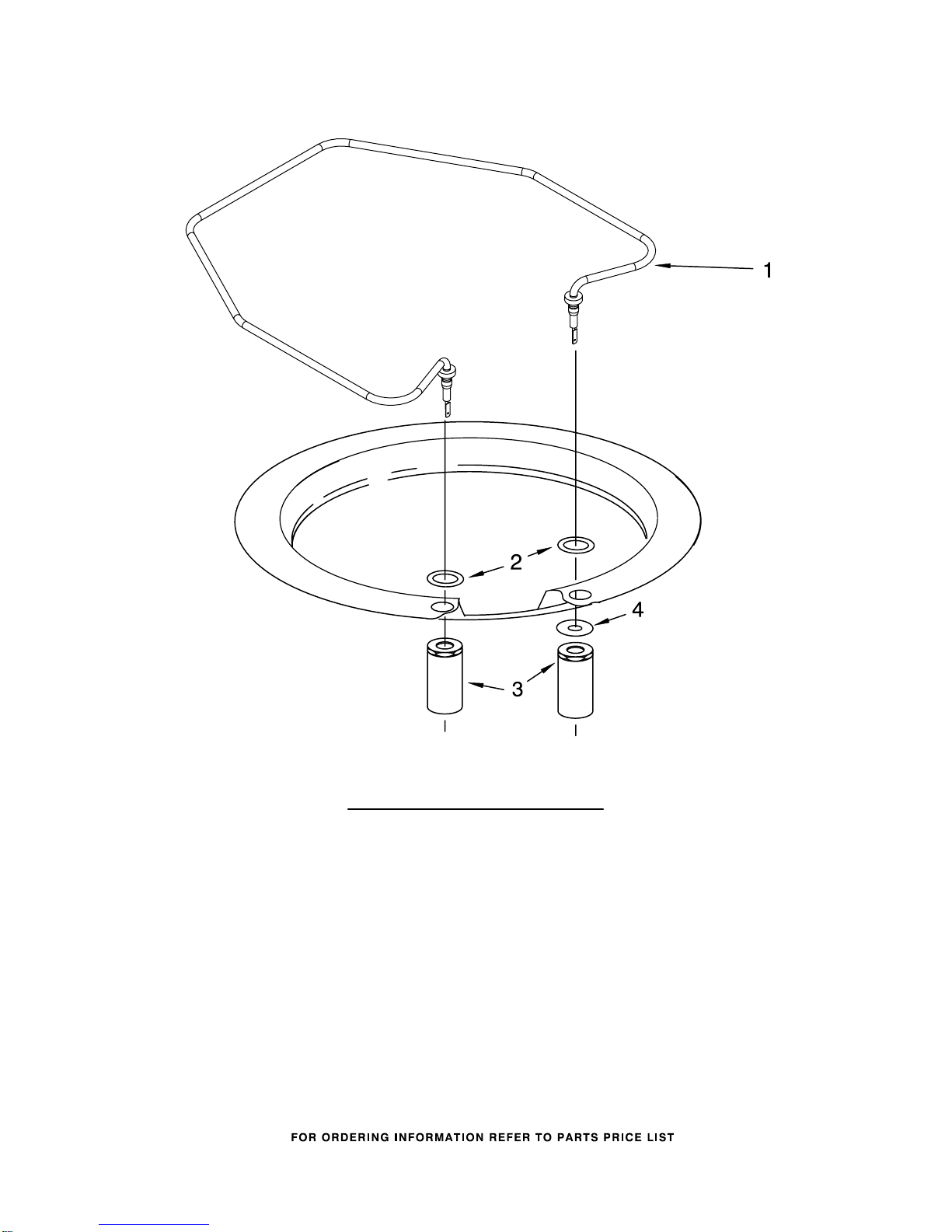

HEATER PARTS

For Model: KUDS50FVPA2

Panel Ready

W10304218

Illus. Part

No. No. DESCRIPTION

W10082892

Heater Element

Assembly

(Also Includes

Item 2)

2 717273 Washer, Heater

Element

3 8268548 Nut, Heater

Element

4 3400931 Retainer, Spring

Grip

NOTE:

If heater element is

removed, it must be replaced.
