KitchenAid KUDT03STBL3 Manual de usuario

DOOR AND PANEL PARTS

For Models: KUDT03STBL3, KUDT03STWH3, KUDT03STSS3

(Black) (White) (Stainless)

4−08 Litho in U.S.A. (els) (eeb) Part No. W10202456 Rev. A

UNDERCOUNTER

DISHWASHER

Illus. Part

No. No. DESCRIPTION

1 Literature Parts

W10078153

Instructions,

Installation

W10084560

Energy Guide

W10193741

Guide, Use & Care

Spanish

W10193740

Guide, Use & Care

English/French

W10130990

Tech Sheet

2 Arm, Hinge

8534854 Left

8534853 Right

3 8564886 Stiffener, Door

W10073520

Insulation, Door

5 Access Panel

(Includes Item 19)

8558260 Black

8558261 White

6 Panel, Full Front

(Includes Items

4,10,16 & 17)

W10078003

Black

W10078004

White

W10137622

Stainless

7 Overlay

W10077798

Black

W10077799

White

W10077801

Stainless

8 Toe Panel

(Includes

Items 11 & 18)

8558252 Black

8558253 White

9 Handle

W10083936

Black

W10083937

White

W10083935

Stainless

10 8564951 Stud, Mounting

11 8268581 Insulation,

Toe Panel

12 Screw

302868 Black

3400836 White

13 304392 Screw

14 8534008 Screw

15 3400071 Screw

16 Nameplate

W10021860

Black

W10021870

White

W10021850

Stainless

17 2004333 Nut

18 8269016 Clip, Grounding

19 8542578 Insulation, Access

Panel

CONTROL PANEL PARTS

For Models: KUDT03STBL3, KUDT03STWH3, KUDT03STSS3

(Black) (White) (Stainless)

W10202456

Illus. Part

No. No. DESCRIPTION

1 Console Assembly

(Includes Insert)

W10084166

Black

W10084167

White

W10084168

Stainless

2 8531877 Cable, Ribbon

3 8546546 Clip, BI−Metal

W10134019

Switch, Door

5 8531873 Board,

Interconnect

6 661663 BI−Metal

W10077360

Latch Assembly

8 3369051 Screw

W10084141

Control,

Electronic

DOOR AND LATCH PARTS

For Models: KUDT03STBL3, KUDT03STWH3, KUDT03STSS3

(Black) (White) (Stainless)

W10202456

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 3369051 Screw, Door

2 8281217 Screw

W10056249

Inner Door

Mastic Assembly

(Also Order

Item 6)

W10077883

Inlet, Air

5 8572611 Vent Assembly

(Also Order

Item 6)

6 8269259 Gasket, Vent

W10077877

Deflector, Vent

(Also Order

Item 6)

W10077882

Dispenser,

Assembly

W10077881

Knob, Rinse Aid

10 8545608 Harness, Vent

Motor

W10078202

Wiring Harness

12 8281154 Screw

13 8535660 Seal,

Console/door

14 8535637 Bracket,

Dispenser

15 8531865 Shield,

Dispenser

FILL, DRAIN AND OVERFILL PARTS

For Models: KUDT03STBL3, KUDT03STWH3, KUDT03STSS3

(Black) (White) (Stainless)

W10202456

Illus. Part

No. No. DESCRIPTION

1 8268892 Lever, Overfill

Switch

2 8531412 Hose, Inlet

3 8531325 Water Inlet

(Also Order

Item 4)

4 8531323 Gasket

5 8531327 Nut, Inlet

(Also Order

Item 4)

6 371505 Clamp, Hose

7 8563405 Fill Valve

Assembly

8 304392 Screw

9 8268909 Switch, Overfill

Control

10 8545946 Standpipe,

Overfill

(Includes Item 11)

11 8531743 Gasket, Flat

12 9741998 Nut, Standpipe

W10077871

Float & Retainer

Assembly

14 8269297 Miscellaneous

Parts Bag

(Includes 2 Screws

& 2 Hose Clamps)

15 356138 Clamp, Hose

W10137608

Drain Loop

with Check Valve

TUB AND FRAME PARTS

For Models: KUDT03STBL3, KUDT03STWH3, KUDT03STSS3

(Black) (White) (Stainless)

W10202456

TUB AND FRAME PARTS

For Models: KUDT03STBL3, KUDT03STWH3, KUDT03STSS3

(Black) (White) (Stainless)

W10202456

Illus. Part

No. No. DESCRIPTION

W10056238

Tub Assembly

2 8574123 Barrier, Moisture

Undercounter

W10112096

Door Seal

W10082838

Plug Tub

5 8537001 Shield, Side

6 8572661 Actuator, Assembly

7 8269110 Seal, Cabinet

8 8573061 Strain Relief

9 8270021 Mount, Door

Balance

10 3367670 Screw

11 8269145 Bracket,

Undercounter

12 3400074 Screw

13 3400924 Retainer, Push−in

14 3370389 Screw

15 8268977 Wheel Leg

16 8524584 Leveler, Leg

17 8524474 Wheel, door

Balance

18 8270020 Spring, Door

Balance

W10082769

Motor, Wax

20 3400892 Screw

21 8268991 Cover, Terminal

Box

22 8535568 Link, Door

Balance

23 8268582 Insulator, Sound

24 304666 Retainer, Push

25 8573239 Shield, Sound

Tub

26 9742648 Bracket,

Thermostat

27 661566 Thermostat

W10077370

Strike, Latch

29 8539404 Strap

30 3378128 Washer,

Pronged Cup

31 3400014 Screw

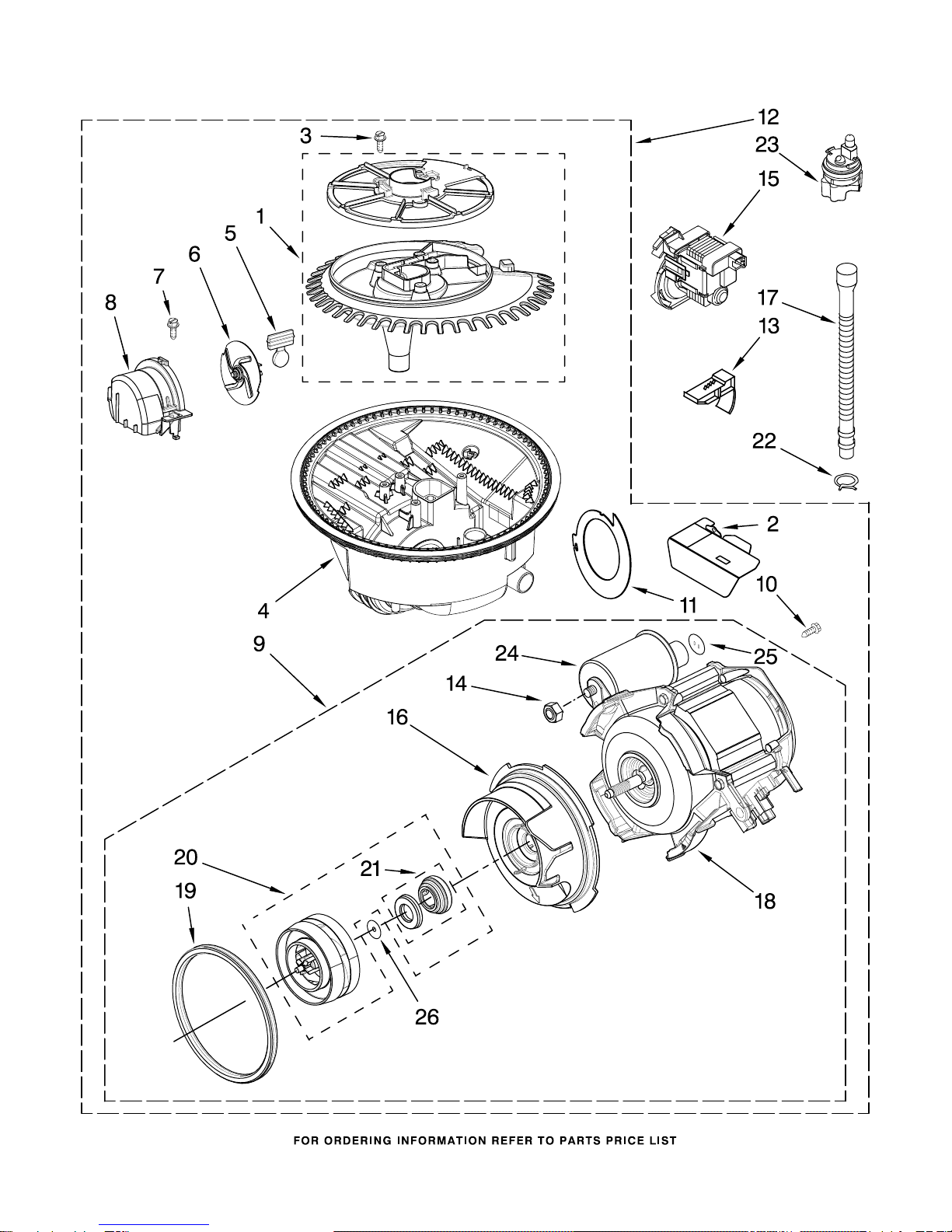

PUMP AND MOTOR PARTS

For Models: KUDT03STBL3, KUDT03STWH3, KUDT03STSS3

(Black) (White) (Stainless)

W10202456

PUMP AND MOTOR PARTS

For Models: KUDT03STBL3, KUDT03STWH3, KUDT03STSS3

(Black) (White) (Stainless)

W10202456

Illus. Part

No. No. DESCRIPTION

1 8534952 Accumulator Assy

2 8283527 Shield, Motor

3 3400069 Screw

4 8572618 Sump With Seal

5 8268375 Check Valve, Sump

W10083957

Chopper Assembly

7 9741232 Screw

8 8531857 Protector, Inlet

9 8535760 Motor Assembly

10 3400217 Screw

W10084567

Screen, Separation

W10084107

Sump & Motor

Assembly

(Includes

Item 13)

13 8269524 Tab, Sump

14 8533949 Nut

15 661662 Pump, Drain

16 8531019 Volute, Back

(Also Order

Items 21 & 26)

17 8269144 Hose, Drain

18 8535759 Motor

19 8268397 Seal, Volute

20 8531017 Impeller Kit

21 8268403 Face Seal Assembly

(Also Order

Item 26)

22 356138 Clamp, Hose

W10134016

Optical Water

Indicator

24 8535474 Capacitor

25 8534946 Shield,

Capacitor

26 8531018 Washer

UPPER WASH AND RINSE PARTS

For Models: KUDT03STBL3, KUDT03STWH3, KUDT03STSS3

(Black) (White) (Stainless)

W10202456

Illus. Part

No. No. DESCRIPTION

W10077859

Feed Tube

Assembly

(Also Includes

Item 3)

2 8533889 Screw

3 8557720 Sprayarm, 3rd

Level

W10118464

Cover, Screw

W10082867

Mount

W10082949

Manifold

W10082832

Hanger

8 8268433 Seal, Sprayarm

W10082831

Probe, Manifold

W10082841

Sprayarm

W10077600

Manifold, Srayzone

W10077903

Valve Assembly,

Manifold

HEATER PARTS

For Models: KUDT03STBL3, KUDT03STWH3, KUDT03STSS3

(Black) (White) (Stainless)

W10202456

Illus. Part

No. No. DESCRIPTION

1 8537057 Heater Element

Assembly

(Also Includes

Item 2)

2 717273 Washer, Heater

Element

3 8268548 Nut, Heater

Element

4 3400931 Retainer, Spring

Grip

NOTE:

If heater element is

removed, it must be replaced.
