NOTE: The screws and nuts required to attach a part are listed immediately

following that part.

1 Trim Ring, Cooktop

3187744 Black

3187745 White

3187746 Almond

2 Cooktop, Glass

3188255 Black

3188256 White

3188893 Almond

4 3188101 Bracket, Switch Mounting

6 3187707 Spring Locator (8)

246119 Screw (8)

7 Switch, Infinite

3189172 Use W/2400W Left Rear Burner

3189170 Use W/2100W Right Rear Burner

3189169 Use W/1400W Right Front Burner

3189171 Use W/1200 W Left Front Burner

8 3183956 Seal, Switch Shaft

311865 Screw

9 3187750 Light, Indicator

10 Knob, Control (4)

9750372FF Black

9750372FW White

9750372FT Almond

11 3188754 Box, Burner

13 3188533 Grommet

4159456 Screw

15 3182435 Seal, Switch (4)

16 Switch, Limiter

3188783 Use W/3188156 Element

3187528 Use W/3184952 Element

3187532 Use W/3184957 Element

3187535 Use W/3184960 Element

18 3188257 Plate, Backer

19 Seal, Silicone

3185589 Small (2)

3185590 Large (2)

20 3187753 Shield, Heat

4159456 Screw

21 3188852 Seal, Silicone

22 3188879 Lamp, Hot Surface Indicator

4168863 Screw

23 3189152 Bracket, Stiffening

4159456 Screw

24 3188437 Shield, Heat

4159456 Screw

25 Element, Surface (Includes #16)

3188156 1200W Left Front

3184952 1400W Right Front

3184957 2100W Right Rear

3184960 2400W Left Rear

29 3188844 Shield, Heat

4159456 Screw

30 3189174 Bracket

31 3188102 Shield, Heat

32 3188158 Plate, Interior

4159456 Screw

33 3189159 Plate, End

4159456 Screw

34 3189036 Plate Louver

4159456 Screw

35 3189273 Cover, Conduit

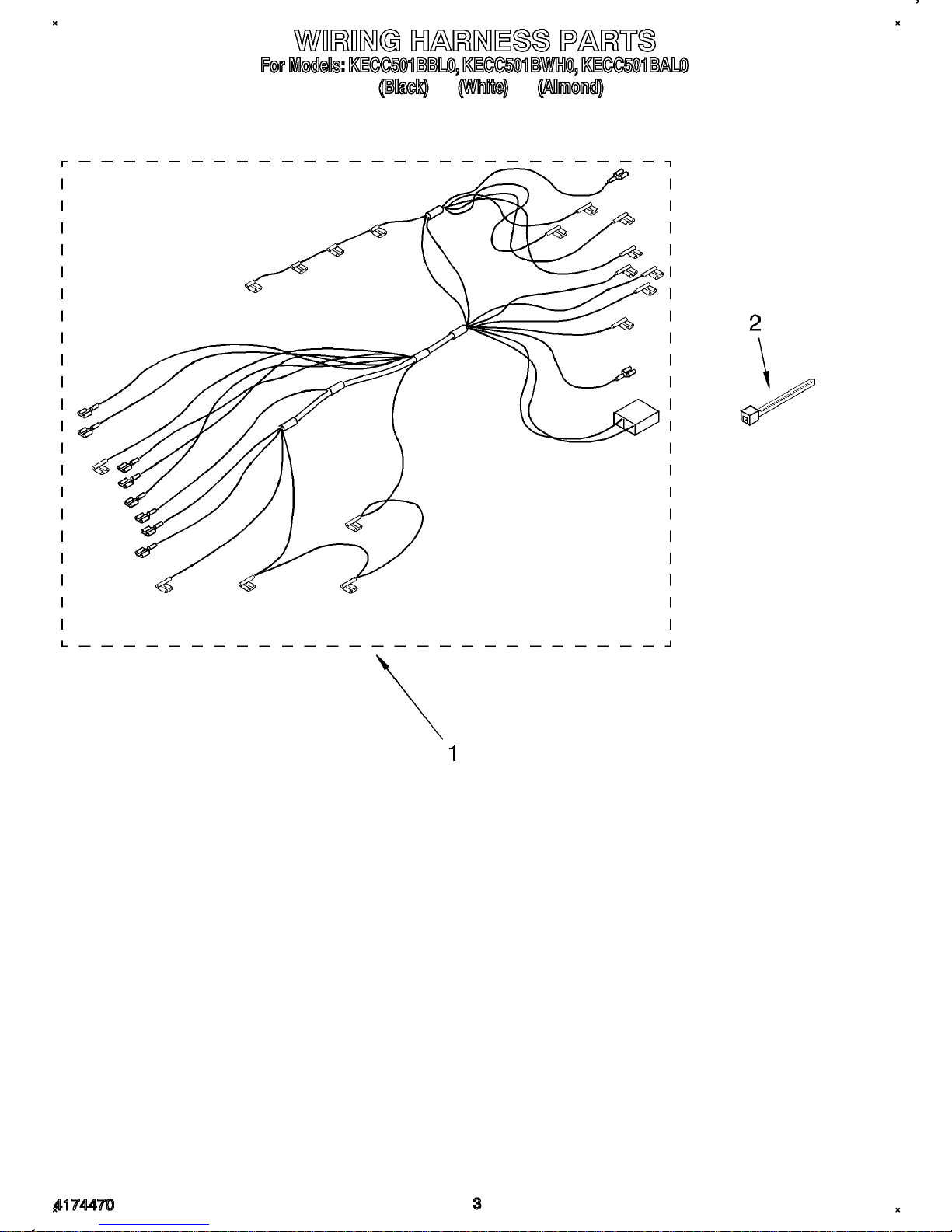

1 3189124 Wiring Harness Surface Unit

2 3179589 Tie, Wire

FOLLOWING PARTS NOT ILLUSTRATED

LITERATURE PARTS

LIT3189330 Installation Instructions

LIT3188757 Wiring Diagram

LIT3188107 Use & Care Guide

Miscellaneous

3172515 Mounting Hardware

258644 Mounting Screws 10AX2(2)

3150320 Clamp (2)

OPTIONAL PARTS (NOT INCLUDED)

SPLICING WIRES--25FT. LENGTH

242828 Wire, Black 12 Ga. 150~C

242820 Wire, Black 14 Ga. 150~C

242822 Wire, Blue 14 Ga. 150~C

242830 Wire, Brown 14 Ga. 200~C

242823 Wire, Green 14 Ga. 150~C

242824 Wire, Orange 14 Ga. 150~C

242829 Wire, Red 12 Ga. 150~C

242825 Wire, Red 14 Ga. 150~C

242831 Wire, Red 14 Ga. 200~C

242826 Wire, White 14 Ga. 150~C

242827 Wire, Yellow 14 Ga. 150~C

242832 Wire, Yellow 14 Ga. 200~C

ACCESSORY PARTS

3184477 Cleaner, Glass

3183488 Scraper, Window
