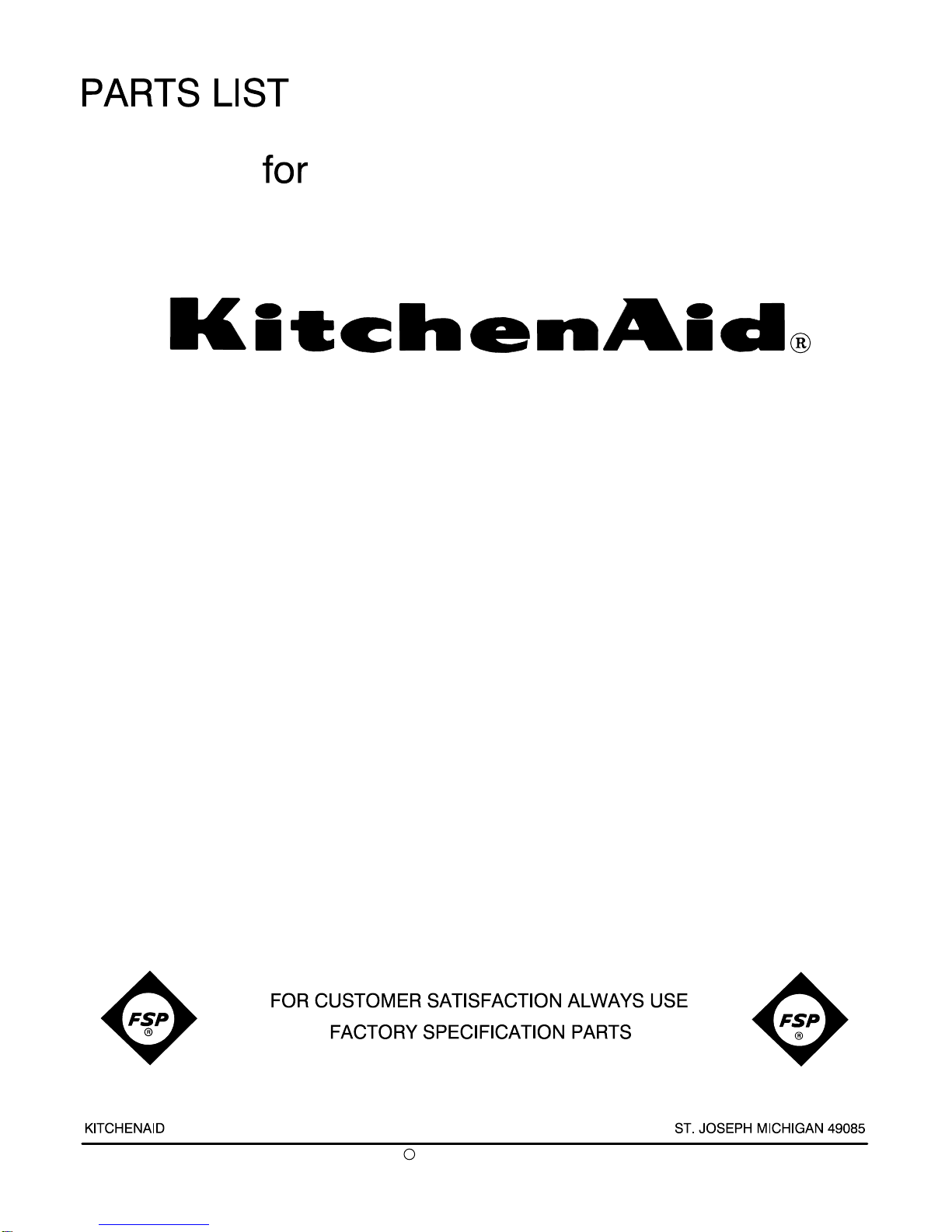

c2007 KITCHENAID

FOOD PROCESSOR

MODELS:

KFPW760WH0 (White)

KFPW760OB0 (Onyx Black)

KFPW760CWH0 (White)

KFPW760COB0 (Onyx Black)

KFPW760QWH0 (White)

KFPW760QOB0 (Onyx Black)

KFPW760QER0 (Empire Red)

KFPW760QBU0 (Cobalt Blue)

KFPW760QCR0 (Chrome)

4KFPW760WH0 (White)

4KFPW760OB0 (Onyx Black)

11−07 Litho In U.S.A. (wam) Part No. 8212026 Rev. B

12 CUP − WIDE MOUTH

MOTOR AND HOUSING PARTS

For Models: KFPW760_ _0, 4KFPW760_ _0

8212026

MOTOR AND HOUSING PARTS

For Models: KFPW760_ _0, 4KFPW760_ _0

38212026

Illus. Part

No. No. DESCRIPTION

1 Literature Parts

8211864 Use & Care Guide

8212026 Repair Parts List

2 8211849 Sleeve, Motor

Shaft

3 8211828 Seal, Oil

4 Housing, Motor

8211818 White

8211821 Onyx Black

8211819 Empire Red

8211820 Cobalt Blue

8211822 Chrome

5 8211610 Clamp, Cable

6 8211731 Screw, Clamp

7 8211837 Motor, Die Cast

8 8211843 Grommet, Motor

9 Base, Housing

8212183 White

8212190 Onyx Black

8212187 Empire Red

8212189 Cobalt Blue

10 Cover, Screw

8211824 White

8211827 Black

8211825 Red

8211826 Blue

11 8211829 Screw, Motor

Locking

12 8211848 Bezel, Switch

Panel

13 Overlay & Cover

8211846 Black

8211847 Silver

14 8211607 Clip, Capacitor

15 8211605 Terminal Block

16 8211852 Cover, Terminal

17 8211842 Nameplate

18 8211608 Capacitor

19 8212011 Relay & Switch

Assembly

20 Foot

8211844 White

8211845 Black

21 Cord, Power

8211855 Black

8211856 White

8211857 Black (Chrome

Model only)

ATTACHMENT PARTS

For Models: KFPW760_ _0, 4KFPW760_ _0

8212026

ATTACHMENT PARTS

8212026

For Models: KFPW760_ _0, 4KFPW760_ _0

Illus. Part

No. No. DESCRIPTION

1 8211760 Spatula

2 Disc,Slicing

8211929 2 mm

8211930 4 mm

3 8212012 Blade, Mini

4 8211858 Adapter, Shaft &

Disc

5 8212014 Blade,

Multipurpose

6 8212020 Pusher, Double

7 Cover, Work Bowl

8212030 White

8212024 Black

8212241 Red

8212240 Blue

8 Bowl, Work

8212043 White

8212019 Black

8212017 Red

8212018 Blue

9 Disc, Shredding

8211933 4 mm

10 8211926 Bowl, Mini

11 8212016 Blade, Dough

12 8211928 Bowl, Chef’s

13 8212025 Extractor, Citrus

14 8212033 Whip, Egg (12−cup)

OPTIONAL PARTS

NOT ILLUSTRATED

8212034 Accessory Box

8211927 Lid, Mini Bowl

Disc, Slicing

8211931 6 mm

Disc, Shredding

8211932 2 mm

8211934 6 mm

8211935 Disc, Julienne

8211936 Disc, Grating

Parmesan/Ice

8211937 Disc, Cutting

French Fry

8211938 Rack, Disc
