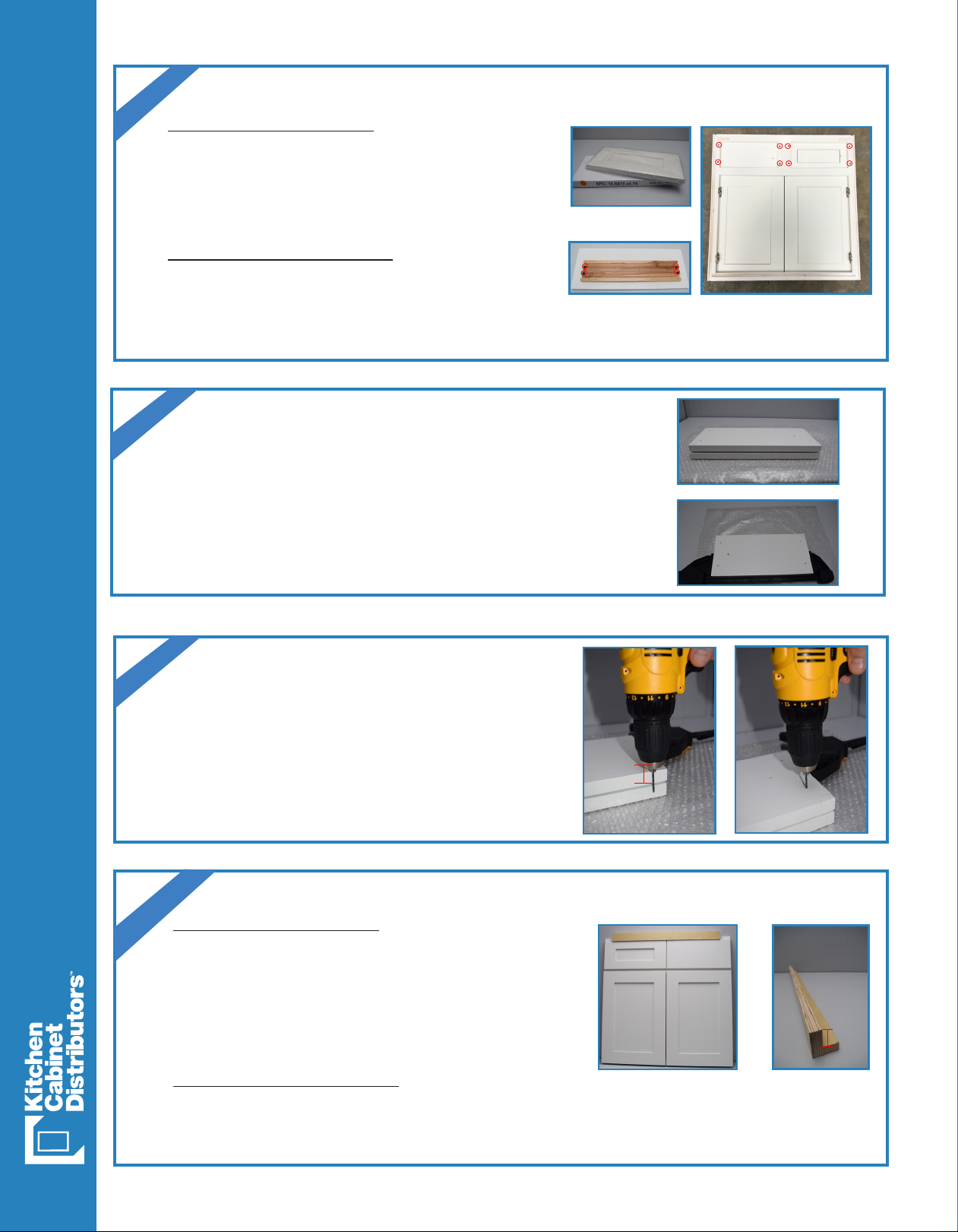

Kitchen Cabinet Distributors B12 Guía de configuración
• Unpackage and remove existing face frame/
drawer head from box.
• Unscrew exisiting drawer head from face frame
by loosening all four screws. (NOTE: Keep
screws as they will be needed in Step 4)
STEP 1
• Place the 5-piece drawer head face down on a scratch
resistant surface.
• Place the slab drawer head face down on top of the
5-piece drawer head so that exisiting screw holes are
visible.
• Align all four sides of the 5-piece drawer head with slab
drawer head.
• Keeping the sides algined, clamp the two heads together.
STEP 4
Shaker Designer White 5-Piece Install Instructions
Standard Drawer Heads
False Front Drawer Heads
• Unpackage and remove slab drawer head from
box
• Place the slab drawer head face down and
remove the drawer box front by removing the
two screws on either side. (NOTE: Keep screws
as they will be needed in Step 4)
• Ensure there is a 1” space from the top of the
face frame to the top of the new drawer head.
• Align the screw holes and attach the 5-piece
drawer head to the face frame.
• Align the holes in the drawer box front with the
holes on the 5-piece drawer head that were
drilled in Step 3.
• Attach the drawer box front to the 5-piece drawer
front using the screws that were kept from Step 1
• Assemble the drawer box following our normal
assembly instructions.
Standard Drawer Heads
False Front Drawer Heads
• Using a 3/32” drill bit, drill through the
existing slab drawer head and screw holes into
the 5-piece drawer head.
*DO NOT DRILL ALL THE WAY THROUGH
THE NEW 5-PIECE DRAWER HEAD*
• Place clear bumpers onto the 5-piece drawer
head at all four corners.
STEP 3
1”
1”
Standard
Drawer Head
False Front
Drawer Head
A 1” marking jig can be constructed
using two pieces of scrap trim to
assist in aligning the drawer heads
STEP 2
Before beginning, use the second page of this instruction sheet to verify you
have the correct sizes of 5-piece drawer heads.
Shaker Designer White 5-Piece Install Instructions
Cabinet Top Drawer Middle Drawer Bottom Drawer
B12 11.5 x 6.75
B15 14.5 x 6.75
B18 17.5 x 6.75
B21 20.5 x 6.75
B24-2 23.5 x 6.75
B27 13.1875 x 6.75
B30 14.6875 x 6.75
B33 16.1875 x 6.75
B36 17.6875 x 6.75
B39 19.1875 x 6.75
B42 20.5 x 6.75
BB42 14.5 x 6.75
BB48 20.5 x 6.75
CC30 14.5 x 6.75 29.5 x 14.25 14.5 x 14
CSF42 23.5 x 6.75
DB12-3 11.5 x 6.75 11.5 x 10.5 11.5 x 10.5
DB15-3 14.5 x 6.75 14.5 x 10.5 14.5 x 10.5
DB18-3 17.5 x 6.75 17.5 x 10.5 17.5 x 10.5
DB24-3 23.5 x 6.75 23.5 x 10.5 23.5 x 10.5
DB30-3 29.5 x 6.75 29.5 x 10.5 29.5 x 10.5
DB36-3 35.5 x 6.75 35.5 x 10.5 35.5 x 10.5
DDB18 17.5 x 6.75
DWR1548 14.5 x 5.5
DWR1554 14.5 x 5.5
DWR1560 14.5 x 5.5
OC3384 32.5 x 6.75
OC3390 32.5 x 6.75
OC3396 32.5 x 6.75
OCD337 32.5 x 6.75
SB30 14.6875 x 6.75
SB33 16.1875 x 6.75
SB36 17.6875 x 6.75
SB42 20.5 x 6.75
SB48 23.5 x 6.75
V24-2 23.5 x 6.75
V27 13.1875 x 6.75
V30 14.6875 x 6.75
V33 16.1875 x 6.75
V36 17.6875 x 6.75
VB12 11.5 x 6.75
VB15 14.5 x 6.75
VB18 17.5 x 6.75
VDB12 11.5 x 6.75 11.5 x 10.5 11.5 x 10.5
VDB15 14.5 x 6.75 14.5 x 10.5 14.5 x 10.5
VDB18 17.5 x 6.75 17.5 x 10.5 17.5 x 10.5
VSB36 15.25 x 6.75 10 x 6.75
VSB42 11.75 x 6.75 17 x 6.75
VSB48 11.75 x 6.75 23 x 6.75
Prior to drilling any holes, it is
important that your verify the
correct 5-piece drawer head
size. This chart will guide you
in matching the cabinet with
the correct drawer head size.
Find your cabinet type in the
first column and then verify
the dimensions on the 5-piece
box packaging.
