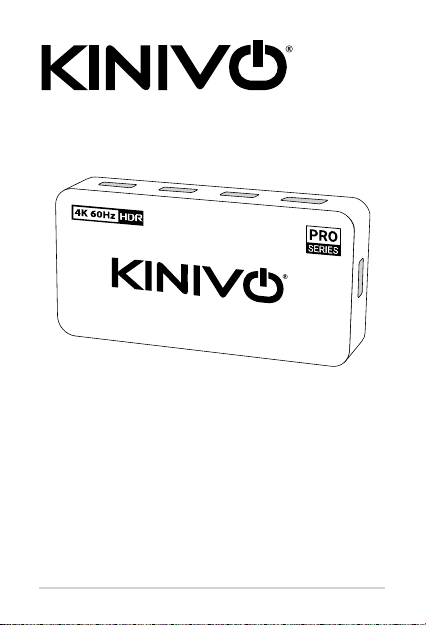

Kinivo 550BN 4K HDMI Switch
User Manual
© 2018 Kinivo, Inc. All rights reserved.
Kinivo is a trademark of Kinivo, Inc. HDMI word mark and the
HDMI logo are registered trademarks of HDMI Consortium.
All other trade names are registered trademarks of respective
manufacturers. This manual may not be copied in any media
or form without the written consent of Kinivo, Inc.
Kinivo Product Support
Online : http://support.kinivo.com
Email : support@kinivo.com
550BN
English: Thank you for choosing Kinivo. Our
user manuals are available in multiple languages at
http://downloads.kinivo.com
Français: Merci d’avoir choisi Kinivo. Nos modes
d’emploi sont disponibles en plusieurs langues sur http://
downloads.kinivo.com
Deutsch: Danke für die Wahl von Kinivo. Unsere
Bedienungsanleitungen sind unter http://downloads.
kinivo.com in mehreren Sprachen verfügbar
Español: Gracias por elegir Kinivo. Nuestros manuales
de usuario están disponibles en varios idiomas en http://
downloads.kinivo.com
Italiano: La ringraziamo per aver scelto Kinivo. I nostri
manuali utente sono disponibili presso http://downloads.
kinivo.com
Table of Contents
Introduction .................................................. 4
Important Safety Instructions...................... 5
Installation..................................................... 6
Operation....................................................... 11
Auto Switching .............................................. 13
Specications ................................................ 14
Frequently Asked Questions (FAQ).............. 15
FCC Statement............................................... 16
Warranty ........................................................ 18
Online Support / Contact Us......................... 20
Kinivo 550BN 4K HDMI Switch
4
Thank You
Dear Customer,
Thank you for choosing Kinivo. Our company’s goal is to
provide high-quality products and attentive customer
service to valued customers like you. We hope to meet
and exceed your expectations! Our development
team continues to work hard producing high-quality,
innovative products that will help you stay on the
leading edge. Be sure to look out for our new and exciting
product line that can further improve your audio & visual
experience.
Yours Sincerely,
Kinivo
Introduction
The Kinivo 550BN 4K HDMI switch enables up to ve
HDMI source devices (Such as the DVD player, cable box,
gaming console etc.) to be connected to a single HDMI
input port on your HDTV or video projector. It can be
used to expand the number of HDMI ports on a single
Kinivo 550BN 4K HDMI Switch 5
input HDMI equipped audio/video receiver. It is an easy,
convenient and inexpensive solution to expand your
home theater setup.
Important Safety Instructions
Please read instructions carefully before
operation
1. To prevent risk of electric shock, do not remove
cover of the unit. Refer all servicing to qualied
service personnel only.
2. Do not use the device near water.
3. Clean only with dry cloth.
4. Do not install or place this unit in a bookcase, built-
in cabinet or in any other conned space. Ensure the
unit is well ventilated.
5. To prevent risk of electric shock or re hazard, do not
block the unit’s ventilation openings.
6. Do not install near any heat sources such as
radiators, stoves, heat registers etc.
7. Unplug during lightning storms or when unused for
a long period of time.
8. Protect power cord from being pinched, particularly
near plug points.
Kinivo 550BN 4K HDMI Switch
6
9. Only use attachments/accessories specied by
manufacturer.
Installation
Front and Side Panel Controls
Warning
3 HDMI Output Indicator
4 to 8 HDMI Input Indicator
1 Power Indicator
2 IR Remote Sensor
Power Output Input 1 Input 2 Input 3 Input 5
SWITCH
1 2345678
Input 4
Kinivo 550BN 4K HDMI Switch 7
Back and Side Panel Connectors
Output
HDMI Output
DC Power Input
+ DC 5V
HDMI Input 5
Input 5
Input 1 Input 2 Input 3 Input 4
HDMI Input 3 HDMI Input 4HDMI Input 2HDMI Input 1
Kinivo 550BN 4K HDMI Switch
8
Remote Control
1. Select a specic HDMI Input by choosing 1, 2, 3,
4 or 5
2. Press‘Up’or ‘Down’ buttons to select the previous
or next input source.
1
2
3
4
5
Up
HDMI Input 1
Down
HDMI Input 2
HDMI Input 3
HDMI Input 5
HDMI Input 4
Screw
Kinivo 550BN 4K HDMI Switch 9
Note:
1. The remote control uses infrared light signal and
requires direct line-of-sight to the IR Remote Sensor.
Please make sure that the IR Remote Sensor is not
blocked.
2. Please remove screw before opening the battery
bay to replace the remote’s battery.
Setup
1. Connect the output port of the HDMI Switch to
HDTV or Projector using a HDMI cable (Note: HDMI
cable is not included).
2. Connect Devices (Game Console, DVD Player,
Streaming Media Player, etc) to the input ports on
the HDMI Switch.
3. Plug the included power adapter to the HDMI
Switch and connect it to a AC power outlet.
Kinivo 550BN 4K HDMI Switch
10

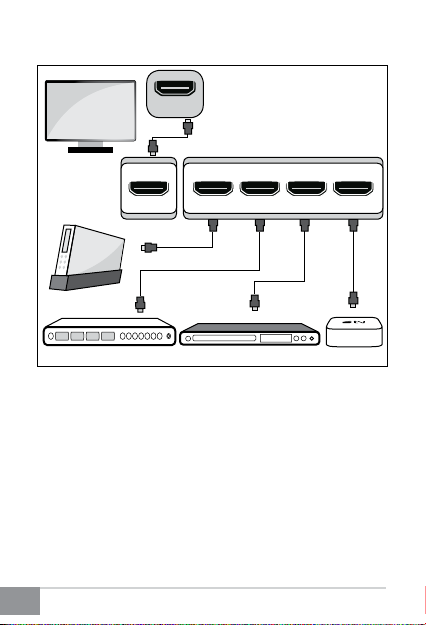

Connection Diagram
DVD Player
Game Console
HDTV
HDMI Cables
HDMI Cable
Apple TV
Input 1 Input 2 Input 3 Input 4
Output
HDMI In
Cable Box or DVR
