GS60 2PC/GS60 2PE (MS-16H2) Assembly Guide

■1、LCDMODULE ASSY

■2、UPPERCASEASSY

■3、MAINBOARDASSY

■4、HDD MODULE & WALNMODULE

■5、BATTERY& LOWER CASEASSY

Readyto disassembletool&拆解工具準備：

1、electric screw driver&電動起子

2、insulating rod&理線棒

4、Esd gloves&靜電手套

5、Anti-Static Clothing&靜電衣

GS60 2PC/GS60 2PE (MS-16H2) Assembly Guide

■1、LCD MODULE ASSY

1.1：Assemble the CMOS camera module.

Component

P/N

Qty

Camera Module

S1F-0007050-S45

1.2：Assemble the LVDS cable to display module.

Component

P/N

Qty

LVDS Cable

K1N-3040006-V03

1.3：Assemble the display module to LCD cover.

Component

P/N

Qty

DisplayModule

S1J-6E0A013-S02

GS60 2PC/GS60 2PE (MS-16H2) Assembly Guide

■1、LCD MODULE ASSY

1.4：Lock the 6 screws (M2.5*4mm) that stabilize the

left hinge.

Attention: the screw driver torque is 3.0-3.5Kgf-cm

Component

P/N

Qty

HINGE_L

E2M-6H20711-G60

screw

E43-1203032-G68

1.5：Lock the 6 screws (M2.5*4mm) that stabilize the

right hinge.

Attention: the screw driver torque is 3.0-3.5Kgf-cm

Component

P/N

Qty

HINGE_R

E2M-6H20611-G60

screw

E43-1203032-G68

1.6：When assemble the LCD bezel, should begin

from the downside, then from two sides to upside.

Component

P/N

Qty

LCD Bezel

307-6H2B211-D37

GS60 2PC/GS60 2PE (MS-16H2) Assembly Guide

■2、UPPER CASE ASSY

■

1.7 ：Assemble the T/P module , then lock 3

screws (M2*2.5mm)

Attention: the screw driver torque is 1.5-2.0Kgf-cm

Component

P/N

Qty

Screw

E43-1202509-G68

T/P Module

S78-3700830-E47

1.8:Assemble the antenna

Component

P/N

Qty

Antenna

S79-1803170-I05

1.9:Affix to the aluminized paper;assemble 2 pcs

gasket.

Component

P/N

Qty

Gasket

E2Y-X031311-CA7

GS60 2PC/GS60 2PE (MS-16H2) Assembly Guide

■2、UPPER CASE ASSY

■

2.1：Assemble the Power board., then lock 2

screws (M2*3mm)

Attention: the screw driver torque is 1.5-2.0Kgf-cm

Component

P/N

Qty

Screw

E43-1203013-H29

Power Board

607-16H2C-01S

2.2：Assemble the speaker module

Component

P/N

Qty

Speaker Module

S33-A020420-Y07

■

GS60 2PC/GS60 2PE (MS-16H2) Assembly Guide

■2、UPPER CASE ASSY

2.3：Lock the 1 screws (M2.5*4mm) that stabilize the

right LCD hinge.

Attention: the screw driver torque is 2.5-3.0Kgf-cm

Component

P/N

Qty

Screw

E43-1254015-H29

2.4：Lock the 1 screws (M2.5*4mm) that stabilize the

left LCD hinge.

Attention: the screw driver torque is 2.5-3.0Kgf-cm

Component

P/N

Qty

Screw

E43-1254015-H29

GS60 2PC/GS60 2PE (MS-16H2) Assembly Guide

■3、MAIN BOARD ASSY

3.1: Assemble the fansink(L), after that lock the 4

screws (M2*3mm).

Attention：the screwdriver torque is 2.0-2.2Kgf-cm

Component

P/N

Qty

Screw

E43-1203013-H29

Fansink(L)

E32-0404680-A02

3.2: Assemble the fansink(R), after that lock the 4

screws (M2*3mm).

Attention：the screwdriver torque is 2.0-2.2Kgf-cm

Component

P/N

Qty

Screw

E43-1203013-H29

Fansink(R)

E32-2600110-A02

3.3: Assemble the SSD Card according to the

direction as pic shows; then lock the 2 screws

(M2*3mm).

Attention: the screw driver torque is 2.0-2.5Kgf-cm

Component

P/N

Qty

Screw

E43-1203013-H29

SSD Card

S78-4406590-T14

GS60 2PC/GS60 2PE (MS-16H2) Assembly Guide

■3、MAIN BOARD ASSY

3.4：Assemble RAM module according the direction

as pic shows.

Component

P/N

Qty

RAM Module

S7C-S58A502-A97

3.5：Assemble the main board to upper case.

Component

P/N

Qty

Main Board

607-16H21-03S

3.6:Connect audio cable ,then assemble the audio

board.

Component

P/N

Qty

Audio Board

607-16H2A-01S

GS60 2PC/GS60 2PE (MS-16H2) Assembly Guide

■3、MAIN BOARD ASSY

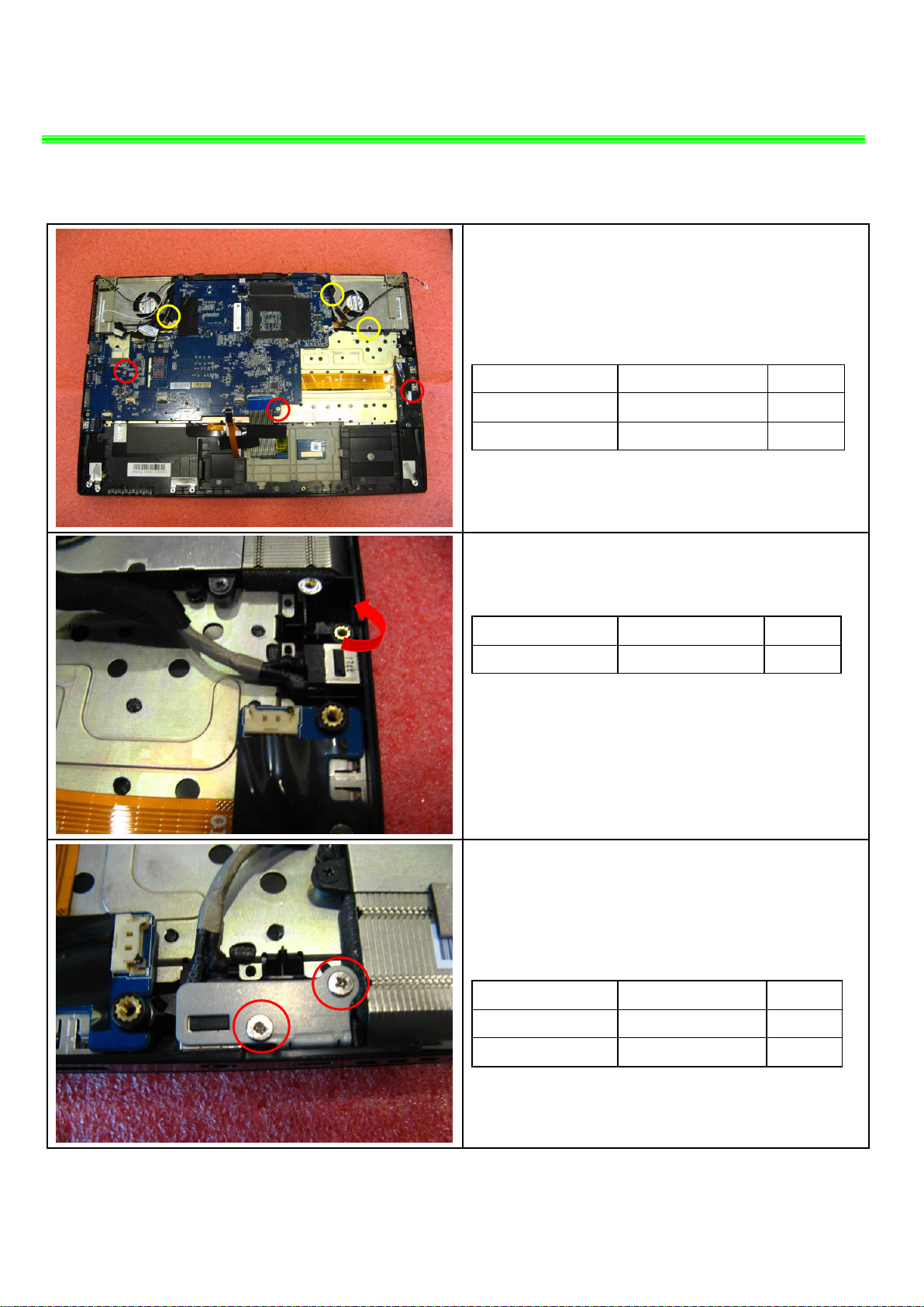

3.7 ：Assemble the 3 screws (M2.5*4mm). Then

assemble the 3 screws (M2*3mm).

Attention: the screw driver touque is: 2.0-2.5kgf-cm

Component

P/N

Qty

Screw

E43-1254015-H29

Screw

E43-1203013-H29

3.8:Assemble the DC IN module.

Component

P/N

Qty

DC IN Module

K10-3006206-H39

3.9:Assemble the bracket; Then lock 2 screws(M2*3m

m);

Attention: the screw driver torque is: 1.5-2.0Kgf-cm

Component

P/N

Qty

Screw

E43-1203013-H29

BRACKET

E2M-6H20111-C22

GS60 2PC/GS60 2PE (MS-16H2) Assembly Guide

■3、MAIN BOARD ASSY

■

3.10：Connect Fan cable & LVDS cable & power

cable and Camera cable.

3.11：Connect DC IN Cable & speaker Cable and Fan

Cable.

Fan cable

LVDS cable

Camera cable

power cable

DCIN cable

speaker cable

FAN cable
