Kingfisher KI9600A Manual de funcionamiento

OPERATION & MAINTENANCE GUIDE

KI 9600 Series

Power Meter

KI 9800 Series

Light Source

DECLARATION OF CONFORMITY

IN ACCORDANCE WITH ISO/IEC 17050:2004

Manufacturer’s Name: Kingfisher International Pty. Ltd.

Manufacturer’s Address: 720 Springvale Road, Mulgrave, Victoria 3170, Australia

hereby declares, that the products listed below

Product Name: Light Source, Power Meter

Model Number: KI 9800 Series, KI 9600 Series

Product Options: This declaration covers all options of the above product(s)

comply with the essential requirements of the applicable European Directives:

•Low Voltage Directive 2014/35/UE and the EMC Directive 2014/30/UE, and carries the CE marking accordingly

•Directive 2011/65/EU on restriction of the use of certain hazardous substances in electrical and electronic equipment (RoHS)

•Directive 2012/19/EU on waste electrical and electronic equipment (WEEE). The instrument can be disposed of local retail shop with

WEEE collection point.

and conform to the following standards and specifications:

MIL-PRF-28800F: 1996 Performance specification- Test equipment for use with electrical and electronic equipment, general specification

IEC 60529: Ed. 2.2 / EN 60529: 1991 Degrees of protection provided by enclosures

Power Meter conforms to:

IEC 61315: Ed. 2.0 Calibration of fibre-optic power meters

EMC Limit

IEC 61326-1 Ed. 2.0 / EN 61326-1:2013

IEC CISPR 11 Ed. 6.1 / EN 55011:2016 Limits applicable to Group 1 Class B equipment

IEC CISPR 16-1:2004~2019 Limits applicable to Class B equipment

IEC CISPR 16-2:2003~2016 Limits applicable to Class B equipment

IEC 61000-4-2 Ed. 2.0 (2008) / EN 61000-4-2:2009 4kV CD, 8kV AD

IEC 61000-4-3 Ed. 3.2 / EN 61000-4-3:2006 3V/m, 80-1000MHz

ICES-001:2006(Canada)

CFR 47 FCC Part 15, Subpart B (Exempted devices) (USA)

Safety

Light Source conforms to:

IEC 60825-1:2014 Safety of laser products - Equipment classification, requirements and user’s guide

IEC 60825-2:2021 Safety of laser products - Safety of optical fibre communication systems (OFCS)

CFR 21part 1040.10 (FDA) Performance standards for light- emitting products-Laser products

Supplemental Information:

The product was tested in a typical configuration with Kingfisher International test systems.

28 Apr 2021

Date

Bruce Robertson

Name

Technical Director

Title

For further information, please contactyour local Kingfisher International sales office, agentor distributor.

Revision: G Issue Date: 28 Apr 2021

KI 9000 UM-14 1

OPERATION MANUAL

KI 9600A Series Optical Power Meter

KI 9800A Series Optical Light Source

Congratulations on your purchase of this instrument, which has been

engineered to provide the best possible reliability, convenience and

performance. To get the best use from yourequipment and ensure its

safe operation, please spend a few minutes to read this manual.

Made in Australia. International Patents Granted

14thEdition, Apr 2021

Worldwide recognized

accuracy and quality

ISO 17025

KI 9000 UM-14 2

CONTENTS

Service, Calibration and Support 4

Introduction and Applications 5

General Safety Summary 7

Battery Power 10

Optical Connector 11

Operation 13

TamperLock Mode 16

Autotest Mode 17

Care of your Instrument 18

Accuracy Considerations 19

Definition of Terms 21

Specifications 22

Ordering Information 26

Calibration and Maintenance 29

Performance Verification Tests 32

Quick Reference Guide 43

Disclaimer and Warranty 47

User Notes 48

KI 9000 UM-14 3

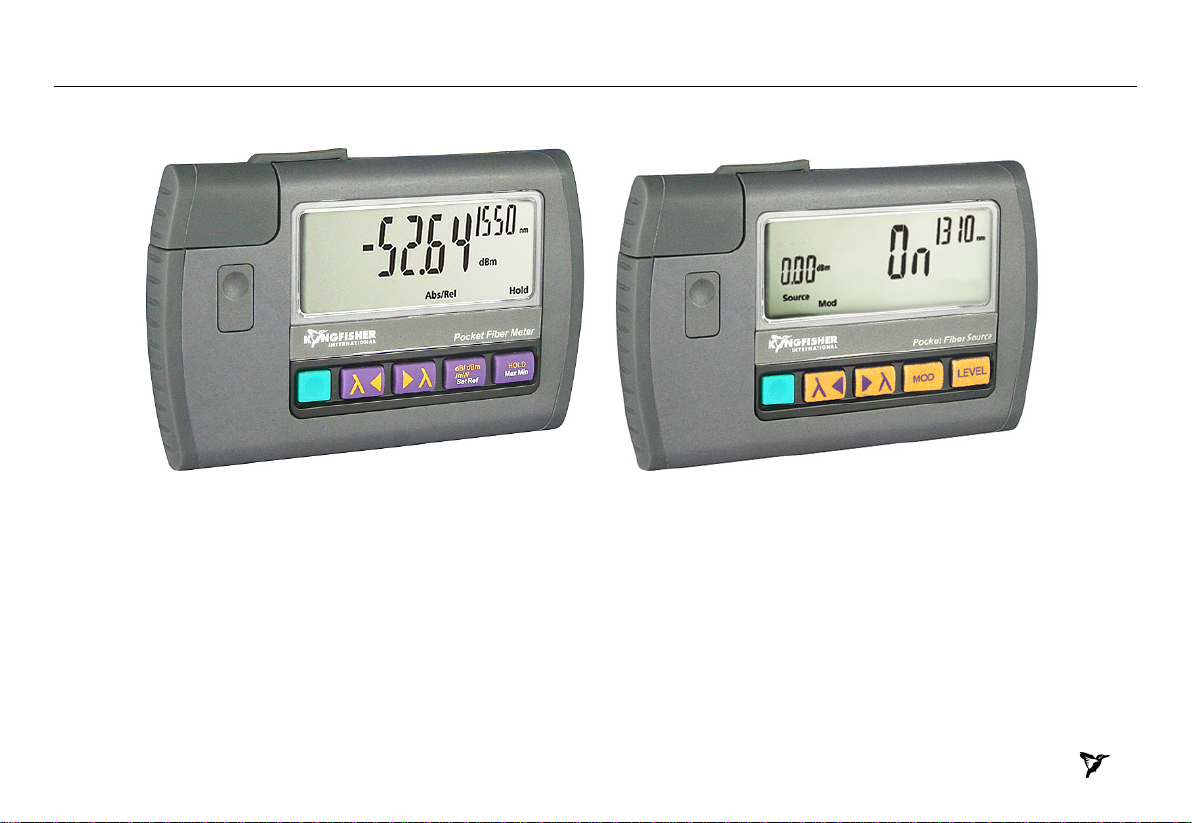

KI9600A Series Optical Power Meter and KI9800 Series Optical Light Source

KI 9000 UM-14 4

SERVICE, CALIBRATION AND SUPPORT

Applications Support

Please visit www.kingfisherfiber.com to see our comprehensive

Application Notes written to support instrument users.

Look at www.kingfisherfiber.com to find distributor details from the

Our local agents are able to offer excellent applications advice in your

language and time zone.

Please visit our website on www.kingfisherfiber.com for a current list

of regional Service & Calibration centres.

Otherwise if you are having difficulties please feel free to contact

[email protected] for applications support.

Instrument Service

Qualified personnel must perform adjustment, maintenance or repair of

this product. To obtain service, please contact your local Kingfisher

International distributor or our office in Australia

Instrument Returns

If returning equipment to Kingfisher International for service or

calibration, please download and complete the Return Material

Authorization Form located on the Support page on our web site

www.kingfisherfiber.com .

To avoid delays and minimise disruption for our customers, Kingfisher

International offers a fixed price repair service.

Forthestaffatourfullyequippedserviceandcalibrationcentre,itistheir

pleasure to keep your equipment performing at its very best.

Tel: (61) 3-8544-1700

Email: sales@kingfisher.com.au

KI 9000 UM-14

INTRODUCTION AND APPLICATIONS

The KI 9000A Series Optical Power Meter and Optical Light Source

offerboth ease of useandsuperbmeasurement confidence.They are

very convenient to use and, have reduced cost of ownership.

Calibrations are ISO 17025 traceable.

This equipment can be effectively used by installers, technicians and

engineerstotestalltypesoffiberopticsystemsinvariousapplications

including SMF, MMF, POF, PCS and ribbon fiber:

•Tx / Rx absolute power levels in dBm

•Optical loss in dB

•Continuity testing with the versatile test tone features

The interchangeable optical connectors are drop and dust protected

by a snap on cover. A wide variety of connector styles are available.

The instruments feature a tough polycarbonate housing with shock

absorbent sides and corners, which has passed extensive drop

testing.

Calibrationcanbeperformedbyanysuitablyequippedlaboratory.The

recommended re-calibration cycle is 3 years.

Power Meter features

The standard power meters work with fiber core diameter up to 200

microns, with both PC and APC polish connectors.

Large area detector power meters work with fibers with up to 3 mm

active area including MPO/ MTP connectors with up to 72 fibers.

Detector options include Germanium (Ge), Indium Gallium Arsenide

(InGaAs), Silicon (Si), high power, large area and wavelength

selective.

Powermetercalibrationoptionsareavailablefrom470nm to 1625nm

with specified accuracy at power levels from +24 to - 60 dBm.

ThedisplayshowsdBm,dBand linearunits,anddisplayholdisuseful

for data recording.

Superior measurement confidence is achieved with a unique Total

Uncertainty Specification, which covers the full temperature,

measurement and connector range. An ILAC/NATA traceable

calibration certificate is supplied.

The sensitive optical tone detector displays the actualmeasured tone

frequency in Hz. If a standard tone is detected, the buzzer sounds,

which is useful for fiber identification and continuity testing. MultiFiber

ID (new to A series) can also separately identify any of 12 test tones

from a compatible source, greatly speeding up continuity / polarity

testing.

Power stability testing is easily using the max/min recording function.

TamperLock mode (new to A series) is a useful way to lock the

instrument features to enforce pre-set & error free operation.

TamperLock operation is auditable and can be defeated on-site if

needed.

SlowMode (newtoAseries)canbeusedtoincreasesignalaveraging

for noisy signals.

KI 9000 UM-14

INTRODUCTION AND APPLICATIONS

Light Source features

Multiple wavelength sources have 1 - 3 switchable wavelengths

through one port, which makes operation faster.

Laser sources at 1490 / 1310 / 1550 / 1625 nm are used for testing

singlemodefibersystems.Laser sourcepowerlevelscanbeadjusted

3 dB by the user in 0.1 dB increments.

LED sources at 850 / 1300 nm used for testing multimode fiber

systems.

The 1300 nm LED source can also perform moderate distance single

mode testing.

The 660 nmLED source option is ideal for POF testing incombination

with KI9600 XL power meters.

VFL laser sources at 635 and650 nm have some specific advantages

compared to common VFL pens such as: improved eye safety when

no fiber is attached, replaceable through connector, proper connector

interface which won’t damage connectors by rotation, APC interface

option, proper interchangeable connector adaptors, wider variety of

laser options, tone options that work with a clip-on fiber identifier

Light sources have re-connection repeatability of 0.1dB. Combined

with the instrument excellent stability, this provides more accurate

measurement results and improved test confidence.

TamperLock mode is a useful way to lock & pre-set the instrument

features to simplify operation. TamperLock operation is auditable and

can be defeated if needed.

AutoTestcanbeusedwitha suitableAutotestcompatiblepowermeter

such as the KI2600 series (not the KI9600 series) to synchronise the

power meter and light source wavelengths and other parameters.

A multiFiber ID feature (new to A series) provides easy multi-fiber

identification of up to 12 fibers at a time. To use this feature, multiple

light sources are set up on multiple fibers, with each one set to a

different tone. When a tone is detected by a power meter, a buzzer

sounds, and the corresponding fiber ID number is displayed.

KI 9000 UM-14

GENERAL SAFETY SUMMARY

The following safety signs and symbols specify general safety

precautions which must be observed during all phases of operation,

service and repair of this instrument.

Failure to comply with these precautions or with specific warnings

elsewhere in this manual violates safety standards of design,

manufacture and intended use of the instrument. Kingfisher

International assumes no liability for the customer’s failure to comply

with these requirements.

Before operation, review the instrument and user manual for safety

instructions. You must follow these to ensure safe operation and to

maintain the instrument in safe condition.

WARNING!

The WARNING!sign denotes a hazard. It calls attention to a

procedure, practice or the like, which, if not correctly performed or

adhered to, could result in injury. Do not proceed beyond a

WARNING!sign until the indicated safety conditions are fully

understood and met.

CAUTION!

The CAUTION!sign denotes a hazard. It calls attention to an

operating procedure, or the like, which, if not correctly performed or

adhered to, could result in damage to or destruction of part, or all, of

the product. Do not proceed beyond a CAUTION!sign until the

indicated conditions are fully understood and met.

Safety Symbols

Theapparatuswillbemarked with thissymbolwhenitisnecessaryfor

the user to refer to the instruction manual in order to protect the

apparatus against damage.

Initial Inspection

Inspect the shipping container for damage. If there is damage to the

container or cushioning, keep them until you have checked the

contents of the shipment for completeness and verified the instrument

both mechanically and electrically. If the contents are incomplete,

mechanical damageor defectis apparent, or ifan instrument doesnot

pass the operator’s checks, notify the nearest Sales/Service Office.

To check instrument performance, please refer to Performance

Verification Tests section of this manual.

WARNING! You must return instruments with malfunctions to a

Service Centre for repair and calibration.

KI 9000 UM-14

GENERAL SAFETY SUMMARY

Operating Environment

The range of Kingfisher equipment covered by this manual can be

operated at temperatures between -15 °C and +55 °C and at relative

humidity of <95 %.

Storage and Shipment

The range of Kingfisher equipment covered by this manual can be

stored or shipped at temperatures between -25 °C and +70 °C and at

relative humidity of less than 95 %. Protect the unit from temperature

extremes that may cause condensation within it.

Safety

This instrument contains no hazardous optical or electrical items.

When using this equipment, optical safety precautions should be

observed commensurate with the maximum available source power,

since most of this power can also be coupled out of the instrument.

WARNING! Observe optical safety when usinghigh power.

Optical safety requirements at high power levels MUST be observed

or eye damage is likely. Organisations and users operating optical

equipment with these power levels MUST determine and observe

relevant safety precautions, which are beyond the scope of this

manual.

Never look into the end of an optical cable or connector which might

be attached to an active source.

Do not enable a laser when there is no fibre attached to the optical

output connector.

Opticalmagnifyinginstruments(e.g.microscope)increaseeyehazard

unless they contain suitable optical attenuating filters. Disconnect the

source before using an optical magnifier.

The laser module has a built-in safety circuitry which will disable the

optical output in the case of a fault condition, however, this cannotbe

guaranteed.

An equipment assurance program is recommended to check for safe

laser operation.

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Instrumento de medición de Kingfisher

Kingfisher

Kingfisher KI 3800 Series Manual de usuario

Kingfisher

Kingfisher KI6501 Manual de usuario

Kingfisher

Kingfisher KI23400 Series Manual de usuario

Kingfisher

Kingfisher KI 6680 Manual de usuario

Kingfisher

Kingfisher KI 2400 Series Manual de usuario

Kingfisher

Kingfisher KI 9600 Series Manual de usuario

Kingfisher

Kingfisher KI 6700 Manual de usuario

Kingfisher

Kingfisher KI 9600 Series Guía de instalación

Kingfisher

Kingfisher DIMENSION AutoGet WiFi Manual de usuario

Kingfisher

Kingfisher KI 9600A-Ge Manual de funcionamiento

Kingfisher

Kingfisher KI 6680 Manual de usuario

Kingfisher

Kingfisher KI 2600 Series Manual de usuario

Kingfisher

Kingfisher KI23400 Series Manual de usuario

Kingfisher

Kingfisher KI 2600 Series Manual de instrucciones

Kingfisher

Kingfisher KI6503 series Manual de usuario

Kingfisher

Kingfisher KI6106 Series Manual de usuario

Kingfisher

Kingfisher KI 2600 Series Manual de usuario

Kingfisher

Kingfisher 3663602490074 Manual de usuario

Kingfisher

Kingfisher KI 6354 Series Manual de usuario

Kingfisher

Kingfisher KI5000 Series Manual de usuario

Kingfisher

Kingfisher KI 2600 Series Guía de instalación

Kingfisher

Kingfisher KI9800 Guía de instalación

Kingfisher

Kingfisher BIMW20LUK Manual de usuario

Kingfisher

Kingfisher KI6102 Series Manual de usuario

Manuales populares de Instrumento de medición de otras marcas

Suaoki

Suaoki D40 Manual de usuario

Elster

Elster BK-G1.6 Manual de usuario

Endress+Hauser

Endress+Hauser Deltabar FMD71 Manual

Duratool

Duratool D03128 Manual de usuario

Vega

Vega VEGAPULS 65 Manual de usuario

Tonghui

Tonghui TH2618B Manual de usuario

Tenmars

Tenmars TM-801 Manual de usuario

MSR

MSR 145 Manual de usuario

TPS

TPS WP-82 Manual de usuario

ELMETRON

ELMETRON CP-511 Manual de usuario

PCB Piezotronics

PCB Piezotronics 003C30 Manual de usuario

Tenma

Tenma 72-10465 Manual de usuario

Endress+Hauser

Endress+Hauser Proline Promag 50 Especificaciones técnicas

Siemens

Siemens SITRANS F Coriolis FCT030 Manual de lista de piezas

KLINGER

KLINGER CMF V Series Manual de usuario

EXFO

EXFO FTB-2 Manual de operación y mantenimiento

Keysight

Keysight M8290A Manual de usuario

ADTEK

ADTEK MW-5 Manual de usuario
