King Electrical Mfg. Co. 9131 10th Ave South, Seattle WA 98108 ph: 206-762-0400 fax: 206-763-7738

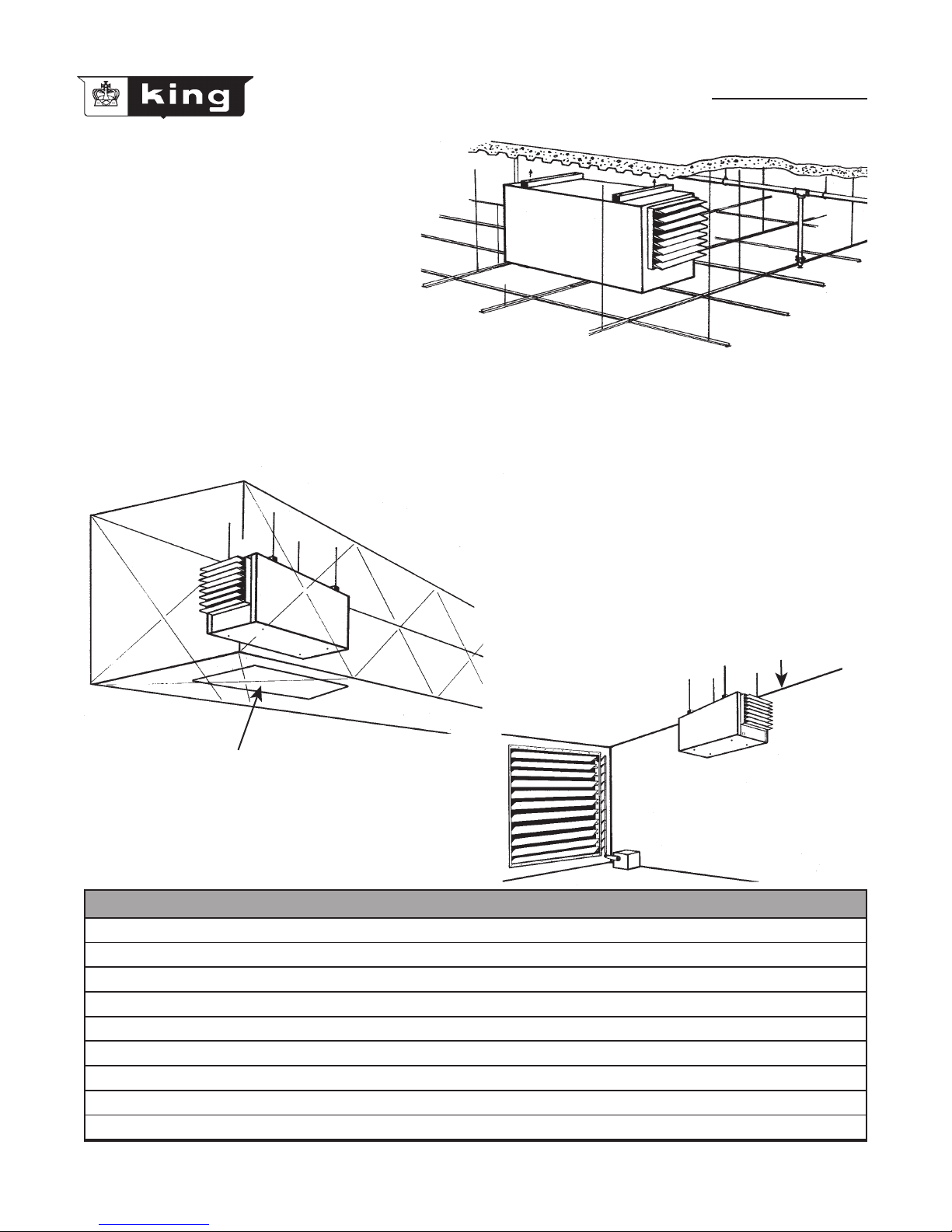

Plenum Heater

The Model CK Series is a special applica-

tion heater that is approved for use in

concealed areas of a building. This

heater may be installed in areas that are

not readily available for a person to see,

such as the area between a concrete

ceiling and a drop-tile ceiling, in plenum

open or ducted system and can be used

for constant environmental temperature

control and freeze protection for sprinkler systems in concealed areas.

The unit can be mounted vertically or horizontally.

It is also suitable for use as a special purpose unit heater where the environmental requirements are

dirty, dusty, moist or mildly corrosive.

CK heater installed inside a plenum area

for inline ducted air and heat boost in large

commercial HVAC systems can be mounted

in vertical or horizontal ducting.

snoitpO snoitpO snoitpO snoitpO snoitpO

sledomesahpeerhtroelgnisroflortnoCegatS2

lortnocRSSroftatsomrehtgnitaludoM

X4ameN-tatsomrehttliubnI

X4ameNegats2-tatsomrehttliubnI

tatsomrehtgnitaludomrofrosnestcuD

PH2/1dna4/1dradnats,MFCesaercedroesaercniotnoitutitsbusrotoM

eloP3,pmA001hguorht03-sehctiwStcennocsiD

pmA57dna54,52-syaleRetatSdiloS

noitallatsnitcudenilnirofresuffidoN

Large building ventilation system air

heater for pre heat or stand alone

heating system.

Outside Wall

Access opening must be

provided to the heater.

Electric CK Plenum Heater

King Electrical Mfg. Co. 9131 10th Ave South, Seattle WA 98108 ph: 206-762-0400 fax: 206-763-7738

MODEL CK PLENUM INSTALLATION INSTRUCTIONS

TESTED AND APPROVED BY ETL TESTING LABORATORIES No 500505

Control Wiring: Connect thermostat to terminals R

and W for heating, and to R and G for cool air only.

This can be done with a single stage heat-cool ther-

mostat or a single stage heat only thermostat and a

separate fan only switch to control the fan-relay (op-

tional). Some models have two stage operation (op-

tional) and are provided with terminals W1 and W2.

If a single stage thermostat is used it should be con-

nected to terminals R and W1 and a jumper wire

installed from terminals W1 to W2; see enclosed

control circuit wiring diagram.

The model CK Air Heater plenum installation is a special application heater for use in the space

created between a finished concrete ceiling and a drop type t-bar ceiling, an area normally hidden

from view.

The heater is mounted horizontally with the integral suspension bracket provided in an area where

service access can be readily maintained.

Safety screens are provided at both the air intake and discharge aperture. Fixed air directional louvers

are standard.

A 24 volt control thermostat with a maximum temperature setting of 100º F will prevent operation of

the unit should the ambient rise above 100º F. - the maximum ambient for which the heater is intended

to operate.

CAUTION: Turn off power source for the heater before attempting installation, maintenance or

repairs. Lock, tape or tag circuit breaker or fuse so that power cannot be turned on by accident.

Failure to do so could result in personal injury or shock.

INSPECT HEATER: Remove heater from carton and check to be sure blower wheel is free-turning,

and that element assemblies are in place. Be sure filter is in proper position and not torn or dam-

aged.

King Electrical Mfg. Co. 9131 10th Ave South, Seattle WA 98108 ph: 206-762-0400 fax: 206-763-7738

MOUNTING: When the model CK unit is to be used in a return air plenum, the heater is to be

mounted, as shown, in a vertical space of not less than 24” allowing for at least 1½” of clearance along

the uppermost portion of the heater and a minimum of 2½“ along the bottom of the heater. ½” diam-

eter mounting holes are provided as shown in dimensional diagram. Do not store combustible materi-

als in the immediate area in which the heater is desired to operate.

Dimension:

20”H x 16”W x 33½”D

Top View

Side View

Maintenance & Warranty

The high quality and superior design of this unit

will enable years of maintenance free performance.

The filter should be replaced at a minimum of once

a year depending upon the environment the heater

is located in, some environments may require 2 to

3 times a year.

The CK Plenum heater carries a 5 year extended

warranty for the heating elements only. All other

components are covered for one year. The war-

ranty requires that the owner, or his agent, install

the equipment in accordance with the National

Electrical Code, any other applicable heating or

electrical codes, and the manufacturer’s installa-

tion instructions.

DROP TYPE T-BAR CEILING

ARMSTRONG OR CELOTEX 2’ X 4’ LAY IN TILE CEILING OR EQUAL

CLASS A NON-COMBUSTIBLE 0-25 FLAME SPREAD

OPEN SPACE ABOVE CEILING

USED FOR AIR PLENUM

2 HOUR RATED CONCRETE CEILING

EXHAUST

King Electrical Mfg. Co. 9131 10th Ave South, Seattle WA 98108 ph: 206-762-0400 fax: 206-763-7738

tnemelEtnemelE tnemelE tnemelEtnemelE

WK .tW.tW .tW .tW.tW #traPtloV802#traPtloV802 #traPtloV802 #traPtloV802#traPtloV802 #traPtloV042#traPtloV042 #traPtloV042 #traPtloV042#traPtloV042 #traPtloV084#traPtloV084 #traPtloV084 #traPtloV084#traPtloV084

0.1

8.3

V042WK1-ELEV084WK1-ELE

6.1 V084WK6.1-ELE

0.2 V042WK2-ELEV084WK2-ELE

5.2 V042WK5.2-ELEV084WK5.2-ELE

0.3 V042WK3-ELEV084WK3-ELE

3.3 V042WK3.3-ELEV084WK3.3-ELE

0.4 V042WK4-ELEV084WK4-ELE

61.4 V042WK61.4-ELEV084WK61.4-ELE

0.5V802WK5-ELE V042WK5-ELEV084WK5-ELE

0.6 V042WK6-ELEV084WK6-ELE

0.7

6.4

V042WK7-ELEV084WK7-ELE

0.8 V042WK8-ELEV084WK8-ELE

33.8 V042WK33.8-ELEV084WK33.8-ELE

0.01 5.5 V802WK01-ELE V042WK01-ELEV084WK01-ELE

CK Plenum Heater

Replacement Parts List

straPtnemecalpeRretaeHmunelPKCstraPtnemecalpeRretaeHmunelPKC straPtnemecalpeRretaeHmunelPKC straPtnemecalpeRretaeHmunelPKCstraPtnemecalpeRretaeHmunelPKC

METI #redrOkcotS NOITPIRCSED .TW

1891313-11T06º571lortnoCtimiLotuA 40.

51EA70E-15-000442/021AV04remrofsnarTegatloVwoL

84.1

999K70E-90-000442/042-802AV04remrofsnarTegatloVwoL

999J70E-30-000442/772AV04remrofsnarTegatloVwoL

999K70E-15-000442/083AV04remrofsnarTegatloVwoL

999J70E-40-000442/084AV04remrofsnarTegatloVwoL

WNAJA53FC24lioCV42eloP3pmA05rotcatnoC

52.1

WNAJA53FB24lioCV42eloP3pmA04rotcatnoC

4175903-1HS51hctiwSyaleDnaF 01.

5430-5-DLEkcolBlanimreTegatloVwoL 40.

600-8223-572lortnoCerutarepmeTekatnIriA 03.

2228RyaleRnaFdeepSlauD 63.

srewolB&srotoMtnemecalpeRsrewolB&srotoMtnemecalpeR srewolB&srotoMtnemecalpeR srewolB&srotoMtnemecalpeRsrewolB&srotoMtnemecalpeR

PP05.-DD-R7-09rotoMPH4/1htiwesullamS-rewolB 8.01

PP05.-DD-T8-001rotoMPH2/1htiwesuegraL-rewolB 8.11

PP05.-DD-T8-021rotoMPH2/1htiwesuegraL-rewolB 1.51

S6201EFV042rotoMPH4/1

5.9

S6201HEFV084rotoMPH4/1

S6501EFV042rotoMPH2/1

6.31

S6501HEFV084rotoMPH2/1

500JG3-OADV073FM5roticapaC 42.

5.700JG3-OADV073FM5.7roticapaC 03.

010JG3-OADV073FM01roticapaC 03.
