KinAn KA2302 Manual de usuario

2 Port VGA / Audio KVM Switch

User Manual

www.kinankvm.com

Date：2019/01

Version: V1.0

KA2302 User Manual

- 1 -

Description

KA2302 is a two port VGA /Audio cable KVM switch. Users can put the

main part under the desk, easily switch the computers via Scroll-Lock or

remote port selector.

Features

One KVM console controls two USB VGA computers

Independent switching of KVM and Audio focus

Multiplatform support –Windows, Linux, Mac, Unix

Computer selection via remote port selector, hotkeys\

Hot pluggable - add or remove computers without having to

power down the switch

Superior video quality –2048x1536@60Hz

Product Structure

KA2302 User Manual

- 2 -

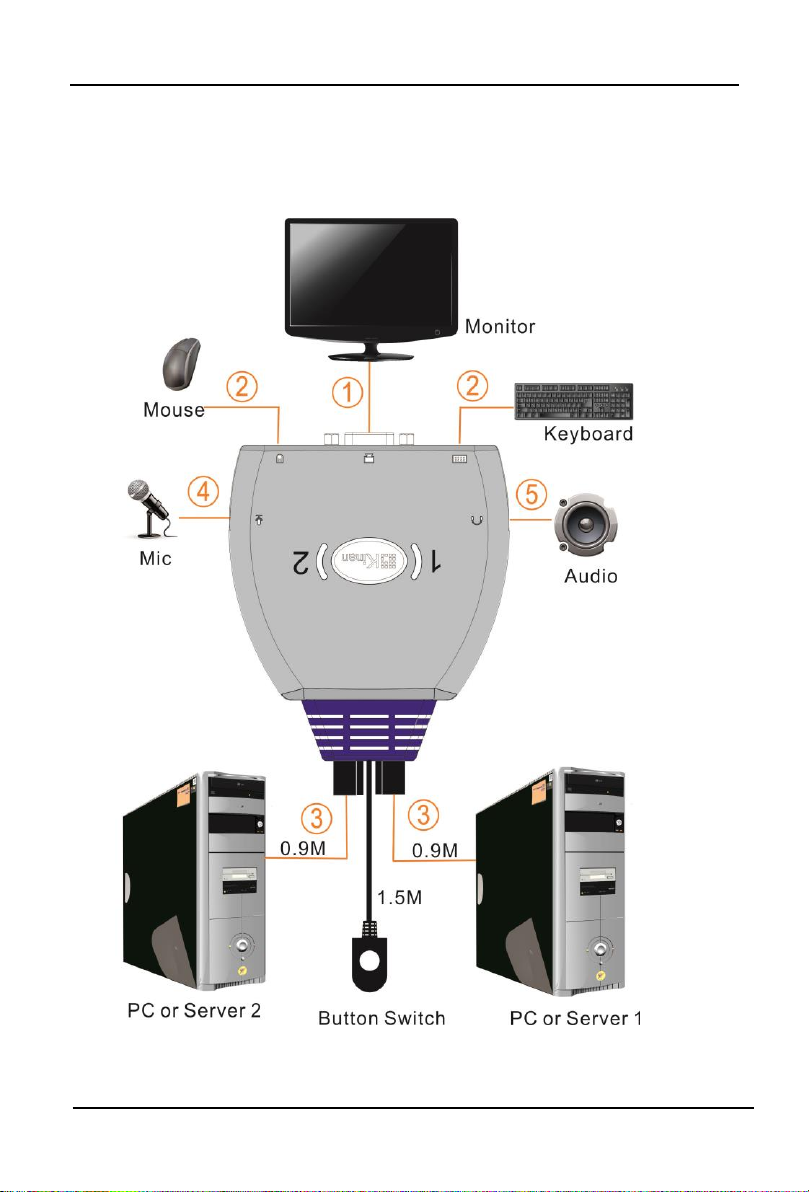

Connection Diagram

Make sure that the power to any device that you connect to the

installation has been turned off.

Make sure that all device you will be installing are property grounded

KA2302 User Manual

- 3 -

Hotkey

Press Scroll-Lock twice in two seconds, the keyboard will exit the

hotkey mode if you do not press any hotkey within 2 seconds.

Hotkey commands as below:

Function

Operation

Instruction

Port

Switching

Scroll-Lock +

Port#

Switch between port 1~2 Press

Scroll-Lock twice +2, switch to port

Scroll-Lock +

↑/↓

Switching to Previous or Next port

Auto Scan

Scroll-Lock +

1. Automatically scan the connected

PC or Server, press any key to

exit

2. Move the mouse to extend the

scan time accordingly

3. LED status indicator flashes to

indicate a successful operation

Hotkey

Cycling

Scroll-Lock +

Scroll-Lock →L_Ctrl →

Scroll-Lock

LED status indicator flashes to

indicate a successful operation

Auto Scan

time

setting

Scroll-Lock +

T + (0~99) +

Enter

Automatic scanning interval 5~99s，

LED status indicator flashes to

indicate a successful operation

Audio Lock /

Unlock

Scroll-Lock +

Lock / Unlock the current audio,

LED status indicator flashes to

indicate a successful operation

Factory

Setting

Scroll-Lock +

Restore factory setting,

LED status indicator flashes to

indicate a successful operation

KA2302 User Manual

- 4 -

Specification

Model

KA2302

Computer Connections

Port Selection

Hotkey, Remote Port Selector

Console

Monitor

1x HDB-15 Female(blue)

Keyboard,

Mouse

2x USB type A

Microphone

1x Min stereo port ( pink)

Speaker

1x Min stereo port ( green)

Monitor

2x HDB-15 Female(blue)

Keyboard,

Mouse

2x USB type A

Microphone

2x Min stereo port ( pink)）

Speaker

2x Min stereo port ( pink)

LED

Selected

2 (green)

Power

2 (orange)

Cables

KVM cable

900mm

Remote port

Selector Cable

1500mm

Video Signal

2048x1536@60Hz

Operating Temperature

0 ~ 40 ℃

Storage Temperature

-20 ~ 60℃

Humidity

0~80% RH, non-condensing

Net Weight

0.36 kg

Dimension (W ×D ×H)

93.2mm ×84.5mm ×32.5mm
