Kimo MP 100 Manual de usuario

Manometers

MP 100 - 101 – 105– 112

MP 120

''OK'' key

1x ''To validate''

or ''Self-calibration'' see P2.

''Function'' key

''Select'' key

1x : ''Hold'' : measure holding

2x : ''Min/Max'' : display of minimum and

maximum values from channel 1

since last request.

3x : ''Min/Max'' : display of minimum and

maximum values from channel 2

since last request.

4x : Back to held measure.

See table

''Functions available from main screen''

ON : Switch on

O : Switch off

Escape : Return to previous screen

''On / off'' key

1x Level 1

2x Level 2

3x No backlight

''Backlight'' key

Rugghölzli 2

CH - 5453 Busslingen

Tel. +41 (0)56 222 38 18

Fax +41 (0)56 222 10 12

mailbox@sentronic.com

www.sentronic.com

Produkte, Support und Service

SENTRONIC AG

NTang – MP100 – 120 - 12/08 B – We reserve the rigth to modify the characteristics of our roducts without notice.

Once returned to KIMO, required waste collection will be assured in the respect of the environment in accordance to 2002/96/CE guidelines relating to WEEE.

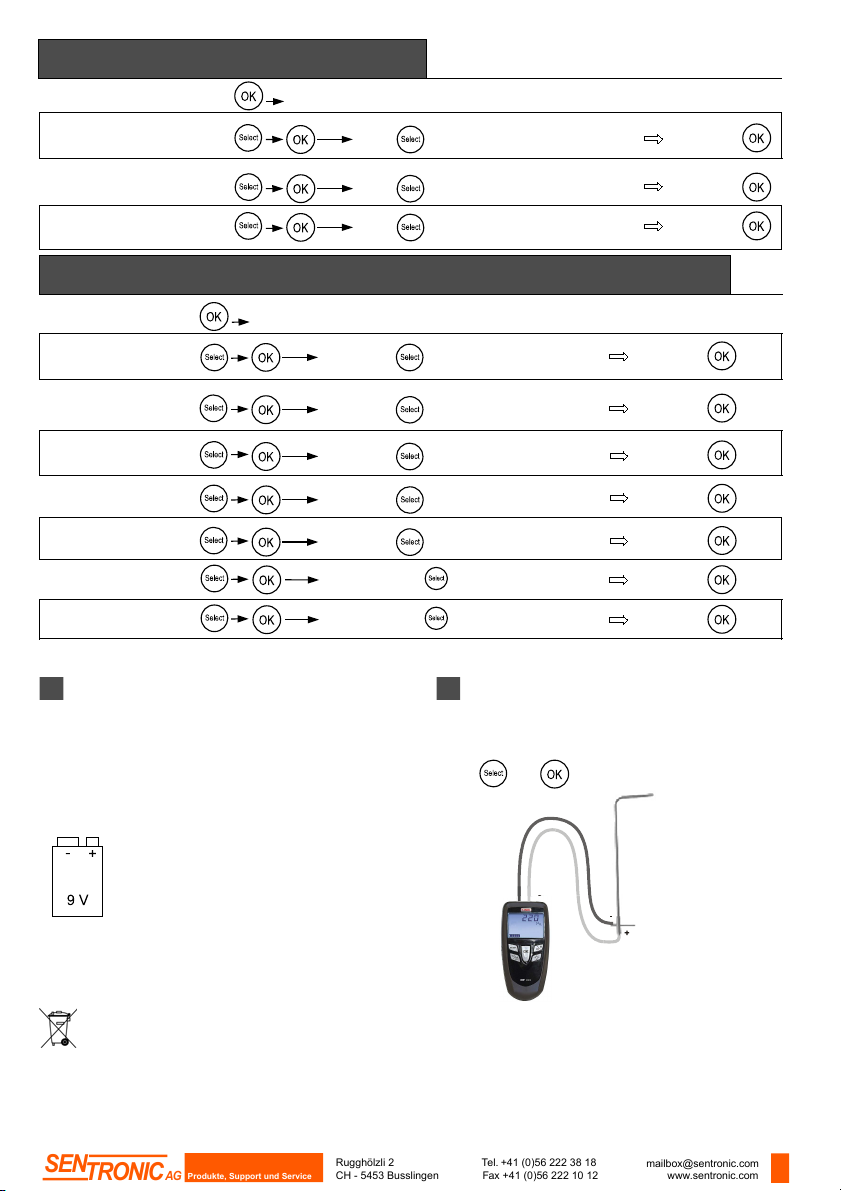

Functions available from main screen

How to change battery

1. Remove the front part at the back of the

instrument.

2. Remove old battery.

3. Insert the new battery in accordance with proper

polarity drew inside the housing.

4. Replace the front.

Velocity

activation 1x

Select air

velocity unit

Press to activate or deactivate Validate with

Press to scroll down units Validate with

Ambient

Temp. 6x Enter value with Validate with

Atmo pheric

Pre ure 7x Enter value with Validate with

Select

pre ure unit Press to scroll down units Validate with

Automatic

hut-off Press to scroll down units Validate with

Beep Press to activate or deactivate Validate with

2x

3x

4x

5x

Select pre ure

unit Press to scroll down units Validate with

1x

Automatic

hut-off Press to scroll down minutes Validate with

2x

Beep Press to activate or deactivate Validate with

3x

Self-calibration 1x Start of self calibration countdown*

Functions available from main screen (only for MP120 instrument)

Self-calibration 1x Start self calibration countdown*

*self calibration is performed by disconnecting the two pressure inlets of the sensor, then by pressing AutoZ key.

Using Pitot tube

1. Connect the Pitot tube to MP120 instrument.

2. The probe must be placed at the center of the duct and

parallel to the air flow.

3. Press then to activate velocity.

Dynamic pressure = PT PS

+

-

(+) Static

Pressure PS ( ) Total

Pressure PT

Rugghölzli 2

CH - 5453 Busslingen

Tel. +41 (0)56 222 38 18

Fax +41 (0)56 222 10 12

mailbox@sentronic.com

www.sentronic.com

Produkte, Support und Service

SENTRONIC AG
