Kicker SWRA207 Manual de usuario

SWRA207-A2-20140731

Page 1 of 8

SWRA207

Designed for 2007-2010 Jeep® Wrangler two door base audio or premium audio

FUSE

T-TAP x2

WIRE TIES x2

SUBWOOFER ASSEMBLY

200 WATT AMP

POWER HARNESS

OVERLAY HARNESS

Page 2 of 8

Fig. 1

Fig. 2

Fig. 3

Subwoofer Installation

1. Disconnect the negative battery cable.

2. Gently pull out on the panel just below the steering column, rotate down and remove. Fig. 1

3. Find the small panel just below the one you just removed and pull to remove it as well. Fig. 2

4. Loosen the four screws indicated by the arrows in Fig. 3 approximately 4 turns. Fig. 3

5. Remove the screw indicated by arrow A completely. Fig. 3

6. Install the amplifier with the long tab toward the center of the car. Slide the long tab behind the

plastic and under the lower right screw while pulling out on the plastic. Once tab is completely

seated rotate the amplifier down and secure the short tab in the same manner. Reinstall screw A

and retighten the screws but leave the covers uninstalled. Fig. 4

7. Find the rubber grommet in the top driver’s side of the fire wall underneath the hood and remove it.

Fig. 5

8. Using a razor knife make a small cut in the center of the grommet. Pass the end of the wire with the

small terminal on the end through the grommet and pull the grommet up to the point where the

plastic sheathing starts. Fig. 6

9. Run the wire through the grommet hole in the fire wall and reinstall the grommet.

10.Run the wire along the top of the fire wall toward the battery and secure with wire ties.

Fig. 4

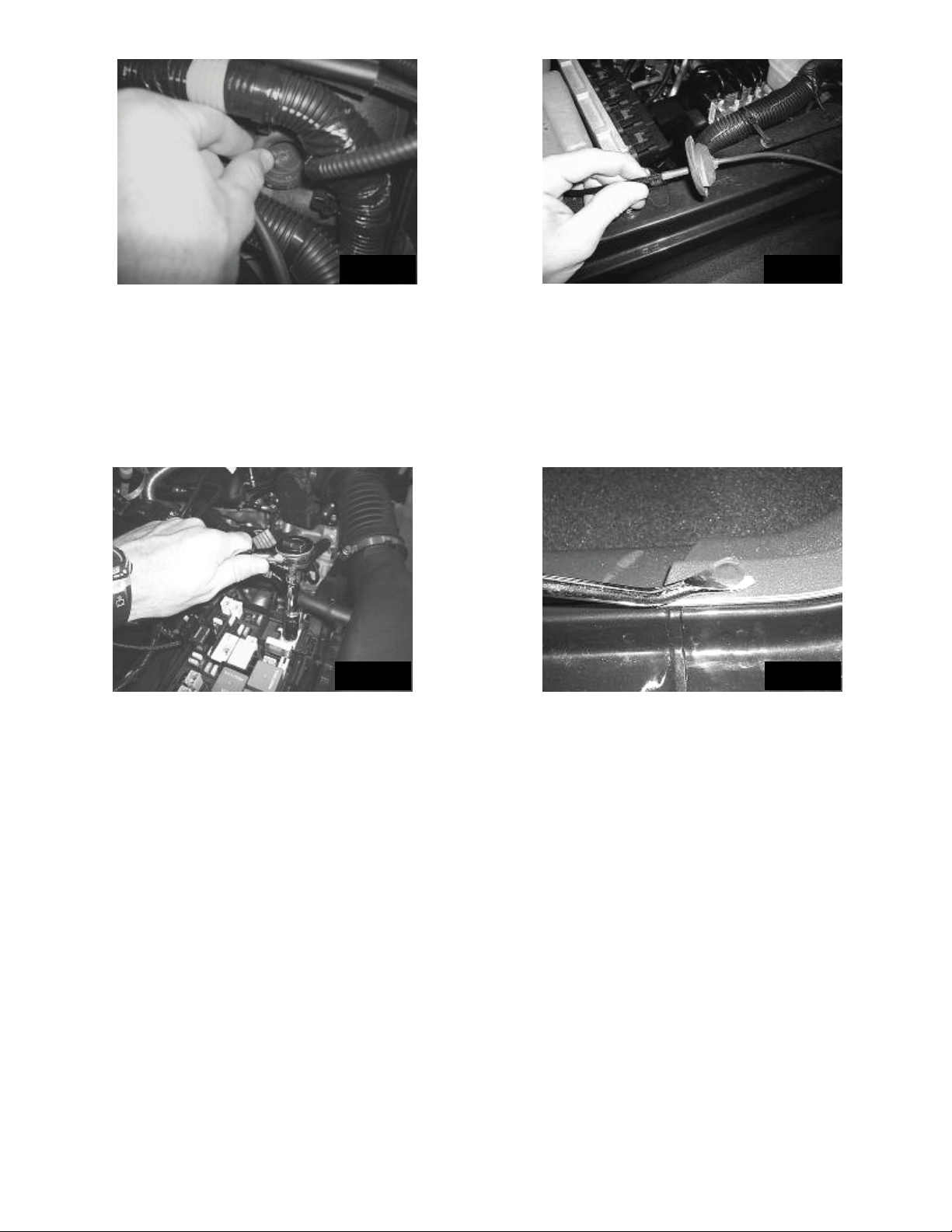

Page 3 of 8

Fig. 5

Fig. 6

Fig. 7

Fig. 8

11.Remove the top of the fuse cover and using a 13mm socket and ratchet loosen and remove the nut

on the positive battery accessory lug. Fig. 7

12.Connect the ring terminal of the power harness to the lug and retighten the nut. Torque to 10Nm.

13.Using a panel removal tool remove the four plastic retainers (three in front door opening and one in

rear door opening) securing the driver’s side sill plate and B pillar post cover. Fig. 8

14.Gently pull the kick panel/sill plate toward the brake pedal to release the fasteners securing it.

15.Connect the ten pin connector of the harness to the amplifier. Slide the red locking tab over to

prevent the connector from accidentally coming disconnected.

16.Route the harness along the bottom of the front and rear door jam and toward the back seat.

Subwoofer input connection without optional amplifier installed

17.Locate the left front lower dash speaker wires on the back of the plastic speaker housing. The wire

colors are gray with a yellow stripe and gray with a purple stripe. Fig. 9

18.Install one of the self stripping t-tap connectors on to each wire. Lay the wire in the open channel,

fold the connector body over and squeeze with a pair of pliers until connector snaps shut. Fig. 10

19.Connect the subwoofer harness input wires to the t-tap connectors. The green wire (positive) of the

harness connects to the t-tap connector on the gray wire with the yellow stripe in the vehicle.

The brown wire (negative) of the harness connects to the t-tap connector on the gray wire with the

purple stripe in the vehicle.

Page 4 of 8

Fig. 9

Fig. 10

Fig. 11

Fig. 12

Subwoofer input connection with optional five-channel amplifier installed

20.Connect the green wire of the of the subwoofer harness to the green wire of the 4.1 amplifier

harness. Connect the brown wire of the subwoofer harness to the brown wire of the 4.1 amplifier

harness.

Subwoofer input connection for Premium Audio vehicles with factory eight-channel amplifier installed

21.Locate the 16 pin connector on the amplifier under the steering column. Find the green/brown stripe

wire and the gray/brown strip wire in this connector and install one of the self stripping t-tap

connectors on to each wire. Lay the wire in the open channel, fold the connector body over and

squeeze with a pair of pliers until connector snaps shut. Fig. 10

22.Connect the green wire of the subwoofer harness to the gray/brown strip wire. Connect the brown

wire of the subwoofer harness to the green/brown stripe wire.

23.Install the supplied two pin connector by inserting the terminals on the end of the power wire into the

back of the connector until it clicks and locks. Fig. 11

24.Depress the blue terminal retainer down in the center of the connector.

25.Using a 10mm socket and ratchet remove one of the factory ground nuts on the driver’s side kick

area. Connect the black ground wire, reinstall the nut and tighten. Fig. 12. Torque to 8Nm.

26.Run the wire harness along the floor under the rear seats to approximately the middle of the vehicle

and pull the end of the harness under the seat to the cargo area.

27.Set the subwoofer in place and connect the wire harness.

Page 5 of 8

28.Align the mounting bracket with the anchor points at the bottom of the seat and press the enclosure

down until it locks into place. Fig. 13

29.To remove the subwoofer press the tabs on each side of the mounting bracket while lifting up.

Disconnect wiring. Fig. 14

30.Reinstall all previously removed parts in reverse order.

31.Install supplied fuses in the fuse holders under hood.

32.Reconnect the negative battery cable. Torque to 5Nm.

Fig. 13

Fig. 14

Page 6 of 8

Troubleshooting the Kicker Integrated Systems

If you experience a problem once the Subwoofer is installed use this guide to locate the trouble.

The radio is working, but the Subwoofer is not working:

•Check the battery voltage to make sure it is not discharged below 11 volts.

•Check the negative battery cable to see if it has been securely tightened back on the battery.

•Check the inline fuse located near the battery to make sure it is plugged in completely, and not

blown.

•Check the inline +12Volt power-connector near the firewall to make sure it is plugged in securely.

•Check the inline connectors near the subwoofer enclosure to make sure they are plugged securely.

•Check the ground wire connection to make sure it is tightly secured to the proper ground in the

vehicle.

•Check the audio input signal connection to make sure it is securely connected to the correct wiring.

•Test with different music in case there is no low frequency audio in the initial sound check.

There is a buzz or rattle noise that accompanies the

low frequency element of the music:

•Check for a connector or any other object that could be very near the subwoofer or the enclosure.

•Check the subwoofer enclosure mounting brackets to make sure they are secure.

There is a problem with the multi-channel stereo amplifier:

•Check the battery voltage to make sure it is not discharged below 11 volts.

•Check the negative battery cable to see if it has been securely tightened back on the battery.

•Check the inline fuse located near the battery to see if it is plugged in completely and not blown.

•Check the multi-pin connectors at the back of the radio and at the amplifier chassis to make sure

they are plugged all the way in.

•Check the ground wire connection to make sure it is tightly secured to the proper ground in the

vehicle.

Page 7 of 8

Symptom

Possible Cause

Solution

No Subwoofer Output

Fuse not installed in inline

fuse holder on subwoofer

and/or amp harness

Install fuse(s) into fuse holder(s). Refer to

instructions for correct placement

Low battery voltage Recharge the battery

Negative battery cable not

connected Reconnect negative battery cable

Power wire connector not

connected to body harness

Connect power wire to body harness. Check

for loose connection

Ground wire not grounded

properly

Check ground wire with voltmeter to insure it is

a good ground

Signal input connector not

connected properly

Connect signal wire of subwoofer harness to

signal wire of amplifier harness or factory

speaker wire depending on application.

Check for loose connection

Balance or fader controls not

set to neutral position

Set balance and fader control to center

settings. (only affects stand alone subwoofer

kit)

No low frequency

information in music Test with several different songs

Subwoofer harness not

properly/completely

connected to subwoofer.

Securely fasten both of the connectors on the

subwoofer harness to the subwoofer. Check

for loose connections.

Radio not coming on

Radio connector not

properly/completely

connected

Check radio connector to insure it is

completely seated

Blown radio fuse Refer to owner's manual for radio fuse location

and value

Low battery voltage Recharge the battery

Radio comes on, but no

sound from any speakers

Fuse not installed in inline

fuse holder on amplifier

harness

Install fuse into fuse holder. Refer to

instructions for correct placement

Radio connector not

properly/completely

connected

Check radio connector to insure it is

completely seated

Ground wire not grounded

properly

Check ground wire with voltmeter to insure it is

a good ground

Low battery voltage Recharge the battery

Page 8 of 8

If you continue to experience problems after troubleshooting with this list, please contact KICKER Technical Support at

(800) 256-0808 ext. 6009, or support@kicker.com.

P.O. Box 459 • Stillwater, Oklahoma 74076 • USA • (405) 624–8510
