Instruction Manual

Universal Ceiling Fan Light Fixture

A Kichler®Select™light fixture

1. SAFETY RULES

WARNING! RISK OF ELECTRIC SHOCK

All electrical connections must be made in

accordance with local codes, ordinances, or

national codes. If you are unfamiliar with

installing electrical wiring, secure the services

of a qualified electrician. Before starting this

installation, disconnect the power by turning

off the circuit breaker at your main panel or

removing the fuse at the fuse block. Turning

the power off using the ceiling fan switch

(speed control on/off) is not sufficient to

prevent electrical shock.

NOTE: The important safeguards and

instructions appearing in this manual are not

meant to cover all possible conditions and

situations that may occur. It must be

understood that common sense, caution and

care are factors which cannot be built into any

product. These factors must be supplied by the

person (s) caring for and operating the unit.

"CAUTION-RISK OF FIRE"

CONSULT A QUALIFIED ELECTRICIAN TO ENSURE

CORRECT BRANCH CIRCUIT CONDUCTOR.

2. PACKAGE CONTENTS

Unpack your fan and check the contents. You

should have the following items:

a. Light fixture

b. Glass shade

c. 13 watt compact fluorescent bulbs (2)

d. Part bag contents:

Nut

Spring washer

Pull chains and fobs (2)

wire nuts (2)

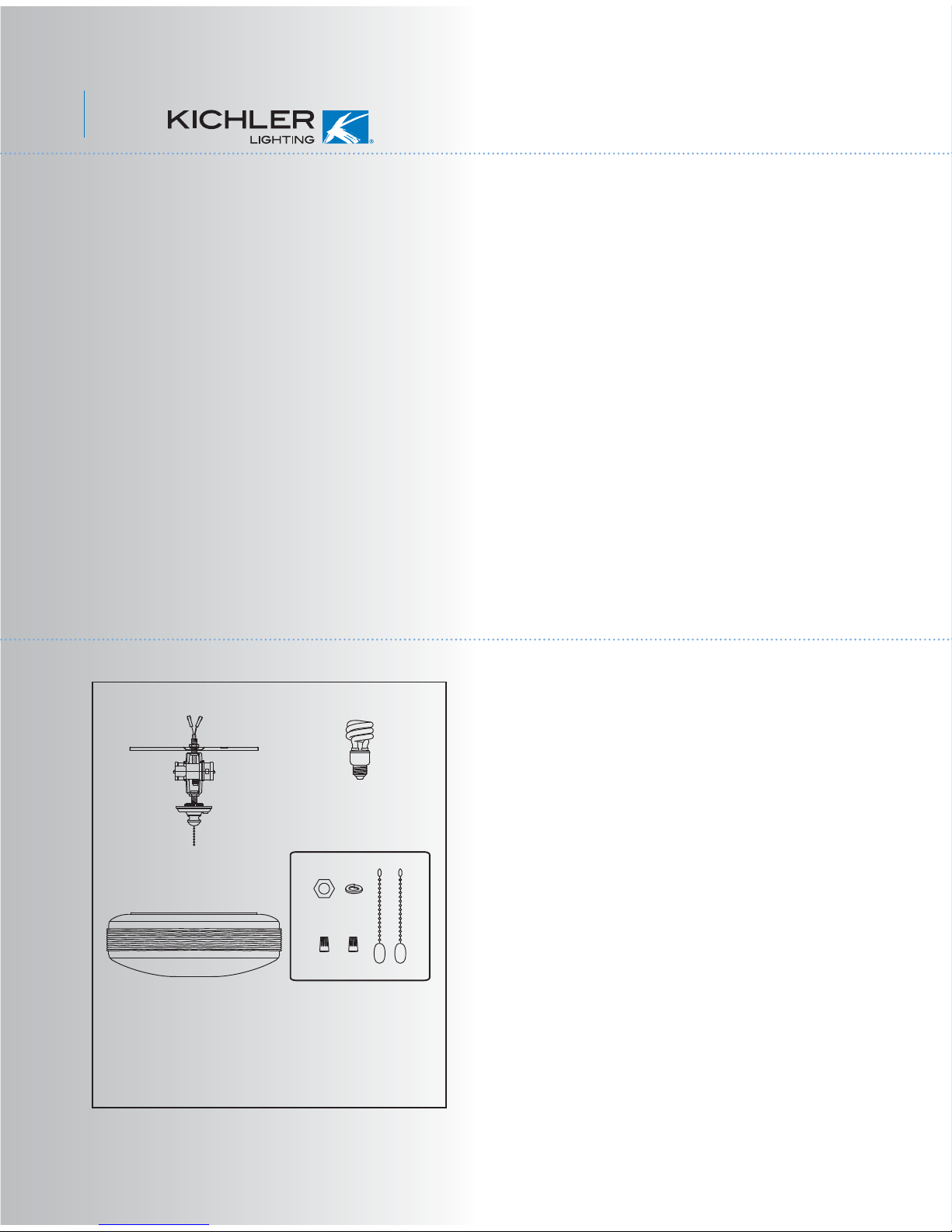

Universal Light Fixture Kit

Fig. 1

Fig. 2

Light kit

Nut

Lock washer

Center

plug

Switch

housing

Light kit

assembly

Square connectors

Screws

Mounting plate

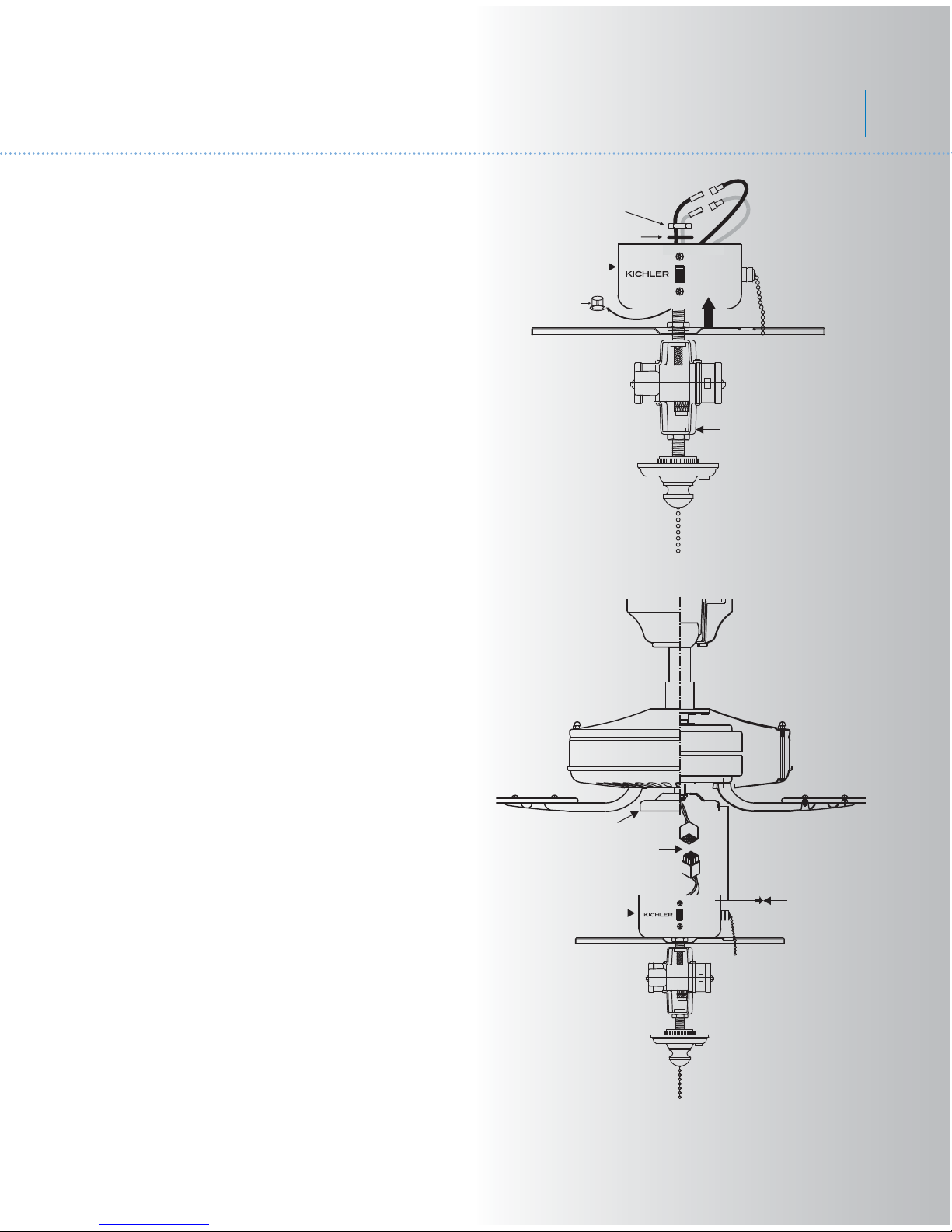

INSTALLING THE LIGHT KIT

1. Remove and discard the center plug from

the switch housing. Attach the light kit to the

switch housing by feeding the light kit wires

(black and white) through the hole in the

center of the switch housing, then screw the

light kit onto the switch housing.

Attach the nut & lock washer on the inside of

the switch housing making sure the light kit is

secure to prevent movement after installation.

(Fig. 1)

2. Locate the white and blue wires inside the

switch housing labeled FOR LIGHT.

3. Attach the wires from the light kit to the

wires inside the switch housing by pushing the

polarized connections together.

- White wire to White wire

- Black wire to Black wire

4. Raise and hold the light kit assembly close

to the mounting plate of the ceiling fan. Push

the square wire connectors together. (Fig. 2)

NOTE: The square connectors are color

coded. Match the color coded sides of each

plug and push. They will attach ONLY when

matched correctly.

5. Carefully push all wires back into the switch

housing, then install the light kit assembly onto

the mounting plate with 3 screws provided. Be

sure to tighten all screws. (Fig. 2)

4. INSTALLING THE LIGHT BULBS &

GLASS SHADE

1. Attach the two compact fluorescent bulbs to

the lamp holders on the light kit.

2. Insert the beaded pull chain through the

hole in the glass shade. Now place the glass

shade over the light kit stem. Secure the

shade with a lock washer and metal nut

(rubber side touching the shade). (Fig. 3)

3. Now slip the beaded pull chain into the hole

on the side of the decorative glass cap an

place the cap onto the light kit stem. Feed the

beaded pull chain from the light kit stem

through the hold in the decorative nut and

thread the decorative nut on securely. DO

NOT OVER TIGHTEN.

4. Your installation is now complete. Restore

electrical power and enjoy your new ceiling fan

light kit.

Fig. 3

Light kit

assembly

Glass shade

Glass cap

Metal nut

Lock washer

Decorative nut

Bulbs

Beaded pull chain
