Kichler Lighting 35208 Manual de usuario
ITEM #0747658
MODEL #35208
CEILING FAN
1
Kichler® is a registered trademark of
The L.D. Kichler Co. All Rights Reserved.
ATTACH YOUR RECEIPT HERE
Serial Number Purchase Date
Questions, problems, missing parts? Before returning to your retailer, call our customer
service department at 1-800-554-6504, 8 a.m. - 4:30 p.m, EST, Monday - Friday.
Français p. 17
Español p. 33

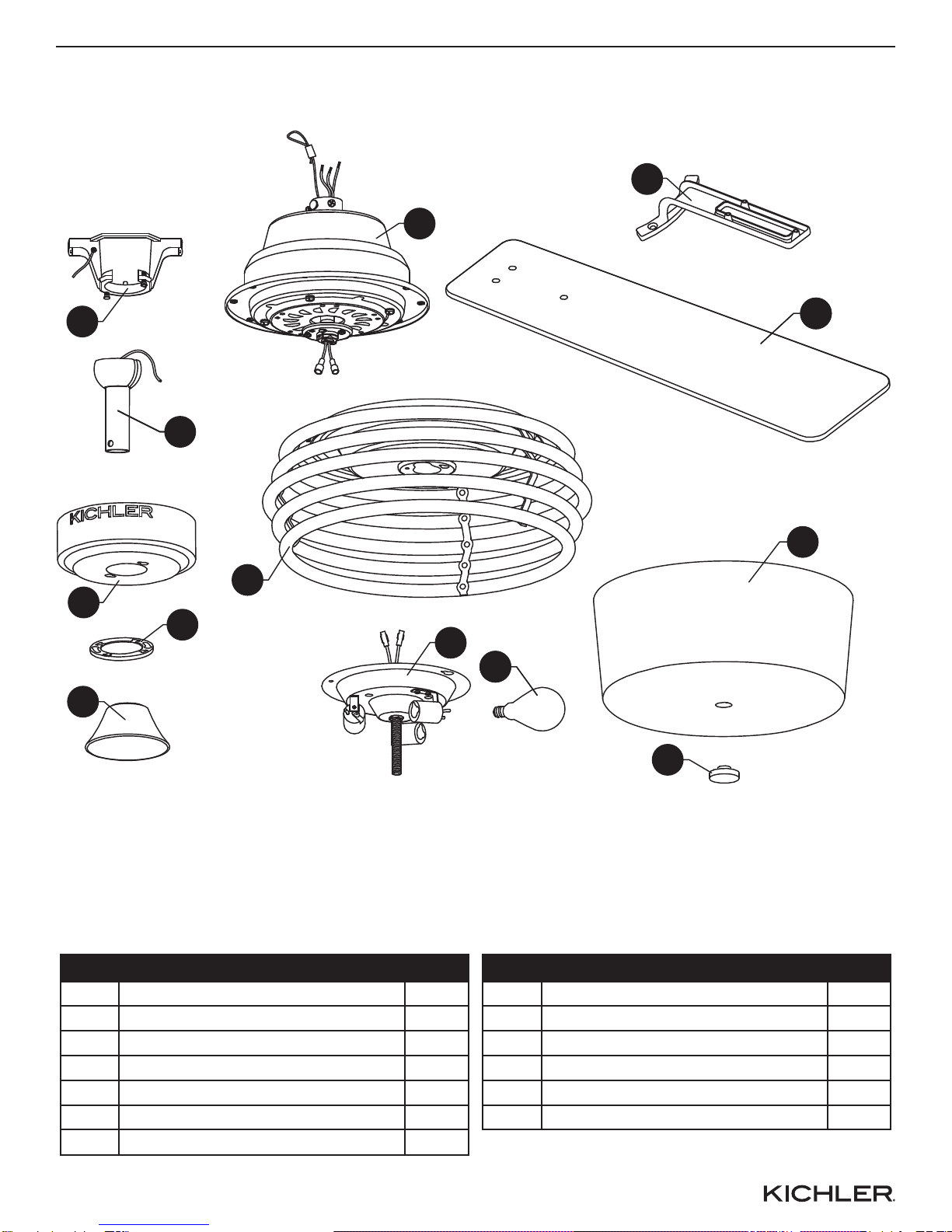

PACKAGE CONTENTS
2
A
Hanging Bracket
Down Rod
Canopy
Blade Iron
Motor Coupling Cover
Motor Assembly
Light Kit Housing
B
C
D
E
F
G
1
1
1
5
1
1
1
PART DESCRIPTION QTY
Light Kit
60-Watt Candelabra Bulb
Shade
Blade
Finial
Canopy Hole Cover
H
I
J
K
L
M
1
3
1
5
1
1
PART DESCRIPTION QTY
AKK
M
C
II
L
E
G
B
D
F
J
H
HARDWARE CONTENTS
3
SAFETY INFORMATION
Hanging bracket Screw
Hanging bracket Washer
Wire Connector
Blade Screw
Balance Kit
HARDWARE BAG REMOTE CONTROL
Remote Control
Remote Control Holder
Receiver
Battery
Wood Screw
Wood Screw
Lag Screw
Wire Connector
Blade Iron Screws
Flat Washer + Spring Washer
Please read and understand this entire manual before attempting to assemble, operate or install the
product. If you have any questions regarding the product, please call customer service at
1-800-554-6504, 8 a.m. - 4:30 p.m., EST.
WARNING:
• Important: When using an existing outlet box, be sure the box is securely attached to the building
structure and can support the full weight of the fan. Failure to do so can result in serious injury or
death.
• Turn off circuit breakers and wall switch to the fan supply wire leads. Warning: Failure to
disconnect power supply prior to installation may result in serious injury or death.
• Do not install fan on a ceiling with a pitch greater than 20°.
• WARNING – To Reduce The Risk Of Fire, Electric Shock, Or Personal Injury, Mount To Outlet Box
Marked 'Acceptable for Fan Support of 15.9 kg (35 lbs) or less' And Use Mounting Screws
Provided With The Outlet Box and/or Support Directly From Building Structure. Most Outlet Boxes
Commonly Used For The Support of LuminairesAre NotAcceptable For Fan SupportAnd May
Need To Be Replaced. Consult A Qualified Electrician If In Doubt."
• Important: Be sure wiring box is properly grounded or that a ground (green) wire is present.
• Make sure the installation site you choose allows a minimum of 7 feet from the floor to the end of
the blades.
• To reduce the risk of fire or electrical shock, do not use this fan with any solid state fan speed
device or variable speed control.
PREPARATION
4
Before beginning assembly of product, make sure all parts are present. Compare parts with package
contents list and diagram. If any part is missing or damaged, do not attempt to assemble the product.
Contact customer service for replacement parts.
Estimated assembly time: 30 minutes to 1 hour.
Tools Required for Assembly (not included): Phillips screwdriver, flathead screwdriver, wire strippers,
electrical tape, ladder, safety glasses.
A B C
ASSEMBLY INSTRUCTIONS
• WARNING-To reduce risk of fire, electric shock, or personal injury, mount to outlet box marked
“Acceptable for Fan Support of 15.9kg (35lbs) or less” and use mounting screws provided with the
outlet box and/or support directly from building structure. Most outlet boxes commonly used for
the support of luminaries are not acceptable for fan support and may need to be replaced.
Consult a qualified electrician if in doubt.
• Warning-Risk of fire, electric shock, or personal injury. Ceiling fans may be either directly
supported from a structural framing member of a building and (see examples in figures A & B) or
may be mounted to an outlet box marked acceptable for fan support of 31.8 kg (70 lbs) to 15.9kg
(35 lbs) (see example in figure C).
ASSEMBLY INSTRUCTIONS
5
1. Secure the hanger bracket (A) to the ceiling outlet
box using hanging bracket screws and hanging
bracket washers.
Important: If attaching the fan to a sloped ceiling,
make sure open end of mounting bracket is installed
facing the roof. Do not install fan on a ceiling with a
pitch greater than 20°.
2. Loosen the set screws found on coupling on top of the motor assembly (F). Then remove the hair
and clevis pin that will be used on a later step.
1
A
Outlet Box
Hair Pin Safety Cable
Clevis Pin
2
F
Coupling
6
ASSEMBLY INSTRUCTIONS
3. Insert down rod (B) through canopy (C), canopy hole
cover (M), and motor coupling cover (E). Feed wires
from the motor assembly (F) through the down rod
(B), then insert the down rod (B) into the coupling
found on top of the motor assembly (F).
4. Pass the clevis pin through the down rod (B) and coupling found on the motor assembly (F) then
secure with the hair pin. Tighten set screws found on the coupling on the motor assembly (F).
F
M
3
C
E
B
Hair Pin
Clevis Pin
Coupling
B
F
4
7
ASSEMBLY INSTRUCTIONS
5. Carefully lift the fan and seat the downrod (B)/hanger
ball assembly on the hanger bracket (A). Be sure the
groove in the ball is lined up with the tab on the
hanger bracket (A).
B
A
5
6. For Canadian installation and for USA fans over 35
lbs, the safety cable must be installed into the house
structure beams using a 3” lag screw. Make sure
that when the safety cable is fully extended the lead
wires are longer than the cable and no stress is
placed on the lead wires.
Safety
Cable
Lag
Screw
Safety
Cable Flat
Washer
Spring
Washer
6
Safety
Cable
ASSEMBLY INSTRUCTIONS
8
7. Wiring the fan per wiring diagram and securely connect wires with wire connectors: Wrap electrical
tape (not included) around each wire connector and make sure no bare wire or wire strands are
visible after making connections.
• Connect WHITE wire from the fan to WHITE wire marked TO MOTOR N from the receiver.
• Connect BLUE wire from the fan to BLUE wire marked FOR LIGHT from the receiver.
• Connect BLACK wire from the fan to BLACK wire marked TO MOTOR L from the receiver.
• Connect BLACK wire from the outlet box to BLACK wire marked AC IN L from the receiver.
• Connect WHITE wire from the outlet box to WHITE wire marked AC IN N from the receiver.
• Connect GROUND (GREEN) wires from hanger bracket and downrod ball, to GROUND (GREEN
or BARE COPPER) from house.
7
OUTLET BOX
BLACK
(LIVE)BLACK
WHITE
(NEUTRAL)
WHITE
(NEUTRAL)
WHITE
WHITE
BARE COPPER
(GROUND)
GREEN (BRACKET)
GREEN (DOWN ROD)
BLUE (LIGHT)
BLACK (MOTOR) BLACK
BLUE
ASSEMBLY INSTRUCTIONS
9
8
REMOTE CONTROL
RECEIVER
8. In order to use this remote control the dip switches
must match on both the remote control and the
receiver. Make sure they both have the same
configuration.
Remove the battery cover from the remote control.
Slide dip switches up or down using a small screw
driver (not included). Then match the dip switches
on the receiver to the same position as the remote
control.
Install the battery (included) and replace the battery
cover you previously removed.
The remote control comes with a cradle that may be
attached to the wall with the included screws.
9. Once wiring step has been completed, slide the
wired remote receiver in between the hanging
bracket (A) and the top of the downrod ball (B) with
the flat side of the receiver facing the ceiling. Turn
lead wires upward and carefully push them into the
outlet box, with the white and green wires to one
side of the box and the black wires toward the other
side.
9
A
B
ASSEMBLY INSTRUCTIONS
10
12. Attach blade irons (D) to the motor assembly (F)
with the screws provided.
11.Attach blade iron (D) to blade (K) with blade screws.
Do not tighten blade screws until each screw has
been started. Then, tighten each screw starting with
the center screw.
Repeat for remaining blades
10.Loosen the two shoulder screws without fully
removing the hanger bracket (A). Assemble canopy
(C) by rotating keyhole slot in canopy over shoulder
screws in hanger bracket (A). Tighten shoulder
screws. Securely attach and tighten the canopy hole
cover (M) over the shoulder screws in the hanger
bracket (A) utilizing the keyhole slot twist-lock
feature.
10
A
C
M
Shoulder
Screw
11
D
K
F
D
12
