Kichler®Lighting

7711 East Pleasant Valley Road

P.O. Box 318010

Cleveland, Ohio 44131-8010

Customer Service

866.558.5706

8:30 AM to 5:00 PM EST,

Monday - Friday

Instruction Manual

Sutter PlaceTM

A Kichler®Select™

ceiling fan

1. To reduce the risk of electric shock, insure

electricity has been turned off at the circuit

breaker or fuse box before beginning.

2. All wiring must be in accordance with the

National Electrical Code and local electrical

codes. Electrical installation should be

performed by a qualified licensed

electrician.

3. WARNING: Suitable for use with solid-

state speed controls.

4. WARNING: To reduce the risk of personal

injury, use only the two steel screws (and

lock washers) provided with the outlet box

for mounting to the outlet box. Most outlet

boxes commonly used for the support of

lighting fixtures are not acceptable for fan

support and may need to be replaced,

consult a qualified electrician if in doubt.

5. The outlet box and support structure must

be securely mounted and capable of

reliably supporting a minimum of 50

pounds. Use only CUL Listed outlet boxes

marked "FOR FAN SUPPORT".

6. The fan must be mounted with a minimum

of 7 feet clearance from the trailing edge of

the blades to the floor.

7. Do not operate reversing switch while fan

blades are in motion. Fan must be turned

off and blades stopped before reversing

blade direction.

8. Avoid placing objects in the path of the

blades.

9. To avoid personal injury or damage to the

fan and other items, be cautious when

working around or cleaning the fan.

10. Do not use water or detergents when

cleaning the fan or fan blades. A dry dust

cloth or lightly dampened cloth will be

suitable for most cleaning.

11. After marking electrical connections,

spliced conductors should be turned

upward and pushed carefully up into outlet

box. The wires should be spread apart with

the grounded conductor and the

equipment-grounding conductor on one

side of the outlet box.

12. Electrical diagrams are reference only.

Light kits that are not packed with the fan

must be CUL Listed and marked suitable

for use with the model fan you are

installing. Switches must be CUL General

Use Switches. Refer to the Instructions

packaged with the light kits and switches

for proper assembly.

WARNING

TO REDUCE THE RISK OF FIRE,

ELECTRIC SHOCK OR PERSONAL

INJURY, MOUNT FAN TO OUTLET BOX

MARKED "ACCEPTABLE FOR FAN

SUPPORT".

WARNING

TO REDUCE THE RISK OF PERSONAL

INJURY, DO NOT BEND THE BLADE

BRACKETS (ALSO REFERRED TO AS

FLANGES) DURING ASSEMBLY OR

AFTER INSTALLATION. DO NOT INSERT

OBJECTS IN THE PATH OF THE BLADES.

1. SAFETY RULES

3. PACKAGE CONTENTS

Unpack your fan and check the contents. You

should have the following items:

a. Fan blades (5)

b. Ceiling mounting bracket

c. Canopy

d. Ball/downrod assembly

e. Coupling cover

f. Fan motor assembly

g. Set of 5 blade brackets and Pre-Installed

mounting screws

h. Mounting plate

i. Switch housing

j. Part bag contents

1) Mounting hardware :

wood screws (2), flat washers (2),

star washers (2), wire nuts (3),

screws (2)

2) Blade attachment hardware:

screws (17), washers (17),

fiber washers (17)

3) Safety cable hardware:

wood screw, lock washer, flat washer

4) Pull chain and fob

5) Balance Kit

Philips screw driver

Blade screw driver

11 mm wrench

Step ladder

Wire cutters

2. TOOLS AND MATERIALS REQUIRED

Sutter PlaceTM

4. MOUNTING OPTIONS

If there isn't an existing UL (cUL for Canadian

Installation) listed mounting box, then read the

following instructions. Disconnect the power

by removing fuses or turning off circuit

breakers

Secure the outlet box directly to the building

structure. Use appropriate fasteners and

building materials. The outlet box and its

support must be able to fully support the

moving weight of the fan (at least 50 lbs). Do

not use plastic outlet boxes.

Figures 1,2 and 3 are examples of different

ways to mount the outlet box.

NOTE: You may need a longer downrod to

maintain proper blade clearance when

installing on a steep, sloped ceiling. (Fig. 3)

To hang your fan where there is an existing

fixture but no ceiling joist, you may need an

installation hanger bar as shown in Fig 4.

Outlet box

Provide strong

support

Recessed

outlet box Ceiling

mounting

plate

Outlet box

Fig. 1

Fig. 3

Fig. 4

Outlet box

Fig. 2

ANGLED CEILING

MAXIMUM 20°ANGLE

Fig. 7

Fig. 6

Mounting screws

(supplied with

electrical box)

Hook

Ceiling

mounting

bracket

UL Listed

outlet box

120V Wires

Washers

Fig. 5

Supply wires

Downrod

Retaining pinHitch pin

Set screws

Coupling

Set screws

Sutter PlaceTM

Canopy

Coupling cover

NOTE: This ceiling fan is supplied with two

types of hanging assemblies; a downrod and

canopy mounting system and a "close to

ceiling" Canopy ONLY system. The "close-to-

ceiling" installation is recommended in rooms

with less than 8-foot ceilings or in areas where

additional space is desired from the floor to the

fan blades. Once you have selected which

mounting system you will use, proceed with

the following instructions. Where necessary,

each section of the instructions will note the

different procedures to follow for the two types

of mounting.

REMEMBER to turn off the power before you

begin.

To properly install your ceiling fan, follow the

steps below.

Step 1. Pass the 120 volt supply wires from

the ceiling outlet box through the center of the

ceiling mounting bracket. (Fig. 5)

Step 2. Attach the ceiling mounting bracket to

the outlet box using the screws and washers

included with the outlet box. (Fig. 5)

Step 1. Remove the hanger ball from the

downrod assembly by loosening the set screw,

removing the cross pin and sliding the ball off

the rod. (Fig. 6)

Step 2. Loosen the two set screws and

remove the hitch pin and retaining clip from

the coupling on top of the motor assembly.

(Fig. 7)

Step 3. Carefully feed the electrical lead wires

from the fan up through the downrod. Thread

the downrod into the coupling until the Hitch

pin holes are aligned.

Next, replace the hitch pin and retaining clip.

Tighten both set screws. (Fig. 7)

5. HANGING THE FAN

STANDARD CEILING INSTALLATION

Downrod

Cross pin

Hanger

ball Set screw

Fig. 11

Fig. 10

Fig. 8

Fig. 9

Registration slot

Check tab

Step 4. Slip the coupling cover and the

canopy onto the downrod. (Fig. 7)

Thread the hanger ball onto the downrod,

insert the cross pin previously removed from

the ball/downrod assembly through the

downrod and tighten. Now tighten the set

screw previously loosened. (Fig. 6)

Step 5. Lift the motor assembly into position

and place the hanger ball into the ceiling

mounting bracket. (Fig. 8)

Rotate the entire assembly until the "Check

Tab" has dropped into the "Registration Slot"

and seats firmly. (Fig. 8)

The entire motor assembly should not rotate

(left or right) when seated properly.

WARNING: Failure to properly seat the

"Check Tab" can damage the ceiling fan

during operation.

Step 1. Remove the decorative canopy cover

from the canopy. (Fig. 9)

Step 2. Remove three of the six screws and

lock washers (every other one) from the

coupler on top of the motor assembly. Place

the ceiling fan canopy over the coupler and

align the mounting holes with the holes in the

coupler. Attach the canopy with the three

screws and lock washers previously removed.

(Fig. 10)

WARNING: Failure to completely tighten the

three mounting screws in step 10 could result

in the fan possibly falling from the ceiling.

Step 3. Hang the fan on the ceiling mounting

bracket by inserting the hook on the inside

edge of the ceiling mounting bracket through

one of the screw holes in the ceiling canopy

(Fig. 11). This will allow you to have both

hands free to make the wiring connections.

Canopy

Canopy cover

Screws and Lock washers

(3 of 6 places)

Coupling

CLOSE-TO-CEILING INSTALLATION

Hook

Fig. 12

7. ELECTRICAL CONNECTIONS

6. INSTALLATION OF SAFETY SUPPORT

(required for Canadian installation ONLY)

A safety support cable is provided to help

prevent the ceiling fan from falling.

Step 1. Attach the provided wood screw and

washers to the ceiling joist next to the

mounting bracket but do not tighten. (Fig. 12)

Step 2. Adjust the length of the safety cable to

reach the screw and washers by pulling the

extra cable through the cable clamp until the

overall length is correct, put the end of the

cable back through the cable clamp, forming a

loop at the end of the cable. Tighten the cable

clamp securely. Now, put the loop in the end of

the safety cable over the wood screw and

under the washer. Tighten the wood screw

securely.

NOTE: Although the safety support cable is

required for Canadian installations only. It's a

good idea to make the attachment with any

installation.

Ceiling mounting

bracket

Attach

safety cable

to ceiling joist

with screw and

washer

Fig. 13

WARNING: To avoid possible electrical shock,

be sure you have turned off the power at the

main circuit panel.

Follow the steps below to connect the fan to

your household wiring. Use the wire connecting

nuts suppled with your fan. Secure the

connectors with electrical tape. Make sure there

are no loose wire strands or connections.

Step 1. Connect the fan supply (black) wire to

the black household supply wire as shown in

Figure 13.

Step 2. Connect the neutral fan (white) wire to

the neutral household (white) wire.

Step 3. Connect the fan ground wire (green) to

the household ground wire.

Step 4. After connecting the wires, spread them

apart so that the green and white wires are on

one side of the outlet box and the black wires is

on the other side.

Step 5. Turn the connecting nuts upward and

push the wiring into the outlet box.

BLK BLK

GRN

Wiring

box

Ground to

mounting

bracket

or downrod

Power lines 120v

Green ground

Sutter PlaceTM

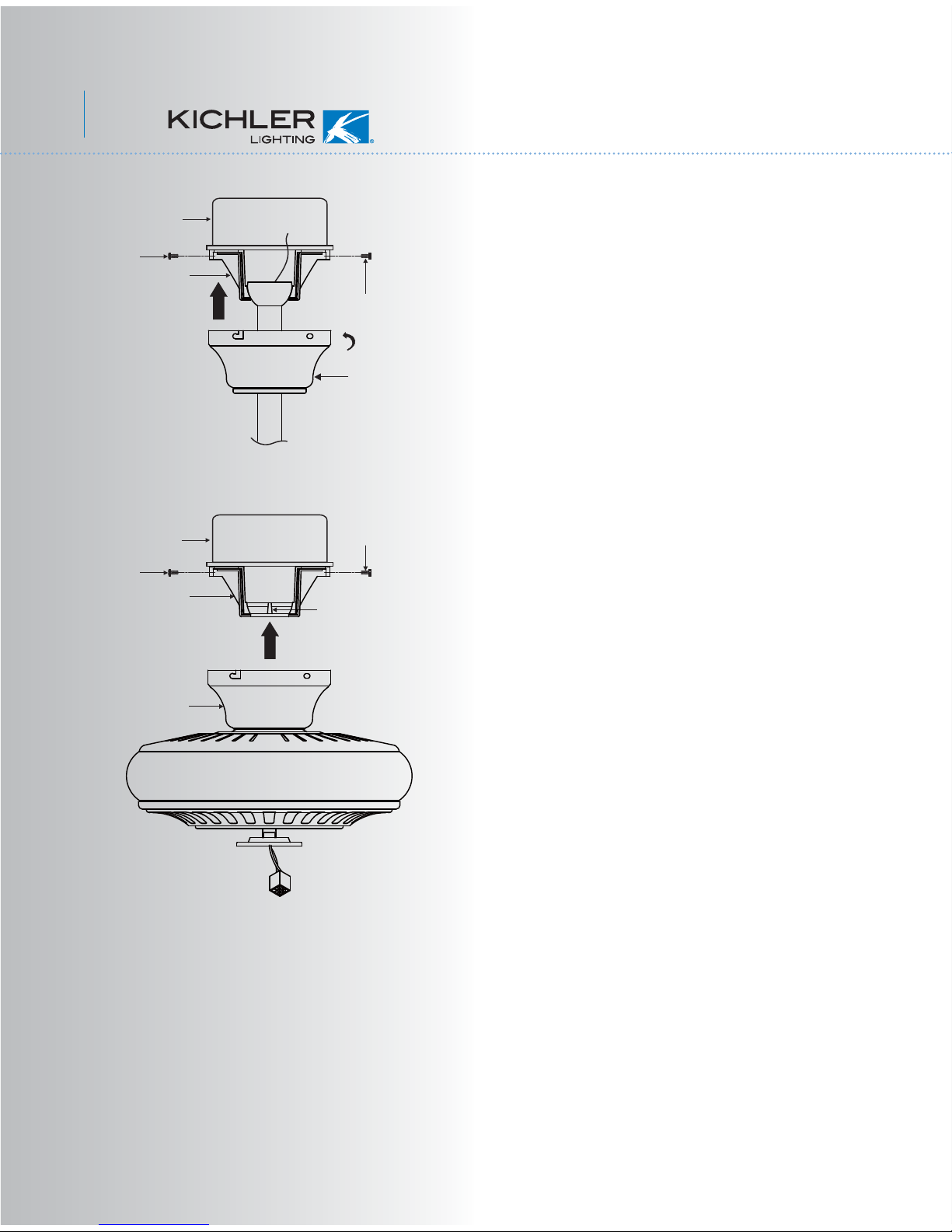

Fig. 15

Fig. 14

Outlet box

Ceiling mounting

bracket

Canopy

Screws

Outlet box

Ceiling mounting

bracket Hook

Canopy

CLOSE-TO-CEILING INSTALLATION

Step 1. Tuck all the wire connections neatly

above the receiver and into the ceiling outlet

box.

Step 2. Remove the fan from the hook on the

ceiling mounting bracket. Attach the fan

assembly to the ceiling mounting bracket

using 4 screws at the top edge of the

mounting bracket.

Align the keyhole slots on the canopy with the

mounting screw heads on the sides of the

mounting bracket. Lift up and turn the fan

assembly until the heads of the mounting

screws are in the narrow end of the keyhole

slots.

Step 3. Make sure all four mounting screws

are tight. (Fig. 15)

8. FINISHING THE INSTALLATION

STANTARD CEILING INSTALLATION

Step 1. Tuck all the connections neatly into the

ceiling outlet box.

Step 2. Slide the canopy up to ceiling and

attach the canopy to the ceiling mounting

bracket using 4 screws at the top edge of the

mounting bracket. Insert each screw through

the canopy mounting hole and into the

mounting bracket. Tighten all screws securely.

(Fig. 14)

9. ATTACHING THE FAN BLADES

Fig. 16

Fig. 17

10. INSTALLING THE MOUNTING PLATE

CAUTION: Remove the five rubber shipping

blocks attached to the face of the motor.

These blocks keep the motor from shifting

during shipping and MUST be removed during

installation.

Step 1. Attach a blade to a blade bracket using

the screws, metal washers and fiber washers

provided. (Fig. 16)

Make sure the blade is straight when set on

the blade bracket. Tighten each mounting

screw until the fiber washer is slightly

compressed. Repeat this procedure for each

blade.

Step 2. Attach each blade assembly to the

motor using the "Pre-Installed" mounting

screws in the blade bracket. (Fig 16)

Step 1. Loosen the two screws on the

mounting ring attached to the motor shaft and

"remove" and save the third screw. (Fig. 17)

Step 2. Place the key hole slots on the

mounting plate over the two screws previously

loosened on the mounting ring.

Turn the mounting plate until is locks in place

at the narrow section of the key hole slots.

Tighten both key hole screws and replace the

third screw previously removed and tighten

securely.

Screws Blades

Blade brackets

Screws

Washers

Fiber

washers

Mounting plate

Mounting ring

Screws

Sutter PlaceTM

Fig. 18

Switch

housing

Wire connectors

Screws

Mounting plate

11. INSTALLING THE SWITCH HOUSING

Step 1. While holding the switch housing under

your ceiling fan, push the square wire

connectors together. One from the fan and one

from the switch housing.

NOTE: These connectors are color coded and

will ONLY engage when the colored strips are

matched (aligned).

Step 2. Carefully push all the wires into the

switch housing.

Attach the switch housing to the mounting

plate with the screws provided. Make sure

each screw is tight. (Fig. 18)

Otros manuales para Select Sutter Place

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Admirador de Kichler Lighting

Kichler Lighting

Kichler Lighting 42 STRATMOOR Manual de usuario

Kichler Lighting

Kichler Lighting Szeplo II Manual de usuario

Kichler Lighting

Kichler Lighting Harbour Walk Patio Manual de usuario

Kichler Lighting

Kichler Lighting BISC 300710MWH Manual de usuario

Kichler Lighting

Kichler Lighting VASSAR Manual de usuario

Kichler Lighting

Kichler Lighting 52 inch Colerne LED Manual de usuario

Kichler Lighting

Kichler Lighting Decor Kimberley Manual de usuario

Kichler Lighting

Kichler Lighting Crescent 300325 Manual de usuario

Kichler Lighting

Kichler Lighting 300260/60-GENT Series Manual de usuario

Kichler Lighting

Kichler Lighting ZEUS KLF-ZEUS-60-WHT-BN Manual de usuario

Kichler Lighting

Kichler Lighting Ample Manual de usuario

Kichler Lighting

Kichler Lighting Compass 300322 Manual de usuario

Kichler Lighting

Kichler Lighting Hatteras Bay Patio Manual de usuario

Kichler Lighting

Kichler Lighting Cortez Manual de usuario

Kichler Lighting

Kichler Lighting Szeplo 370060 Manual de usuario

Kichler Lighting

Kichler Lighting Hatteras Bay Patio Manual de usuario

Kichler Lighting

Kichler Lighting Canfield Manual de usuario

Kichler Lighting

Kichler Lighting Monarch II Manual de usuario

Kichler Lighting

Kichler Lighting Grace 300316 Manual de usuario

Kichler Lighting

Kichler Lighting Canfield Manual de usuario

Kichler Lighting

Kichler Lighting 330163 Manual de usuario

Kichler Lighting

Kichler Lighting 52" RENEW DESIGNER Manual de usuario

Kichler Lighting

Kichler Lighting Fit Manual de usuario

Kichler Lighting

Kichler Lighting Leeds Manual de usuario

Manuales populares de Admirador de otras marcas

ELTA FANS

ELTA FANS H03VV-F Manual de usuario

Hunter

Hunter 20714 Manual de instrucciones

Emerson

Emerson CARRERA VERANDA CF542ORB00 Manual de usuario

Hunter

Hunter Caraway Manual de instrucciones

Panasonic

Panasonic FV-15NLFS1 Manual de usuario

Kompernass

Kompernass KH 1150 Manual de usuario

VES

VES FALA100/12V/TR Manual de usuario

Vertiv

Vertiv Liebert DCD Manual de usuario

Westinghouse

Westinghouse GFP Series Manual de usuario

Venmar

Venmar KUBIX HRV PLUS Series Manual de usuario

Maico

Maico ECR 31 Manual de usuario

Sonnenkonig

Sonnenkonig Dinky Manual de usuario

S&P

S&P ECOWATT HXBR Manual de usuario

Wider

Wider IMP03369BH Manual de usuario

Panasonic

Panasonic F-60DHN Manual de usuario

Hinkley

Hinkley HIGHLAND Manual de usuario

Broan

Broan 766BN Manual de usuario

Premium

Premium PFS16022 Instrucciones de montaje
