52" CANFIELD SELECT LED FAN

INSTRUCTION MANUAL

Product images may vary slightly from actual product.

odu

t i

ay v

TABLE OF CONTENTS

SAFETY RULES.......................................................................... 4

TOOLS REQUIRED....................................................................

PACKAGE CONTENTS.............................................................

MOUNTING OPTIONS.............................................................

HANGING THE FAN..................................................................

INSTALLATION OF SAFETY SUPPORT..........................

ELECTRICAL CONNECTIONS.............................................

FINISHING THE INSTALLATION........................................

ATTACHING THE FAN BLADES..........................................

INSTALLING THE MOUNTING PLATE.............................

INSTALLING THE LED LIGHT KIT ASSEMBLY

AND GLASS SHADE................................................................

OPERATING INSTRUCTIONS.............................................

NSTALLING THE LED LIGHT KIT.......................................

TROUBLESHOOTING.............................................................

52" CANFIELD SELECT LED FAN | 3

4 | KICHLER.COM

SAFETY RULES

1. To reduce the risk of electric shock, insure electricity has been

turned o at the circuit breaker or fuse box before beginning.

2. All wiring must be in accordance with the National Electrical Code

and local electrical codes. Electrical installation should be

performed by a qualified licensed electrician.

3. WARNING: Not suitable for use with solid-state speed controls.

4. WARNING: To reduce the risk of fire, electric shock, or personal

injury, mount to outlet box marked "acceptable for fan support of

15.8 kg (35 lbs.) or less" and use mounting screws provided with

the outlet box. Most outlet boxes commonly used for the support

of light fixtures are not acceptable for fan support and may need

to be replaced. Due to the complexity of the installation of this fan,

a qualified licensed electrician is strongly recommended.

WARNING: TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK

OR PERSONAL INJURY, MOUNT FAN TO OUTLET BOX MARKED

"ACCEPTABLE FOR FAN SUPPORT".

5. The outlet box and support structure must be securely mounted

and capable of reliably supporting a minimum of 50 pounds. Use

only CUL Listed outlet boxes marked "FOR FAN SUPPORT".

6. The fan must be mounted with a minimum of 7 feet clearance

from the trailing edge of the blades to the floor.

7. To operate the reverse function on this fan, press the reverse

button while the fan is running.

8. Avoid placing objects in the path of the blades.

9. To avoid personal injury or damage to the fan and other items, be

cautious when working around or cleaning the fan.

10. Do not use water or detergents when cleaning the fan or fan

blades. A dry dust cloth or lightly dampened cloth will be suitable

for most cleaning.

11. After marking electrical connections, spliced conductors should

be turned upward and pushed carefully up into outlet box. The

wires should be spread apart with the grounded conductor and

the equipment-grounding conductor on one side of the outlet

box.

12. Electrical diagrams are reference only. Light kits that are not

packed with the fan must be CUL Listed and marked suitable for

use with the model fan you are installing. Switches must be CUL

General Use Switches. Refer to the Instructions packaged with

the light kits and switches for proper assembly.

WARNING: TO REDUCE THE RISK OF PERSONAL INJURY, DO

NOT BEND THE BLADE BRACKETS (ALSO REFERRED TO AS

FLANGES) DURING ASSEMBLY OR AFTER INSTALLATION. DO

NOT INSERT OBJECTS IN THE PATH OF THE BLADES.

TOOLS REQUIRED

Philips screw driver

Blade screw driver

11 mm wrench

Step ladder

Wire cutters

PACKAGE CONTENTS

Unpack your fan and check the

contents. You should have the

following items:

a. Fan blades (5)

b. Canopy & Ceiling mounting

bracket

c. Ball/downrod assembly

d. Coupling cover

e. Fan motor assembly

f. Set of blade brackets (5)

g. Mounting plate

h. Switch housing

i. 16W LED Light kit

j. Glass shade

k. Part bag contents

1) Mounting hardware:

wood screws (2), flat washers (2),

star washers (2), wire nuts (3),

screws (2)

2) Blade attachment hardware:

screws (17), fiber washers (17)

3) Safety cable hardware:

wood screw, spring washer,

flat washer

4) Pull chains and fobs (2)

5) Balance Kit

52" CANFIELD SELECT LED FAN | 5

6 | KICHLER.COM

If there isn't an existing UL (cUL for Canadian Installation) listed

mounting box, then read the following instructions. Disconnect the

power by removing fuses or turning o circuit breakers.

Secure the outlet box directly to the building structure. Use

appropriate fasteners and building materials. The outlet box and its

support must be able to fully support the moving weight of the fan

(at least 50 lbs). Do not use plastic outlet boxes.

Figures 1, 2 and 3 are examples of dierent ways to mount the outlet

box.

NOTE: If you are installing the ceiling fan on a sloped (vaulted)

ceiling, you may need a longer downrod to maintain proper

clearance between the tip of the blade and the ceiling. A minimum

clearance of 12" is suggested for optimal operation.

NOTE: Depending on the location you have selected for installation,

you may need to purchase and install a "Joist Hanger" for the

support of the outlet box. Make sure the joist hanger you purchase

has been designed for use with ceiling fans. (Fig. 4)

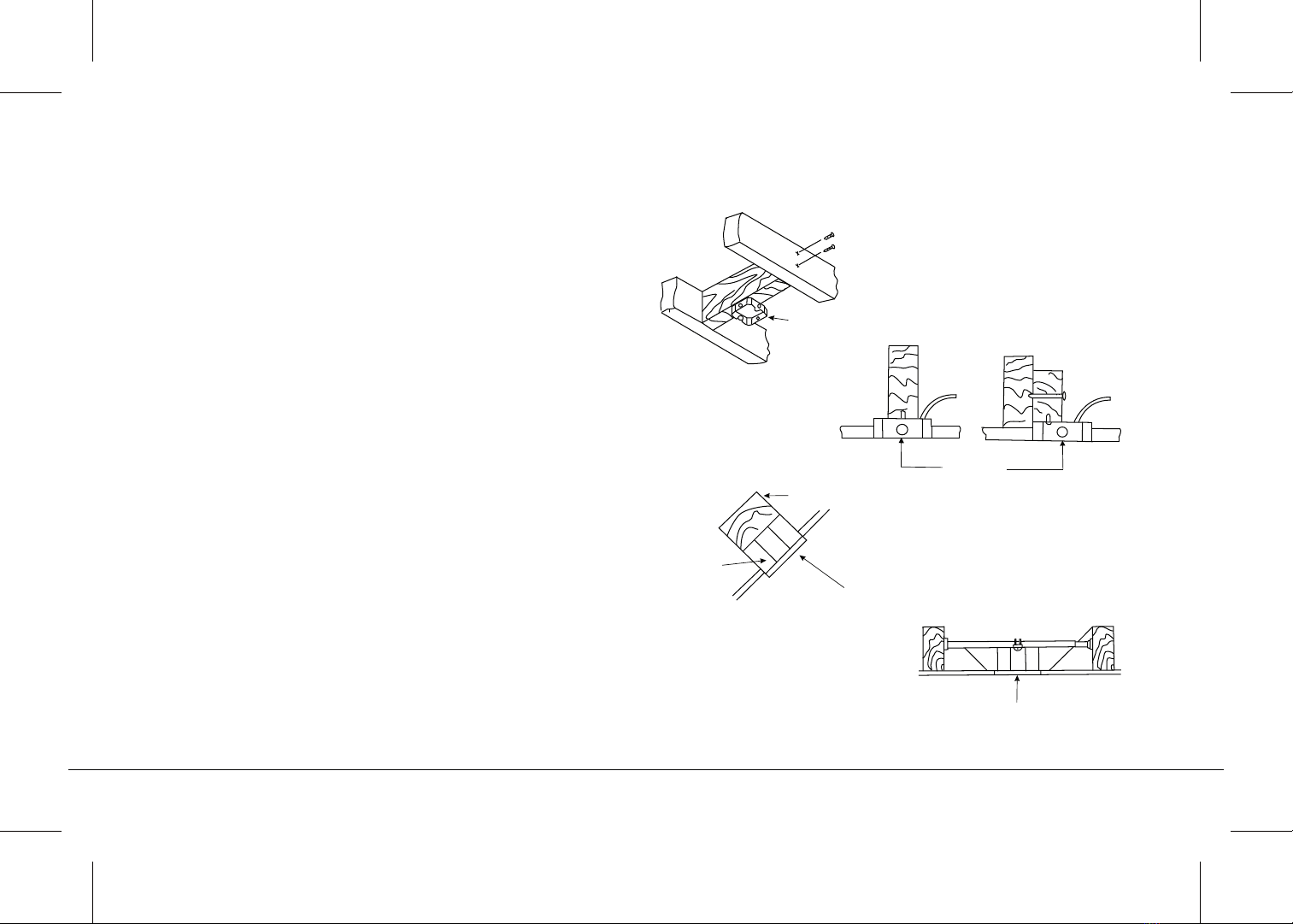

MOUNTING OPTIONS

Fig. 1

Outlet box

Fig. 2

Provide strong

support

Recessed

outlet box Ceiling

mounting

plate

Fig. 3

ANGLED CEILING

MAXIMUM 20° ANGLE

Outlet box

Fig. 4

Fig. 5

Fig. 7

Fig. 6

Hanger bracket

Ceiling

canopy

Canopy

cover

HANGING THE FAN

REMEMBER to turn o the power before you begin.

To properly install your ceiling fan, follow the steps below.

Step 1. Remove the decorative canopy bottom cover from the

canopy by turning the cover counter clockwise. (Fig. 5)

Step 2. Remove the ceiling mounting bracket from the canopy by

removing (and save one of the two screws. Loosen the remaining

screw by a half turn. (Fig. 5)

Step 3. Pass the 120 volt supply wires from the ceiling outlet box

through the center of the ceiling mounting bracket. (Fig. 6)

Step 4. Attach the ceiling mounting bracket to the outlet box using

the screws and washers included with the outlet box. (Fig. 6)

Step 5. Remove the hanger ball from the downrod assembly by

loosening the set screw, unscrewing and removing removing the

cross pin and unscrewing the ball o the rod. (Fig. 7)

Ceiling

hanger

bracket

Mounting screws (supplied

with electrical box)

UL Listed

electrial

box

120V Wires

Washers

Downrod

Cross pin

Hanger

ball Set screw

52" CANFIELD SELECT LED FAN | 7

8 | KICHLER.COM

Step 6. Loosen the two set screws and remove the hitch pin and

retaining clip from the coupling on top of the motor assembly. (Fig.

Step 7. Carefully feed the electrical lead wires from the fan up

through the downrod. Thread the downrod into the coupling until

the Hitch pin holes are aligned.

Next, replace the hitch pin and retaining clip. Tighten both set

screws. (Fig. 8)

HANGING THE FAN(continued)

Fig. 8

Supply wires

Downrod

Hitch pin

Retaining clip Set screws

Set screws

Fig. 9

Fig. 10

HANGING THE FAN (continued)

Step 8. Slip the top motor cover, coupling cover, canopy cover and

canopy onto the downrod. (Fig. 9)

Secure the top motor cover to the motor by using the three top

motor cover set screws provided, but do not tighten at this time.

Thread the hanger ball onto the downrod, insert the cross pin

through the downrod and tighten. Now tighten the set screw.

Step 9. Lift the motor assembly into position and place the hanger

ball into the ceiling mounting bracket.

Rotate the entire assembly until the "Check Tab" has dropped into

the "Registration Slot" and seats firmly. (Fig. 10)

The entire motor assembly should not rotate (left or right) when

seated properly.

WARNING: Failure to reattach the cross pin and seat the "Check

Tab" can cause the fan to fall from the ceiling during operation. Take

special care to make sure this pin is reattached.

Registration slot

Downrod

Canopy

Canopy cover

Set screws

Hitch pin Retaining clip

Coupling cover

52" CANFIELD SELECT LED FAN | 9

10 | KICHLER.COM

A safety support cable is provided to help prevent the ceiling fan

from falling.

Step 1. Attach the provided wood screw and washers to the ceiling

joist next to the mounting bracket but do not tighten. (Fig. 11)

Step 2. Adjust the length of the safety cable to reach the screw and

washers by pulling the extra cable through the cable clamp until the

overall length is correct, put the end of the cable back through the

cable clamp, forming a loop at the end of the cable. Tighten the

cable clamp securely. Now, put the loop in the end of the safety

cable over the wood screw and under the washer. Tighten the wood

screw securely.

NOTE: Although the safety support cable is required for Canadian

installations only. It's a good idea to make the attachment with any

installation.

INSTALLATION OF SAFETY SUPPORT

(required for Canadian installation ONLY)

Fig. 11

Ceiling mounting

bracket

Attach

safety cable

to ceiling joist

with screw and

washer

Tabla de contenidos

Otros manuales de Admirador de Kichler Lighting

Kichler Lighting

Kichler Lighting FRYST Manual de usuario

Kichler Lighting

Kichler Lighting Renew Select Manual de usuario

Kichler Lighting

Kichler Lighting Select Canfield 300107 Manual de usuario

Kichler Lighting

Kichler Lighting Decor Kimberley Manual de usuario

Kichler Lighting

Kichler Lighting 330013 Manual de usuario

Kichler Lighting

Kichler Lighting Harbour Walk Patio Manual de usuario

Kichler Lighting

Kichler Lighting Deckard Manual de usuario

Kichler Lighting

Kichler Lighting Spyn Lite Manual de usuario

Kichler Lighting

Kichler Lighting Windham Manual de usuario

Kichler Lighting

Kichler Lighting Hatteras Bay Patio Manual de usuario

Kichler Lighting

Kichler Lighting Cameron Manual de usuario

Kichler Lighting

Kichler Lighting RIED Manual de usuario

Kichler Lighting

Kichler Lighting Bentzen Manual de usuario

Kichler Lighting

Kichler Lighting 54 inch Skye Manual de usuario

Kichler Lighting

Kichler Lighting Kevlar 310150WCP Manual de usuario

Kichler Lighting

Kichler Lighting 300044 Manual de usuario

Kichler Lighting

Kichler Lighting BASICS PRO PREMIER 330016WH Manual de usuario

Kichler Lighting

Kichler Lighting VASSAR Manual de usuario

Kichler Lighting

Kichler Lighting Richland II Manual de usuario

Kichler Lighting

Kichler Lighting Terna 300230 Manual de usuario

Kichler Lighting

Kichler Lighting Lehr Decor 80" Manual de usuario

Kichler Lighting

Kichler Lighting Ried 300356 Manual de usuario

Kichler Lighting

Kichler Lighting FLYY 310700MWH Manual de usuario

Kichler Lighting

Kichler Lighting Eads 310135 Manual de usuario

Manuales populares de Admirador de otras marcas

ELTA FANS

ELTA FANS H03VV-F Manual de usuario

Hunter

Hunter 20714 Manual de instrucciones

Emerson

Emerson CARRERA VERANDA CF542ORB00 Manual de usuario

Hunter

Hunter Caraway Manual de instrucciones

Panasonic

Panasonic FV-15NLFS1 Manual de usuario

Kompernass

Kompernass KH 1150 Manual de usuario

VES

VES FALA100/12V/TR Manual de usuario

Vertiv

Vertiv Liebert DCD Manual de usuario

Westinghouse

Westinghouse GFP Series Manual de usuario

Venmar

Venmar KUBIX HRV PLUS Series Manual de usuario

Maico

Maico ECR 31 Manual de usuario

Sonnenkonig

Sonnenkonig Dinky Manual de usuario

S&P

S&P ECOWATT HXBR Manual de usuario

Wider

Wider IMP03369BH Manual de usuario

Panasonic

Panasonic F-60DHN Manual de usuario

Hinkley

Hinkley HIGHLAND Manual de usuario

Broan

Broan 766BN Manual de usuario

Premium

Premium PFS16022 Instrucciones de montaje
