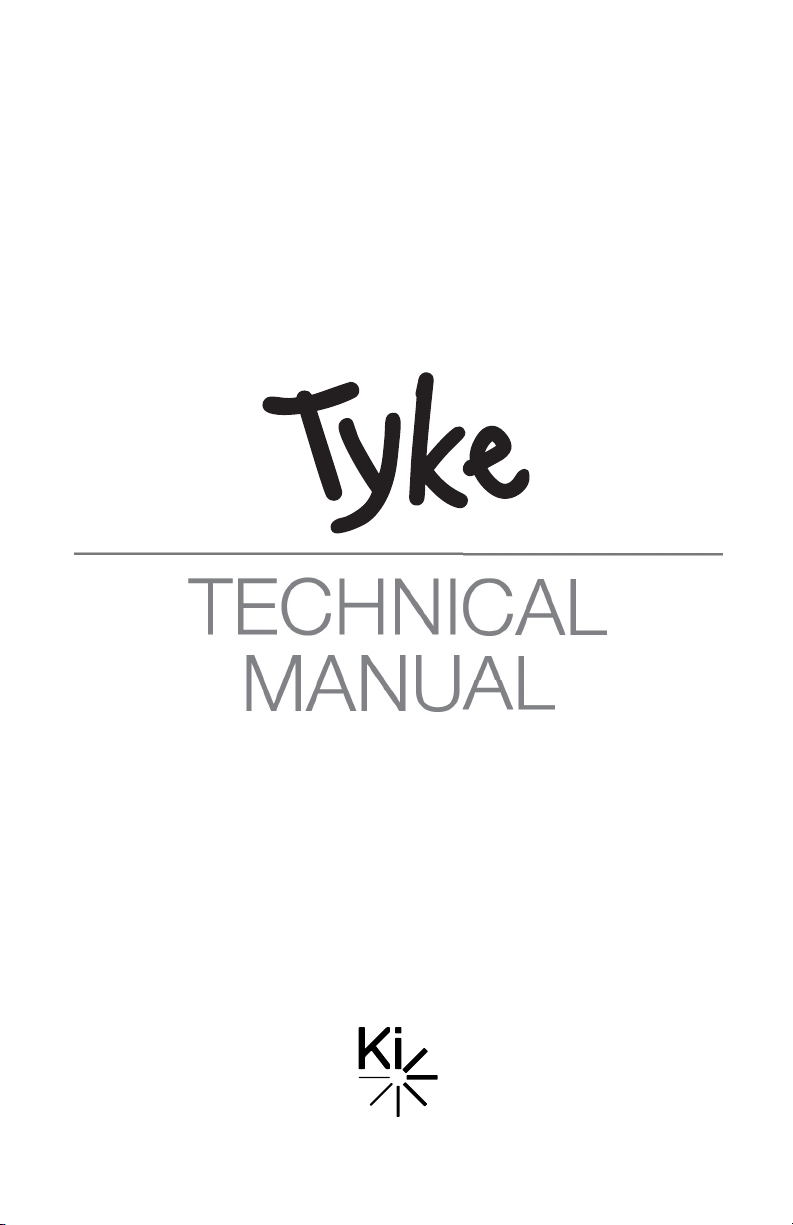

Ki Mobility Tyke Manual de usuario

THIS TECHNICAL MANUAL HAS BEEN DEVELOPED FOR AND

INTENDED TO BE USED BY A QUALIFIED TECHNICIAN

WORKING FOR AN AUTHORIZED KI MOBILITY DEALER.

WARNING: Repairs and adjustments not made by a qualified technician working for an

authorized Ki Mobility Dealer can result in poor performance or failure of the device

which may cause serious injury or death.

This technical manual is designed to aid in the different procedures that may be needed for

the Tyke seating system. This technical manual does not replace, but aids the user instruction

manual, adjustment guides and instructions. The procedures shown in this technical manual

should only be performed by an Assistive Technology Practitioner (ATP) or clinical

professional trained to do wheelchair repairs, adjustments and retrofits.

Additional information can be found in the Tyke User Instruction Manual. The user instruction

manual can be found on the Ki Mobility website.

If you have any questions or concerns about any aspect of this wheelchair, this manual, or the

service provided by us or your retail supplier, please do not hesitate to contact us by

telephone at:

715-254-0991

In writing at:

Ki Mobility

5201 Woodward Drive

Stevens Point, WI 54481

U.S.A

Via email at:

[email protected]

A. Tools................................................................................................................ 3

B. Adapter Plate Direction and Center of Gravity................................................ 4

C. Tyke Seating System Direction ....................................................................... 5

D. Replacing Rear Wheels ................................................................................... 7

E. Replacing Front Wheels .................................................................................. 7

F. Replacing Caster Fork .................................................................................... 8

G. Replacing Swivel Lock .................................................................................... 8

H. Replacing the Tilt Knob Assembly .................................................................. 9

I. Replacing the Tilt Mechanism......................................................................... 9

J. Adjusting the Rear Suspension....................................................................... 10

K. Replacing the Wheel Lock .............................................................................. 10

L. Storage Tray.................................................................................................... 11

M. Ventilator Mount (Pulmonetics LTV)................................................................ 11

N. O2 Holder........................................................................................................ 12

Table of Contents

Tools

Please see the list below to identify the tools needed throughout this tech manual. Always

check tools to ensure the ends are not stripped and that the tool can perform it’s function

properly without damaging any parts or hardware on the chair.

Tools Needed

• 2.5mm Allen Wrench • Two 8mm Wrenches • 6mm Allen Wrench

• 3mm Allen Wrench • Two 10mm

Wrenches

• Utility blade

• 4mm Allen Wrench • 13mm Wrench • Torque Wrench

• 5mm Allen Wrench • 17mm Wrench • 24mm Wrench

• 5.5mm Allen Wrench • 19mm Wrench • Phillips Screwdriver

Adapter Plate Direction and Center of Gravity

x:panda Facing Forward

This activity requires a 6mm Allen wrench.

1. Place adapter plate in Position 1 if seat depth of x:panda is less than 9.75".

2. Place adapter plate in Position 2 if seat depth of x:panda is greater than 9.75".

x:panda Infant Facing Rearward

1. Reverse the plate and place in Position 3 if seat depth of x:panda is less than 9.75". Use of footplate is

not allowed in the reverse configuration. See the Forward to Reverse Seating section for additional

important labeling information.

Screw

Locations

Interface Position 1

Screw

Locations

Interface Position 2

Screw

Locations

Interface Position 3

Tyke Seating System Direction

NOTE: Transit labeling must be corrected via a labeling kit from Ki Mobility Customer Service when

the seating direction is changed. Reversing is only allowed with R82 x:panda and x:panda Shape

size infant.

• A Tyke altered TO reverse seating configuration MUST have (Instructions, stickers and transit

covers are available via Parts Kit #120802):

1. Transit Loop Location Stickers Removed

2. ANSI RESNA WC-19 Sticker Removed

3. No Transit Sticker placed on the chair

4. Transit Covers (A) installed

• A Tyke altered FROM reverse seating MUST have (Labels and instructions are available via

Parts Kit #120801):

1. Transit Loop Location Stickers placed on the chair

2. ANSI RESNA WC-19 Sticker placed on the chair

3. No Transit Sticker Removed

4. Transit Covers (A) Removed

A x:panda shape size infant may be mounted in a reverse (parent) or forward facing direction on a Tyke

Size 1 mobility base. The direction of the Adapter Plate and Tilt Stop plate tilt must be reversed according

to the drawings below.

Reverse (Parent) Facing

ANSI RESNA

WTS Label

Transit Hook

Label

No Transit

Label

Screw

Locations

ETALPPOTS

TLITNOITISOPER

ESREVERROFNWOHSSA

NIOTARUG

IFNOC

Reposition tilt stop plate

as shown for reverse

conﬁguration

Adapter Plate Tilt Stop Plate

Tyke Seating System Direction

Forward Facing

Test the Tyke 1 tilt mechanism to confirm the x:panda shape size 1 infant seating system will tilt

approximately 35 degrees posterior and 0 degrees anterior.

Adapter Plate Tilt Stop Plate

Screw

Locations

Reposition Tilt Stop Plate as shown

for Forward Conﬁguration

Replacing Rear Wheels

Rotate rear wheel until release clip faces upward.

1. Lock rear wheels.

2. Press release clip (A) down.

3. Pull rear wheel of the axle.

Replacing Front Wheels

1. Place frame on it’s side.

2. Remove axle with Allen wrench.

3. Remove and replace front caster wheel.

4. Reinstall caster wheel axle.

Replacing Caster Fork

1. Remove the caster wheel.

2. Loosen and remove the caster fork mounting screw.

3. Replace caster fork and reinstall caster fork mounting screw.

Replacing Swivel Lock

1. Remove caster wheel and caster fork.

2. Slide swivel lock (A) off the front end of the frame and replace.

3. Reinstall the caster fork and front caster.

Replacing the Tilt Knob Assembly

1. Using a sharpe edge, carefully pry up the cover cap.

2. Remove internal nut and washer retaining the tilt knob.

3. Remove knob and cable retainer.

4. Slide off cable retainer and cable the internal bushing.

5. Reverse process with new components.

6. Push out the internal cable retainer disk from the outer portion and disconnect cable.

It may be necessary to disconnect the cable at the other end to more easily remove / install the cable in the

cable retainer. Squeeze the two black tabs together and remove the cable end from the rear bracket. Note

the position of the spring between the tabs before doing so.

Replacing the Tilt Mechanism

1. Disassemble the tilt knob and disconnect cable from the cable retainer.

2. Release clasm from the upper end of the tilt mechanism and remove.

3. Push off an E-clip on one side of the tilt mechanism pivot mount.

4. Push pivot bushing out of the pivot mount to remove tilt mechanism.

5. Install new tilt mechanism in opposite order.
