Keysight U1253B Manual de usuario

Keysight U1253B True

RMS OLED Multimeter

Quick Start

Guide

All manuals and user guides at all-guides.com

all-guides.com

Contacting Keysight

www.keysight.com/find/assist

(worldwide contact information for

repair and service)

Safety Information

This meter is safety-certified in

compliance with EN/IEC

61010-1:2001, UL 61010-1 Second

Edition and CAN/CSA 22.2

61010-1 Second Edition, CAT III

1000 V/Category IV 600 V,

Pollution Degree II. Use with

standard or compatible test probes.

Safety Notices

CAUTION

A CAUTION notice denotes a

hazard. It calls attention to an

operating procedure, practice, or

the like that, if not correctly

performed or adhered to, could

result in damage to the product or

loss of important data. Do not

proceed beyond a CAUTION notice

until the indicated conditions are

fully understood and met.

WARNING

A WARNING notice denotes

a hazard. It calls attention to an

operating procedure, practice, or

the like that, if not correctly

performed or adhered to, could

result in personal injury or

death. Do not proceed beyond

a WARNING notice until the

indicated conditions are fully

understood and met.

Safety symbols

Earth (ground) terminal

Equipment protected

throughout by double

insulation or reinforced

insulation

Caution, risk of electric

shock

Caution, risk of danger

(refer to the instrument

manual for specific Warning

or Caution information)

Category III 1000 V

overvoltage protection

Category IV 600 V

overvoltage protection

CAT III

1000 V

CAT IV

600 V

2 Keysight U1253B Quick Start Guide

For further safety information details, refer to the

Keysight U1253B True RMS OLED Multimeter User’s and Service Guide.

All manuals and user guides at all-guides.com

Keysight U1253B Quick Start Guide 3

Table of Contents

Charging the Battery . . . . . . . . . . . . . . . . . . . . . 6

Functions and Features . . . . . . . . . . . . . . . . . . . 8

Input Terminals and Overload Protection . . . . . 9

Performing Voltage Measurements . . . . . . . . 10

Performing Current Measurements . . . . . . . . 13

Performing Resistance, Conductance,

and Continuity Measurements . . . . . . . . . . 15

Performing Capacitance and Temperature

Measurements . . . . . . . . . . . . . . . . . . . . . . . 16

Frequency and Frequency Counter

Measurements . . . . . . . . . . . . . . . . . . . . . . . 18

Square Wave Output . . . . . . . . . . . . . . . . . . . . 20

All manuals and user guides at all-guides.com

4 Keysight U1253B Quick Start Guide

THIS PAGE HAS BEEN INTENTIONALLY LEFT BLANK.

All manuals and user guides at all-guides.com

Keysight U1253B Quick Start Guide 5

The following items are included with your

multimeter:

4Silicone test leads

44 mm probes

4Alligator clips

4Printed Quick Start Guide

4Rechargeable 8.4 V battery

4Power cord and AC adapter

4Certificate of Calibration

If anything is missing or damaged, please contact

the nearest Keysight Sales Office.

For more detailed information, please refer to the

Keysight U1253B True RMS OLED Multimeter

User’s and Service Guide on Keysight website

(www.keysight.com/find/handheld-tools).

WARNING

Ensure the terminal connections are correct for that

particular measurement selection before starting any

measurement. To avoid damage to the device, do not

exceed the input limit.

All manuals and user guides at all-guides.com

6 Keysight U1253B Quick Start Guide

Charging the Battery

It is strongly recommended that you use the

specified 24-volt DC adapter included as an

accessory to charge the rechargeable battery.

1Remove the test leads from the multimeter

and turn the rotary switch to .

2Plug the DC adapter into a power outlet.

3Insert the red (+) and black (–) banana plugs

(4 mm plugs) of the DC adapter to the

and terminals respectively. Ensure that

the polarity of the connection is correct.

4The display will show a countdown timer of

10 seconds for the self-test to start. The

multimeter will output short single-tone

sounds to remind you to charge the battery.

Press to start charging the battery, or

the multimeter will automatically start

All manuals and user guides at all-guides.com

all-guides.com

Keysight U1253B Quick Start Guide 7

charging after 10 seconds. It is recommended

not to charge the battery if the battery

capacity is over 90%.

NOTE

For the battery charger, the main supply voltage

fluctuations must not exceed ±10%.

CAUTION

– Do not rotate the rotary switch from

position when charging the battery.

– Perform battery charging only with 7.2 V or

8.4 V NiMH rechargeable battery, 9 V size.

– Disconnect test leads from all the terminals

when charging the battery.

– Ensure proper insertion of battery in the

multimeter, and follow the correct polarity.

– A new rechargeable battery comes in a

discharged condition and must be charged

before use (refer to the U1253B User's and

Service Guide for charging instructions).

– Upon initial use (or after a prolonged storage

period), the rechargeable battery may require

three to four charge/discharge cycles before

achieving maximum capacity. To discharge,

simply run the multimeter under the

rechargeable battery's power until it shuts

down or the low battery warning appears.

– The multimeter may indicate that charging is

complete after ten minutes when charging a

new rechargeable battery. This is a normal

phenomenon with rechargeable batteries.

Remove the rechargeable battery from the

device, reinsert it, and repeat the charging

procedure.

All manuals and user guides at all-guides.com

8 Keysight U1253B Quick Start Guide

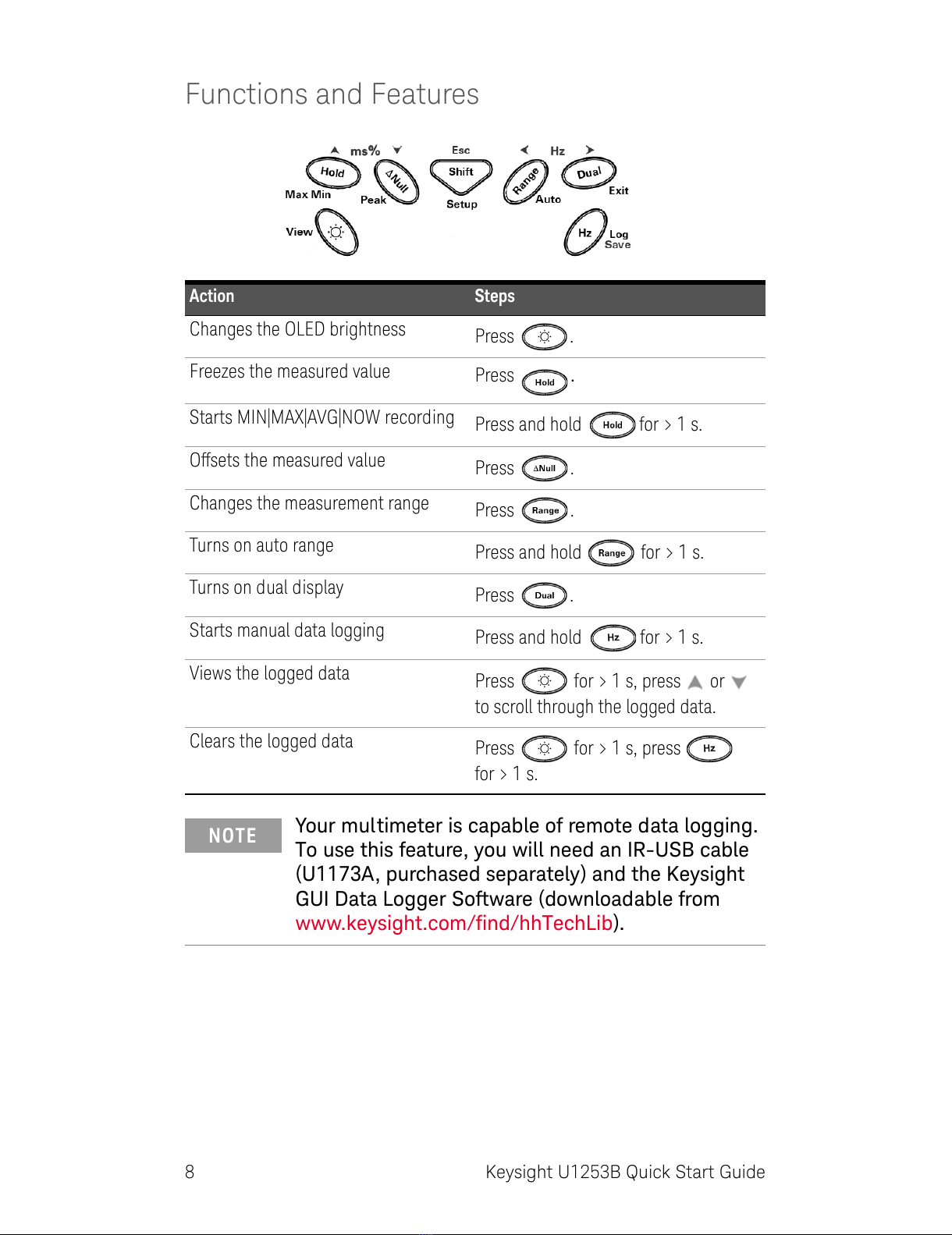

Functions and Features

Action Steps

Changes the OLED brightness Press .

Freezes the measured value Press .

Starts MIN|MAX|AVG|NOW recording Press and hold for > 1 s.

Offsets the measured value Press .

Changes the measurement range Press .

Turns on auto range Press and hold for > 1 s.

Turns on dual display Press .

Starts manual data logging Press and hold for > 1 s.

Views the logged data Press for > 1 s, press or

to scroll through the logged data.

Clears the logged data Press for > 1 s, press

for > 1 s.

NOTE

Your multimeter is capable of remote data logging.

To use this feature, you will need an IR-USB cable

(U1173A, purchased separately) and the Keysight

GUI Data Logger Software (downloadable from

www.keysight.com/find/hhTechLib).

All manuals and user guides at all-guides.com

Keysight U1253B Quick Start Guide 9

Input Terminals and Overload Protection

Measurement Functions Input Terminal Overload Protection

Voltage COM 1000 Vrms

Diode 1000 Vrms

< 0.3 A short circuit

current

Resistance

Capacitance

Temperature

Current (μA and mA) µA.mA COM 440 mA/1000 V

30 kA/fast-acting fuse

Current (A) A COM 11 A/1000 V

30 kA/fast-acting fuse

All manuals and user guides at all-guides.com

10 Keysight U1253B Quick Start Guide

Performing Voltage Measurements

Measuring AC voltage

1Set the rotary switch to . For and

mode, press to ensure is

shown on the display.

2Connect the red and black test leads to input

terminals V. mV (red) and COM (black)

respectively.

3Probe the test points and read the display.

4Press to display dual measurements.

Parameter can be switched consecutively.
