Key Digital KD-HDMIXCAT5 Manual de usuario
521 East 3rd Street, Mount Vernon, NY 10553
Phone :: 914.667.9700 Fax :: 914.668.8666
Web :: www.keydigital.com
Rev 0 – July 2007
The KD-HDMIXCAT5 is an HDMI to CAT5 extender transmitter capable of resolutions up to
1080P and can be used with or without the supplied power adapter. This device is intended
for use with Key Digital’s KD-CAT5XHDMI (receiver) or KD-CAT5XCAT5 (CAT5 extender).
Operating Manual
HDMI CAT5 Extender
Key Digital
®
, led by digital video pioneer Mike Tsinberg,
develops and manufactures high quality, cutting-edge
technology solutions for virtually all applications where
high quality video imaging is important. Key Digital
®
is at the forefront of the video industry for Home
Theater Retailers, Custom Installers, System Integrators,
Broadcasters, Manufacturers, and Consumers. We
provide
total video system solutions because we know
and help drive the technology, the industry, the business,
and all the latest up-and-coming standards. But most
of all, we know exactly what you need for your unique
application - the right solution.
KD-HDMIXCAT5
KD-HDMIXCAT5_Manual.indd 2-3 7/17/07 4:00:59 PM
Page 4
Page 1
HDMI
HDMI
KD-CAT5XHDMI
CAT5/6
CAT5/6
Plasma
Cable Box
KD-HDMIXCAT5
Quick Set Up Guide
HDMI Input
Connect the HDMI input
source cable to HDMI Input
port on the KD-HDMIXCAT5.
Then, connect power.
Table of Contents
Installation Instructions.............................................3
Mounting the KD-HDMIXCAT5 unit....................................4
DVI Applications for the KD-HDMIXCAT5 ...............................5
Troubleshooting ..................................................5
Technical Specifications............................................6
Important Product Warnings ........................................7
Safety Instructions ................................................7
How to Contact Key Digital
®
.........................................8
Warranty .......................................................9
© 2007 Key Digital, Inc. All rights reserved.
Finally, connect the CAT5 Outputs of
the KD-HDMIXCAT5 to receiving device
(KD-CAT5XHDMI, KD-CAT5XCAT5).
CAT5 Output
Please read all instructions to insure safe operation of the product.
KD-HDMIXCAT5_Manual.indd 4-1 7/17/07 4:01:04 PM
Page 2
Page 3
Installation Instructions
The KD-HDMIXCAT5 can receive power from either the HDMI connection or via the
supplied power adapter. When using the HDMI cable to deliver power to the unit,
performance is subject to the following factors:
Ability of the HDMI source to deliver the required power
Quality and length of the HDMI cable.
We recommend the use on non-shielded CAT5 cable for best performance.
1. Find a safe and convenient location for the KD-HDMIXCAT5 unit.
Before permanently securing the unit or final installation of cabling
behind walls or ceilings, test for proper operation of the unit and the
cables in your system.
2. Connections
Plug in the HDMI source cable to the “Input” port of the KD-HDMIXCAT5. If you
are not using the supplied power adapter, the “Power” LED should illuminate upon
plugging in the HDMI input cable if your HDMI source is powered on.
Connect one CAT5 cable to the “Control” output port of the KD-HDMIXCAT5 and
to the “Control” input port on the destination (KD-CAT5XHMDI, KD-CAT5XCAT5)
device.
At this point, if your HDMI source is powered on, you should see the green LED
light up on connected units. If it is not, make sure you have not crossed the
‘Control’ port cable with the ‘Data’ port cable.
Connect second CAT5 cable to the “Data” output port of the KD-HDMIXCAT5
and to the “Data” input port on the destination (KD-CAT5XHMDI, KD-CAT5XCAT5)
device.
The CAT5 outputs can feed either the KD-CAT5XHDMI (receiver) to convert back
to HDMI, or they can feed the KD-CAT5XCAT5, which is a CAT5 extender, to make
longer CAT5 runs more reliable.
3. Power
In order to insure the best possible performance from the KD-HDMIXCAT5, we
recommend using only the original Key Digital power supply.

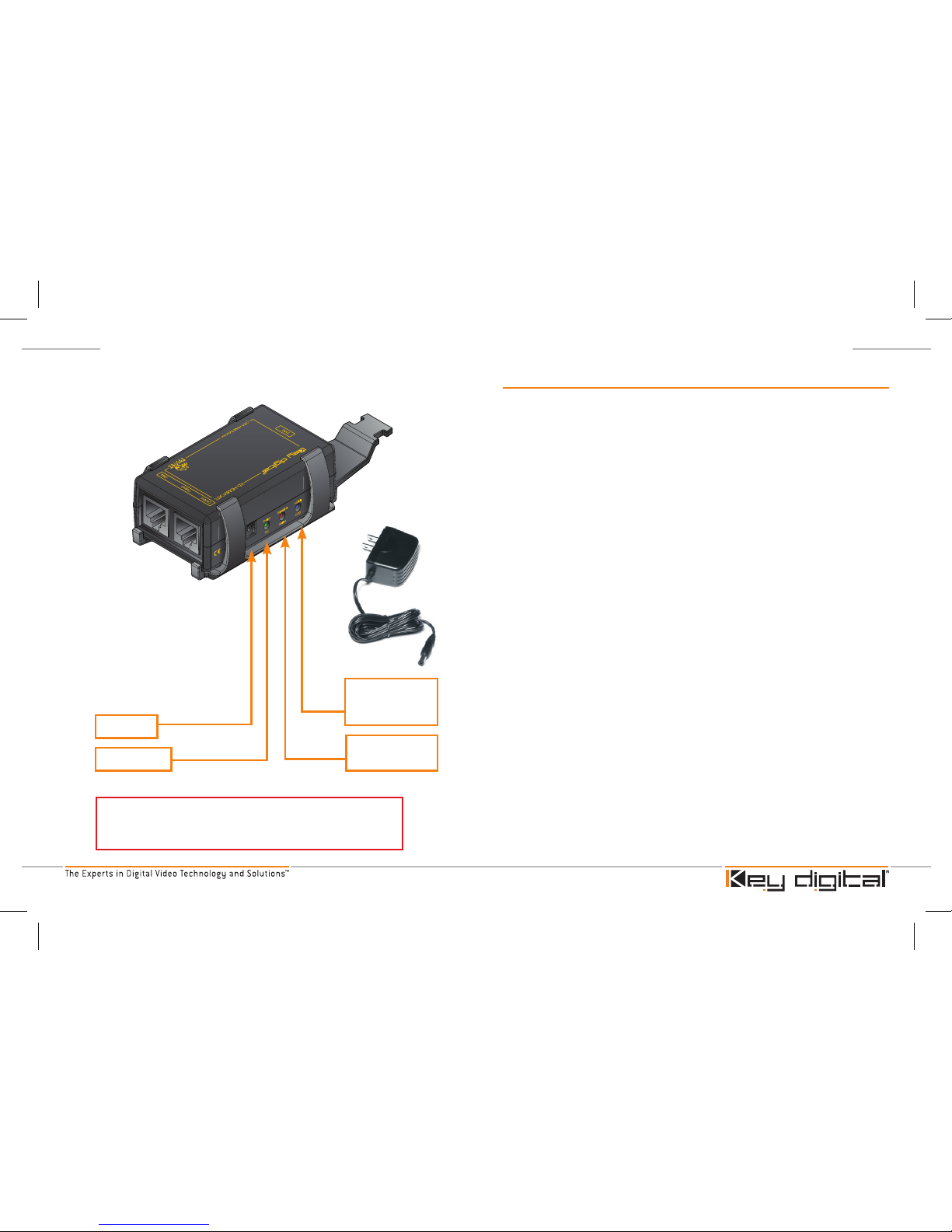

If you are using the supplied power adapter, plug it into the power input jack on
the side of the unit. You should see the “Power” LED illuminate. (see Fig. 1)
➔
➔
➔
➔
➔
➔
➔
➔
➔
➔
➔
Power Jack
Power Indicator
Stable input video
signal present
Valid Source/Sync
DVD/TV connection
indicator
KD-HDMIXCAT5
CAUTION: No other power supply adapter can be used with this unit! Using
a power supply other than the one provided by Key Digital
®
with the unit
VOIDS THE ENTIRE PRODUCT WARRANTY, may cause damage to the unit
and associated equipment, and is a potential safety hazard.
KD-HDMIXCAT5_Manual.indd 2-3 7/17/07 4:01:07 PM
Page 4
Page 5
Optional cable clips
Troubleshooting
Most issues with the KD-HDMIXCAT5 setup will involve resolution and distance
performance. If you experience problems (no image, video artifacts, picture dropout,
noise) here are a few things to try.
Use the shortest possible HDMI and CAT5 cables between devices.
Lower the output resolution of the image source.
Use the provided power supply for the KD-HDMIXCAT5 instead of relying on the
voltage in the HDMI cable to power the unit.
Use Key Digital HDMI cables.
Other possible problems can result from custom made CAT5 cables. CAT5 cables must
be terminated in accordance with TIA/EIA-568-A or TIA/EIA-568-B pin-pair assignments.
1.
2.
3.
4.
DVI applications for the KD-HDMIXCAT5
The KD-HDMIXCAT5 can also be used to extend DVI video cable runs.
For these applications, use DVI to HDMI (Key Digital model number KD-MFHDMI or
KD-FMHDMI) adapters.
KD-FMHDMI KD-MFHDMI
Mounting the KD-HDMIXCAT5 unit
The KD-HDMIXCAT5 is shipped with a convenient mounting clip as an installation option.
Once you have verified operation of the unit with your cables, secure the mounting clip
to a convenient location. Carefully insert the KD-HDMIXCAT5 into the mounting clip
provided.
An optional cable clip (included) enables a method for securing HDMI cables to the
mounting bracket of the KD-HDMIXCAT5
4. LEDs
When a stable signal is established between your source and destination, the
red “Equalizer Active” LED will light. If this red LED indicator is blinking or not
illuminated, try shortening HDMI cable lengths or lowering the resolution of the
video signal.
➔
KD-HDMIXCAT5_Manual.indd 4-5 7/17/07 4:01:10 PM
Page 6
Page 7
Technical Specifications
Connectors:
One HDMI input connector labeled “Input”
Two CAT5 output connectors labeled “Data” and “Control”
Standard RJ45 Jack using TIA/EIA-568-A or TIA/EIA-568-B pin/pair assignments
Power:
External AC-DC power supply included (5 Volt DC @ 1 Amp, 110-240 VAC, 50-60 Hz)
Mechanical:
No Fan Noise
Weight < 1Lb
Molded black ABS Enclosure
Molded black ABS cable clip (1)
Molded black ABS mounting clip (1)
Resolutions Supported:
All resolution up to 1080p/60Hz
Dimensions:
HxWxL = 25 mm x 50 mm x 84 mm
HxWxL = 1 in x 2 in x 2.5 in
›
›
➔
›
›
›
›
›
›
›
›
›
Read and follow all instructions.
Heed all warnings.
Do not use this device near water.
Clean only with dry cloth.
Do not install near any heat sources such as radiators, heat registers, stoves, or
other apparatus (including amplifiers) that produce heat.
Only use attachments/accessories specified by the manufacturer.
Refer all servicing to qualified service personnel. Servicing is required when the
device has been damaged in any way including:
Damage to the power supply or power plug
Liquid spills on the device
Objects fallen into the device
Exposure to rain or moisture
1.
2.
3.
4.
5.
6.
7.
➔
➔
➔
➔
Connect CAT5 cables before providing power to the unit.
Test for proper operation before securing unit behind walls or
in hard to access spaces.
If installing the KD-HDMIXCAT5 into wall or mounting bracket into sheet-rock,
provide proper screw support with bolts or sheet-rock anchors.
1.
2.
3.
KD-HDMIXCAT5
Important Product Warnings:
Safety Instructions.
Please be sure to follow these instructions for safe
operation of your unit.
KD-HDMIXCAT5_Manual.indd 6-7 7/17/07 4:01:13 PM
Page 8
Page 9
Warranty
All Key Digital
®
products are built to high manufacturing standards and should provide
years of trouble-free operation. They are backed by a limited two-year parts and labor
warranty.
How to Contact Key Digital®
Repairs and Warranty Service
To obtain a Returned Materials Authorization (RMA) number, please contact:
Phone: 1-914-667-9700
E-mail: rma@keydigital.com
Technical Support
For technical questions about using our products, please contact us at either:
Phone: 1-914-667-9700
E-mail: tech@keydigital.com
Customer Support
For customer support questions about using our products, please contact us at
either:
Phone: 1-914-667-9700
E-mail: [email protected]
Feedback
Please e-mail any comments/questions about the manual to:
E-mail: [email protected]
›
➔
➔
›
➔
➔
›
➔
➔
›
➔
KD-HDMIXCAT5_Manual.indd 8-9 7/17/07 4:01:15 PM
