KERN PCD-A03 Manual de usuario
KERN & Sohn GmbH
Ziegelei 1
D-72336 Balingen
E-Mail: info@kern-sohn.com
Phone: +49-[0]7433- 9933-0
Fax: +49-[0]7433-9933-149
Internet: www.kern-sohn.com
Assembly instructions Tripod
KERN PCD-A03
Version 1.0
08/2011
GB
PCD-A03-IA-e-1110
GB KERN PCD-A03
Version 1.0 08/2011
Assembly instructions Tripod
Scope of delivery:
Qty. Components
1 Tripod
4 Screws
1 Cable guidance
Technical data
Tripod height 25 cm
Dimensions 195 x 195 x 250 mm
2 PCD-A03-IA-e-1110
Assembly:
There are several possibilities to use the tripod PCD-A03:
Variant 1
The tripod is placed on a base foot next to the balance.
Variant 2:
The tripod is assembled to the platform of the balance
ÖSlacken 4 screws on the rear side of
the display unit and remove the plastic
covers [1]
ÖPlug together display unit and tripod
acc. to illustration
Make sure that the cable is passed through
the designated opening [2].
ÖTighten 4 screws
1
1
2
PCD-A03-IA-e-1110 3
Variant 1
ÖPut the cable on the rear side of the
tripod through the cable guidance and
fasten cable guidance by 4 screws
4 PCD-A03-IA-e-1110
Variant 2:
ÖUnscrew 2 screws at the lower side of
the adjustment foot

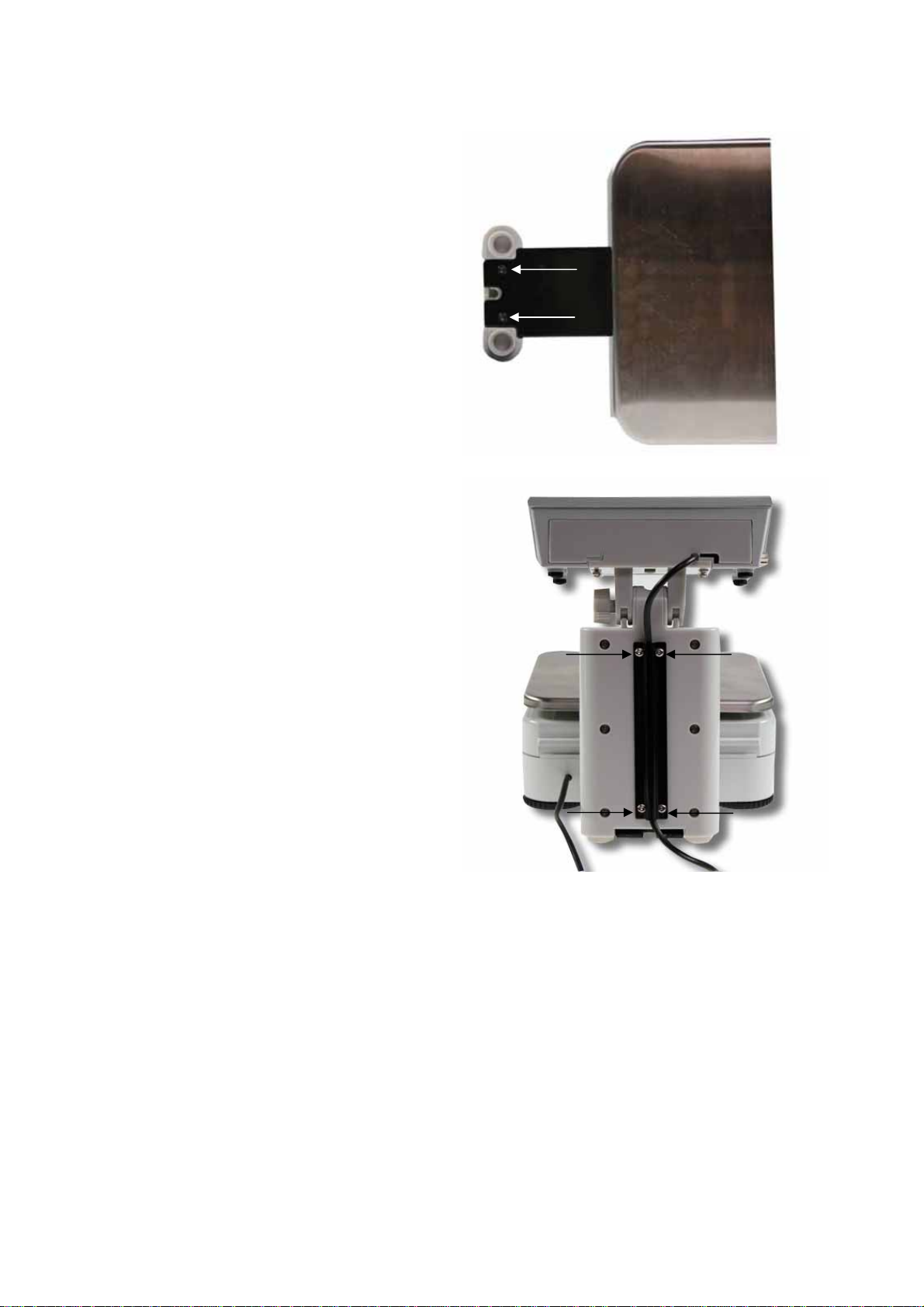

ÖPush together tripod and support of the
platform
PCD-A03-IA-e-1110 5
ÖFasten with screws
ÖPut the cable on the rear side of the
tripod through the cable guidance and
fasten cable guidance by 4 screws
6 PCD-A03-IA-e-1110
PCD-A03-IA-e-1110 7
