DVD / AV RECEIVER

DVR-8100

SERVICE MANUAL

B51-5824-00 (K/K) 1836

VOLUME CONTROL

STANDBY

POWER

INPUT

VOLUME CONTROL

PHONES

ON SCREEN

TOP MENU

ACTIVE EQ

SKIP

¢4

MULTI CONTROL

/ ÷ENTER

∞

OFF

DEC cabinet *

(A60-)

DEC crystal

(B10-3932-08)

ANTENNASAT / CABLE

DVD COMPONENT

VIDELO OUT

S-VIDEOVIDEO

YCBCR

VCRCOAXIALOPTICAL

INOUT

DIGITAL

OUT

SAT/CABLE

MON. MON.

OUT

SAT/

CABLE

SAT/

CABLE

OUT

VCR

DIGITAL IN

SAT/CABLEVCR

DIGITAL IN

IN INOUT

VCR

IN INOUT

VCR

BIT STREAM

/PCM

(

Pun cover

(A01-3881-08)

In compliance with Federal Regulations, following are repro-

duction of labels on, or inside the product relating to laser

product safety.

KENWOOD Corp. certifies this equipment conforms to DHHS

Regulations No.21 CFR 1040. 10, Chapter 1, subchapter J.

DANGER : Laser radiation when open and interlock defeated.

AVOID DIRECT EXPOSURE TO BEAM.

Caution : No connection of ground line if disassemble

the unit. Please connect the ground line on

rear panel, PCBs, Chassis and some others.

DEC button

(B09-0907-08)

DEC button

(K29-8266-08)

DEC door tray

(A29-1214-08)

MLD clamp

(J42-0350-08)

Tuner module *

(W02-)

Conn-spe terminal

(E70-0165-08)

Con phono socket

(E63-1268-05)

DEC cap input

(B09-0904-08)

Phone jack

(E11-0957-08)

DEC knob(VOLUME)

(K29-8262-08)

DEC button

(B09-0905-08)

Con phono socket

(E63-1310-08)

Wire-MCRDM *

(E30-)

*Refer to parts list on page 24.

DEC button

(B09-0908-08)

DEC button

(B09-0906-08)

DEC knob multi

(K29-8263-08)

Con phono socket

(E56-0052-08)x2

Con phono socket

(E63-1309-08)x2

IC-Remote

(W02-2717-05)

IC-Remote

(W02-2716-05)x2

Con phono socket

(E63-1269-05)x3

TEL 13942296513 QQ 376315150 892498299

The marking of products using lasers (For countries other than U.S.A., U.S.-Military and Canada)

The marking this product has been clas-

sified as Class 1. It means that there is no

danger of hazardous radiation outside

the product.

Location: Back panel

CLASS 1

LASER PRODUCT

CAUTION

INVISIBLE LASER RADIATION

WHEN OPEN. DO NOT STARE

INTO BEAM OR VIEW DIRECTLY

WITH OPTICAL INSTRUMENTS.

CAUTION

VISIBLE LASER RADIATION

WHEN OPEN. DO NOT

STARE INTO BEAM.

Inside this laser product, a laser diode classi-

fied as Class 2 laser radiation is contained as

alerted by the internal caution label shown

above. Do not stare into beam.

Location: DVD laser pick-up unit cover inside

this product

Inside this laser product, a laser diode classified as Class

3A laser radiation is contained as alerted by the internal

caution label shown above. Do not stare into beam or

view directly with optical instruments.

Location: CD laser pick-up unit cover inside this product

Operation to reset

The microcomputer may fall into malfunction (impossibility

to operate, erroneous display, etc.) when the power cord is

unplugged while power is ON or due to an external factor. In

this case, execute the following procedure to reset the

microcomputer and return it to normal condition.

Please note that resetting the microcomputer clears the con-

tents stored in and returns and to condition when it left the

factory.

Set the POWER switch to ON (set to Standby

mode). Then press the key, key and STOP

key in this order.

System Speakers

DVR-8100 KSW-8100 (Left speaker, right speaker, center speaker, surround speakers and subwoofer)

Speaker model names

Note related to transportation and movement

Before transporting or moving this unit, carry out the

following operations.

1Remove the disc from the unit.

2Press the 6key. 3Wait a few seconds and turn the unit OFF.

Manufactured under license from Dolby Laboratories.

“DOLBY”, “Pro Logic” and the double-D symbol are

trademarks of Dolby Laboratories.

“DTS” and “DTS Digital Surround” are trademarks of

Digital Theater Systems, Inc.

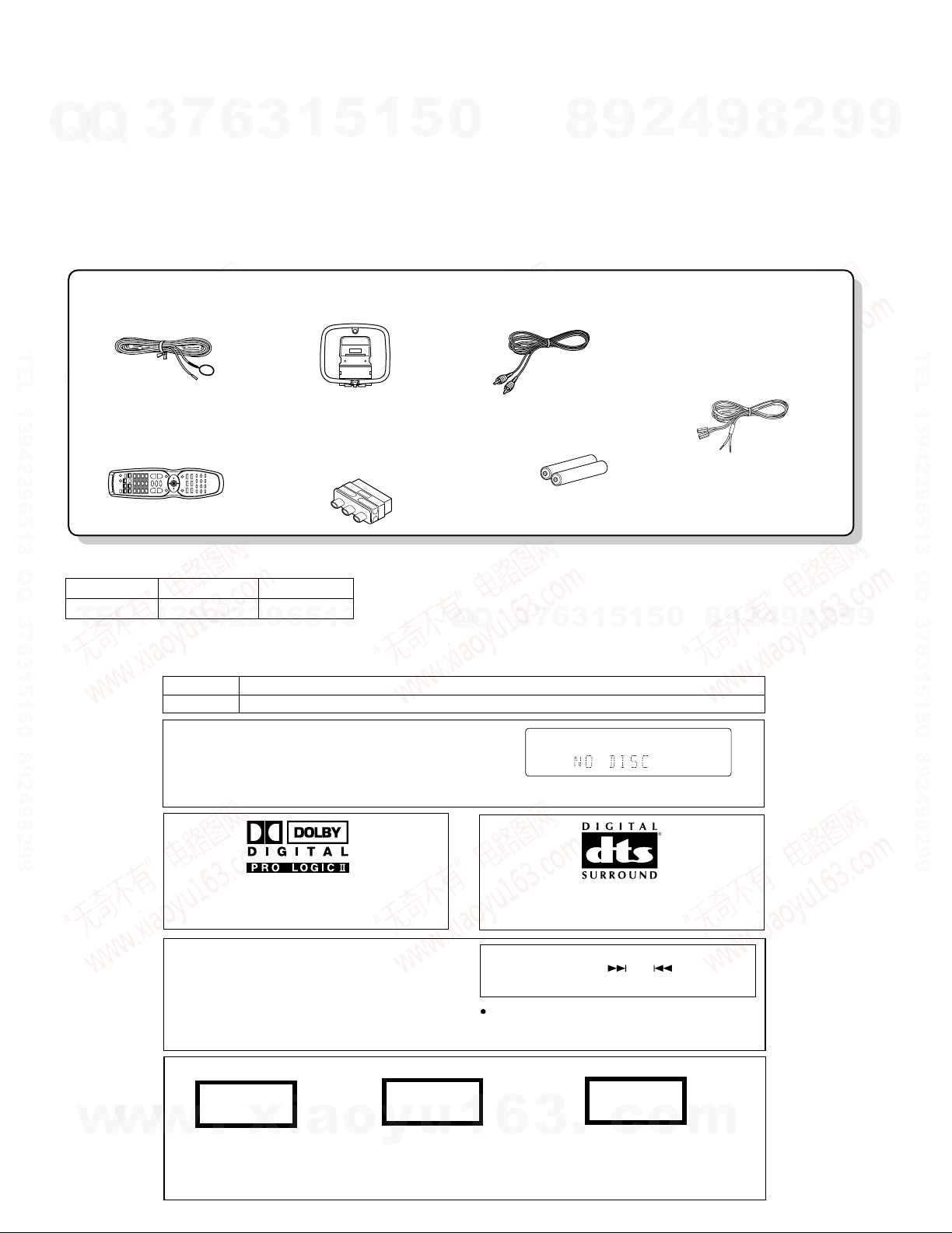

FM indoor antenna (1)

(T90-0882-08)

Loop antenna (1)

(T90-0896-08)

Remote control unit (1)

(A70-1600-08): X

(A70-1601-08): ET

Batteries (R6/AA) (2)

Video cord (1)

(E30-1427-05)

SCART plug adaptor (1)

(Europe and U.K. only)

(E69-0012-05)

Speaker cords (6)

(E30-7265-08): RD

(E30-7286-08): WH

(E30-7285-08): VT

(E30-7283-08): GN

(E30-7269-08): GY

(E30-7284-08): BL

DVR-8100

CONTENTS / ACCESSORIES / CAUTIONS

CONTENTS / ACCESSORIES / CAUTIONS............. 2

DISASSEMBLY FOR REPAIR....................................3

BLOCK DIAGRAM ......................................................3

CIRCUIT DESCRIPTION ............................................4

ADJUSTMENT ..........................................................14

INTERCONNECTION DIAGRAM .............................15

PC BOARD .............................................................. 16

SCHEMATIC DIAGRAM .......................................... 23

EXPLODED VIEW ....................................................33

PARTS LIST..............................................................34

SPECIFICATIONS ......................................Back cover

Contents

Accessories

Cautions

SYSTEM MAIN UNIT SPEAKER

DVT-8100 DVR-8100 KSW-8100

SYSTEM CONFIGURATION

TEL 13942296513 QQ 376315150 892498299

DVR-8100

DISASSEMBLY FOR REPAIR / BLOCK DIAGRAM

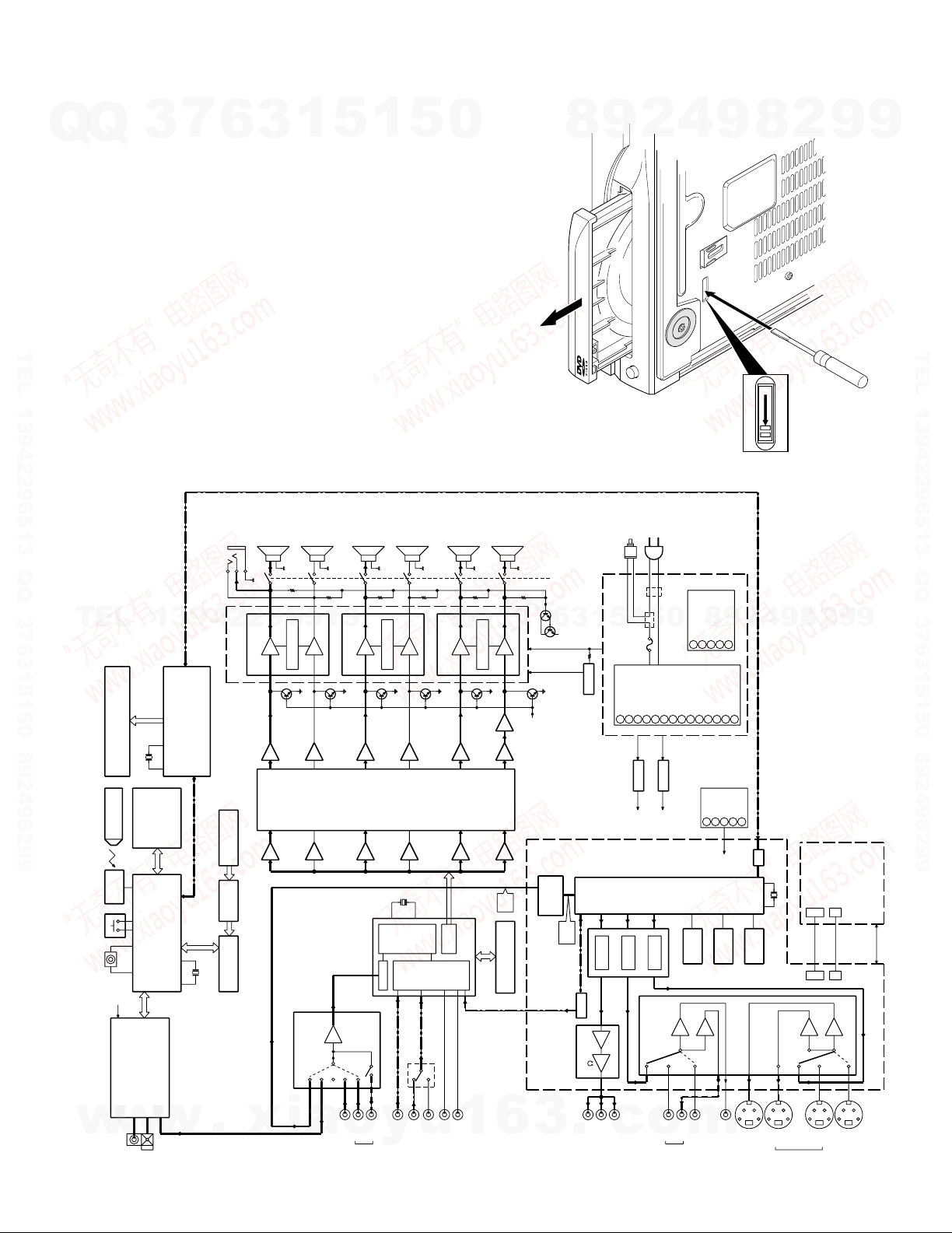

How to open the tray if it does not come out.

1. Insert a flat driver in the drawing through the hole on the loading

chassis bottom and pull the lever down.

2. Pull out the tray frontward by hand when it comes just out.

DISASSEMBLY FOR REPAIR

BLOCK DIAGRAM

IC15

IC13

IC14

IC23

BD3811

AUDIO SOUND

PROCESSOR

CONTROL

TONE & VOLUME

IC19

IC702

IC703

IC702

IC701

PROTECTION

TA2022

IC501

PROTECTION

TA2022

IC502

PROTECTION

TA2022

IC503

K500

FRONT/L

SPKR

FRONT/R

K501

SURROUND/R

SPKR

SURROUND/L

WOOFER

SPKR

K502

SPKR

CENTER

Q513-516

HP51

HEAD-

PHONE

ANT TUNER MODULE

FM/AM

SAT/CABLE

IC23

BD3811

OUT

AUDIO SOUND

PROCESSOR

VCR

AUDIO

MAIN u-COM

CXP82860

IC22

ENCODER

VOLUME

MATRIX

KEY

VIDEO PART

SUPPLY PART

DSP PART

TUNER PART

AUDIO PART

MAIN AMP PART

RM51

RMC

SENSOR COMMANDER

IC9

AUDIO DSP

CS49326 74VHC574

IC1/IC2

EP-ROM

IC5

AT27LV020A

DIGITAL

SAT/C IN

OPTICAL OUT

VCR IN

IC3

SAT/C COAX IN

VCR IN

IC7

AK4586

74VHC157

IC8

74VHCT244

LEVEL CONVERTER

COMPONENT

OUTPUT Cb

VIDEO

MM1540A

IC68

R/O

SAT/CABLE

VCR

P/B

R/O

P/B

VCR

MONITOR

C-VIDEO

MONITOR

IC70

LA79510E

S-VIDEO

SAT/CABLE

Y/C

CVBS

Cy/Cb/Cr

IC61

STI5519

MPEG IC

64M

SDRAM

IC63

8MB

FLASH

IC66

24C02

EEPROM

IC62

TC5E

SPDIF

IC84

D/A CONV.

AUDIO L/R

PCM1748

DATA

PCM

L/R

DVD

IC51

FRONT u-COM

FL51

FIP 15-BT-85GNK

CN4

CN5

1L112HI

KIA7812

IC24

IC25

KIA7912

KIA7805

IC505

SIO

POWER SW

IC703

CXP82832

SUB

9dB

FL AMP

FR AMP

9dB

RS AMP

LS AMP

9dB

CT AMP

SW AMP

9dB

15.5dB

SW AMP

8.5dB

FL AMP

FR AMP

LS AMP

RS AMP

CT AMP

FL AMP

FR AMP

RS AMP

LS AMP

CEN AMP

SW AMP

MUTE

PROTECTION

SPKR RLY

+12V

DATA IN

CLK

DATA OUT

PLL CE

TUNED

MUTE

L/R

AUDIO OUT

BUFFER

TUNER

DVD L/R

-6dB

0dB

S500

RMC

10MHz

2ch ADC

RX2

RX4

RX3

RX1

DIR AUDIO

I/F

6ch DAC

OUT

AUDIO

-9dB

6ch

12.288MHz

OSC

SUB DATA IN/OUT CLK

DRIVER GAIN

6dB

27MHz

CN64

1 +6V

GND

5V STBY

-5V

14.5V

I2C PROGRAM

STREAM RECEPTION

/MOTOR CONTROL

(OPEN/CLOSE)

MOTOR CONTROL

+12V DVCC

DATA/CLK

+5VA

RESET

+5VD

+3.3VD

X501

10MHz

RESONATOR -FL PART

FL5V

FL GND

GND

5V STBY

-14.5V

14.5V

GND

POWER CHECK

5V STBY

-30V FL

GND

STBY ON

14.5V

+6V

5V STBY

-5V

GND

208-264V 50/60Hz

3.15A

+12V +14.5V

-12V -14.5V

CONTROL

CIRCUIT

5V BIAS

+30V -30V

DVD-RX

DVD-RESET

DVD-TX

SIO

SW AMP

8.5dB

DIGITAL AMP

MECHA & F/E

MPEG BOARD

SMPS

DVR-8100

TEL 13942296513 QQ 376315150 892498299

DVR-8100

CIRCUIT DESCRIPTION

Pin No. Pin Name I/O Pin Description

PIOs and communication

1 PIO2(5) RGB SEL(BLANK) I/O RGB sel (blank). unused

2 PIO2(6) VIDEO MUTE I/O Video mute control.

3 PIO2(7) 16: 9 INDICATOR I/O 16 : 9 indicator (unused).

6 PIO3(0) SCART H (TV/AUX) I/O Unused.

7 PIO3(1) I/O Unused.

8 PIO3(2) - CSB (unused).

9 PIO3(3) - SDIN (unused).

10 PIO3(4) IR REMOCON I/O Unused.

11 PIO3(5) - SCLK (unused).

12 PIO3(6) I/O Unused.

13 PIO3(7) DVD RESET I/O Power- on reset of front-end module.

Front-end

16 B DATA I I2S Data

17 B BCLK I I2S Bit clock

18 B FLAG I I2S Error flag

19 B SYNC I/O I2S Sector / ABS time

Reserved

20 B WCLK I/O Unused.

21 B V4 I/O Unused.

22 NRSS OUT I/O Unused.

23 VDD RGB - Supply voltage for RGB (+3.3VA).

24 VSS RGB - GND

Video DAC

25,26,27 B/G/R (OUT) O B/G/R signal outputs.

28 V REF RG I Reference voltage input for DAC RGB.

29 I REF RG I Reference current input for DAC RGB.

30 VDD YCC - Supply voltage for YCC (+3.3VA).

31 VSS YCC - GND

32~34 Y/C/CV (OUT) O Y/C/CV signal outputs.

35 V REF YCC I Reference voltage input for DAC YCC.

36 I REF YCC I Reference current input for DAC YCC.

PIOs and communication

39 PIO4(0)HP MUTE - Unused.

40 PIO4(1) - Unused.

41 PIO4(2) - Unused.

42 PIO4(3) DAC RESET - Unused.

43 PIO4(4) PLL CS - Unused.

44 PIO4(5) DAC CLOCK O DAC clock output.

45 PIO4(6) DAC DATA O DAC data output.

46 PIO4(7) DAC CS O DAC chip select.

Audio DAC

48 VDD PCM - Supply voltage for PCM (+3V3).

49 VSS PCM - Ground for PCM.

51 DAC SCLK O DAC over sampling clock.

52 DAC PCMOUT0 O DAC PCM data out 0.

53 DAC PCMOUT1 O DAC PCM out 1 (unused).

54 DAC PCMOUT2 O DAC PCM out 2 (unused).

55 DAC PCMCLK O DAC PCM clock.

56 DAC LRCLK O DAC PCM Left/Right clock.

57 SPDIF OUT O Audio digital data output.

Shared memory interface

58~63 SMI ADR(4~9) O SDRAM address bus.

66~69 SMI ADR(3~0) O SDRAM address bus.

1. Pin Description of MPEG Processor IC (DVD & VIDEO IC61)

TEL 13942296513 QQ 376315150 892498299

DVR-8100

CIRCUIT DESCRIPTION

Pin No. Pin Name I/O Pin Description

70~73 SMI ADR(10~13) O SDRAM address bus.

74 SMI CS(0) O Chip select bank 0.

75 SMI CS(1) - Unused.

76 SMI RAS O SDRAM RAS

77 SMI CAS O SDRAM CAS

78 SMI WE O SDRAM write enable.

79 SMI DQML O DQ MASK enable low.

80 SMI DQMU O DQ MASK enable up.

82 SMI CLKIN I SDRAM clock input.

84~93 SMI DATA(0~9) I/O SDRAM data bus.

95 SMI CLKOUT O SDRAM clock out.

97~102 SMI DATA(10~15) I/O SDRAM data bus.

Reserved

103 ADC SCLK I/O ADC digital audio port clock (unused).

104 ADC LRCLK I/O ADCsample rate clock (unused).

105 ADC DATA I ADC digital audio data input (unused).

106 ADC PCMCLK O Crystal input or master clock input (unused).

JTAG

109 TRST I Test reset from emulator module.

110 TMS I Test mode select.

111 TDO O Test data out to emulator module.

112 TDI I Test data input from emulator module.

113 TCK I Test clock input from emulator module.

Timers

114 PWM2 I/O Unused.

115 PWM1 I/O ROM boot option port (voltage low = emulator booting).

116 PWM0 I/O Unused.

EMI Interface

117 CPU OE I/O Flash ROM output enable.

118 CPU PRO CLK O SDRAM clock (unused).

Clock & Reset

120 PIX CLK I 27MHz main clock input.

122 VDD PLL - Supply voltage for PLL (+3V3).

123 VSS PLL - Ground for PLL.

124 RESET I Chip reset input.

Interrupt

125 IRQ(2) I Interrupt request 2 from front-end module.

126 IRQ(1) I Unused.

127 IRQ(0) I Unused.

EMI Interface

128 CPU BE(0) O BYTE 0 Enable

129 CPU BE(1) O BYTE 1 Enable

130 CPU RW O Unused.

131 CPU WAIT I Wait state (connected to ground).

132 CPU CE(3) O Flash ROM chip select.

133 CPU CE(2) O Flash ROM down-load JIG module select.

134 CPU CE(1) O Unused.

135 CPU CE(0) O Unused.

138 CPU RAS1 I/O Unused.

139 CPU CAS0 O Unused.

140 CPU CAS1 O Unused.

141~148 CPU DATA(0~7) I/O Flash ROM data input/output (0~7).

151~158 CPU DATA(8~15) I/O Flash ROM data input/output (8~15).

161~170 CPU ADR(1~10) O Flash ROM address (1~10).

173~181 CPU ADR(11~19) O Flash ROM address (11~19).

TEL 13942296513 QQ 376315150 892498299

DVR-8100

CIRCUIT DESCRIPTION

Pin No. Pin Name I/O Pin Description Logic

1,2 NC NC Unused.

3 VDD I Power supply (+5.0V)

4 POWER DOWN I Detection pin for the power failure.

5 RDS-CLK I RDS clock input.

6 H/P CHK I Detection pin for the headphones. H/P IN

7 RDS OPTION I Setting pin for RDS. RDS NO RDS

8 REMOCON I Remote controller signal input.

9 RDS-DATA I RDS data input.

10 NC NC Unused.

11 EEPROM CLK O Clock output to EEPROM.

12,13 ENCODE (1,2) I Volume encoder input.

14 AMP PROTECT I Detection pin for the protection. PROTECTI

ON ON

Pin No. Pin Name I/O Pin Description

182,183 CPU ADR(20,21) - Unused.

PIOs and communication

186 PIO0(0) T STROBE I/O UART0 data

187 PIO0(1) MOD SW I/O ATAPI RD

188 PIO0(2) O Unused.

189 PIO0(3) O Unused.

190 PIO0(4) O Unused.

191 PIO0(5) I Unused.

PIO0(6) SLIDER SENSOR

192 OPEN/CLOSE I/O Detection port of slider sensor for DVD mechanism.

(DRAWER POSITION)

193 PIO0(7) SLIDER IN I/O Control port of slider (IN) for DVD mechanism.

(DRAWER CCW/CTRL)

194 PIO1(0) SDA I/O SSC0 data (MTSR out / MRST in)

195 PIO1(1) SCL I/O SSC0 clock

196 PIO1(2) SLIDER OUT I/O Control port of slider (OUT) for DVD mechanism.

(DRAWER CW CTRL)

197 PIO1(3) TXD(JIG) I/O UART2 TXD

200 PIO1(4) RXD(JIG) I/O UART2 RXD

201 PIO1(5) FRONT TXDI I/O UART1 TXD

202 TRIGGER IN I/O Trigger input from JIG.

203 TRIGGER OUT I/O Trigger output from JIG.

204 PIO2(0) H/P - Unused.

205 PIO2(1) FRONT RXD I/O UART1 RXD

206 PIO2(2) I Unused.

207 PIO2(3) - Unused.

208 PIO2(4) AUDIO MUTE O Audio mute control.

Power supply

4,47,81,107 VDD3-3 - 3.3V Power supply.

136,159,184

14,37,64,94

119,149,171 VDD2-5 - 2.5V Power supply.

198

5,15,38,50,65

83,96,108,121 VSS - GND

137,150,160

172,185,199

2. Pin Description of Main Microcomputer : CXP82860 (X09, IC22)

TEL 13942296513 QQ 376315150 892498299

DVR-8100

CIRCUIT DESCRIPTION

Pin No. Pin Name I/O Pin Description Logic

15 SUPPLY PROTECT I Unused.

16 4586 CDTO I Data input from level shift (X09, IC8).

17 AK4586 INT0 I Error detection when digital input. ERROR

18 AK4586 INT1 I Audio bit validity detection for digital input. DETECTED

19 AK4586 OVERLEVEL I Clip detection from AK4586 (X09, IC7). CLIP

20 AK4586 DZF1 I Zero detection when digital input. ZERO

21 DSP-INTREQ I Interruption pin for DSP.

22 SUB CPU CLK O Clock output to sub CPU.

23 SUB CPU DATA IN I Data input from sub CPU.

24 SUB CPU DATA OUT O Data output to sub CPU.

25 DSP 493xxCLK O Communication clock to DSP.

26 DSP493xxDATA IN I Communication data input from DSP.

27 DSP493xxDATA OUT O Communication data output to DSP.

28 AD REF AV ref Power supply (+5.0V)

29,30 KEY IN (1,2) I A/D key inputs.

31 EEPROM DATA I/O EEPROM data input and output.

32 TUNED I Tuned signal input from tuner.

33 OPT_DET I Detection pin for optical input.

Optical : 0.71V~2.69V Coax : 0V~0.7V, 2.7V~5.0V

34 MODEL_OPTION I Unused.

35 PLL-DATA IN/ST CHK I Control data for tuner.

36 STEP-OPTION I Setting pin for tuner.

37 VSS Avss GND

38 RST I Reset signal input.

39 XTAL-IN I Crystal oscillator input (10MHz).

40 XTAL-OUT O Crystal oscillator output (10MHz).

41 VSS I GND

42 NC NC Unused.

43 GND I GND

44 VDD VDD Power supply (+5.0V)

45 VFDP - GND

46 BD3811_DATA O Control data output to BD3811 (X09, IC23).

47 RELAY-F O Control pin for front speaker relay. RELAY ON

48 BD3811_CLK O Clock output to BD3811 (X09, IC23).

49 BD3811_MUTE O Mute control to BD3811 (X09, IC23).

50 PLL-CE O Chip select to PLL IC.

51 PLL-CLK O Clock output to PLL IC.

52 PLL D OUT O Control data output to PLL IC.

53 AK4586CS O AD/DA chip select.

54 AK4586RST O AD/DA reset.

55~57 VIDEO CTL(1~3) O Select signal (1~3) for video selector.

58,59 VIDEO MUTE (1,2) O Mute signal (1,2) for video selector.

60 AK4586 MST/SLV O Unused.

61 10dB ATT O Unused.

62 A_MUTE O Amplifier mute control. MUTE ON

63 T_MUTE O Tuner mute control. MUTE ON

64 DSP 493xxRST O Reset output to DSP.

65~67 DSP (A15~A17) O Address output to DSP.

68 STBY LED O Control pin for standby LED. LED ON

69 RELAY-R O Control pin for surround speaker relay. RELAY ON

70 PACK CONTROL O Mute control to TA2022 (X09, IC500~502). MUTE ON MUTE OFF

71 RELAY POWER O Control pin to power relay. POWER ON

72 SUB RST O Reset signal output to sub CPU.

73 AK4586 CLK O Data output to AK4586 (X09, IC7).

TEL 13942296513 QQ 376315150 892498299

DVR-8100

CIRCUIT DESCRIPTION

Region R501

M2,E,T 1.5K

M 3.9K

M3,X 6.8K

Pin No. Pin Name I/O Pin Description

1,2 G2,G1 O Grid signal output for FDP.

3 - - Unused.

4 RXD I Communication from MPEG (IC61).

5~9 GND - GND

10~13 NC - Unused.

14 STBYLED - Unused.

15 JOG LED O Control port of jog LED.

16 DVD RESET O DVD reset signal pin.

17 TXD O Communication to MPEG (IC61).

18~24 NC - Unused.

25 SUB CLK I Sub clock input.

26 SUB DATA I Sub data input.

27 SUB DATAOUT O Sub data output.

28 VREF - Reference voltage input.

29~33 NC - Unused.

34 DVD OPTION - Setting pin for DVD region.

35,36 NC - Unused.

37 VSS(G) - GND

38 RST I Reset signal input.

39 EXTAL I Connection pin for system clock oscillation crystal.

40 XTAL O Connection pin for system clock oscillation crystal.

41,43 GND - GND

42 NC - Unused.

44 VDD - Positive power supply (+5.0V).

45 VFDP - Power supply (-30V) for FDP.

46~53 NC - Unused.

54~79 P01~P25 O Segment signal output for FDP.

80~86 NC - Unused.

87 G15 O Grid signal output for FDP.

88 G14 O Grid signal output for FDP.

89 VDD - Positive power supply (+5.0V).

90~100 G13~G03 O Grid signal output for FDP.

Selector Pin 1

DVD,SAT 1

VCR,TUNER 0

OTHER 0

Pin No. Pin Name I/O Pin Description Logic

74 AK4586 CDTI O Clock output to AK4586 (X09, IC7).

75 DSP A BOOT O Boot control to DSP.

76 DSP 493xxCE O Chip select to DSP.

77 74AC157SEL O Selector control for digital input.

78~88 NC NC Unused.

89 VDD I Power supply (+5.0V)

90~100 NC NC Unused.

✽TC74VHC157F (X09, IC3)

3. Sub Microcomputer : CXP82832 (Front IC51)

✽DVD Option Table

✽

TEL 13942296513 QQ 376315150 892498299

DVR-8100

CIRCUIT DESCRIPTION

Pin No. Pin Name I/O Pin Description

1,2 VCC1,2 - VCC

2,6,9 VIN,VIN (1,2) I Video input (Composite or Y)

3 YC MIX - YC MIX select (Unused)

4 CIN I Croma input (Open)

5 CLP - Clamp select (Connected to GND)

7,8 MUTE (1,2) O Mute select (Unused)

10 GND - GND

11,13 CbIN, CrIN I Component input

12 Dual/Single - Power select (+5V)

14,15,19, VEE1, VEE2 - VEE (-5V)

21,22,24

16,18,20, CrOUT, CbOUT,

23,25,27 YOUT2,YOUT1, O Video output

COUT,VOUT

23,25,27 YOUT1, O Video output (Open)

COUT,VOUT

17,26 PS2,PS1 - Power save (Connected to GND)

Pin No. Pin Name I/O Pin Description

1,3,5,9, A0 to A5 I Data Inputs

11,13

2,4,6,8, Q0 to Q5 O Data Outputs

10,12

7 GND - Ground

14 VCC - Positive Supply Voltage

Pin No. Pin Name I/O Pin description

38 CLK I The system clock input. all other inputs are registered to the SDRAM on

the rising edge of CLK.

37 CKE - Controls internal clock signal and when deactivated, the SDRAM will be one

of the states among power down, suspend or self refresh.

19 CS - Enables or disables all inputs except CLK, CKE, and DQM.

20,21 BA0,BA1 - Selects bank to be activated during RAS activity.

Selects bank to be read/written during CAS activity.

22~26 A0~A11 - Row address : RA0~RA11, Column address : CA0~CA7

29~35 Auto-precharge flag : A10

16,17,18 WE,CAS,RAS - WE, CAS and RAS define the operation.

15,39 LDQM,UDQM I/O Controls output buffers in read mode and masks input data in write mode.

2,4,5,7,8,10

11,13,42,44 DQ0~DQ15 I/O Multiplexed data input/output pin.

45,47,48,50

51,53

1,3,9,14,27 VCC/VCC Q - Power supply for internal circuits and input buffers.

43,49

6,12,28,41, VSS/VSS Q - Ground terminal.

46,52,54

36,40 NC - Unused.

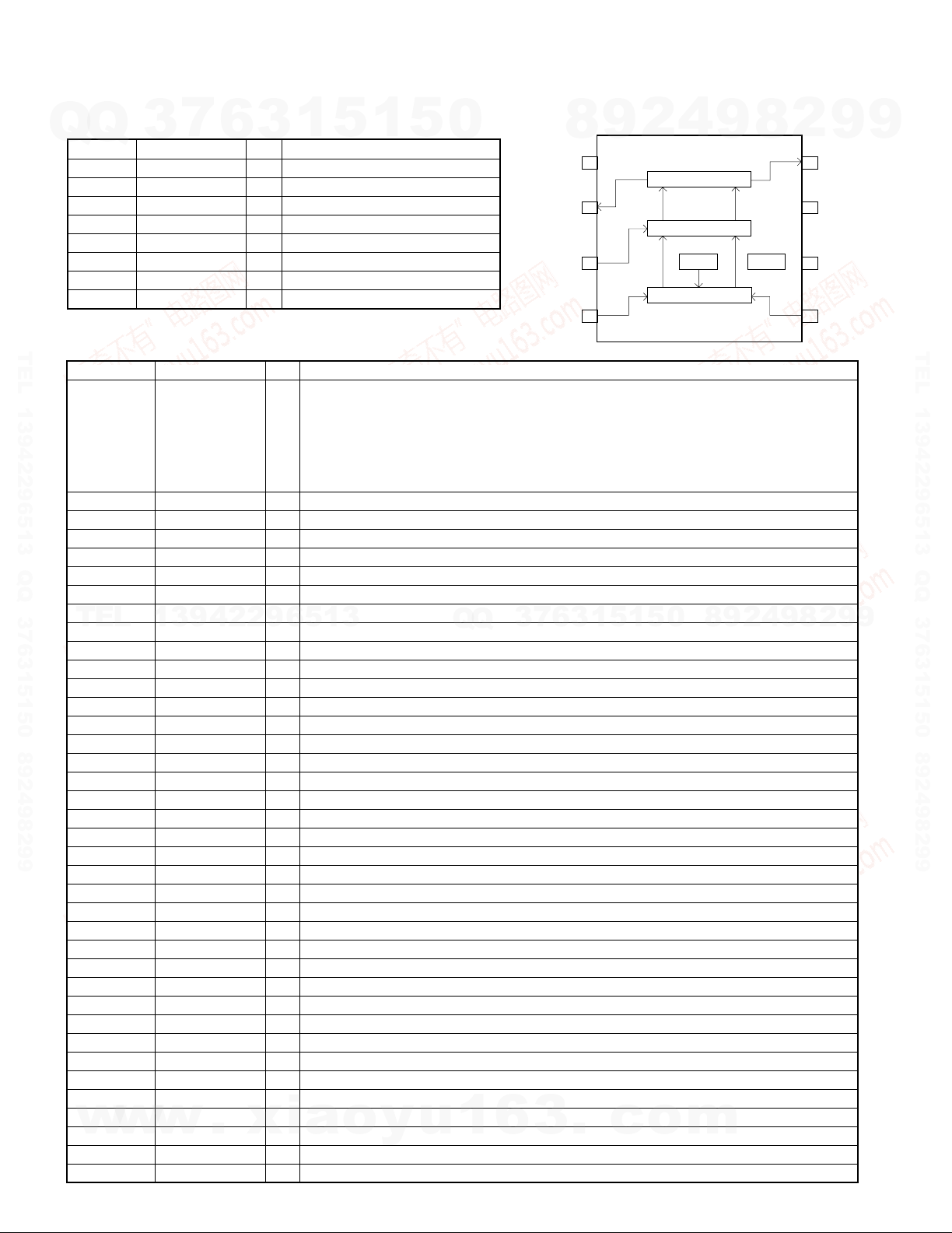

4. Pin Description of IC's

4-1 64 Bit SDRAM : HY57V641620HGT (DVD & VIDEO IC63)

4-2 HEX Inverter (Single Stage) : M74HCU04 (DVD & VIDEO IC67)

Truth Table

4-3 Video Driver : MM1540AF (DVD & VIDEO, IC68)

TEL 13942296513 QQ 376315150 892498299

DVR-8100

CIRCUIT DESCRIPTION

Pin No. Pin Name I/O Pin Description

1,3,5,7,9,11,

13,31,32,34,

36,38,40,42, NC - Unused.

44,46,48,49,

51,53,55,57,

59,61,64

2 VC1IN I Input of C signal for S-video terminal (unused).

4 NFBCG - Negative feed-back pin of amplifier (unused).

6 VC2IN I Input of C signal from video driver.

8 VC3IN I Input of C signal for S-video 1 terminal.

10 VC4IN I Input of C signal for S-video 2 terminal.

12 VC5IN I Input of C signal for video (unused).

14 VC6IN I Unused.

15 GND2 - GND

16 MUTE - Mute time constant changing pin.

17~19 MUTE(3~1) - Switching pin of mute.

20 CTL 3 I Video switch control 3 input.

21 CTL 2 I Video switch control 2 input.

22 CTL 1 I Video switch control 1 input.

23 VC02 O Output of C signal for monitor output.

24 VC01 O Rec output of C signal for S-video 1terminal.

25 -VCC - Negative power supply.

26 VB02 O Output of Y signal for monitor output.

27 VB01 O Rec output of Y signal for video 1.

28 -VCC - Negative power supply.

29 VA02 O Monitor output to video 2.

30 VA01 O REC output to video 1.

33 VCC - Positive power supply.

35 VA6 I Unused.

37 NFB(G) - Negative feed-back pin of amplifier (unused).

39 VA5 IN I Input of video signal (unused).

41 VA4 IN I Input of video signal for video 2.

43 VA3 IN I Input of video signal for video 1.

45 VA2 IN I Input of CY signal from video driver.

47 VA1 I Input of video signal for composite (unused).

50 VB1IN I Input of Y signal for S-video terminal (unused).

52 NFBBG - Negative feed-back pin of amplifier (unused).

54 VB2 IN I Input of Y signal from video driver.

56 VB3 IN I Input of Y signal for S-video 1terminal.

58 VB4 IN I Input of Y signal for S-video 2 terminal.

60 VB5 IN I Input of Y signal for video (unused).

62 VB6 IN I Unused.

63 VCC4 - Positive power supply.

Pin No. Pin Name I/O Pin Description

1 GND - Ground

2 VO1 O Output 1

3 VCTL I Motor speed control

4 VIN1 I Input 1

5 VIN2 I Input 2

6 SVCC - Supply voltage (Signal)

7 PVCC - Supply voltage (Power)

8 VO2 O Output 2

4-4 DC Motor Driver : FAN8082(DVD & VIDEO IC69) Internal Block Diagram

BIAS

8 V02

7 PVCC

6 SVCC

5 VIN2

1GND

2VO1

3VCTL

4VIN1

TSD

LOGIC SWITCH

PRE DRIVER

DRIVER OUT

4-5 S-Video & Video Selector : LA79510E (DVD & VIDEO, IC70)

TEL 13942296513 QQ 376315150 892498299

Otros manuales para DVR-8100

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Receptor de Kenwood

Kenwood

Kenwood KIV-700 Manual de usuario

Kenwood

Kenwood R-600 Manual de usuario

Kenwood

Kenwood KRF-V5050D Manual de usuario

Kenwood

Kenwood KMM- BT508DAB Manual de usuario

Kenwood

Kenwood KRF-V6080D Guía de inicio rápido

Kenwood

Kenwood DT-7000S - Sirius Satellite Radio Tuner Manual de usuario

Kenwood

Kenwood KRF-V5090D Manual de usuario

Kenwood

Kenwood TS-950S Digital Manual de referencia

Kenwood

Kenwood KRF-V6060D Manual de usuario

Kenwood

Kenwood SMB 2700 Manual de usuario

Kenwood

Kenwood VR-4090 Manual de usuario

Kenwood

Kenwood VRS-N8100 - AV / Digital Multimedia Receiver Manual de usuario

Kenwood

Kenwood VR 3080 - Dolby Digital Receiver Manual de usuario

Kenwood

Kenwood NX-5000 series Manual

Kenwood

Kenwood IR-9991 Manual de usuario

Kenwood

Kenwood KMR-M506DAB Manual de usuario

Kenwood

Kenwood R-5000 Manual de usuario

Kenwood

Kenwood KRF-X9992D Manual de usuario

Kenwood

Kenwood KMM-BT38 Manual de usuario

Kenwood

Kenwood KR-200HT Manual de usuario

Kenwood

Kenwood R-1000 Manual de usuario

Kenwood

Kenwood Pandora KMM-BT303 Manual de usuario

Kenwood

Kenwood R-600 Manual de usuario

Kenwood

Kenwood AR-404 Manual de usuario

Manuales populares de Receptor de otras marcas

Garmin

Garmin GA 23 Manual de usuario

Aiphone

Aiphone PS-12F Manual de usuario

IMES

IMES TCS-01CA-PMI Manual de usuario

BWI Eagle

BWI Eagle AIR-EAGLE SR Manual

AMIMON

AMIMON AMN12310 WHDI Manual de usuario

Dual

Dual DMCPA79BT Instrucciones de funcionamiento

Sound Associates

Sound Associates SA652P Manual de usuario

Sherwood

Sherwood NewCastle R-772 Manual de usuario

Audio

Audio A10-RX Series Manual de usuario

AllSee

AllSee PushShare PSRV1.1 Manual de usuario

DEMAG

DEMAG DRC-DR D2 Manual de usuario

Teleco

Teleco TVRCL868A02 Manual de usuario

Bosch

Bosch RF3222E Manual de usuario

Kramer

Kramer 631R Manual de usuario

Xpress

Xpress xmc10 Manual de usuario

JVC

JVC KD-MR1BTS Manual de usuario

Omega Engineering

Omega Engineering UWTC-REC3 Manual de usuario

e-survey

e-survey E300 Pro Manual de usuario
