SERVICE MANUAL

This product uses Lead Free solder.

This product complies with the RoHS directive for the European market.

B51-8845-00 (N)1229

KMC-45

SPEAKER MICROPHONE

SPECIFICATIONS

■KMC-45 (J type / W type)

Microphone

Impedance .............................................................................................2.2kΩ(MAX)

Sensitivity....................................................................................–42dB±3dB at 1kHz

Speaker

Impedance ......................................................................................8Ω±15% at 1kHz

Rating input........................................................................................................0.8W

Maximum input..................................................................................................2.0W

Dimensions (W x H x D) ..................62.3 x 72.6 x 35.8 mm (2.45 x 2.86 x 1.41 inches)

Weight...........................................................................................Approx. 155g / 6.0oz

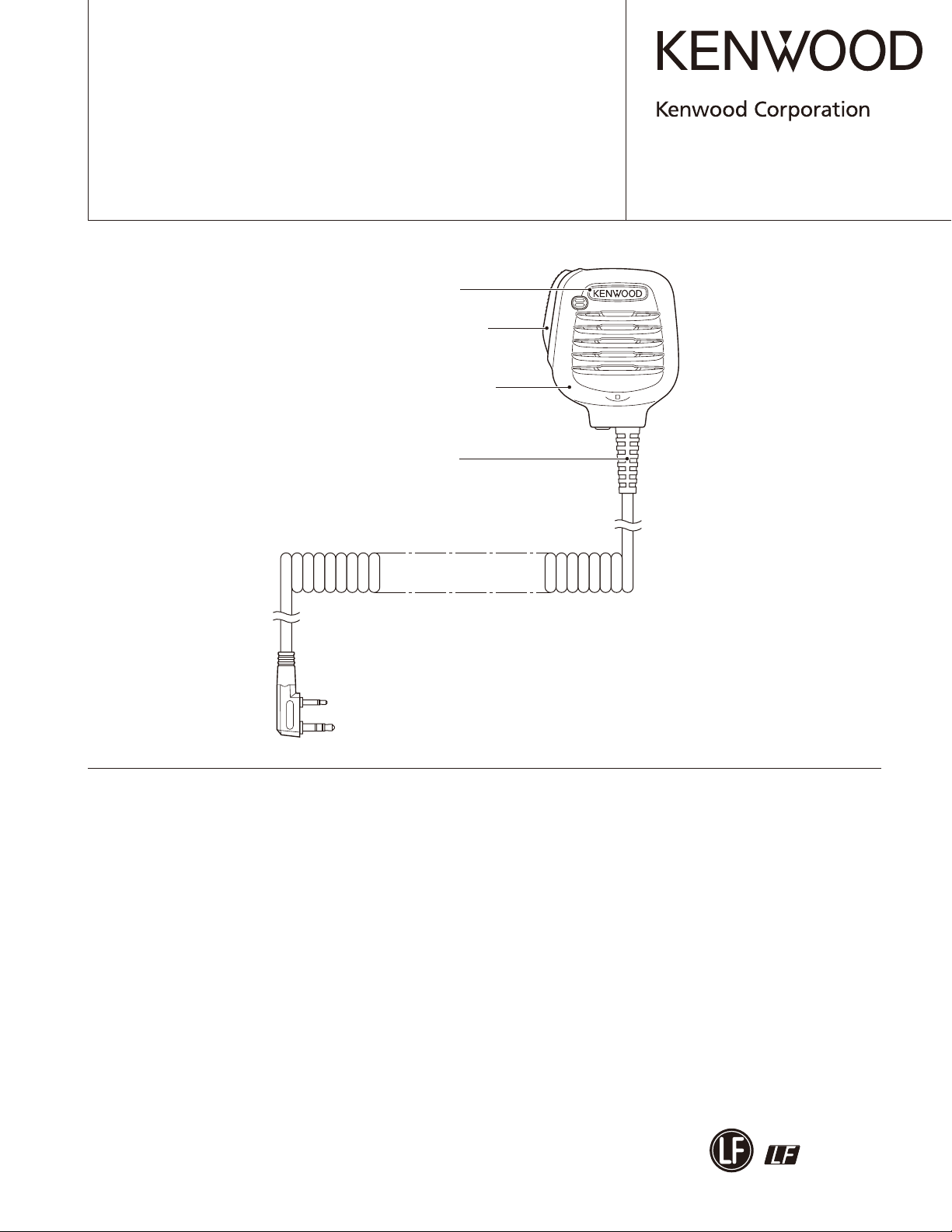

Plastic cabinet assy

(A02-4044-13)

Curl cord

(E30-7656-05)

Button knob (PTT)

(K29-9423-03)

Badge

(B43-1621-04)

KMC-45

Document Copyrights

served.

No part of this manual may be reproduced, translated,

distributed, or transmitted in any form or by any means,

electronic, mechanical, photocopying, recording, or other-

wise, for any purpose without the prior written permission

of Kenwood.

Disclaimer

While every precaution has been taken in the preparation

of this manual, Kenwood assumes no responsibility for er-

rors or omissions. Neither is any liability assumed for dam-

ages resulting from the use of the information contained

herein. Kenwood reserves the right to make changes to any

products herein at any time for improvement purposes.

KMC-45 (Y58-4060-XX) -01: J -60: W

Ref. No. Address New

parts Parts No. Description Destination

KMC-45

12A

✽A02-4044-13 PLASTIC CABINET ASSY

21B

✽A02-4045-03 PLASTIC CABINET ASSY (WITH CLIP)

42A

✽B09-0729-03 CAP

83B

✽E30-7656-05 CURL CORD

10 2A ✽G13-2263-04 CUSHION (SPEAKER)

11 2A G53-1699-04 PACKING (CURL CORD)

12 1B ✽G53-1795-03 PACKING (CASE)

13 2A ✽G53-1796-03 PACKING (PTT)

14 2A ✽G53-1797-03 PACKING (SP/MIC)

15 2A ✽G53-1812-03 PACKING (EARPHONE)

17 1B ✽J19-5516-03 HOLDER (MIC)

19 2A ✽K29-9423-03 BUTTON KNOB (PTT)

A1B✽N09-6580-05 TAPTITE SCREW

21 2A ✽T07-0780-05 SPEAKER

22 2A ✽T91-0659-05 MIC ELEMENT

AF UNIT (X49-3190-60)

C1,2 CK73GB1H471K CHIP C 470PF K

C4 CK73GB1C683K CHIP C 0.068UF K

C5 CK73GB1C473K CHIP C 0.047UF K

J1 ✽E11-0715-05 2.5D PHONE JACK

R1 RK73GB2A182J CHIP R 1.8K J 1/10W

R2 RK73GB2A000J CHIP R 0.0 J 1/10W

S1 ✽S70-0512-05 TACT SWITCH

PARTS LIST

KMC-45

EXPLODED VIEW

700

Ax2

A : N09-6580-05

AF unit

Parts with the exploded numbers larger than 700 are not supplied.

KMC-45

2967-3, Ishikawa-machi, Hachioji-shi, Tokyo, 192-8525 Japan

P.O. BOX 22745, 2201 East Dominguez Street, Long Beach,

6070 Kestrel Road, Mississauga, Ontario, Canada L5T 1S8

Rembrücker Str. 15, 63150 Heusenstamm, Germany

Leuvensesteenweg 248 J, 1800 Vilvoorde, Belgium

KENWOOD House, Dwight Road, Watford, Herts.,

Amsterdamseweg 37, 1422 AC Uithoorn, The Netherlands

Via G. Sirtori, 7/9 20129 Milano, Italy

Bolivia, 239-08020 Barcelona, Spain

(A.C.N. 001 499 074)

16 Giffnock Avenue, Centrecourt Estate, North Ryde, N.S.W. 2113 Australia

Unit 3712-3724, Level 37, Tower one Metroplaza, 223 Hing Fong Road,

1 Ang Mo Kio Street 63, Singapore 569110

CA 90801-5745, U.S.A.

Kwai Fong, N.T., Hong Kong

WD18 9EB United Kingdom

L’Etoile Paris Nord 2, 50 Allée des Impressionnistes,

Bp 58416 Villepinte, 95944 Roissy Ch De Gaulle Cedex
