POWER AMPLIFIER

KAC-PS621

KAC-X621

SERVICE MANUAL

VOLTFAN

CURRTEMP

POWER IN RESET LINE IN LINE OUTREMOTETO H/UID NUMBER

Screw set

(N99-1752-05)

Screw set

(N99-1577-15)

Heat sink

(F01-1752-01)

Accessory

(W01-1606-05)

Cover

(F07-1140-12): KAC-X621

(F07-1141-12): KAC-PS621

Screw

(N07-0003-08) Screw

(N09-4214-08)

Fuse (25A)

(F52-0014-05)

KAC-PS621/X621

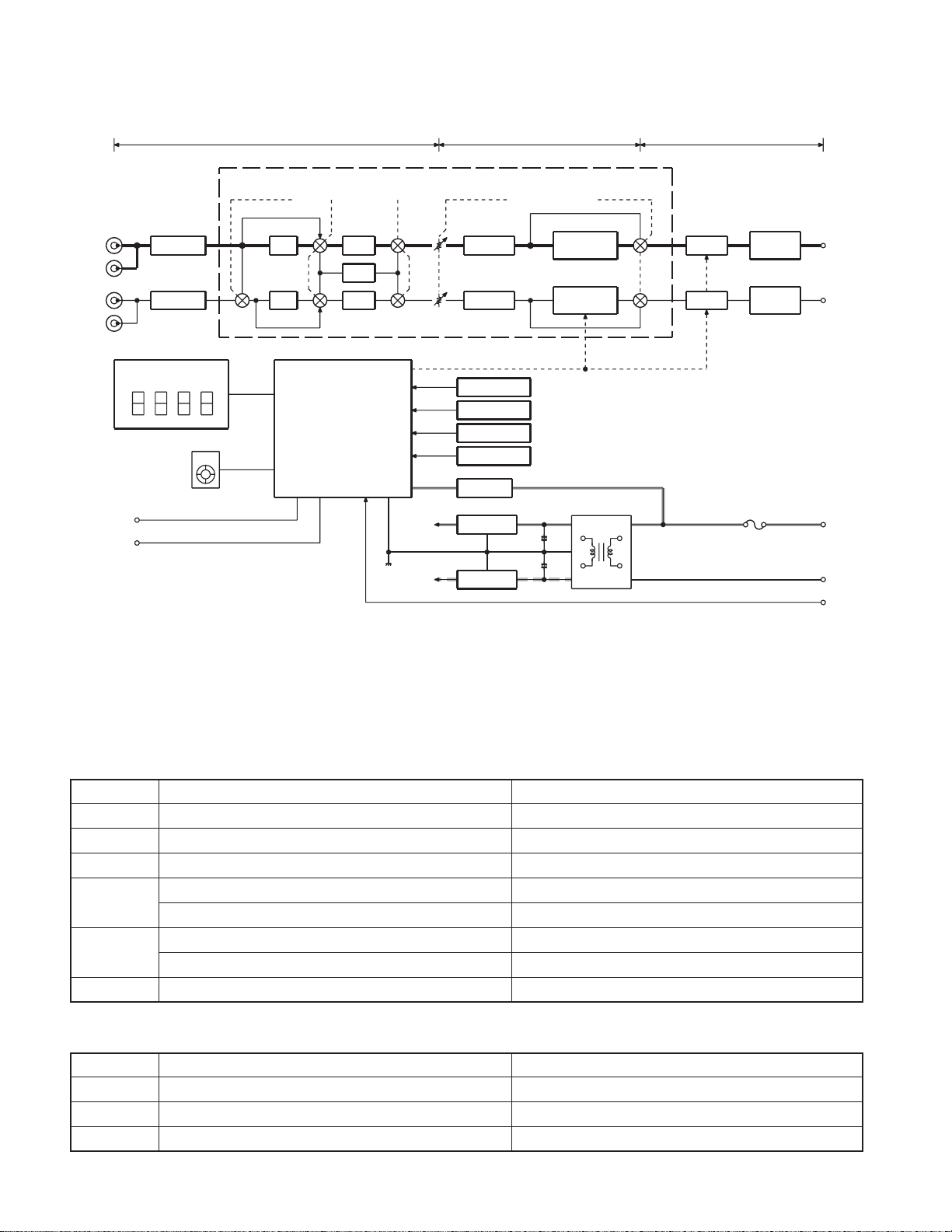

BLOCK DIAGRAM

●PREAMPLIFIER UNIT (X08-4150-10)

Ref. No Application / Function Operation / Condition / Compatibility

IC1 Infrasonic filter

IC3 Tone and volume variable Controlled by microprocessor

IC4 6dB voltage amplification

IC5 HPF

LPF

IC6 Lch : 6dB voltage amplification

Rch : Signal 180 reverse and 6dB voltage amplification

IC7 LCD driver Controlled by microprocessor

●AUDIO UNIT (X09-5770-10)

Ref. No Application / Function Operation / Condition / Compatibility

IC1 Buffer

IC2 DC/DC converter

IC3 AMP communication buffer

COMPONENTS DESCRIPTION

IC1,10

ISO AMP

ISO AMP ISF

ISF HPF

HPF BUFFER

BUFFER

LPF

CONTROL

MUTE

AMP

CONTROL

AMP

POWER

AMP

POWER

AMP

IC1 IC5 IC4,6 IC3 Q101 Q107-135

OUT

OPERATION IFS FILTER SENSITIVITY AMP CONT

OUT-R

OUT-L

H/U COM

AMP COM

IC6

O.C. PROTE.

D.C. PROTE.

T.M. PROTE.

O.V. PROTE.

5V AVR

+15V AVR

-15V AVR

BATT

GND

P-CON

Q66

u-COM

Q61

Q62

FAN

DISP.

MO/ST ON/OFF HPF/OFF/LPF 5V-0.2V ON/OFF

6dB 12dB 24dB

DC/DC CONV.

KAC-PS621/X621

Ref. No Application / Function Operation / Condition / Compatibility

IC5 H/U communication buffer

IC6 Microprocessor

IC7 Reset IC

IC9 Current detection

IC10 Isolation amplifier

Q50 5V AVR

Q51~54 DC/DC output driver

Q55~60 DC/DC drive (Final)

Q61 +15V AVR

Q62,63 -15V AVR

Q64,65 DC/DC converter (IC2) ON/OFF Controlled by microprocessor

Q66,68 5V AVR

Q69 5V AVR ON/OFF

Q70,71 P-CON control

Q81 +15V AVR (Constant current)

Q91,92 DC/DC control

Q97 AMP communication stability power supply

Q101,102 Mute

Q103~112 A class first stage amplifier

Q113~118 A class 2nd stage amplifier

Q119,120 Final temperature compensation

Q121~124 Amplifier current detection (Current limiter)

Q125~132 Final driver

Q133~140 Final

Q141 Mute control

Q142~145 Shock noise prevention

Q146,147 AMP current detection

Q148,149 DC detection

Q249,250,263

ATT control Synchronized with temperature detection

Q301~307 H/U communication output driver

Q310 H/U communication ON/OFF

Q313 H/U communication output driver

Q341~344 H/U communication input driver

Q346 H/U communication output driver

Q347~349 AMP and H/U communication ON/OFF control

Q351,352 BATT voltage output

Q353~358 Fan stability power supply

Q403 LCD backlight LED control

Q404 LED control

Q601,602 DC/DC drive (Final)

COMPONENTS DESCRIPTION

KAC-PS621/X621

AMP_SCL LX_REQ_M

LX_REQ_S

LX_DATA_M

LX_DATA_S

LX_CLK

LX_RST

HU_BU

AD-I

AD-V

TEMP1

TEMP2

TEMP3

TEMP4

TEMP5

TEMP6

COMM-SW

D-PWER

POWER-ON

5VSW

V_DOWN

PCON

LX_CON

L_DATA_L

L_DATA_A

L_CLK

L_CE

FAN1

FAN2

AMP_SDA

AUDIO_SCL

AUDIO_SDA

AUDIO_MUTE

E2P_SCL

E2P_SDA

LCD-ILL

WHITE-LED

MUTE1

MUTE2

DIP-SW1

DIP-SW2

DIP-SW3

DIP-SW4

MODEL1

MODEL2

DC-DET

D-CUR

AB-CUR

ATT1

ATT2

ATT3

AMP µ-com

784224YGC117

Audio control

AMP communication I/F LX BUS I/F

Display data monitor

Power supply control

LCD driver I/F

Fan control

Destination, AMP ID

Protection control

Illumination control

Mute control

E2PROM I2C

communication

●MICROPROCESSOR : 784224YGC117 (X09 : IC6)

◊Block Digram

◊Terminal Function

Pin No. Pin Name I/O Function Processing Operation Description

1~3 TEMP4~TEMP6 I Temperature detection 4~6

4AVSS - GND

5L_CE O CE output to LCD driver H : LCD driver CE

6 LX_REQ_S O Data transmit request to H/U H : OFF, L : ON

7AVREF1 - DA reference voltage

8L_DATA_L I Data input from LCD driver

9L_DATA_A O Data output to LCD driver

10 L_CLK O CLK output to LCD driver

11 LX_DATA_M I Data input from H/U

12 LX_DATA_S O Data output to H/U

13 LX_CLK I CLK input from H/U

14 LX_BU I LX BUS communication, H/U connect detection H : Not connect (Except master amplifier), L : Connect

15 NC O Not used

16 SDA_AMP I/O Data input/output AMP communication

17 NC O Not used

MICROCOMPUTER’STERMINAL DESCRIPTION

KAC-PS621/X621

Pin No. Pin Name I/O Function Processing Operation Description

18 SCL_AMP I/O CLK input/output AMP communication

19 AUDIO_SCL I/O CLK input/output with audio chip

20 AUDIO_SDA I/O Data input/output with audio chip

21 AUDIO_MUTE O Mute output to audio chip H : Mute OFF, L : Mute ON

22 E2P_SCL I/O CLK input/output with E2PROM

23 E2P_SDA I/O Data input/output with E2PROM

24 NC O Not used

25~28

DIP-SW1~DIP-SW4

IAMP address setting

29 MODEL1 I Model setting 1

30 MODEL2 I Model setting 2

31,32 NC O Not used

33 VSS1 - GND

34~37 NC O Not used

38 LCD-ILL O LCD backlight switch H : ON, L : OFF

39 WHITE-LED O Triangle illumination switch H : ON, L : OFF

40 NC O Not used

41~43 ATT1~ATT3 O Output attenuate due to rise in temperature 1~3 H : Attenuate, L : Not attenuate

44,45 NC O Not used

46 COMM-SW O Communication IC power switch H : ON, L : OFF

47~50 NC O Not used

51 D-PWER O D class amplifier power supply control H : ON, L : OFF (2ch/4ch L fixed)

52 DC-DET I Speaker output DC voltage detection H : Normal, L : Abnormal

53 NC O Not used

54 POWER-ON O Amplifier power supply control H : ON (D/AB class), L : OFF

55 5VSW O 5VSW H : OFF, L : ON

56 MUTE1 O Amplifier section input stage mute control H :OFF, L :ON

57 MUTE2 O Driver stage pop-noise mute control H : OFF, L : ON

58 FAN1 O Fan rotation control H : Operate, L :Stop

59 FAN2 O Fan speed control H : Low speed, L :High speed

60 RESET - Hard reset H : Normal, L : Reset

61 PCON I Amplifier power control H : OFF, L : ON

62 LX_CON I LX-BUS communication control H : OFF, L : ON

63 LX_REQ_M I Data receive request from H/U H : ON, L : OFF

64 NC O Not used

65 V_DOWN I Momentary power down detection H : ON (Power down detection), L : OFF (L fixed)

66 NC O Not used

67 VSS0 - GND

68 VD1 - VDD

69 X2 - Main clock input 1

70 X1 - Main clock input 2

MICROCOMPUTER’STERMINAL DESCRIPTION

KAC-PS621/X621

◊LogicTable

1) Destination

The destination in AMP does not mean the sales regions but

specific models.

The following are the models. When reset is released, it is

checked only once.

Model name MODEL1 (29pin) MODEL2 (30pin)

KAC-PS811D/X811D Low Low

KAC-PS521/X521 Low High

KAC-PS621/X621 High Low

KAC-PS541/X541 High High

Pin No. Pin Name I/O Function Processing Operation Description

71 TEST - Flash ROM writing

72 XT2 - Not used

73 XT1 - Not used

74 VDD0 - VDD

75 AVDD - VDD

76 AD-I I First current detection (for display)

77 AD-V I BU voltage detection (for display)

78~80 TEMP1~TEMP3 I Temperature detection 1~3

MICROCOMPUTER’STERMINAL DESCRIPTION

2) AMP ID

AMP ID is checked only ohce at the time reset is released or

when the microcomputer is released from the low consump-

tion mode.

When set to AMP ID 8/9 no remote control is possible.

AMP ID DIP-SW1 DIP-SW2 DIP-SW3 DIP-SW4

(25pin) (26pin) (27pin) (28pin)

0High High High High

1Low High High High

2High Low High High

3Low Low High High

4High High Low High

5Low High Low High

6High Low Low High

7Low Low Low High

8High High High Low

9Low High High Low

3) Fan speed

Operation FAN1 (58pin) FAN2 (59pin)

Stop Low High/Low

Low speed High High

High speed High Low

KAC-PS621/X621

CIRCUIT DESCRIPTION

AD-I

D309 (2/2)

IC9 (1/2)

IC9

AMP RECT

MPU AD-PORT

OUTPUT VOLTAGE

DETECTION

LEVEL

10u35

270

10K

15K

0.01 0.01

10K 1

13K
