Kensington SD4782P USB-C & USB-A Dual 4K Docking Station

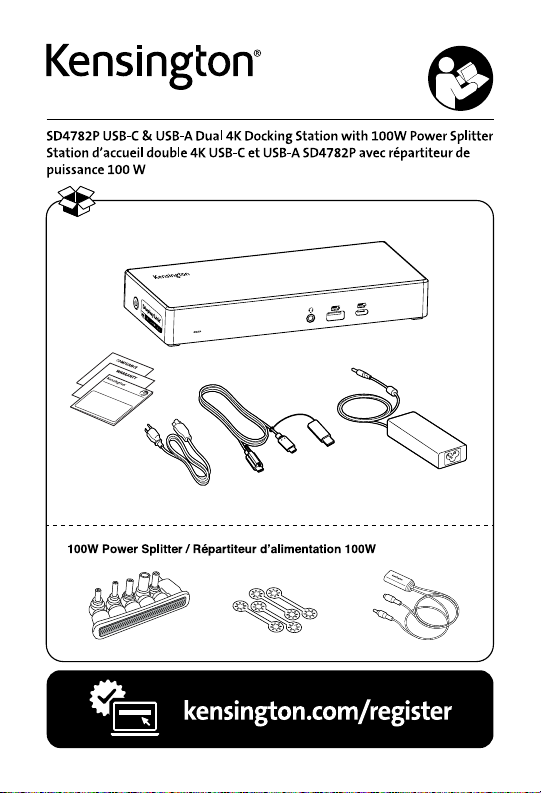

Inside the Box.

SD4782P USB-C & USB-A Dual 4K Docking Station

One USB-C 3.2 Gen2 Cable with Screw Lock and USB-A Adapter

One 170W Power Supply Unit

One NA Power Cord

One Quick Installation Guide

One Compliance Sheet

One Warranty Card

One Welcome Card

One 100W Power Splitter

Six Power Tip Adapters (retention rings included)

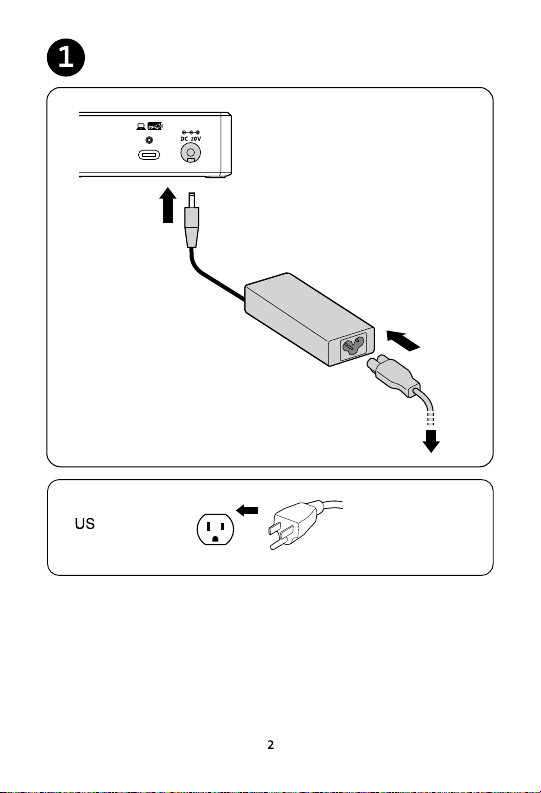

1. Connect the power adapter to the DC 20V port on the back of the dock.

Connect the power cable to the power adapter.

Plug the power cable into a wall outlet.

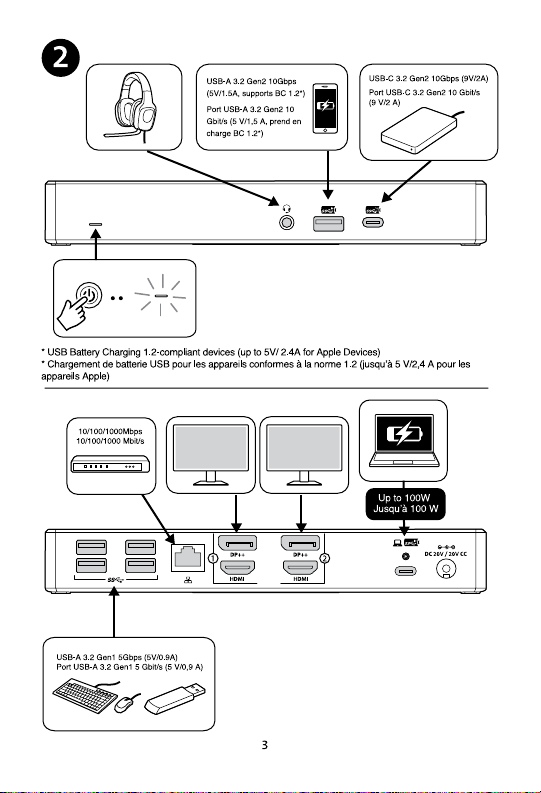

2. Front of the dock from left to right:

One LED light for indicating the docking station is powered on.

One combo audio jack appropriate for headsets.

One USB-A 3.2 Gen2 10Gbps (5V/1.5A) port appropriate charging smartphones.

One USB-C 3.2 Gen2 10Gbps (5V/3A) port appropriate for connecting external hard drives.

Back of the dock from left to right:

Four USB-A 3.2 Gen1 5Gbps (5V/0.9A) ports appropriate for connecting mice, keyboards, and thumbdrives.

One 1Gbps Ethernet port for stable high-speed internet/intranet connectivity.

Two DP++ ports to support external monitors.

Two HDMI ports to support external monitors.

One USB-C host port that will support up to 100W power delivery to the host laptop.

This port is compatible with USB-C screw lock connectors.

One DC 20V port.

Side of the dock closest to DC20V port:

One power button to turn your dock on and off as needed.

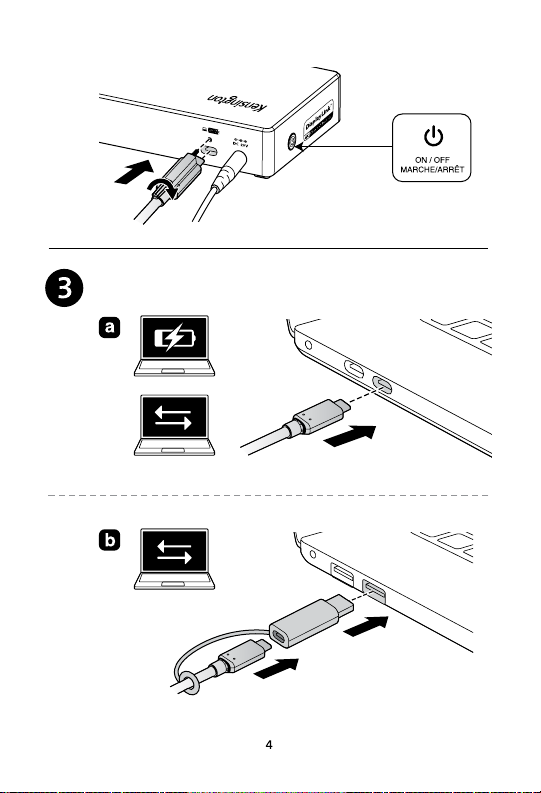

Connect the end of the USB-C host cable with the screw lock connector to the USB-C host port on the back of the

dock. Twist the screw lock connector to the right to align it with the lock slot on the dock.

3a. For USB-C host, connect the end of the USB-C cable without the screw lock connector to a USB-C port on the host laptop.

3b. For USB-A, connect the USB-A adapter that is attached to the USB-C cable to the USB-A port on the host laptop. Then connect the USB-C cable to the USB-A adapter.

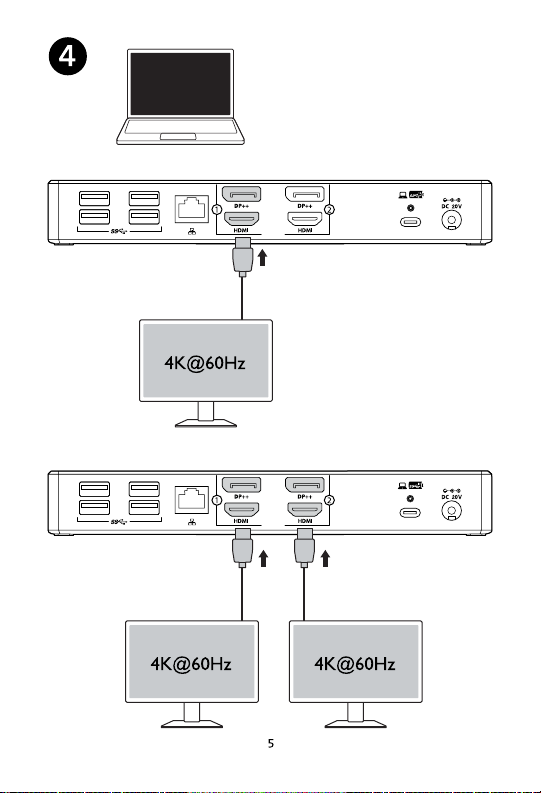

4. Video speciﬁcations.

For Single 4K @ 60Hz, connect to one DP++ port or one HDMI port.

For Dual 4K @ 60Hz, use any combination of the DP++ and HDMI ports.

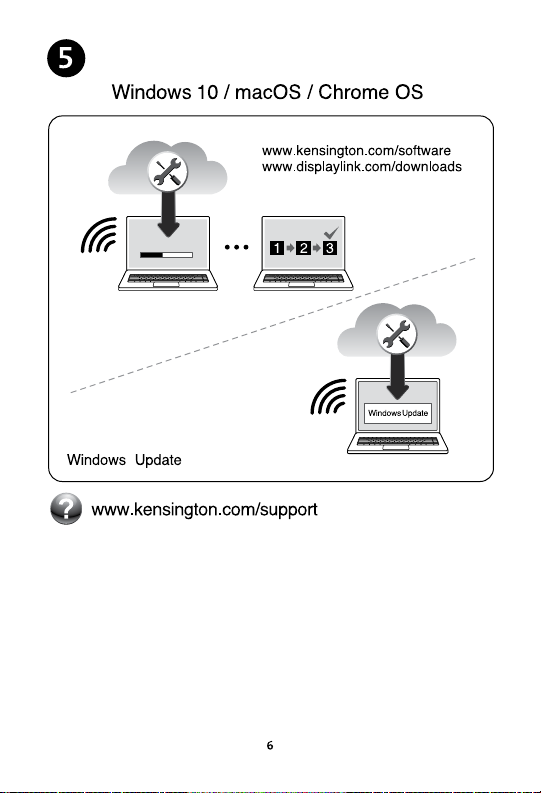

5. Windows 10 / macOS / Chrome OS

Visit www.kensington.com/software to download the optional Kensington DockWorks™ software.

Visit www.displaylink.com/downloads to download the DisplayLink driver required for this dock.

Follow the onscreen prompts to complete installations.

Visit kensington.com/support if you have any questions about installation.

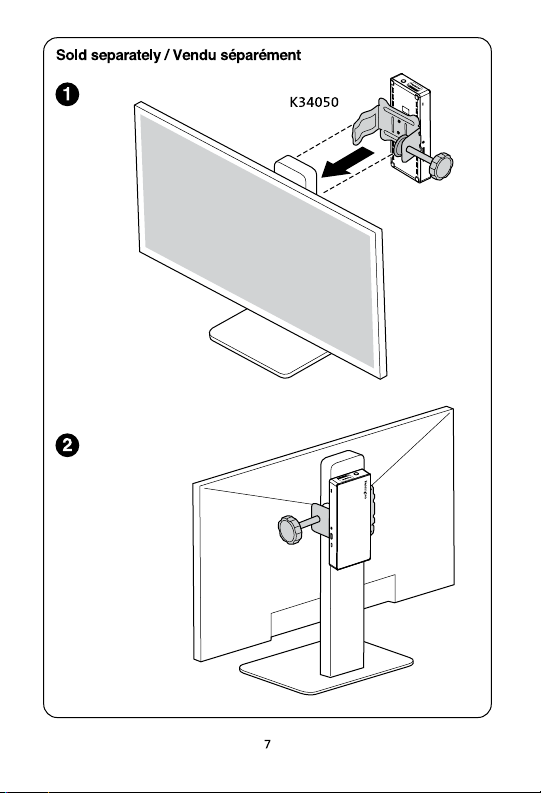

Mount docking station to the back of a monitor stand.

Sold separately: K34050 mounting bracket.

1. Attach the mounting bracket to the back of the monitor stand.

2. Attach the dock to the mounting bracket.

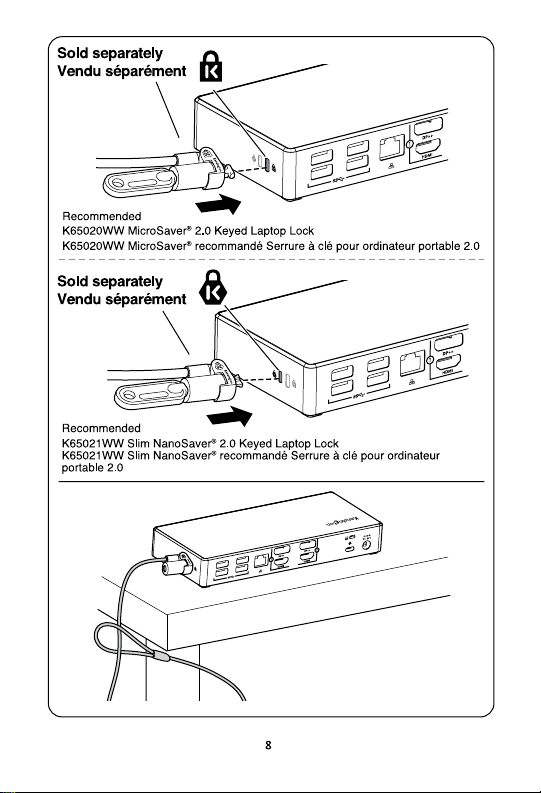

Secure docking station with a Kensington cable lock.

Sold separately: Recommended K65020WW MicroSaver® 2.0 Keyed Laptop Lock. Attach the lock using the standard lock slot noted with a square shaped K icon on the side of the docking station.

Sold separately: Recommended K65021WW Slim NanoSaver® 2.0 Keyed Laptop Lock.

Attach the lock using the nano lock slot noted with a hexagon shaped K icon on the side of the docking station.

Attach the cable of the lock to any ﬁxed location such as a table leg.

Power Splitter

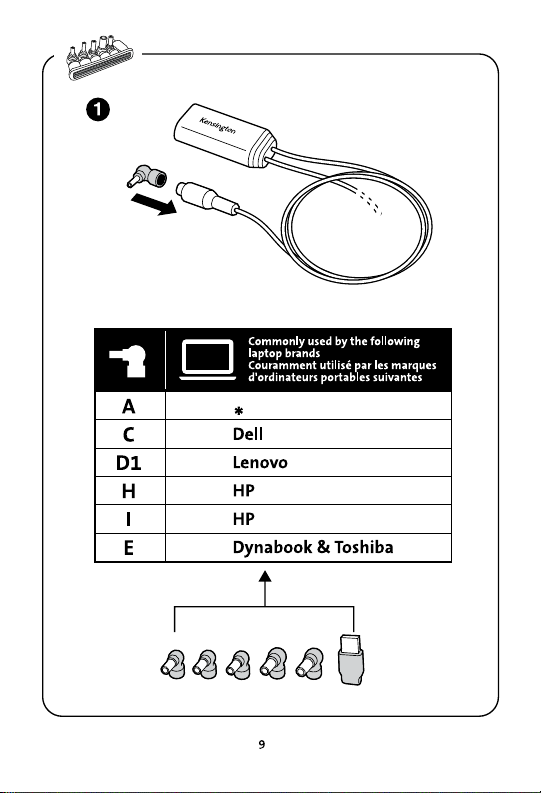

1. Attach the appropriate power tip adapter for your host device.

A Commonly used by most notebooks.

C Commonly used by Dell.

D1 Commonly used by Lenovo.

H Commonly used by HP.

I Commonly used by HP.

E Commonly used by DynaBook & Toshiba.

Use the included retention rings to tether additional power tip adapters to the cable to accommodate shared workspaces or mixed deployments.

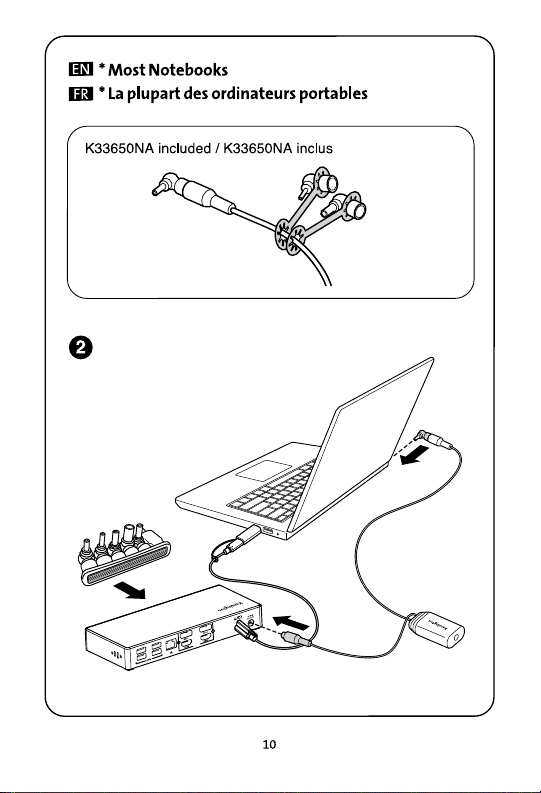

2. Connect the splitter's power tip to the host laptop and connect the splitter's power plug cable to the DC 20V port on the back of the dock.
