MODEL 660A DIFFERENTIAL VOLTMETER CONTENTS

TABLE OF CONTENTS

Section Page

1. GENERALDESCRIPTION ........ 1

1-1. Description ......... 1

1-2. Operating Modes ....... 1

l-3. Applications ........ 1

l-4. Specifications ....... 2

1-5. Accessories ......... 3

1-6. Equipment Shipped ... ... 3

2. OPERATION. ............ 5

2-l.

2-2.

2-3.

2-4.

2-5.

2-6.

2-7.

2-8.

2-9.

Front Panel Controls

and Terminals . . . . . . . 5

Rear Controls and

Terminals . . . . . . . . . 5

Preliminary Procedures . . 6

Operating Procedures . . . . 6

Recorder Output . . . . . . . 8

Effects Due to Kelvin-

Varley Divider Out-

put Resistance . . . . . . . 9

Loading and Off-Null

Resistance . . . . . . . . . 9

Thermal EMF Precau-

tions . . . . . , . . . . .lO

AC Effects on Measurement . .lO

3. APPLICATIONS . . . . . . . . . .lL

3-1. Procedures for Measuring

Resistances . , . . . . .

.lL

3-2. Theory of Measuring Resis-

tances . . . . . I . . . . .ll

4. CIRCUIT DESCRIPTION . . . . . . . .13

4-l. General . . . . , . . . . .13

4-2. Reference Voltage Supply . .13

4-3. Kelvin-Varley Divider . . . .14

4-4. Null Detector . . . . . . . .14

4-5. Guarding . . . . . , . .15

5. SERVICING . . . . . . . . . . . .17

5-l. General . , . . . . . .17

5-2. Servicing Schedule . . , . .17

5-3. Parts Replacement . . . , . .17

5-4. Troubleshooting . . . , . .L7

Section Page

6. CALIBRATION . . . . . . . . . 21

6-l. General . . . . . . . . . . 21

6-2. Calibration Schedule . . . 22

6-3. Kelvin-Varley Divider

Verification . . . . . . . 22

6-4. Range Calibration , . . . . 23

6-5. Reference Voltage Supply

Stability Test . . . . . . 25

6-6. Oscillator Adjustment . . . 27

ACCESSORIES , . . . . . , . . . . 35

7-L. Model 660LA High Voltage

Divider . , . . . . , , . 35

7-2. Rack Mounting . . . . . . . 35

7-3. Placing in Rack . . . . . 36

REPLACEABLE PARTS , . . . . . . : 37

5-5. Adjusting Hum Bal Control . 19

5-6. Zener Diode Replacement . . 19

5-7. Meter Adjustment . . . . . 19

8-l. Replaceable Parts List . . 37

8-2. How to Order Parts . . . . 37

Model 660A Replaceable

Parts List . . . . . . . . 38

Model 6601A Replaceable

Parts List . . . . . . . . 44

Model 66OA Schematic Diagram

182693. . . . . . . . . . 47

Model 6601A Schematic Diagram

1632LB . . . . . . . . . 49

$0Change Notice

-'- Yellow Change Notice sheet is in-

cluded only for instrument modifi-

cations affecting the Instruction

Manual.

1065R

MODEL 660A DIFFERENTIAL VOLTMETER

SECTION 1. GENERAL DESCRIPTION

GENERAL DESCRIPTION

l-1. DESCRIPTION.

a. The Keithley Model 660A Guarded dc Differential Voltmeter is a convenient, self-

contained potentiometer. It measures from 100 millivolts to 500 volts with 0.02% limit

of error, and below 100 millivolts within 20 microvolts. Since the limit of error includes

all stability considerations, the unit need not be periodically calibrated or manually

restandardized for a full year. The 500-volt reference supply permits infinite impedance

at null for measurements from 0 to 500 volts.

b. Features for convenient use include: five in-line readout dials with automatically

lighted decimal points; 10 to 25-millivolt recorder output; input polarity switch; floating

operation up to 500 volts off chassis ground; line frequency rejection greater than 45 db.

Also, full guarding minimizes leakage problems.

L-2. OPERATING MODES, The Model 660A can be used as a potentiometer or as a conventional

vacuum tube voltmeter. As a potentiometer, it can measure from 100 millivolts full scale

to 500 volts with i-0.02% limit of error and from 100 microvolts full scale to LOO milli-

volts within 20 microvolts. As a VTVM, the Model 660A measures from 1 millivolt full

scale to 500 volts with an accuracy of -f3% of full scale. It can also measure resis-

tances from 10 megohms to 100,000 megohms within i-5%.

1-3. APPLICATIONS.

a. The Model 660A is used for measurements over a wide range. Typical applications in

the microvolt region are the matching of semiconductors and the monitoring of noise, tran-

sients and drift. High level voltage applications include power supply and meter calibra-

tion, and tube potential measurements.

FIGURE I.. Keithley Instruments Model 660A Guarded dc Differential Voltmeter.

1.065R 1

GENERALDESCRIPTION MODEL 660A DIFFERENTIAL VOLTMETER

Its Long-term stability makes the Model 660A useful in measurements of extended

duration. Measurements of Long-term power supply stability, Long-term drift runs, and

monitoring during environmental and reliability tests are possible uses.

c. The null-detector output permits use with potentiometric recorders and digital volt-

meters equipped with automatic print-out. The Model 660A is useful in quality control,

product development, inspection and production.

d. Floating operation to 500 volts is provided for measurements such as plate potential

differences of balanced amplifiers.

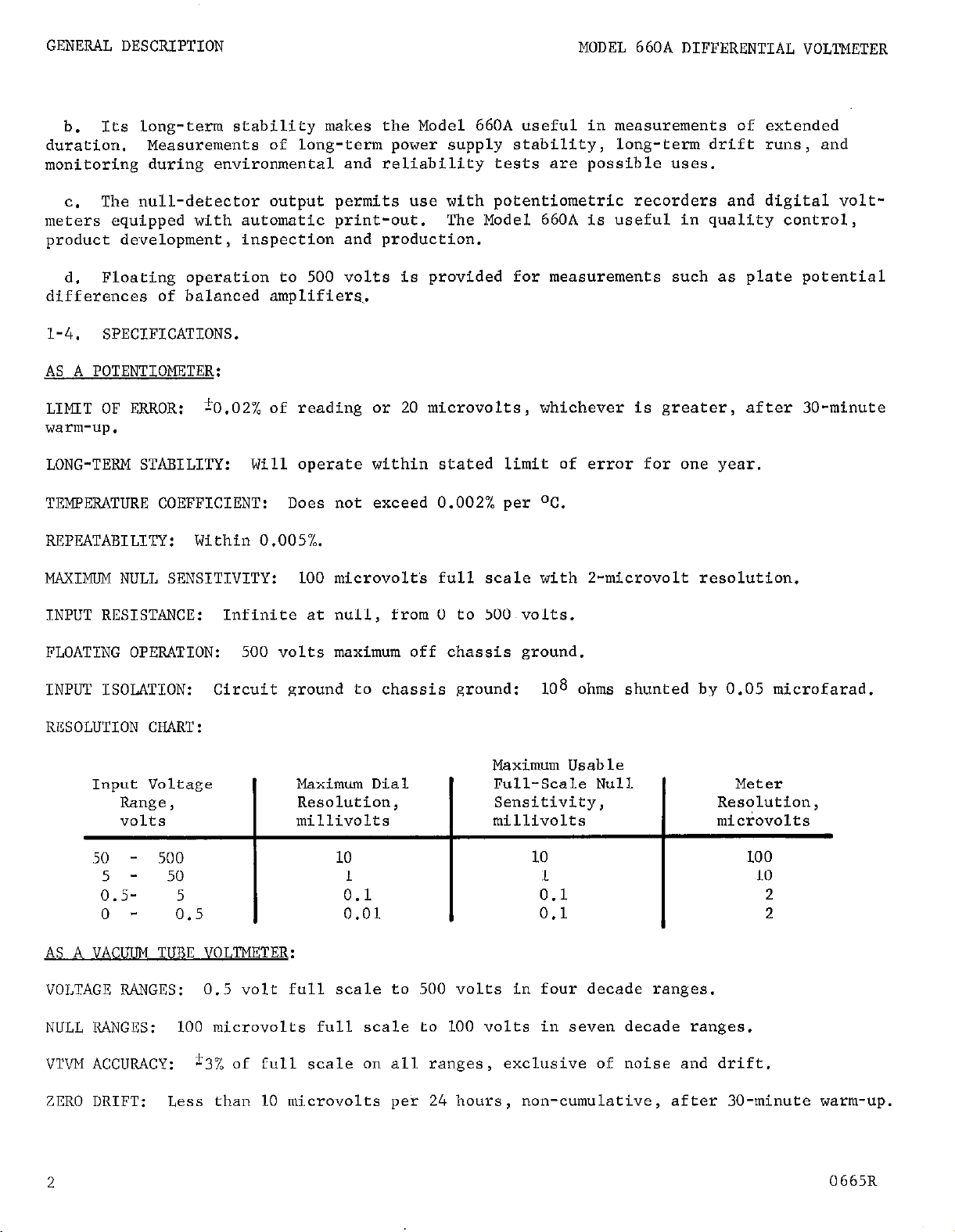

l-4. SPECIFICATIONS.

AS A POTENTIOMETER:

LIMIT OF ERROR: +0.02% of reading or 20 microvolts, whichever is greater, after 30-minute

warm-up.

LONG-TERM STABILITY: Will operate within stated Limit of error for one year.

TFXPERATURECOEFFICIENT: Does not exceed 0.002% per OC.

REPEATABILITY: Within 0.005%.

MAXIMUMNULL SENSITIVITY: LOO microvoltb full scale with 2-microvolt resolution.

INPUT RESISTANCE: Infinite at null, from 0 to 500,voLts.

FLOATING OPERATION: 500 volts maximum off chassis ground.

INPUT ISOLATION: Circuit ground to chassis ground: LOS ohms shunted by 0.05 microfarad.

RESOLUTION CHART:

Input Voltage

Range >

volts

50 - 500

5 - 50

0.5- 5

0 - 0.5

Maximum Dial

Resolution,

millivolts

Maximum Usable

Full-Scale Null

Sensitivity,

millivolts I

Meter

Resolution,

microvoLts

0.1

LOO

AS A VACUUMTUBE VOLTMETER:

VOLTAGE RANGES: 0.5 volt full

scale

to 500 volts in four decade ranges.

NULL RANGES: 100 microvolts full scale to 100 volts in seven decade ranges.

VTVM ACCURACY: t3% of full scale on all ranges, exclusive of noise and drift.

ZERO DRIFT: Less than 10 microvolts per 24 hours, non-cumulative, after 30-minute warm-up.

2 0665R

MODEL 660A DIFFERENTIAL VOLTMETER GENEPaL DESCRIPTION

INPUT RESISTANCE: 50 megohms, 0.5 to 500-volt ranges;

10 megohms, O.l-volt range;

1 megohm, 0.1 to lo-millivolt ranges.

LINE FREQUENCYREJECTION: Greater than 45 db.

GENERAL:

LINE STABILITY: Better than 5 ppm for 10% change in Line voltage.

RECORDEROUTPUT:

output: Adjustable 10 to 25 millivolts dc for full-scale meter deflection.

Output Resistance: 300 ohms maximum.

Noise: 2 microvolts peak-to-peak referred to input up to 1 cps.

Note: Recorder used must have fully isolated input, 1010 ohms minimum to ground.

POLARITY: Positive or negative, selectable by switch.

CONNECTORS: Input: Binding posts. Output: Banana jacks

POWER: 105-125 or 210-250 volts (switch selected), 50-400 cps, 45

watts.

DIMENSIONS, WEIGHT: 5-l/2 inches high x 17-l/2 inches wide x 13-l/2 inches deep; net

weight, 24 pounds.

l-5. ACCESSORIES.

a. Model 6601A High Voltage Divider is a LOO:L divider which extends the range of the

Model 660A to 5000 volts. The divider accuracy is ?O.Ol% and its input resistance is

10 megohms. The overall limit of error of the Model 660A with the Model 660lA is ?0.03%.

Section 7 gives operating instructions and Section 8 contains the Replaceable Parts List

and the Schematic Diagram for the Divider.

b. Model 4000 Rack Mounting Kit, containing two brackets and a top cover, converts the

Model 660A to fit standard 19-inch racks, Rack mounted, the Model 660A is 5-l/4 inches

high x 19 inches wide x 13-l/2 inches deep. Section 7 has assembly instructions.

1-6. EQUIPMENT SHIPPED. The Model 660A Guarded dc Differential Voltmeter is factory-

calibrated and is shipped with all components in place. All units are shipped for bench

use. Model 4000 Kit may be ordered for rack mounting; refer to Section 7 for assembly

instructions. The shipping carton also contains the Instruction Manual.

1066R 3

GENERALDESCRIPTION MODEL 660A DIFFERENTIAL VOLTMETER

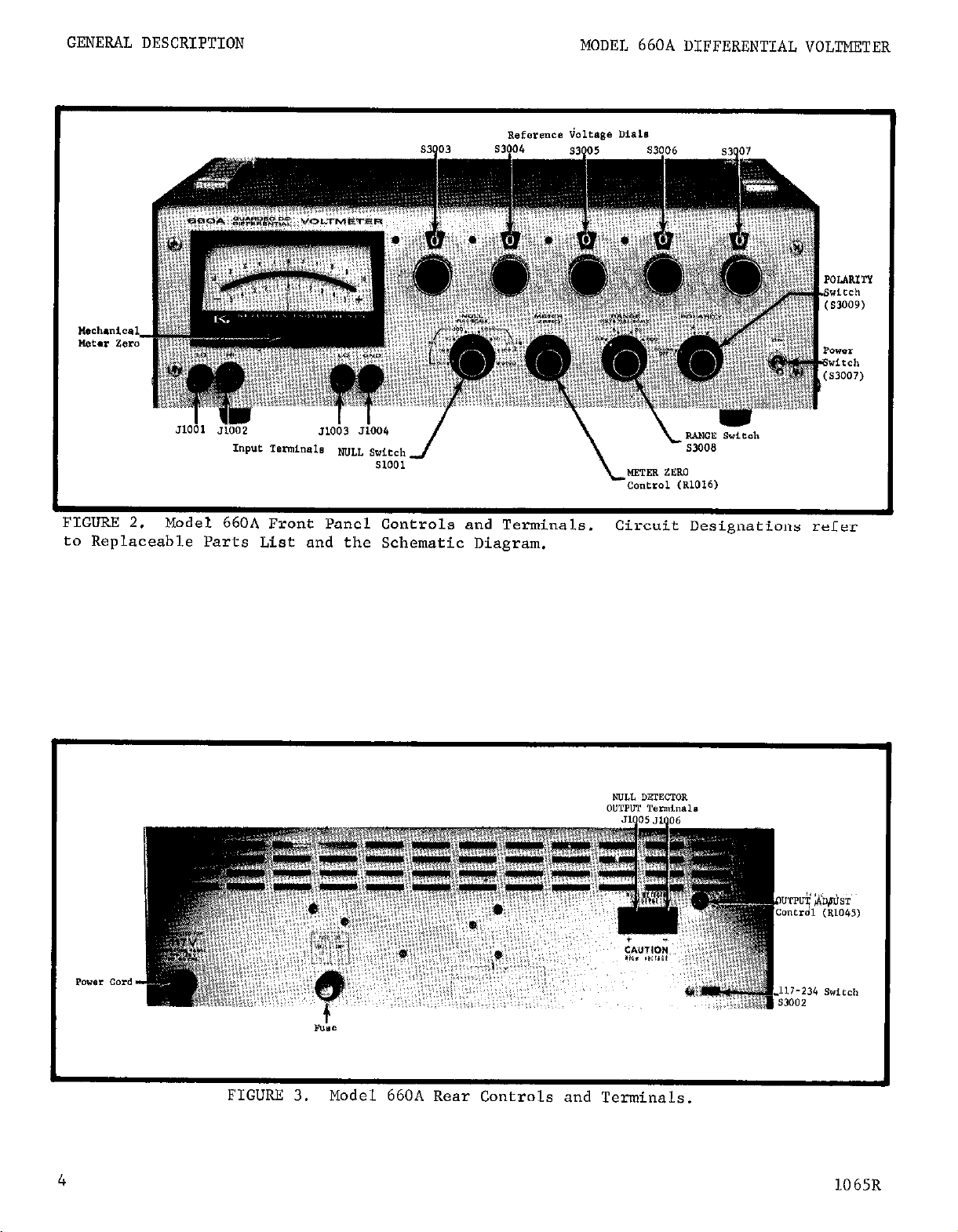

PIGURE 2. Model 660A Front Panel Controls and Terminals. Circuit Designations refer

to Replaceable Parts List and the Schematic Diagram.

FIGURE 3. Model 660A Rear Controls and Terminals.

4 1065R

MODEL 660A DIFFERENTIAL VOLTMETER

SECTION 2. OPERATION

OPERATION

2-1. FRONT PANEL CONTROLSAND TERMINALS. (See Figure 2.)

Power Switch. A toggle switch turns the instrument on when it is set to the ON

position.

b. POLARITY Switch. The POLARITY Switch selects the input polarity. The Switch rever-

ses the polarity of the internal reference voltage supply so both positive and negative

voltages may be measured; it does not reverse the meter polarity.

c. NULL Switch. The NULL Switch sets the null detector sensitivity for seven decade

ranges from 0.1 millivolt full scale

100 volts. When the Switch is in the VTVM position,

the Model 660A operates as a conventional

vacuum

tube

voltmeter

for the four ranges of the

RANGESwitch.

d. RANGE Switch. The RANGESwitch adjusts the sensitivity of the VTVM in four steps:

0.5, 5, 50 and 500 volts full scale. It also determines the voltage across the Kelvin-

Varley divider and the position of the decimal point light - which also serves as a pilot

light - between the five Reference Voltage Dials.

e. Reference Voltage Dials. Five in-line dials at the top of the front panel set the

reference voltage when the Model 660A is used as a potentiometer. The last dial is con-

tinuously variable.

f. METER ZERO Control. The METER ZERO Control adjusts the meter needle to zero. The

Control is needed on only the 0.1 and l.O-millivolt null ranges; on the other ranges, the

needle will normally be on zero without adjustment. The Control has a range of approx-

imately i30 microvolts.

25. Input Terminals. At the lower left front panel, the black LO Post is for connections

to the low impedance terminal of the unknown voltage and the red HI Post is for connections

to the high impedance terminal. A second set of binding posts marked LO and GND is provided

for grounding the LO input terminal to the chassis when desired. The LO terminals are

connected together internally.

2-2. REAR CONTROLSAND TERMINALS. (See Figure 3.)

a. Fuse. For 105-125 volt operation, the Model 660A uses a l-ampere 3 AG fuse. FOK

210-250 volt operation, the Model 660A uses a 0.5-ampere 3 AG fuse.

b. Power Cord. The Model 66OR is designed for a 105-125 volt, SO-&O0 cps line source,

unless otherwise specified on the rear panel. The 3-wire power cord with the NEMA approved

3-prong plug provides a ground connection for the cabinet. An adapter for operation from

2-terminal outlets is provided.

c. NULL DETECTOROUTPUT. Two terminals, marked + and -, supply a dc signal from the

null detector.

d. OUTPUT

ADJUST.

+4 screwdriver control next to the OUTPUT terminals adjusts the null

detector output between 10 and 25 millivolts full scale.

1066R 5

OPERATION MODEL 660A DIFFERENTIAL VOLTMETER

e. 117-234 Switch. The screwdriver-operated slide switch sets the Model 660A for 117

or 234-volt ac power

lines.

2-3. PRELIMINARY PROCEDURES.

a. Check the 117-234 Switch and the Fuse for the proper ac line voltage. Connect the

power cord.

b. Set the Model 660A as follows:

Power Switch ON

RANGESwitch 500

NULL Switch VTVM

POLARITY Switch +

Reference Voltage Dials zero

The decimal light between the third and fourth Dials will light. Allow the instrument to

warm up for 30 minutes to meet the specified accuracy on all ranges.

c. With the input terminals open, set the NULL Switch to 0.1 MV and zero the meter with

the METER ZERO Control. Then return the NULL Switch to VTVM. The stability of the Model

660A is such that no adjustment should be required in eight hours after a 30-minute warm-up.

2-4. OPERATING PROCEDURES.

a. The Model 66OA is used first as a VTVM to determine the approximate value of the un-

known voltage. It is then used in the potentiometric mode to determine the voltage to iO.OZ"/,.

LH LG

0 0000

I I ,

Unknown

Voltage -

Off-Ground,

Potential -

FIGURE 4. Input Connections to Model 660A. The two diagrams show the input circuit for

measuring at ground and ,for floating.

In A, the unknown voltage has one terminal

ground. The shorting link is between the

LO and GND Posts of the Model 660A.

In 13, the unknown voltage has both terminals

off

ground potential. Note this floating

or off-ground potential

must

be less than 500 volts. Also note the shorting link is not

used. -

6 1066R

MODEL 660A DIFFERENTIAL VOLTMETER OPERATION

NOTE

The Model 6601A High Voltage Divider extends the Model 660A range to 5000 volts.

Refer to Section 7 for operation instructions.

b. VTVM Operating Procedures.

1. Eleven full-scale ranges are available for VTVM operation. When the NULL Switch

is at VTVM, the RANGE Switch determines one of four full-scale ranges. BY putting the

five Reference Voltage Dials at zero, the Model 660A can then operate as a VTVM on the

seven null ranges.

2. Connect the unknown voltage to the input terminals, using the LO Post for the low

impedance terminal of the unknown. Refer to Figure 4.

3. Switch the RANGE Switch to the most sensitive range for an on-scale meter deflection

c. Potentiometric Operating Prbcedures.

NOTE

Avoid large overload voltages on the null detector. No permanent damage will

occur even with 500-volt overloads, but some open circuit offset will be caused

in the null detector. The offset, due to the polarization of the input filter

capacitors, will disappear after about 5 minutes.

1. Leave the RANGE Switch at the last setting used in the VTVM operation. If the

VTVM reading is negative, reverse the POLARITY Switch position.

2. Set the first two Reference Voltage

Dials to the first two digits of the un-

known voltage found in the VTVM operation.

Initial Most Sensitive

NULL Switch NULL Switch

Setting

3. Set the NULL Switch to the initial

null setting shown in Table 1. Adjust

the Voltage Reference Dials progressively

for zero meter deflection while increasing

the null detector's sensitivity with the

NULL Switch. Deflections to the right TABLE 1. Recommended Null Sensitivities

indicate the voltage being measured is and Settings.

more positive than the Reference Voltage

Dial setting.

NOTE

The most accurate resistors in the Kelvin-Varley divider are in the first two

Reference Voltage Dials. Therefore, to obtain the most accurate readings, use

the first two dials as much as possible.

4. The value of the unknwon voltage is read directly from the Reference Voltage Dials.

a) The Dial reading will be within the specified limit of error if the NULL Switch

is at the most sensitive setting (Table 1) for the range used and if the meter indi-

cates as close to null as possible. Null does not have to be reached.

1066R 7

Tabla de contenidos

Otros manuales de Instrumento de medición de Keithley

Keithley

Keithley 2182 Manual de usuario

Keithley

Keithley 2010 Manual de usuario

Keithley

Keithley Interactive SourceMeter 2450 Instrucciones de instalación y funcionamiento

Keithley

Keithley SourceMeter 2600B Series Manual de usuario

Keithley

Keithley 590 CV Manual de usuario

Keithley

Keithley System SourceMeter 2601B Manual de usuario

Keithley

Keithley 415 Manual de usuario

Keithley

Keithley 236 Instrucciones de uso

Keithley

Keithley 196 Manual de usuario

Keithley

Keithley 6485 Manual de usuario

Keithley

Keithley 199 Manual de usuario

Keithley

Keithley 5156 Manual de usuario

Keithley

Keithley 2611B Manual de usuario

Keithley

Keithley Series 2600 Guía del usuario

Keithley

Keithley 600B Manual de usuario

Keithley

Keithley 194 Manual de usuario

Keithley

Keithley SourceMeter 2460 Manual de usuario

Keithley

Keithley 580 Manual de usuario

Keithley

Keithley 6517 Manual de usuario

Keithley

Keithley System 40 Manual de usuario

Keithley

Keithley SourceMeter 2470 Manual de usuario

Keithley

Keithley 6487 Manual de usuario

Keithley

Keithley 2500 Manual de usuario

Keithley

Keithley 2657A Manual de usuario

Manuales populares de Instrumento de medición de otras marcas

Suaoki

Suaoki D40 Manual de usuario

Elster

Elster BK-G1.6 Manual de usuario

Endress+Hauser

Endress+Hauser Deltabar FMD71 Manual

Duratool

Duratool D03128 Manual de usuario

Vega

Vega VEGAPULS 65 Manual de usuario

Tonghui

Tonghui TH2618B Manual de usuario

Tenmars

Tenmars TM-801 Manual de usuario

MSR

MSR 145 Manual de usuario

TPS

TPS WP-82 Manual de usuario

ELMETRON

ELMETRON CP-511 Manual de usuario

PCB Piezotronics

PCB Piezotronics 003C30 Manual de usuario

Tenma

Tenma 72-10465 Manual de usuario

Endress+Hauser

Endress+Hauser Proline Promag 50 Especificaciones técnicas

Siemens

Siemens SITRANS F Coriolis FCT030 Manual de lista de piezas

KLINGER

KLINGER CMF V Series Manual de usuario

EXFO

EXFO FTB-2 Manual de operación y mantenimiento

Keysight

Keysight M8290A Manual de usuario

ADTEK

ADTEK MW-5 Manual de usuario
