Keba KeContact M20 Manual de usuario

KeContact
M20
Expanded charging management
Operating manual V 1.02
Translation of the original instructions

Document:V 1.02
Filename: KeContactM20_en.pdf
Pages: 64
© KEBA 2022
Specifications are subject to change due to further technical developments. Details presented may be
subject to correction.
All rights reserved.
KEBA Energy Automation GmbH Reindlstraße 51, 4040 Linz, Austria, www.keba.com/emobility
For information about KEBA and our subsidiaries please look at www.keba.com.

M20 Table of contents
V1.02 3
© KEBA 2022
Table of contents
1 Introduction................................................................................................................ 5
1.1 Representation of safety instructions............................................................... 5
1.2 Purpose of the document................................................................................. 6
1.3 Requirements................................................................................................... 6
1.4 Warranty .......................................................................................................... 7
1.5 Notes on this document ................................................................................... 7
1.6 Further documentation..................................................................................... 7
2 System overview ....................................................................................................... 8
2.1 Network interfaces ........................................................................................... 10
2.2 Structure of a local charging network............................................................... 12
3 Description................................................................................................................. 15
3.1 Front view ........................................................................................................ 15
3.2 Rear view......................................................................................................... 15
3.3 Type plate ........................................................................................................ 16
3.4 Accessories / Spare parts................................................................................ 16
4 Displays and operating elements ............................................................................ 17
4.1 Status LED....................................................................................................... 17
4.2 Power button.................................................................................................... 17
4.3 Reset button..................................................................................................... 17
5 Mounting and installation instructions ................................................................... 18
5.1 General instructions......................................................................................... 18
5.2 ESD information............................................................................................... 18
5.3 Inserting the SIM card...................................................................................... 19
5.4 Space requirement........................................................................................... 22
5.5 Installation in the control cabinet...................................................................... 23
5.6 Wall installation................................................................................................ 25
5.7 Removing......................................................................................................... 26
6 Connections and wiring............................................................................................ 27
6.1 Power supply ................................................................................................... 27
6.2 USB port .......................................................................................................... 27
6.3 Ethernet interface............................................................................................. 28
6.4 Graphic interface.............................................................................................. 28
6.5 Antenna............................................................................................................ 29
7 Configuration ............................................................................................................. 31
7.1 Enabling the DHCP server............................................................................... 31

M20Table of contents
V1.02
4
© KEBA 2022
7.2 Configuration in series via USB stick............................................................... 32
8 Web interface ............................................................................................................. 36
8.1 Main menu ....................................................................................................... 37
8.2 User menu ....................................................................................................... 42
9 Functions ................................................................................................................... 44
9.1 Load management in the local charging network ............................................ 44
9.2 RFID authorization........................................................................................... 45
9.3 OCPP backend ................................................................................................ 47
9.4 Smart Home Interface...................................................................................... 49
9.5 Integration of external meters .......................................................................... 49
10 Maintenance............................................................................................................... 52
10.1 Diagnosis and troubleshooting......................................................................... 52
10.2 Software update............................................................................................... 52
11 Technical data............................................................................................................ 54
11.1 General ............................................................................................................ 54
11.2 Power supply ................................................................................................... 54
11.3 Ambient conditions........................................................................................... 54
11.4 Interfaces Embedded PC................................................................................. 54
11.5 LTE antenna .................................................................................................... 55
11.6 Dimensions, weight.......................................................................................... 55
12 EU directives and standards .................................................................................... 57
13 UKCA .......................................................................................................................... 58
14 EC Declaration of Conformity .................................................................................. 59
Index ........................................................................................................................... 61

M20 Introduction
V1.02 5
© KEBA 2022
1 Introduction
This document describes an expanded charging network with the following
devices:
● KeContact M20 master device (embedded PC with power adapter and
LTE antenna)
● Compatible client devices (P30 c-series)
The device variant can be read off based on the product designation on the
type plate. The software version can be read out via the web interface. For
more specific information on the client devices, see the respective "Operat-
ing Instructions".
The pictured devices used in this manual are visual examples. The figures
and explanations contained in this manual refer to a typical device design.
The devices used by you may differ in their appearance.
1.1 Representation of safety instructions
At various points in this manual, you will see notes and precautionary warn-
ings regarding possible hazards. The symbols used have the following
meaning:
DANGER!
indicates an imminently hazardous situation, which will result in death or se-
rious bodily injury if the corresponding precautions are not taken.
WARNING!
indicates a potentially hazardous situation, which can result in death or seri-
ous bodily injury if the corresponding precautions are not taken.
CAUTION!
means that if the corresponding safety measures are not taken, a potentially
hazardous situation can occur that may result in slight bodily injury.
Caution
means that damage to property can occur if the corresponding safety mea-
sures are not taken.
ESD
This symbol reminds you of the possible consequences of touching electro-
statically sensitive components.

M20Introduction
V1.02
6
© KEBA 2022
Information
Identifies practical tips and useful information. No information that warns
about potentially dangerous or harmful functions is contained.
1.2 Purpose of the document
This document describes the installation and configuration of the expanded
KeContact M20 functions. This includes the description of settings in the
web interface.
WARNING!
Risk of electric shock to persons!
In addition to this document, all information in the description of the power
adapter, which is in the power adapter packaging, must be observed.
Information
If the description included with the power adapter cannot be read and un-
derstood due to the available languages, then use the description in the re-
quired language from the homepage of the manufacturer.
1.3 Requirements
This document contains information for persons with the following require-
ments:
Target group Required knowledge and abilities
Electrician
Person who, due to his or her special training, expertise and experi-
ence as well as knowledge of current standards, is able to assess
the work performed and the possible hazards.
Knowledge of:
● current valid safety information,
● the mode of operation of the charging station,
● the displays and operating elements of the charging station,
● basics of network technology,
● basics of IT,
● diagnostic options,
● systematic fault analysis and rectification,
● the setting options on the charging station.

M20 Introduction
V1.02 7
© KEBA 2022
1.4 Warranty
Only general maintenance work that is expressly permitted by KEBA may be
performed. Any other tampering to the device will result in a loss of the war-
ranty claim.
1.5 Notes on this document
The manual is part of the product. It is to be retained over the entire life cycle
of the product and should be forwarded to any subsequent owners or users
of the product.
The instructions contained in this manual must be followed precisely. Failure
to do so could result in the creation of potential sources of danger or the dis-
abling of safety devices. Apart from the safety instructions given in this man-
ual, the safety precautions and accident prevention measures appropriate to
the situation in question must also be observed.
1.5.1 Contents of the document
● Installation and configuration of the expanded KeContact M20 functions
1.5.2 Not contained in this document
● Installation and deinstallation of client charging stations
● Operating behavior of the client charging stations
● Configuration of the client charging stations
● Operation of the client charging stations
1.6 Further documentation
Manuals and additional information are available on our website:
www.keba.com/emobility-downloads
Designation Target group
P30 operating instructions ● End customer
● Electricians
P30 installation manual ● Electricians
UDP Programmer's Guide ● Programmer
Modbus TCP Programmers Guide ● Programmer
FAQ
● End customer
● Electricians
● Service technicians

M20System overview
V1.02
8
© KEBA 2022
2 System overview
The KeContact M20 enables control of multiple charging stations. The con-
nection is established over the IT network (switch/router). This makes charg-
ing with an intelligent load management possible. In combination with an up-
stream electricity meter, the entire charging network can be controlled dy-
namically (Modbus TCP).
Only one connection to backend systems is necessary (via OCPP). The
master (KeContact M20) is equipped with different network interfaces for
these functions.

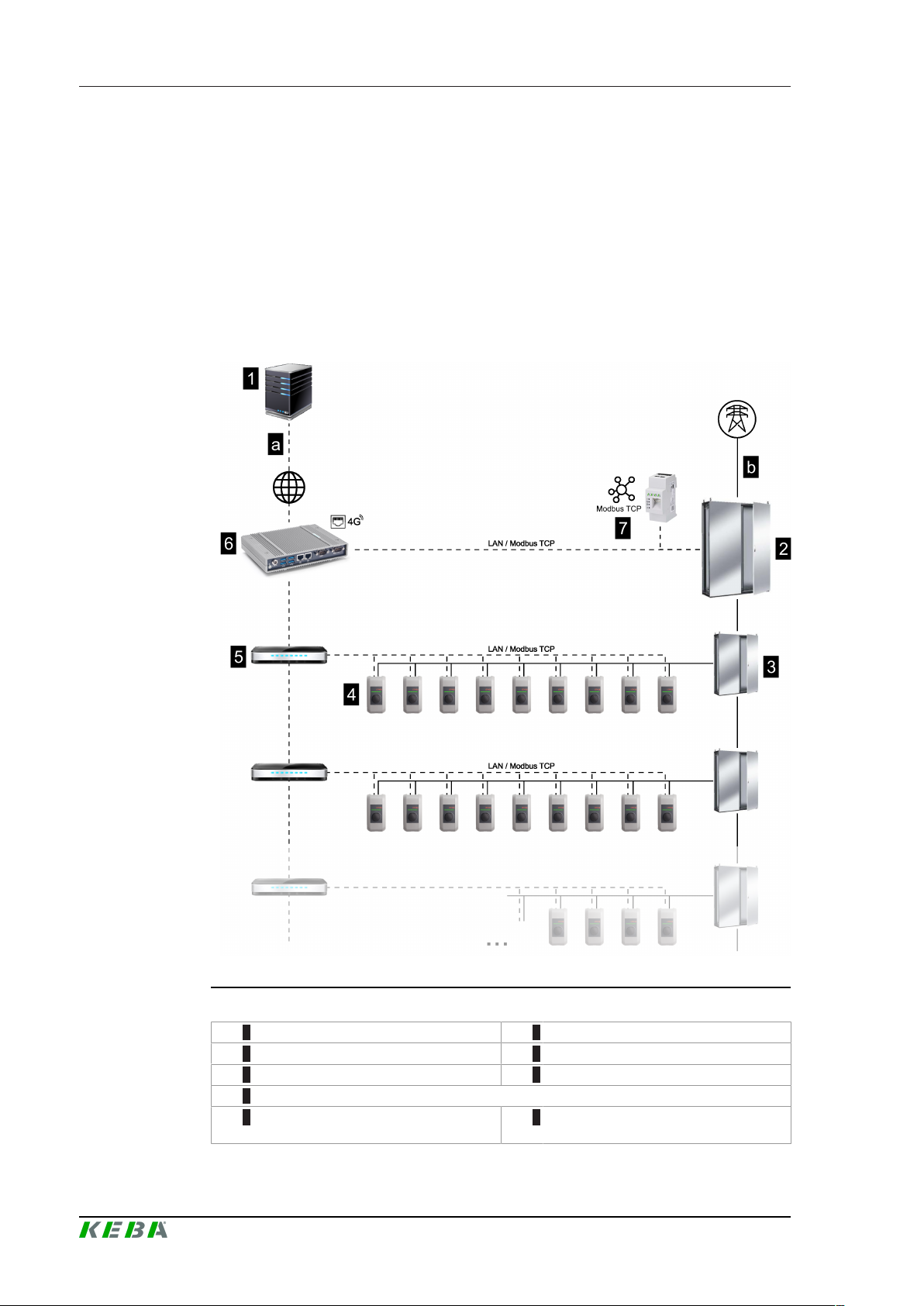

Fig.2-1: System overview (example)
1 ... OCPP backend 2 ... Main distribution
3 ... Sub-distribution 4 ... Charging station
5 ... Switch 6 ... KeContact M20
7 ... Energy meter
a ... Communication interface to operat-
ing company b ... Power connection

M20 System overview
V1.02 9
© KEBA 2022
Cluster
In a cluster consisting of multiple charging stations, the available power re-
serves can be used optimally across the entire system. Up to 200 P30 c-se-
ries (number depending on variant) in max. 15 clusters can be connected
with each other.
Fig.2-2: System overview with cluster (example)
1 ... Cluster 1 2 ... Cluster 2
3 ... Cluster 3
The following chapters describe which network interfaces are provided and
how to set up a network.

M20System overview
V1.02
10
© KEBA 2022
2.1 Network interfaces
The KeContact M20 provides the following network interfaces (e.g. for con-
nection to an OCPP backend, etc.):
● LAN
● Mobile network (via external antenna & SIM card, 4G/LTE - SIM card re-
quired, M2M SIM card recommended).
Fig.2-3: Configuration overview
1 ... LAN 2 ... Mobile network via SIM
3 ... USB interface
Client charging stations (P30 c-series) can only be connected to the master
(KeContact M20) over LAN. The configuration is done via the web interface
of the master.
Information
WLAN stick (WLAN access point / WLAN hotspot)
● The connection of a WLAN stick to the KeContact M20 is fundamentally
possible, but not recommended. Use at your own risk. In case of prob-
lems, troubleshooting is not assisted by the manufacturer.
● The login data for the first login to the web interface can be taken from
the supplied configuration label as needed.
Otros manuales para KeContact M20
1
Tabla de contenidos
Otros manuales de Controladores de Keba
