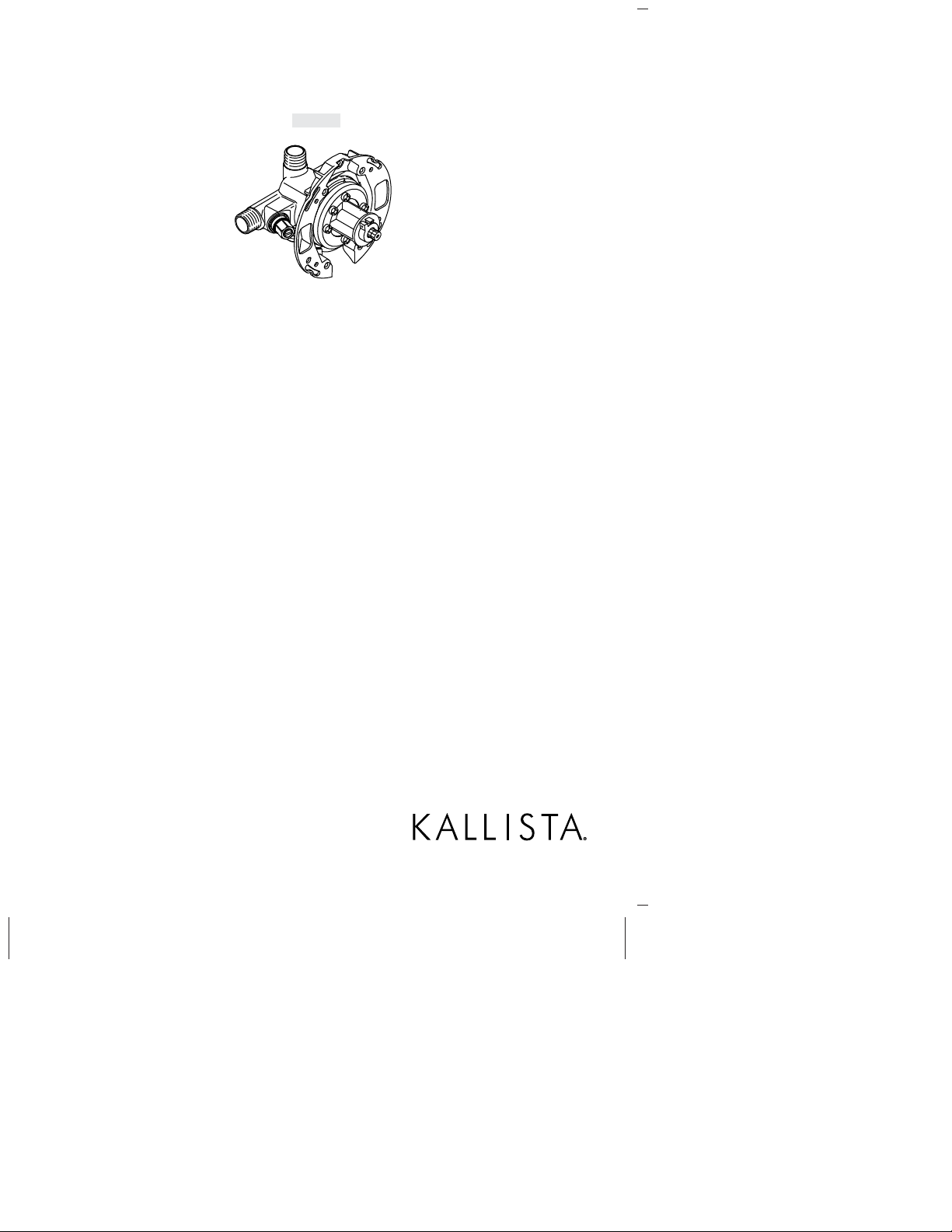

Kallista P19300 Instrucciones de montaje
Installation and Care Guide
Single-Handle Bath and Shower Valves
Français, page “Français-1”
Español, página “Español-1”
P19300
089585-2-BE
IMPORTANT INSTRUCTIONS
READ AND SAVE FOR THE
CONSUMER
WARNING: Risk of scalding or other severe injury.
•Before completing installation, the installer must set the
maximum water temperature setting of this valve to minimize the
risks associated with scalding hazards according to ASTM F 444.
•Do not install a shut-off device on either outlet of this valve. The
installation of any such device may create a cross-flow condition
at the valve and affect the water temperature.
•Factors that change the temperature of the water supplied to the
valve, such as seasonal water temperature changes, and water
heater replacement or servicing, will change the maximum water
temperature supplied by the valve and may create a scalding
hazard. The pressure-balanced valve will not compensate for
changes in the water supply temperature; adjust the maximum
water temperature setting of this pressure-balanced valve when
such changes occur.
•Pressure-balanced valves may not provide protection against
scalding if there is a failure of other temperature-limiting devices
elsewhere in the plumbing system.
NOTICE: Only apply silicone-based lubricants to these valves. Do
not use petroleum-based lubricants. Petroleum-based lubricants will
harm the O-rings, seals, and plastic components.
The installer is responsible for installing the valve and adjusting the
maximum water temperature of this pressure-balanced valve
according to instructions.
This valve meets or exceeds ANSI A112.18.1 and ASSE 1016.
If you do not understand any of the installation or temperature
adjustment instructions in this document, in the United States please
contact our Customer Care Center at 1-888-4-KALLISTA.
PEX connections are designed for use with any ASTM F 1807
compliant copper crimp rings and ASTM F 887 compliant PEX tubing.
These fittings are not compatible with ASTM F 1960 cold expansion
fittings with PEX reinforcing ring assemblies.
089585-2-BE 2 Kallista
IMPORTANT INSTRUCTIONS (cont.)
The PEX fittings on this valve have been third party certified by CSA using the following: Sioux Chief 1/2” copper
crimp ring and CSA certified VANGUARD VANEX®1/2” PEX potable tubing. Crimps were made using a Sioux Chief
1/2” crimp tool in accordance with the Sioux Chief instructions.
PEX connections are designed for use with any ASTM F 1960
compliant cold expansion retaining rings and ASTM F 887 compliant
PEX tubing. These fittings are not compatible with ASTM F 1807
copper crimp reinforcing ring and PEX tubing assemblies.
The PEX fittings on this valve have been third party certified by CSA using the following: WIRSBO AQUAPEX 1/2”
potable tubing, Uponor ProPEX 1/2” cold expansion retaining rings and the Uponor ProPEX Hand Expander tool in
accordance with the Uponor Instructions.
IMPORTANT NOTICE TO INSTALLERS! Please fill in the blanks in
the information box below. Retain this Guide for future reference.
NOTICE TO HOMEOWNERS! This device has been preset by
_______________________ of _______________________________ to
ensure a safe maximum temperature. Any change in the setting may
raise the discharge temperature above the limit considered safe, and
lead to scalds.
Date: ______________
Tools and Materials
Before You Begin
CAUTION: Risk of personal injury. The water temperature
should never be set above 120°F (49°C).
Strap Wrench
Sealant Tape
SolderPEX Crimp Tool
(Optional)
Hex Wrench
Hacksaw or
Tubing Cutter
Cold
Expansion Tool
Kallista 3 089585-2-BE
Before You Begin (cont.)
NOTICE: Use only 1/2″(5/8″OD) copper pipe (type L or M)
between the valve and bath spout. Using other materials may cause
back pressure and result in water flowing from the showerhead and
bath spout at the same time.
NOTICE: Some installations require valve trim roughing-in
dimensions different from those shown in this guide. Refer to the
valve trim specification sheet to confirm dimensions.
NOTICE: Do not force the handle in any direction. Forcing the
handle will damage the valve.
Observe all local plumbing and building codes.
Shut off the main water supply.
Kallista reserves the right to make revisions in the design of
faucets without notice, as specified in the Price Book.
089585-2-BE 4 Kallista
Roughing-In
Thin Wall
2-3/4" (70 mm)
Thick Wall
2-3/4" (70 mm) –
3-1/2" (89 mm)
2-1/16"
(52 mm)
2-1/16"
(52 mm)
2x4
Bracing
4" (102 mm)
7" (178 mm) –
18" (457 mm)
[10" (254 mm)
Recommended]
72" (1829 mm) –
78" (1981 mm)
To Floor (Typical)
48" (1220 mm)
To Floor
Shower Only
Bath/Shower
2x4
Bracing
Kallista 5 089585-2-BE
1. Prepare the Valve
IMPORTANT! The internal components of the valve will only need
to be removed for back-to-back installations (reversed valve only) or
installations that require soldering of connections.
NOTE: Only valves with stops will include the stop assembly.
Installations Requiring Soldering
Remove the plaster guard (not shown).
Remove internal valve components as shown and set aside.
Back-to-Back Installations
Remove the plaster guard (not shown).
For the reversed valve, remove internal components as shown
and set aside. The stop assembly does not need to be removed if
soldering is not needed.
Stop
Assembly
089585-2-BE 6 Kallista
2. Position the Valve and Route Piping
Install Support Framing
NOTE: The position of the 2x4 bracing is dependent on the
thickness of your finished wall. Refer to the ″Roughing-In″Section.
Determine the valve location and install 2x4 bracing behind the
valve plate.
Install bracing at the showerhead and bath spout installation
locations.
Route Piping and Connect the Supplies
IMPORTANT! Do not use multiple elbows on the bath spout outlet.
Use 1/2″NPT threaded adapters or solder 1/2″copper directly to
the outlet.
Install 1/2″piping and elbows to the showerhead and bath spout
outlets. Use sealant tape on all threaded connections.
Secure the piping to the framing.
Connect the water supplies using 1/2” copper, CPVC, or PEX
components.
Hot Supply Cold Supply
1/2" Pipe
Nipple
Cap
Sealant
Tape
2x4
Bracing
Kallista 7 089585-2-BE
Position the Valve and Route Piping (cont.)
Solder all needed connections.
Temporarily install 1/2” pipe nipples to the elbows so they will
extend at least 2” (51 mm) beyond the finished wall.
Install caps to both pipe nipples.
089585-2-BE 8 Kallista
3. Back-To-Back Installation
NOTICE: Do not install the valve body upside down.
Route the supplies and install the valves. Refer to the roughing-in
illustration for your installation.
NOTE: One valve will have reversed supply connections, hot
supply to ″COLD″inlet and cold supply to ″HOT″inlet.
Connect the water supplies as shown. Use sealant tape on all
threaded connections.
Install 2x4 bracing behind the plate (not shown).
Cold Supply
Hot Supply
Reversed
Valve
Kallista 9 089585-2-BE
4. Reassemble the Valve
Slowly open the main water supply and flush the system before
assembling the internal components.
Turn off the water supply.
Reinstall the stop assembly (if present) and the pressure balancing
unit.
Reinstall the cap assembly with the tab oriented up.
For reversed valves in back-to-back installations: reinstall the
cap assembly with the tab oriented down.
Install the collar and secure with the screws.
Stop
Assembly Tab Up
Reversed Valve Only
Tab Down
089585-2-BE 10 Kallista
