E-Flash EF680/EF780
Installation Guide
EF680/EF780 - Single Lock
EF680/EF780 - Security Double Lock
EF680/EF780 Installation Guide
Index
1. Preparation of the Door
2. Fit Mortice Lock
3. Front Installation - External
4. Handle Position
5. Preparation of Front of Lock
6. Fitting of the Front of the
Lock
7. Installation of the Internal
Mounting Plate
8. Fitting the Main Body of the
Lock
9. Connecting the Cables
10. Fitting the Back Main Body
11. Completion and Testing.
EF680/EF780 Installation Guide
Preparation of the Door
Prepare the door
according to the
template provided.
Door thickness: 32mm
to 67mm.
Step 1
Typical door preparation,
ready for installation.
DRILL HOLES FROM BOTH
SIDES TO PREVENT
DAMAGE TO THE DOOR
60mm BACKSET 60mm BACKSET
DOOR THICKNESS
RANGE
32mm-67mm
BORE 24mm DIA
HOLE THROUGH
DOOR (SUIT CABLE
THROUGH DOOR)
DRILL Ø8mm HOLE
THROUGH DOOR
(SUIT FIXING POSTS)
DRILL Ø8mm HOLE
THROUGH DOOR
(SUIT FIXING POSTS)
DRILL Ø8mm HOLE
THROUGH DOOR
(SUIT FIXING POSTS)
DRILL Ø8mm HOLE
THROUGH DOOR
(SUIT FIXING POSTS)
DRILL Ø8mm HOLE
THROUGH DOOR
(SUIT FIXING POSTS)
DRILL Ø8mm HOLE
THROUGH DOOR
(SUIT FIXING POSTS)
DRILL Ø8mm HOLE
THROUGH DOOR
(SUIT FIXING POSTS)
DRILL Ø8mm HOLE
THROUGH DOOR
(SUIT FIXING POSTS)
EF680 MS MORTICE
LOCK TEMPLATE
BOTTOM
EDGE
TOP EDGE
BORE Ø26mm HOLE
THROUGH DOOR
(SUIT SPINDLE)
BORE Ø26mm HOLE
THROUGH DOOR
(SUIT SPINDLE)
FOLD ALONG DOTTED LINE AND ALIGN WITH EDGE OF DOOR FOR 60MM BACKSET
FOLD ALONG DOTTED LINE AND ALIGN WITH EDGE OF DOOR FOR 60MM BACKSET
BORE 24mm DIA
HOLE THROUGH
DOOR (SUIT CABLE
THROUGH DOOR)
BORE 7 HOLES
Ø20mm x 90mm DEPTH
FOR 60mm BACKSET
EF680/EF780 Installation Guide

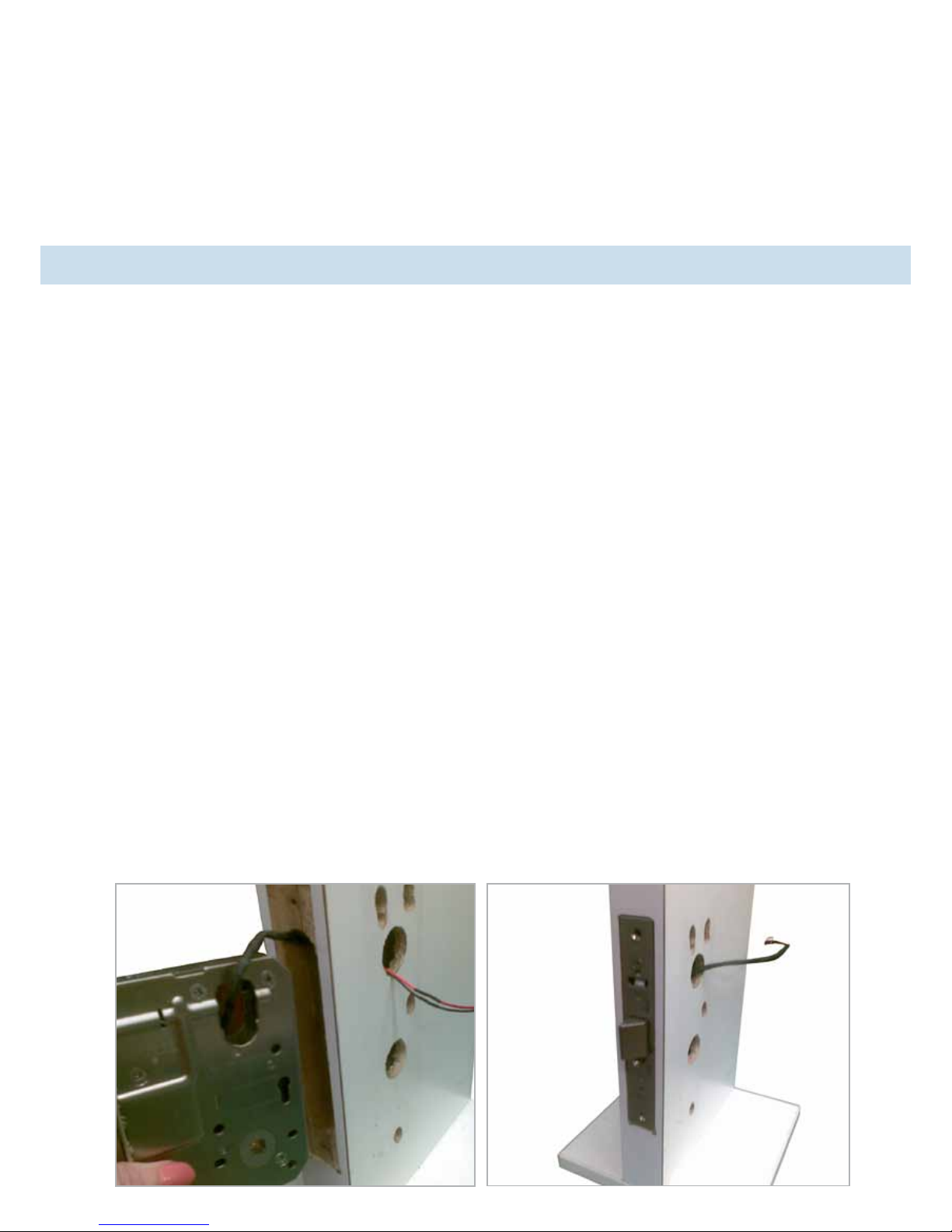

Fit Mortice Lock
Before tting the lock ensure the bevelled latch is handed
correctly by rotating latch 180 degrees in either direction
(ensure the face plate is not tted at this time).
• When tting the mortice lock, feed the cable through to
the internal side of the door as you t the lock in place.
• Secure with two 8G x 1” countersunk screws (supplied).
• Install faceplate with two M4 x 8 countersunk screws
(supplied).
Step 2
EF680/EF780 Installation Guide
Front Installation - External
Guide screw hole
Step 3
Insert spindle into mortice along
with spring.
Note:
It is not necessary to drill both
guide screw holes, only one is
required to suit the direction of
the handle.
Right handed guide
screw hole
Left handed guide
screw hole
EF680/EF780 Installation Guide
Handle Position
Step 4
The levers on both external and internal are not handed
from factory.
• To set, insert a small screw driver as illustrated and
depress retaining plate.
• The handle can be congured either in left hand or
right hand by rotating in either direction.
• Once in place the lever will lock into place.
Note: If incorrect handing is selected, this can be easily
reversed by using the same process.
Once decided as to which way the door handle is to be
placed
• Turn lock over and insert the guide screw in the necessary
position (as per step 3).
• You may need to use a at head screw driver to tighten
the guide screw.
Note: This guide screw is critical to the alignment of the
mortice lock and furniture and cannot be discarded.
EF680/EF780 Installation Guide
Preparation of Front of Lock
Step 5
Below is the illustration details for the installation of
the guide screw to suit a left hand door installation.
Bottom of lock Top of lock
EF680/EF780 Installation Guide
Fitting of the Front of the Lock
Step 6
Top of lock
Line up all the guide screws and the spindle with the spring
and slide the body into place, gently feeding the cable
through the hole in the door – making sure that the front
main body ts ush against the door.
Should there be a gap between the lock and
the door, this could mean that either the
guidescrew is not in properly, or the spring
and spindle is not in place properly - remove
lock to check that all these have been tted
correctly and try again.
EF680/EF780 Installation Guide
Installation of the Internal Mounting Plate
Step 7A
Check to make sure that the cable
from the front of the lock and the
cable from the mortice lock is clear
and free.
Carefully feed both the main PCB
cable and power cable through the
internal mounting plate.
With the screws provided x the
back plate to the door – making
sure that the guide screw is in
place.
Insert the spindle and spring.
EF680/EF780 Installation Guide
Installation of the Internal Mounting Plate
Step 7B
This product is supplied with a selection of 3 different
length xing screws for varying door thicknesses - 15mm,
25mm and 40mm.
Select 4 x equal length screws according to the door
thickness and secure, ensuring the guide screw is tted
correctly.
Note: Over tightening of these screws is not recommended.
Guide screw illustrated on
right hand installation
