K40 CALIBRE Manual de usuario

GROUND

#8 X 1/2" TEK

IGNITION

SWITCHED

+12 VOLTS

BLACK RED

BROWN

BLUE

GRAY

WHITE

GRAY

WHITE

BLUE

INTERIOR

NETWORK

MODULE

FRONT

RADAR

LED

REAR

RADAR

LED

(CALIBRE DL

model only)

RECEIVER

CABLE

FRONT

AMPLIFIED

SPEAKER

REAR LASER DEFUSER

(OPTIONAL)

+12 VOLT

BATTERY

OR IGNITION

SOURCE

BLUE

YELLOW*

BROWN*

BLACK

CABLE

FUSE

CONNECTION

GROUND

#8 X 1/2" TEK

1AMP

YELLOW*

BROWN*

BLACK

FRONT LASER DEFUSER

(OPTIONAL)

+12 VOLT

BATTERY

OR IGNITION

SOURCE

YELLOW*

BROWN*

WHITE

BLACK

CABLE

FUSE

CONNECTION

1AMP

GROUND

#8 X 1/2" TEK

YELLOW*

BROWN*

BLACK

RECEIVER

CABLE

REAR

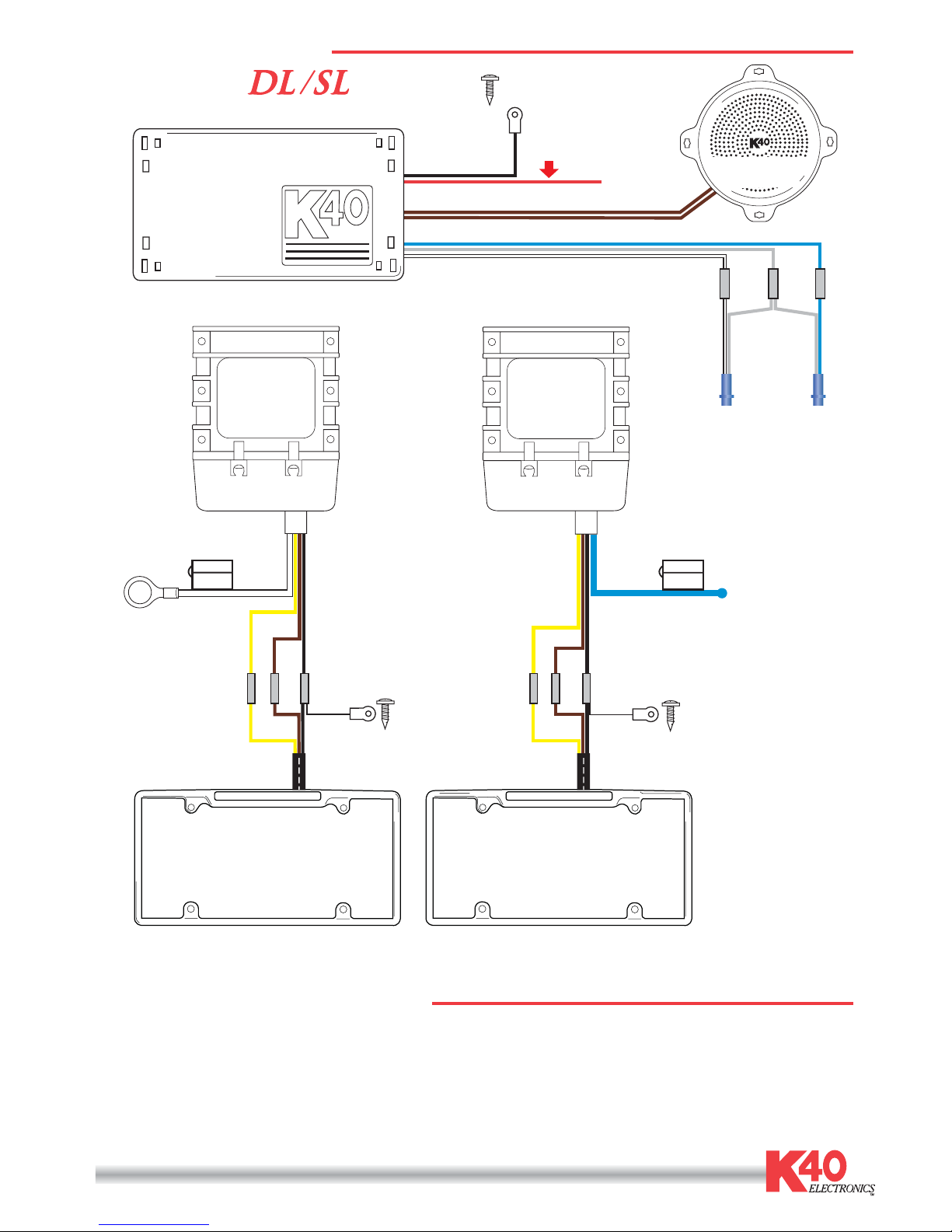

BLOCK DIAGRAM

*THE YELLOW AND BROWN

RADAR RECEIVER WIRES

ARE USED TO CONNECT TO

THE OPTIONAL LASER

DEFUSER. IF NO LASER

DEFUSER IS BEING

INSTALLED WITH THE

RADAR RECEIVER (FRONT

AND/OR REAR), THE YEL-

LOW AND BROWN WIRES

WILL NOT BE USED.

CALIBRE

44586-2 07/07

IGNITION AND GROUND

1. Use a test meter to locate an ignition on source for the Interior Network Module with +12 volts when

ignition key is both on and cranking.

2. Connect the black wire to a solid chassis ground using the provided ring terminal and silver self-

tapping screw.

3. Radar receivers may be connected to either a +12 volt ignition on source or +12 volt constant

battery source.

*NOTE: THE RED WIRE

SHOULD BE CONNECTED

TO A MINIMUM 16 GAUGE

+12 VOLT IGNITION WIRE.

GROUND

#8 X 1/2" TEK

IGNITION

SWITCHED

+12 VOLTS

BLACK RED

BROWN

BLUE

GRAY

WHITE

GRAY

WHITE

BLUE

INTERIOR

NETWORK

MODULE

FRONT

RADAR

pod

REAR

RADAR

pod

(CALIBRE DL-P

model only)

FRONT LASER DEFUSER

RECEIVER

CABLE

(OPTIONAL)

AMPLIFIED

SPEAKER

REAR LASER DEFUSER

(OPTIONAL)

+12 VOLT

BATTERY

OR IGNITION

SOURCE

BLUE

YELLOW*

BROWN*

BLACK

CABLE

FUSE

CONNECTION

GROUND

#8 X 1/2" TEK

1AMP

YELLOW*

BROWN*

BLACK

+12 VOLT

BATTERY

OR IGNITION

SOURCE

YELLOW*

BROWN*

WHITE

BLACK

CABLE

FUSE

CONNECTION

1AMP

GROUND

#8 X 1/2" TEK

YELLOW*

BROWN*

BLACK

FRONT

RECEIVER

CABLE

REAR

BLOCK DIAGRAM

IGNITION AND GROUND

1. Use a test meter to locate an ignition on source for the Interior Network Module with +12 volts when

ignition key is both on and cranking.

2. Connect the black wire to a solid chassis ground using the provided ring terminal and silver self-

tapping screw.

3. Radar receivers may be connected to either a +12 volt ignition on source or +12 volt constant

battery source.

*THE YELLOW AND BROWN

RADAR RECEIVER WIRES

ARE USED TO CONNECT

TO THE OPTIONAL LASER

DEFUSER(S). IF A LASER

DEFUSER IS NOT BEING

INSTALLED WITH A RADAR

RECEIVER (FRONT AND/OR

REAR), THE YELLOW AND

BROWN WIRES WILL NOT

BE USED.

CALIBRE

*NOTE: THE RED WIRE

SHOULD BE CONNECTED

TO A MINIMUM 16 GAUGE

+12 VOLT IGNITION WIRE.
