K-array Redline KR200S Manual de usuario

ENGLISH

USER'S MANUAL

REV. A

USER'S MANUAL

K-array is the new voice that sings

aloud, "outside the choir", and whose

performance is better than any other

products.

Born on-the-road, in the PA world, where

you get no discount, you have to give your

best as fast as you can, often with a

"compressed" budget, K-Array systems

have been designed to give precise

answers to precise needs.

Driven by new generation digital engines,

with power/dimension/weight ratios that

are ten times better than any other

professional products, K-arrays can

deliver the full spectrum of musical styles

with clarity, power, punch, intelligibility

and evenness across both volume levels

and the frequency spectrum. These

systems can be remotely controlled and

come with a sophisticated on-board

software, allowing the user to shape their

performance to taste and needs. Inside

K-array systems you will find something

that only we can offer: the best in

technology, proudly conceived, designed

and produced in Italy. If they were cars,

they would be Ferrari. Don't agree to pay

for a simple brand, claim performance,

and don't believe those who maintain that

these products are only for few people,

the only truth is that K-array systems are

unique, but affordable and within

everybody's reach!

HP Sound Equipment s.r.l.

KR200S

SYMBOLS

1. SAFETY INSTRUCTIONS

This symbol, wherever it appears, alerts you to

important operating and maintenance istructions in

the accompanying literature. Read the manual!

Dangerous voltages: risck of electric shock.

For information about the disposal of Waste Electrical

and Electronic Equipment (WEEE), please refer to the

website at

www.scanning.datalogic.com

This symbol alerts the user to the presence of

re c o mm e n da t i on s a b ou t pr o d uc t ' s us e a n d

maintenance.

CAUTION !

•To reduce the risk of electric shock, disconnect the amplifier from the AC mains before installing audio cable.

Reconnect the power cord only after making all signal connections.

•Connect the amplifier to a two-pole, three wire grounding mains receptacle. The receptacle must be connected to

a fuse or circuit breaker. Connection to any other type of receptacle poses a shock hazard and may violate local

electrical codes.

•Do not install the amplifier in wet or humid locations without using weather protection.

•Do not allow water or any foreign object to get inside the amplifier. Do not put objects containing liquid on, or near,

the unit.

•To reduce the risk of overheating the amplifier, avoid exposing it to direct sunlight. Do not install the unit near heat

emitting appliances, such as a room heater or stove.

•No naked flame sources such like lighted candles should be placed on the device.

•The amplifier should be placed so that its location does not interfere with its proper ventilation. For example, the

appliance should not be situated on a bed, carpet, or similar surface that may create an obstacle for the ventilation

openings.

ENGLISH

USER'S MANUAL pag. 02

2. INTRODUCTION

The KR200S is a high performance ultra-slim powered two way system designed for small to medium wavefront

systems, in both mobile and installed applications.

The KR200S includes two KR200 satellites and 2 KL18ma powered subwoofers.

KL18ma features a 1600 watt 18" drive unit with neodymium magnet structure and suspension engineered for

maximum linear excursion. Its ultra-light reflex cabinet is fitted with two pocket handles and one 35mm pole

mounting point for easy installation with every satellite speaker on it.

The KR200S features a line array of 32x2" high efficiency neodymium magnet drivers enclosed in an ultra-strong

chassis, to ensure high resistance and durability in the hardest working conditions.

The KR200S thanks to true line array technologies and powerful DSP system, achieve outstanding power and

coherence throughout the intended coverage allowing a wide dynamic range and a faithful reproduction of sound.

All the components are

The

system.

3. VOLTAGE REQUIREMENTS

KA 10 operates safely and without audio discontinuity if the AC voltage stays within either of two operating

windows: 95-125 (voltage selector on 115 V) or 195-250 V (voltage selector on 230 V), at 50 or 60 Hz.

115-230

Connecting a 115V system on a 230V AC Power causes heavy

damages to the device and serious risk for users .

CAUTION

The device is default set to be connected to 230 V AC Power. To use the device on a 115 V AC Power you need,

before connecting it, to move the voltage selector's cover, just loosening the two screws, and to choose the correct

use voltage by the red switch. Be sure that both voltage set on the selector and AC Power have the same value .

Always close the voltage selector's cover before connecting the device to AC Power. Change the label that points

out the correct voltage in use.

ENGLISH

pag. 03

USER'S MANUAL

PRESET

keep pressed

for preset lock

INPUT

PARALLEL

OUT

INPUT

(balanced)

GROUND

LIFT

ON LIMIT

LINK

(parallel)

POWER

ATTENTION!:

READ MANUAL FOR

CORRECT

PRESET SELECTION

1+ POSITIVE OUT

1- NEGATIVE OUT

2+ N.C.

2- N.C.

REMOTE

DSP

POWER

OUTPUT

ANALOG

POWER SUPPLY

INPUT

PAD

0.5 34

RS485

ADDRESS

MADE IN ITALY

WARNINGS:

To ensure correct operation,

allow at least

20 cm clearance from

back surface and correct

ventilation. To reduce risk of

electric shockdo not remove

cover. No operatoror serviceable

parts inside. Refer servicing to

qualified personnel. To reduce the

risk of fire or electric shock do

not expose this appliance to

rain or moisture.

CAUTION

RISK OF ELECTRICAL SHOCK

DO NOT OPEN!

DO NOT EXPOSE

TO RAIN OR MOISTURE!

ATTENTION

RISQUE DE CHOC ELECTRIQUE

NE PAS ENLEVER!

is a product of

viale Roma 7/i, 50037 S.Piero a Sieve

Firenze ITALY Tel + 39 055 8487222

HP Sound Equipment srl

ID12

PRESET

PUSH

Balanced XLR

In \ Out parallel

RS485 connection

for remote control

(don't connect to

LAN port!)

Ground lift switch

Input pad level

Preset change button

Keep it pressed 10sec.

to store preset as default

I D n u m b e r f o r

remote control

S p e a k o n p o w e r

output.

To use with KR200

satellite or with

K L 1 8 p a s s i v e

subwoofer

PowerCon Input

PowerCon parallel Output

(max 14 A)

Preset loaded

ENGLISH

pag. 04

4. AMPLIFIER PANEL

USER'S MANUAL

9 Kg

20 Kg

200 cm

100 cm

46.5 cm

58.5 cm

7 cm

KR200

KL18ma

Open and lock the KR200 satellite

before installing on the KL18ma.

Warning

Pay attention when closing the

KR200 satellite, do it slowly and

watch your hands!

ENGLISH

pag. 05

5. PHYSICAL

USER'S MANUAL

To get higher SPL and horizontal directivity, is

possible to combine two KR200 columns using the

machanical parts fitted on each speaker.

Assembly Manual

System 1 System 2

2 x KR200

SX DX

2 x KL18ma

2 x KR200

2 x KL18ma

Unscrew the four screws that

fix the high steel bracket (by

a 2.5mm allen key), then

remove it.

Combine two KR200 by the

t o p u s i n g o n e o f t h e

disassembled brackets.

Disassemble the junction of the lower support.

Combine the two

KR200 by the bottom

u s i n g t h e o t h e r

disassembled steel

bracket. Fix it only by

the more external

h o l e s . T h e f o u r

ce n t r al po i n t s of

attachment (A) must

be left free.

Assemble the junction

sopport with the middle of

the bracket, by the four

free central points of

attachment. Use other

four screws in the four

holes on the bottom of the

speaker.

M3x10

ENGLISH

pag. 06

6. SYSTEM'S EXTENSION

USER'S MANUAL

HP Sound Equipment s.r.l. - www.k-array.com

Viale Roma 7/i 50037 San Piero a Sieve (Firenze) Italy - tel +39 055 8487222 faxe-mail: info@k-array.com+39 055 8487238

7. TECHNICAL DATA

ENGLISH

pag. 07

USER 'S MANUAL

horizontal

500 Hz

250 Hz

8 KHz

4 KHz

1 KHz

500 Hz

250 Hz

8 KHz

4 KHz

1 KHz

vertical

KR200S

Acoustics

Speakers power handling 800(sub) + 500(sat) w(EAS)

Max power 1200(sub) + 1200(sat) w 1

Impedance 8Ω(sub)+16Ω(sat)

Frequency range 30Hz - 19 KHz +/- 3dB (preset dependent)

SPL 1W/1mt 97 dB (sub) 101 dB (sat) 2

Maximum SPL 127dB continuous - 133 dB peak

Coverage

Horizontal 100°

Vertical 7°

Crossover

Type DSP controlled

Frequency 150 Hz minimum (preset dependent)

Transducers

Low frequency 1 x 18” Neodymium speakers with 3” voice coil

High frequency 32 x 2” Neodymium speakers with 0,75” voice coil

Audio Input

Connectors male + female parallel 3-pin balanced XLR

Wiring Pin1 = ground - Pin2 = hot - Pin3 = cold

Audio powered Output

Connector Female Speakon

Wiring Pin1+= CH1+ Pin1= CH1- Pin2+= N.C. Pin2= N.C.

Remote control Input

Connectors 1 x female 8 poles RJ45

Power Input

Connectors 2 x PowerCon IN/OUT

Type 1 modules class D - DSP controlled

Subwoofer power 1000 Watt 3 @8Ω

Satellite power output 1000 Watt 3 @8Ω

Protection Dynamic limiter, over current, over temp, short circuits

AC power

Operating range 210 - 240 Vac 50Hz (Default)

100 - 120 Vac 60Hz (Selectable)

I. nom 5.5 A / 115 Vac - 2.9 A / 230 Vac

Minimum operation voltage 95 Vac - 195 Vac

Maximum operation voltage 125 Vac - 205 Vac

Max continuos and

burst current

Default 6A(>10 sec) - 12A (<1 sec)

Selectable 10A(>10 sec) - 20A (<1sec)

Physical

Dimensions KL18ma: 46.5 x 47.5 x 61 cm (18.31”x 18.70” x 24.02”)

KR200: 5.7 x 222.5 x 7.4 cm (2.24”x 87.60” x 2.91”)

Weight KL18ma: 25.8 Kg (56.88 lbs) KR200: 8.2 Kg (18.08 lbs)

90°

120° 60°

30°

-30°

-60°

150°

-90°

180°

-150°

-120°

0° front

back

90°

120° 60°

30°

-30°

-60°

150°

-90°

180°

-150°

-120°

0°

front

back

DISPERSION GRAPHS

Notes for data

1. Maximum RMS applicable power for a musical signal, the

reference signal is the one proposed by EIAJ standard.

2. Measured @4 mt then scaled @1 mt

nominal load impedance.

New materials and design are introduced into existing products

without previous notice. Present systems may differ in some

respects from those presented in this brochure.

Clear Smooth

Back

Tony

HP60

Disco Live

Dark

Cl-3 (Clear - 3dB Sub)

Cl-6 (Clear - 6dB Sub)

To-3 (Tony -3dB Sub) To-6 (Tony -6dB Sub)

Li-3 (Live -3dB Sub) Li-6 (Live -6dB Sub)

ENGLISH

pag. 08

8. PRESETS

USER'S MANUAL

ENGLISH

pag. 09

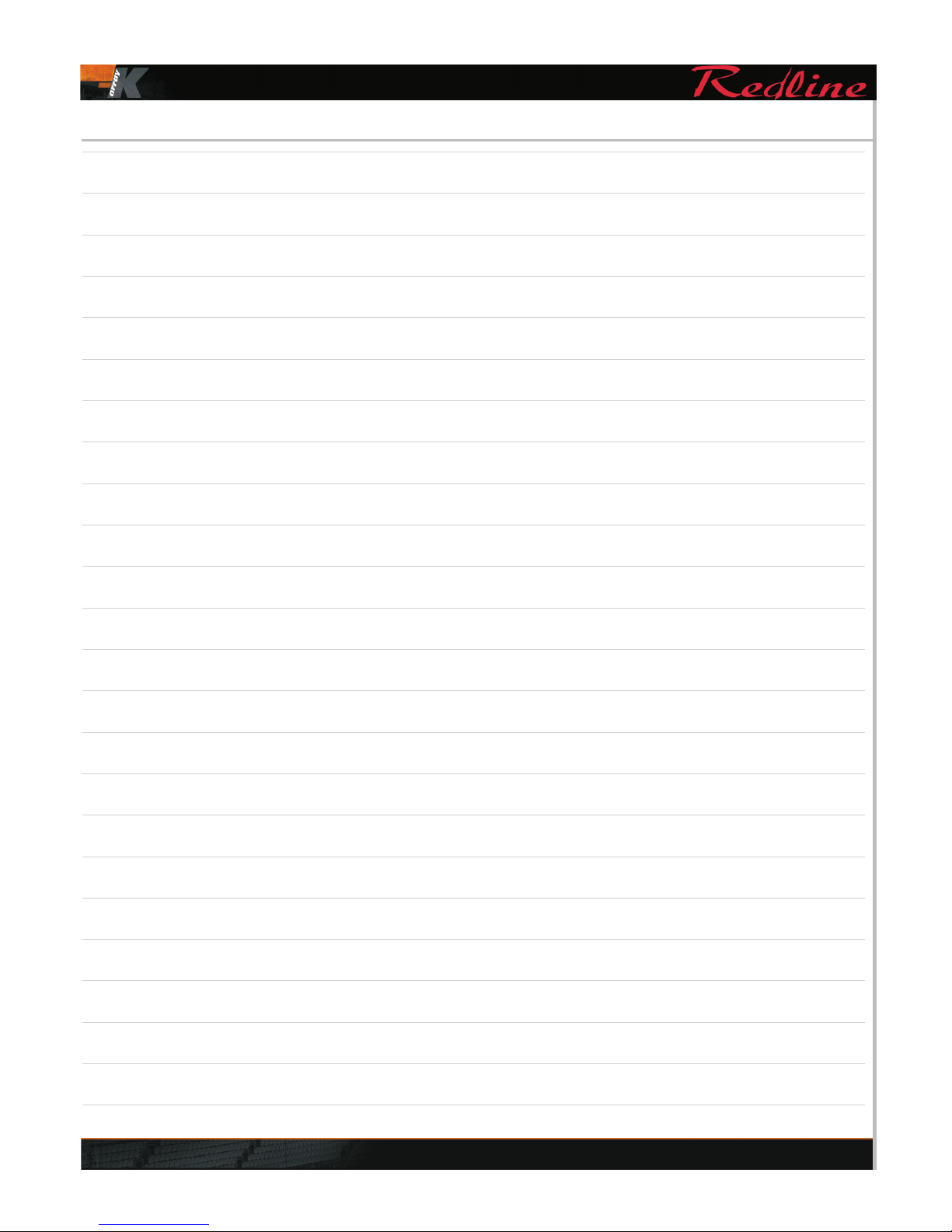

NOTES

USER'S MANUAL

NOTES

www.k-array.com

HP Sound Equipment s.r.l.

Viale Roma 7/i

50037 San Piero a Sieve (Firenze)

Italy

tel +39 055 8487222 fax +39 055 8487238

e-mail: info@k-array.com

array

The contents of this manual are fornished for informational purpose

only. Hp Sound Equipment s.r.l. assumes no responsability for any

errors or inaccuracies that may appear in this manual.

Hp Sound Equipment s.r.l. reserves the right to make modifications

without prior notice.

USER'S MANUAL

REV. A

Otros manuales para Redline KR200S

Tabla de contenidos

Otros manuales de Oradores de K-array

K-array

K-array Kayman KY102W Manual de usuario

K-array

K-array Redline KR200S Manual de usuario

K-array

K-array KF212 Manual de usuario

K-array

K-array Lyzard-KZ14RI Manual de usuario

K-array

K-array KM8 Manual de usuario

K-array

K-array Redline KF12MT Manual de usuario

K-array

K-array KK 50 Manual de usuario

K-array

K-array Mastiff KM312 Manual de usuario

K-array

K-array KH2 Manual de usuario

K-array

K-array Tornado KT2-HV Manual de usuario

K-array

K-array KH4 Manual de usuario

K-array

K-array Tornado-KT2 Manual de usuario

K-array

K-array Lyzard-KZ1 Manual de usuario

K-array

K-array Redline KL18 Manual de usuario

K-array

K-array AnaKonda KAN200 Manual de usuario

K-array

K-array AnaKonda KAN200 Manual de usuario

K-array

K-array KRM33 Manual de usuario

K-array

K-array Lyzard-KZ1 Manual de usuario

K-array

K-array KTL22 Manual de usuario

K-array

K-array Redline KF12P Manual de usuario

K-array

K-array Vyper-KV25 Manual de usuario

K-array

K-array Redline KL18ma Manual de usuario

K-array

K-array Lyzard-KZ14W Manual de usuario

K-array

K-array Lyzard-KZ14I Manual de usuario

Manuales populares de Oradores de otras marcas

argon audio

argon audio IE20 Manual de usuario

Denon

Denon SC-N7 Manual de usuario

Gemline

Gemline Ace 3952 Manual de usuario

Focal

Focal ON WALL 300 Manual de instrucciones

HEADRUSH

HEADRUSH Maximus HRSP 5024 Manual de usuario

SoundLogic

SoundLogic BCCS-6/6395 Manual de usuario

Peavey

Peavey DTH 218 Manual de usuario

Avantree

Avantree Pluto Air Manual de usuario

Morel

Morel Integra Series INTEGRA OVATION 4 Manual de usuario

Oppo

Oppo SONICA Manual de usuario

Bose

Bose SoundLink Wireless Music System Manual de usuario

Rocksteady

Rocksteady Stadium Manual de usuario

Bowers & Wilkins

Bowers & Wilkins 4 Manual de usuario

Sonance

Sonance SONOS OUTDOOR Series Manual de usuario

Electro-Voice

Electro-Voice EVID FM4.2 Manual de usuario

Pioneer

Pioneer XW-HTD630 Manual de usuario

Onn

Onn BWA16AA002 Manual de usuario

HP GL313AA - USB Speakers PC Multimedia Manual de usuario
