JVC TK-S241U Manual de usuario

■With a high-sensitivity of 0.095 lux, the TK-S241U delivers

high picture quality under even the poorest light conditions.

■Horizontal dual-edge contour correction ensures high-

quality, distortion-free pictures under all shooting conditions.

■The camera accepts AC 24 V or DC 12 V for easy installation

in various systems.

■Built-in genlock opens up a wide range of application

possibilities by allowing the camera to be connected to most

currently available video equipment.

■The TK-S241U is suitable for indoor and outdoor applications

using video iris with built-in EE amplifier or DC iris lens.

■The automatic electronic shutter continuously adjusts the

shutter speed to give the correct exposure even when a

manual iris or a lens without an iris is used.

■Built-in back light compensation function improves image

quality when shooting back-lit subjects.

■Adjustable lens mount and back-focus enable CS-mount or

C-mount lenses to be attached to the camera.

1/3-INCH CCD B/W CAMERA

TK-S241U

High-Sensitivity and Quality

B/W Surveillance System

(AC 24 V/DC 12 V)

Cost Efficient and Easy-To-Install Surveillance Camera

Delivering High-Sensitivity, Distortion-Free Pictures

JVC’s high-sensitivity TK-S241U captures sharp pictures with no residual images or distortion

at a high sensitivity of 0.095 lux. It has genlock, horizontal dual-edge contour correction, and

is resistant to the effects of electric and magnetic fields. The TK-S241U is easy to install

as a single camera or as part of an existing system. Such powerful features make the TK-S241U

an exceptionally economic solution for a wide range of surveillance applications.

Shown with optional lens.

JVC PROFESSIONAL PRODUCTS COMPANY

DIVISION OF US JVC CORP.

41 Slater Drive, Elmwood Park, N.J. 07407

TEL: (201) 794-3900, 1-800-526-5308

FAX: (201) 523-2077

JVC CANADA INC.

21 Finchdene Square, Scarborough, Ontario M1X 1A7

TEL: (416) 293-1311 FAX: (416) 293-8208

Internet Web Site http://www.jvcpro.com/

DISTRIBUTED BY

Design and specifications subject to change without notice.

Printed in Japan

KCN-1722

CETKS241UKN702

Image device 1/3"interline-transfer CCD

Effective pixels 250,000 (512 (H) x 492 (V))

Sync system External, Internal and Line lock

(60 Hz regions only)

Scanning frequency (H) 15.734 kHz, (V) 59.94 Hz

Horizontal resolution 380 TV lines

Video S/N 50 dB (AGC OFF)

Minimum required illumination 0.095 lux (F1.2)

Automatic electronic shutter 1:1670 (1/60 sec. to 1/100,000 sec.)

Lens mount CS/C mount

Power requirement AC 24 V (60 Hz), DC 12 V

Power consumption 2.5 W (AC 24V)

190 mA (AC 24V)

180 mA (DC 12V)

Operating temperature range 14°F to 122°F (−10°C to 50°C)

32°F to 104°F (0°C to 40°C ) (recommended)

Weight 1.13 lbs (510 g)

115

126

1/4-20 UNC

23.5 55.3

Unit: inches (mm)

!2 !3 !5!4

qCamera mounting screw holes (1/4")

wCamera mounting bracket fixing screws

eCamera mounting bracket

rLens mount

t[BF LOCK] Back focus locking screw

yBack focus adjustment ring

u[DC IRIS] DC iris connector

i[LEVEL] Sensitivity adjustment volume

o[DC 12 V/AC 24 V] Power input terminal

!0[VIDEO IRIS] Video iris terminal

!1[POWER] Power lamp

!2[SYNC IN] Sync signal input connector

!3[VIDEO OUT] Video signal output connector

!4[LL COARSE] Phase coarse select

!5[BLC] Back light compensation switch

!6[AES] Automatic electronic shutter switch

!7[SYNC] Synchronization select switch

!8[PHASE] Line lock synchronization phase

adjustment

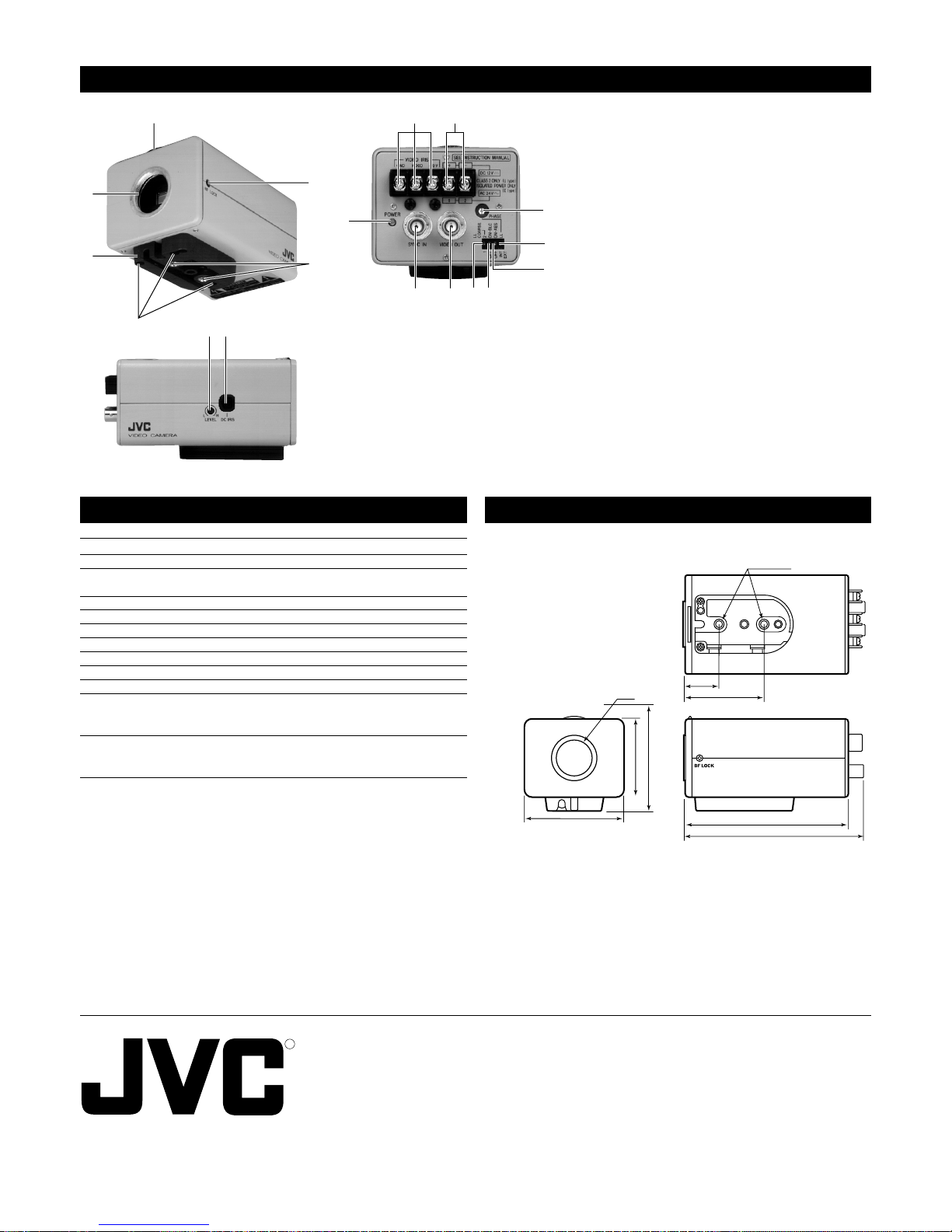

Controls, Connectors and Indicators

Specifications Dimensions
