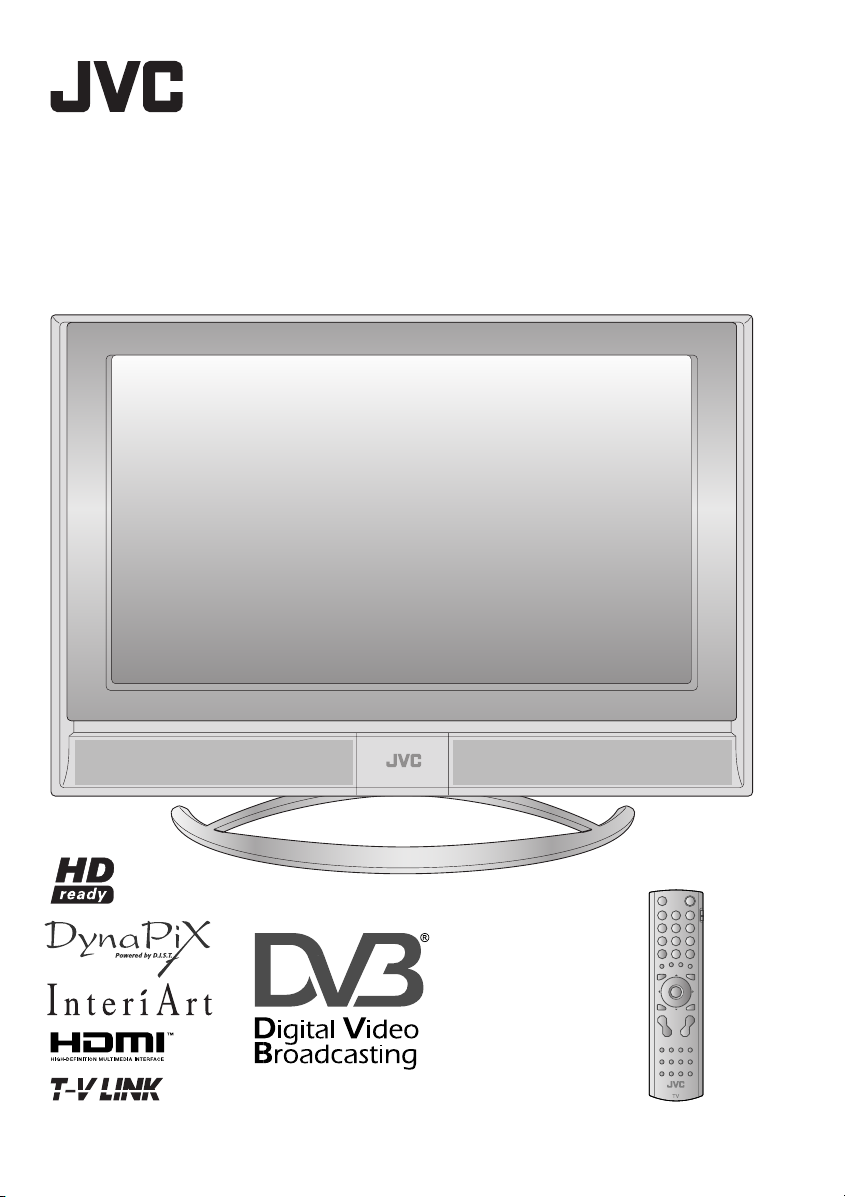

WIDE LCD PANEL TV INSTRUCTIONS

LCT1847-001B-U

Trade Mark of the DVB Digital Video Broadcasting

Project (1991 to 1996) Number : 3476, 3477, 3478, 3479, 3480

LT-32&26DS6BJSJ.indd Cover2LT-32&26DS6BJSJ.indd Cover2 6/1/2005 3:25:11 PM6/1/2005 3:25:11 PM

Expanding the world of

LT-32&26DS6BJSJ.indd 2LT-32&26DS6BJSJ.indd 2 4/12/2005 3:26:42 PM4/12/2005 3:26:42 PM

IMPORTANT! PREPARE USE

SETTINGS

TROUBLE?

Enjoy rich multi-media with JVC

VHF / UHF / DVB-T broadcasting

Digital camera

Video camera

Game console

Audio components

VCR DVD player

DVD recorder

Contents

First things ﬁrst!

Personal

computer

Warning 4

Getting started

Names of all the parts

Basic connections

Connecting external devices

Initial settings

Editing DTV channels

Editing ATV channels

· TV / Teletext / EPG / Video / Menu

Let's try it out

Enjoying your new TV! 18

Watching TV

Using EPG

Viewing teletext

Watching videos / DVDs

· Multi-picture / Favourite channel

· Sleep timer / Child lock

Try the advanced features

Useful functions 28

Reduce noise / Watch a more natural picture

· Set the aspect ratio, etc.

Just the way you like it

Customising your TV

Using DTV

Advanced picture adjustment

When you have trouble

Troubleshooting

CH/CC List

Technical information

Speciﬁcations

beautiful images

*In this manual,

ATV : analogue terrestrial broadcasting (VHF/UHF)

DTV : digital terrestrial broadcasting (DVB-T)

LT-32&26DS6BJSJ.indd 3LT-32&26DS6BJSJ.indd 3 4/12/2005 3:26:42 PM4/12/2005 3:26:42 PM

Never cut or damage

the power cord!

Unplug the power cord

when going out!

Never insert objects

into the cabinet

openings!

Never place anything

on the TV!

Never try to repair

the TV yourself!

Please follow all the guidelines below

Warning

For more details on installation, usage and safety Consult your retailer

If the AC plug is not the right shape,

or the power cord is not long enough,

use an appropriate plug adapter

or extension cable.

(Consult your retailer.)

The power buttons on

the remote control and

the TV unit can not

completely turn off the

TV. (Make appropriate

arrangements for

bedridden people.)

It may cause a

fatal electric

shock.

Take care when

children are near.

Placing liquids, naked

ﬂames, cloths, paper,

etc. on the TV may

cause a ﬁre.

If the problem cannot be solved in

"Troubleshooting" (P. 42), unplug

the power cord and contact

your retailer.

If you have cut or damaged the power cord.

"Technical information" (P. 46)

To change the fuse in UK plugs

"Technical information" (P. 46)

Follow this manual

regarding setup!

Connect only to a 110-240V, 50/60Hz AC

outlet.

LT-32&26DS6BJSJ.indd 4LT-32&26DS6BJSJ.indd 4 4/12/2005 3:26:43 PM4/12/2005 3:26:43 PM

IMPORTANT! PREPARE USE

SETTINGS

TROUBLE?

If the TV is damaged

or behaving strangely,

stop using it at once!

Unplug the power cord and

contact your retailer.

It may cause an electric shock.

Never obstruct the

ventilation holes!

It may cause overheating or a ﬁre.

Handle LCD panel

with care!

Use a soft, dry cloth when cleaning.

Never expose to rain

or moisture!

To prevent ﬁre or

electric shock, never

allow liquids to enter

the unit.

Hold the TV so as not to

scratch the screen!

Do not touch the screen when carrying the

TV.

Do not carry the

TV on your own!

In order to prevent accidents,

ensure that the TV is carried

by two or more people.

Consult a qualiﬁed technician.

See the included manual on mounting

procedures.

JVC assumes no responsibility for damage

due to improper mounting.

When attaching the TV to

the wall, use the optional

JVC wall mounting unit!

Do not allow the TV

to fall!

Do not rest your elbows on, or allow children

to hang from the TV.

There is a risk that the TV will fall and cause

injuries.

Never listen to

headphones at high

volume!

It may damage your hearing.

Never dismantle the

rear panel!

LT-32&26DS6BJSJ.indd 5LT-32&26DS6BJSJ.indd 5 4/12/2005 3:26:43 PM4/12/2005 3:26:43 PM

Check accessories

Remove the terminal covers

Change the direction of TV

/OK

TV/AV

Remote control

(RM-C1813H)

Change channel / page

Volume

Names of all the parts

AA/R6 Batteries

For conﬁrming

the TV works

Power On/Off

To headphones

Display on-screen

menu / set

Switch between

TV / AV devices

(P. 10)

If the cover cannot be closed due to the cables being in the way

Do not force the cover to close (leave it open).

Connecting terminals on the back of the TV Connecting External devices (P. 10)

Remote control

sensor

Power lamp

ON: Lit (Green)

OFF: Unlit

Illumination lamp

Illumination lamp lights

while the TV is on.

“ILLUMINATION” (P.33)

Press to

remove.

Press to

remove.

LT-32DS6BJ/SJ, LT-26DS6BJ/SJ LT-37DS6BJ

Press to

remove.

Press to

remove.

LT-32&26DS6BJSJ.indd 6LT-32&26DS6BJSJ.indd 6 6/1/2005 3:25:12 PM6/1/2005 3:25:12 PM

START

> COUNTRY

IMPORTANT! PREPARE USE

SETTINGS

TROUBLE?

Change the aspect ratio (P. 20)

Turn on 3D sound (P. 20)

Take a snapshot

of the screen (P. 20)

View in multi-picture mode (P. 28)

View subtitles (P. 20)

View the electronic

programme guide (EPG)(P. 22)

To ATV/DTV

Power On/Off

Change the channel/page

Watch video, etc. (P. 26)

Select and

conﬁrm settings in menus

To the previous channel

To teletext (P. 24)

Volume

Change the channel/page

Switch between VCR/TV/DVD

(P. 26)

When operating a JVC VCR

or DVD (P. 26)

When watching TV/Video

Mute

Insert the batteries

Use two AA/R6 dry cell batteries.

Insert the batteries from the - end, making

sure the and polarities are correct.

Channel information

(P. 20)

To menu (P. 32)

Follow on-screen instructions.

Follow instructions

in on-screen guides.

Other uses

The coloured buttons can perform different

functions according to the situation.

When watching DTV

when viewing teletext (P. 24)

(P. 16)

When watching ATV

When choosing a favourite

channel (P. 29)

(P. 24)

When viewing teletext

LT-32&26DS6BJSJ.indd 7LT-32&26DS6BJSJ.indd 7 4/12/2005 3:26:44 PM4/12/2005 3:26:44 PM

Care when setting

Connect the aerial

Basic connections

Please read the user manuals of each device carefully before setup.

It is necessary to connect an aerial to watch TV.

Connect with other devices "Connecting external devices" (P. 10)

200mm

50mm150mm 150mm 50mm

Power requirements

Connect the power cord only to a 110-240V,

50/60Hz AC outlet.

When attaching the TV to the wall, use the

optional JVC wall mounting unit

Consult a qualiﬁed technician.

See the included manual on mounting procedures.

JVC assumes no responsibility for damage due to

improper mounting.

Installation requirements

To avoid overheating, ensure the unit has ample

room.

Right side of back surface

After all the connections have been made, insert the plug into an AC outlet.

AERIAL

LT-32&26DS6BJSJ.indd 8LT-32&26DS6BJSJ.indd 8 4/12/2005 3:26:45 PM4/12/2005 3:26:45 PM

Watch pay-per-view

IMPORTANT! PREPARE USE

SETTINGS

TROUBLE?

Connect a VCR / DVD recorder AERIAL

VCR / DVD recorder

EXT-1

After all the connections have been made, insert the plug into an AC outlet.

Connect T-V LINK compatible recording device to EXT-2.

T-V LINK "What is T-V LINK?" (P. 12)

EXT-2

Right side of

back surface

Left side of

back surface

Insert the CAM.

The CAM and Viewing Card will be sent by the broadcasting

company after contracting with them.

Contract with a broadcasting company beforehand.

Insert the Viewing Card into the CAM.

Plug the power cord, and turn the power on.

Unplug the power cord

Set pay-per-view (P. 38)

Viewing

Card

Conditional

Access

Module

LT-32&26DS6BJSJ.indd 9LT-32&26DS6BJSJ.indd 9 4/12/2005 3:26:45 PM4/12/2005 3:26:45 PM

Connecting external devices

You can connect many different devices to the rear panel of the TV.

Please read the user manuals of each device before setting up.

(Connecting cables are not supplied with this TV.)

Ampliﬁer

(L) (R)

VCR / DVD recorder

(T-V LINK compatible)

AUDIO

OUT

Satellite broadcast tuner

Game consoles

Check for PC compatibility

"Technical information" (P. 46)

DVD player

PC IN

Video camera

EXT-1

EXT-2

(T-V LINK)

EXT-3

EXT-4

(Y)

(Pb)

(L)

To EXT-3 R/L (PC IN)

Headphones

(Pr)

(R)

Headphones

LT-32&26DS6BJSJ.indd 10LT-32&26DS6BJSJ.indd 10 4/12/2005 3:26:45 PM4/12/2005 3:26:45 PM
