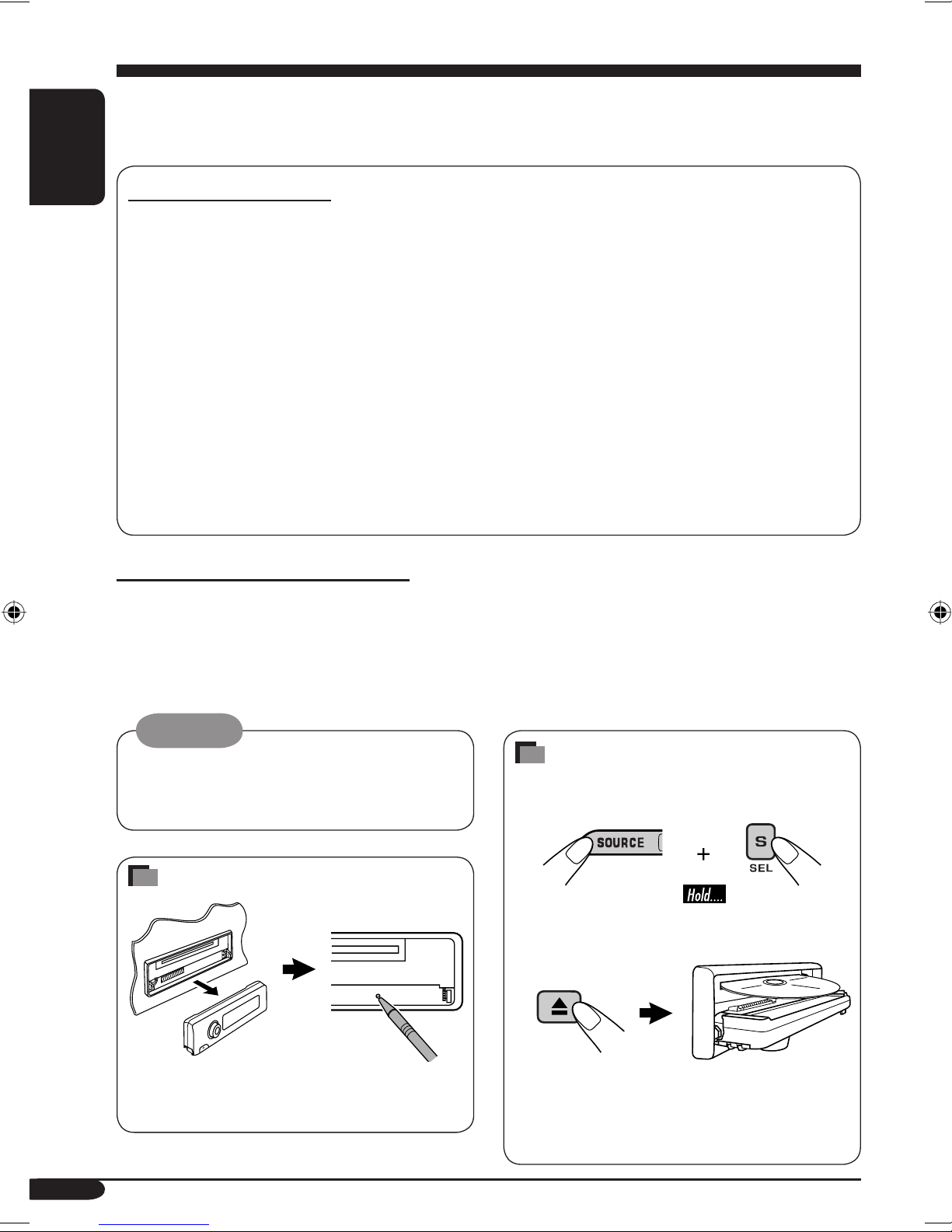

How to forcibly eject a disc
If a disc cannot be recognized or cannot be
ejected, eject the disc as follows.
“PLEASE” and “EJECT” appear alternately
on the display.
• If this does not work, reset your unit.
• Be careful not to drop the disc when it
ejects.
Thank you for purchasing a JVC product.
Please read all instructions carefully before operation, to ensure your complete understanding and to
obtain the best possible performance from the unit.
INFORMATION (For U.S.A.)
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses, and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment
off and on, the user is encouraged to try to correct the interference by one or more of the
following measures:
– Reorient or relocate the receiving antenna.
– Increase the separation between the equipment and unit.
– Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
– Consult the dealer or an experienced radio/TV technician for help.
IMPORTANT FOR LASER PRODUCTS
1. CLASS 1 LASER PRODUCT
2. CAUTION: Do not open the top cover. There are no user serviceable parts inside the unit; leave
all servicing to qualified service personnel.
3. CAUTION: Visible and invisible laser radiation when open and interlock failed or defeated.
Avoid direct exposure to beam.
Warning:
If you need to operate the unit while driving,
be sure to look ahead carefully or you may
be involved in a traffic accident.
How to reset your unit
• This will reset the microcomputer. Your
preset adjustments will also be erased.
EN02-05_KD-S52[J]f.indd 2EN02-05_KD-S52[J]f.indd 2 7/15/05 12:28:45 PM7/15/05 12:28:45 PM
3
ENGLISH
How to reset your unit ........................... 2
How to forcibly eject a disc................... 2
How to read this manual........................ 4
How to use the M MODE button........... 4
How to detach/attach the control
panel................................................... 4
Control panel — KD-S52 ........... 5
Parts identification................................. 5
Remote controller — RM-RK60
... 6
Main elements and features ................... 6
Getting started....................... 7
Basic operations.................................. 7
Canceling the display demonstrations ... 8
Setting the clock .................................... 8
Radio operations ................... 9
Listening to the radio........................... 9
Storing stations in memory.................... 9
Listening to a preset station................... 10
Disc operations ...................... 11
Playing a disc in the unit ..................... 11
Playing discs in the CD changer ........... 12
Other main functions ............................. 13
Changing the display information ......... 14
Selecting the playback modes................ 15
Sound adjustments ................ 16
Selecting preset sound modes
(C-EQ: custom equalizer) .................. 16
Adjusting the sound............................... 16
General settings — PSM ......... 17
Basic procedure ..................................... 17
Other main functions ............. 20
Assigning titles to the sources ............... 20
External component operations
... 21
Playing an external component ............ 21
SIRIUS
®
radio operations
............ 22
Listening to the SIRIUS®radio.............. 23
Storing channels in memory.................. 23
Listening to a preset channel ................. 23
Maintenance .......................... 24
More about this unit...............25
Troubleshooting ..................... 27
Specifications ......................... 29
For safety....
• Do not raise the volume level too much, as
this will block outside sounds, making driving
dangerous.
• Stop the car before performing any
complicated operations.
Contents
Temperature inside the car....
If you have parked the car for a long time in
hot or cold weather, wait until the temperature
in the car becomes normal before operating the
unit.
EN02-05_KD-S52[J]f.indd 3EN02-05_KD-S52[J]f.indd 3 7/15/05 12:28:47 PM7/15/05 12:28:47 PM
4
ENGLISH
How to read this manual
The following methods are used to make the
explanations simple and easy-to-understand:
• Some related tips and notes are explained in
“More about this unit” (see pages 25 and 26).
• Button operations are mainly explained with
the illustrations as follows:
Press briefly.
Press repeatedly.
Press either one.
Press and hold until
your desired response
begins.
Press and hold both
buttons at the same
time.
How to use the M MODE button
If you press M MODE, the unit goes into
functions mode, then the number buttons and
5/∞buttons work as different function buttons.
Ex.: When number button 2 works as
MO (monaural) button.
Time countdown indicator
To use these buttons for their original
functions again after pressing M MODE,
wait for 5 seconds without pressing any of these
buttons until the functions mode is cleared.
• Pressing M MODE again also clears the
functions mode.
How to detach/attach the control panel
Detaching....
Attaching....
EN02-05_KD-S52[J]f.indd 4EN02-05_KD-S52[J]f.indd 4 7/15/05 12:28:48 PM7/15/05 12:28:48 PM
5
ENGLISH
Control panel — KD-S52
Display window
Parts identification
15(up) / ∞(down) buttons
2E EQ (equalizer) button
3D DISP (display) button
4S SEL (select) button
5• Control dial
• (standby/on attenuator) button
6Display window
7Remote sensor
• DO NOT expose the remote sensor to
strong light (direct sunlight or artificial
lighting).
80(eject) button
94/¢buttons
p(control panel release) button
qSOURCE button
wBAND button
eNumber buttons
rMO (monaural) button
tSSM (Strong-station Sequential Memory)
button
yRPT (repeat) button
uRND (random) button
iM MODE button
o
AUX (auxiliary) input jack
• NOT compatible with digital signals.
Display window
;Disc information indicators—TAG (ID3
Tag), (folder), (track/file)
aMain display
sSource display
Volume level indicator
dEQ (equalizer) indicator
fSound mode (C-EQ: custom equalizer)
indicators—ROCK, CLASSIC, POPS,
HIP HOP, JAZZ, USER
• also works as the time countdown
indicator and level meter during play (see
page 18).
gDisc type indicators—WMA, MP3
hTuner reception indicators—ST (stereo),
MO (monaural)
jPlayback source indicators—
CH: Lights up only when CD-CH is selected
as the playback source.
DISC: Lights up for the built-in CD player.
kPlayback mode / item indicators—
RND (random), (disc), (folder),
RPT (repeat)
lLOUD (loudness) indicator
/Tr (track) indicator
EN02-05_KD-S52[J]f.indd 5EN02-05_KD-S52[J]f.indd 5 7/15/05 12:28:48 PM7/15/05 12:28:48 PM
6
ENGLISH
Remote controller — RM-RK60
Installing the lithium coin battery
(CR2025)
• Aim the remote controller directly at the
remote sensor on the unit. Make sure there
is no obstacle in between.
Warning:
• Do not install any battery other than
CR2025 or its equivalent; otherwise, it
may explode.
• Store the battery in a place where children
cannot reach to avoid risk of accident.
• To prevent the battery from over-heating,
cracking, or starting a fire:
– Do not recharge, short, disassemble,
heat the battery, or dispose of it in a fire.
– Do not leave the battery with other
metallic materials.
– Do not poke the battery with tweezers or
similar tools.
– Wrap the battery with tape and insulate
when throwing away or saving it.
Caution:
Main elements and features
1(standby/on attenuator) button
• Turns the power on if pressed briefly or
attenuates the sound when the power is
on.
• Turns the power off if pressed and held.
2SRC (source) button
• Selects the source.
3R (reverse) / F (forward) buttons
• Searches for stations if pressed briefly.
• Fast-forwards or reverses the track if
pressed and held.
• Changes the tracks of the disc.
• While listening to the SIRIUS radio:
– Changes the channels if pressed briefly.
– Changes the channels rapidly if pressed
and held.
4SOUND button
• Selects the sound mode (C-EQ: custom
equalizer).
5U (up) / D (down) buttons
• Changes the FM/AM bands with U (up)
only.
• Changes the preset stations with D (down)
only.
•
Changes the folder of the MP3/WMA discs.
• While playing an MP3 disc on an
MP3-compatible CD changer:
– Changes the disc if pressed briefly.
– Changes the folder if pressed and held.
• While listening to the SIRIUS radio:
– Changes the categories.
6VOLUME +/– buttons
• Adjusts the volume level.
EN06-11_KD-S52[J]f.indd 6EN06-11_KD-S52[J]f.indd 6 7/15/05 12:29:01 PM7/15/05 12:29:01 PM
7
ENGLISH
⁄Adjust the volume.
Volume level appears.
Volume level indicator
@Adjust the sound as you want.
(See page 16.)
To drop the volume in a moment (ATT)
To restore the sound,
press it again.
To turn off the power
Caution on volume setting:
Discs produce very little noise compared
with other sources. Lower the volume
before playing a disc to avoid damaging
the speakers by the sudden increase of the
output level.
Getting started
Basic operations
~
Ÿ
You cannot select some sources if they
are not ready.
!• For FM/AM tuner
• For SIRIUS®radio
* Select “CD-CH” when using an
Apple iPod®or a JVC D. player
(see page 21).
iPod is a registered trademark of
Apple Computer, Inc.
EN06-11_KD-S52[J]f.indd 7EN06-11_KD-S52[J]f.indd 7 7/15/05 12:29:09 PM7/15/05 12:29:09 PM
8
ENGLISH
Canceling the display
demonstrations
If no operations are done for about 20 seconds,
display demonstration starts.
[Initial: DEMO ON]—see page 17.
1
2
3
4Finish the procedure.
To activate the display demonstration
In step 3above...
Setting the clock
1
2Set the hour and minute.
1Select “CLOCK H” (hour), then
adjust the hour.
2Select “CLOCK M” (minute),
then adjust the minute.
3Finish the procedure.
To check the current clock time when the
power is turned off
EN06-11_KD-S52[J]f.indd 8EN06-11_KD-S52[J]f.indd 8 7/15/05 12:29:09 PM7/15/05 12:29:09 PM
9
ENGLISH
Radio operations
Listening to the radio
~
Ÿ
Selected band appears.
Lights up when receiving an FM stereo
broadcast with sufficient signal strength.
!Start searching for a station.
When a station is received, searching
stops.
To stop searching, press the same
button again.
To tune in to a station manually
In step !above...
1
2Select the desired station frequencies.
When an FM stereo broadcast is hard to
receive
1
2
Lights up when monaural mode is activated.
Reception improves, but stereo effect will
be lost.
To restore the stereo effect, repeat the same
procedure. “MONO OFF” appears and the MO
indicator goes off.
Storing stations in memory
You can preset six stations for each band.
FM station automatic presetting—
SSM (Strong-station Sequential
Memory)
1
To be continued....
EN06-11_KD-S52[J]f.indd 9EN06-11_KD-S52[J]f.indd 9 7/15/05 12:29:10 PM7/15/05 12:29:10 PM
10
ENGLISH
2Select the FM band (FM1 – FM3)
you want to store into.
3
4
“SSM” flashes, then disappears when
automatic presetting is over.
Local FM stations with the strongest signals are
searched and stored automatically in the FM
band.
Manual presetting
Ex.: Storing FM station of 92.5 MHz into the
preset number 4 of the FM1 band.
1
2
3
4
Preset number flashes for a while.
Listening to a preset station
1
2
3Select the preset station (1 – 6) you
want.
or
To check the current clock time while
listening to an FM or AM station
* If no title is assigned to a station,
“NO NAME” appears. To assign a title to a
station, see page 20.
EN06-11_KD-S52[J]f.indd 10EN06-11_KD-S52[J]f.indd 10 7/15/05 12:29:11 PM7/15/05 12:29:11 PM
Otros manuales para KD-S52
2
Tabla de contenidos
Otros manuales de Receptor de coche de JVC
JVC
JVC KD-G320 Manual de usuario
JVC
JVC KD-G338 Manual de usuario
JVC
JVC KD-DV5606 Manual de usuario
JVC
JVC KW-V40BT Manual de usuario
JVC
JVC KD-DB52 Manual de usuario
JVC
JVC KD-R411 Manual de usuario
JVC
JVC KD-APD58 - Radio / CD Manual de usuario
JVC
JVC KW-XR614 Guía
JVC
JVC KD-AR470 - Radio / CD Manual de usuario
JVC
JVC EXAD KW-AVX810 Guía
