Thank you for purchasing a JVC product.
Please read all instructions carefully before operation, to ensure your complete understanding and to
obtain the best possible performance from the unit.
IMPORTANT FOR LASER PRODUCTS
1. CLASS 1 LASER PRODUCT
2. CAUTION: Do not open the top cover. There are no user serviceable parts inside the unit; leave
all servicing to qualified service personnel.
3. CAUTION: Visible and invisible laser radiation when open and interlock failed or defeated.
Avoid direct exposure to beam.
4. REPRODUCTION OF LABEL: CAUTION LABEL, PLACED OUTSIDE THE UNIT.
Warning:
If you need to operate the receiver while
driving, be sure to look ahead carefully or
you may be involved in a traffic accident.
Cautions:
• Do not operate the touch panel using a
ball-point pen or a similar tool with the
sharp tip (it may damage the touch panel).
• If the temperature inside the car is below
0°C, the movement of animation and text
scroll will be halted on the display to
prevent the display from being blurred.
appears on the display.
When the temperature increases, and the
operating temperature is resumed, these
functions will start working again.
How to reset your unit
This will reset the microcomputer. Your
preset adjustments will also be erased.

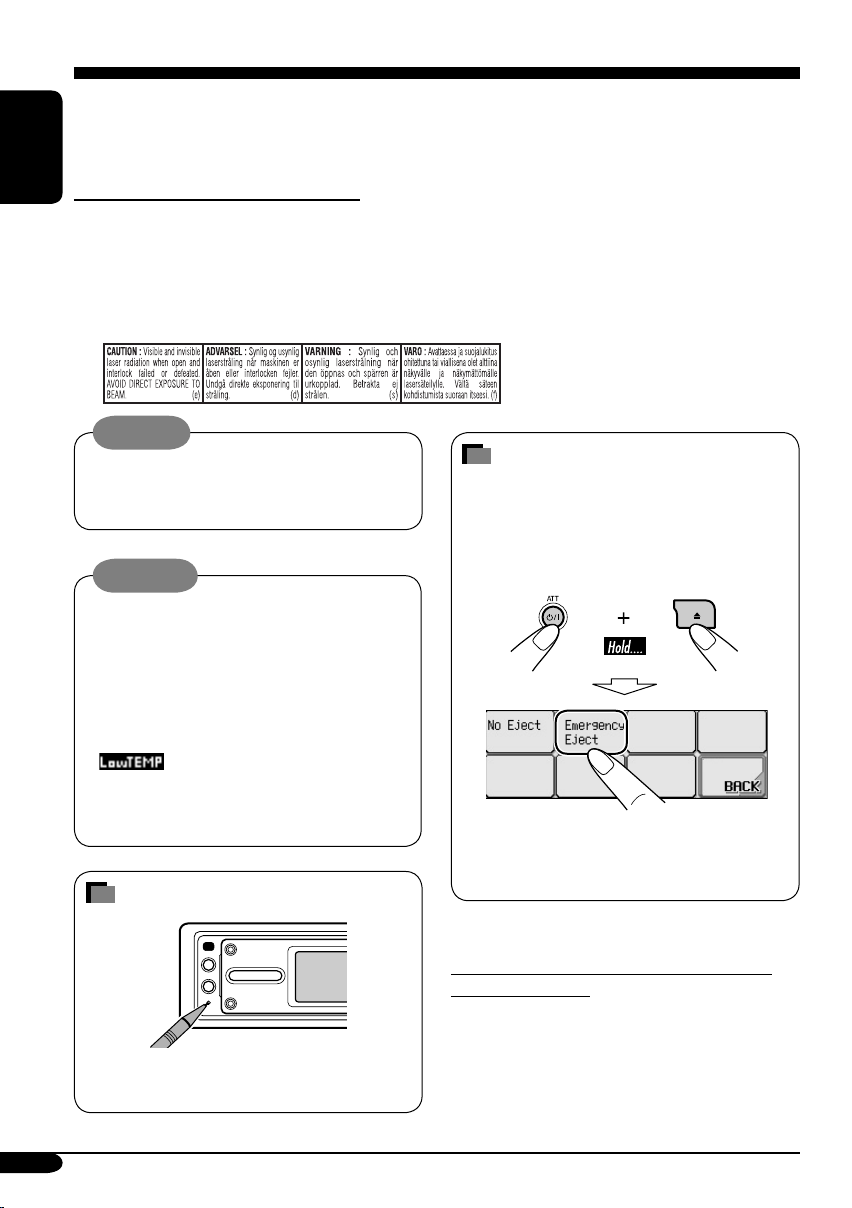

How to forcibly eject a disc
If a disc cannot be recognized by the
receiver or cannot be ejected, ejects the disc
as follows.
• If an SD card is inserted, ejects the SD
card first (see page 18).
• If this does not work, reset your receiver.
• Be careful not to drop the disc when it
ejects.
Note: Only for [EX] model users in UK and
European countries
For security reasons, a numbered ID card is
provided with this receiver, and the same ID
number is imprinted on the receiver’s chassis.
Keep the card in a safe place, as it will help the
authorities to identify your receiver if stolen.
EN02-07_LHX552_1[EX_EU]f.indd 2EN02-07_LHX552_1[EX_EU]f.indd 2 12/2/04 10:40:40 AM12/2/04 10:40:40 AM
3
ENGLISH
How to reset your unit ........................... 2
How to forcibly eject a disc................... 2
How to read this manual........................ 4
How to change the display pattern
during playback.................................. 4
Control panel
— KD-LHX552/KD-LHX551.......... 5
Parts identification................................. 5
Remote controller
— RM-RK300 .......................... 6
Main elements and features ................... 6
Getting started....................... 7
Basic operations.................................. 7
Canceling the display demonstrations ... 8
Setting the clock .................................... 8
Radio operations ................... 9
Listening to the radio........................... 9
Storing stations in memory.................... 10
Listening to a preset station................... 11
FM RDS operations.................12
Searching for your favorite FM RDS
programme
....................................... 12
Storing your favorite programmes......... 13
Using the standby receptions................. 13
Tracking the same programme
—Network-Tracking Reception ........ 14
Using the message service
—RDS Radiotext (RT) ...................... 15
Disc/SD card operations......... 16
Playing a disc in the receiver................ 16
Playing discs in the CD changer ............ 17
Playing an SD card .............................. 18
Other main functions ............................. 20
Selecting the playback modes................ 23
Contents
Sound adjustments ................ 24
Setting the basic sound selection
menu—SEL ..................................... 24
Selecting preset sound modes
(i-EQ: intelligent equalizer)............... 25
Storing your own sound modes ............. 25
Graphic displays .................... 26
Basic procedure................................... 26
Downloading the files............................ 26
Deleting the files.................................... 27
Activating the downloaded files............ 29
General settings — PSM .........30
Basic procedure ..................................... 30
Selecting the dimmer mode ................... 35
Changing the display color.................... 35
Other main functions ............. 37
Assigning titles to the sources ............... 37
Changing the control panel angle .......... 38
Detaching the control panel................... 38
External component
operations........................... 39
DAB tuner operations............. 40
Listening to the DAB tuner................... 40
Storing DAB services in memory.......... 42
Tuning in to a preset DAB service ........ 42
Using the standby reception .................. 43
Tracing the same programme
—Alternative Reception .................... 44
Maintenance .......................... 45
More about this receiver ........ 46
Troubleshooting ..................... 50
Specifications ......................... 53
*For safety....
• Do not raise the volume level too much, as
this will block outside sounds, making driving
dangerous.
• Stop the car before performing any
complicated operations.
*Temperature inside the car....
If you have parked the car for a long time in
hot or cold weather, wait until the temperature
in the car becomes normal before operating the
unit.
EN02-07_LHX552_1[EX_EU]f.indd 3EN02-07_LHX552_1[EX_EU]f.indd 3 12/2/04 10:40:41 AM12/2/04 10:40:41 AM
4
ENGLISH
How to read this manual
The following methods are used to made the
explanations simple and easy-to-understand:
• Some related tips and notes are explained in
“More about this receiver” (see pages
46 – 49).
• Button and touch panel operations are mainly
explained with the illustrations as follows:
Press briefly.
Press repeatedly.
Press either one.
Press and hold until
your desired response
begins.
Press and hold both
buttons at the same
time.
The following marks are used to indicate...
: Built-in CD player operations.
: External CD changer operations.
: SD player operations.

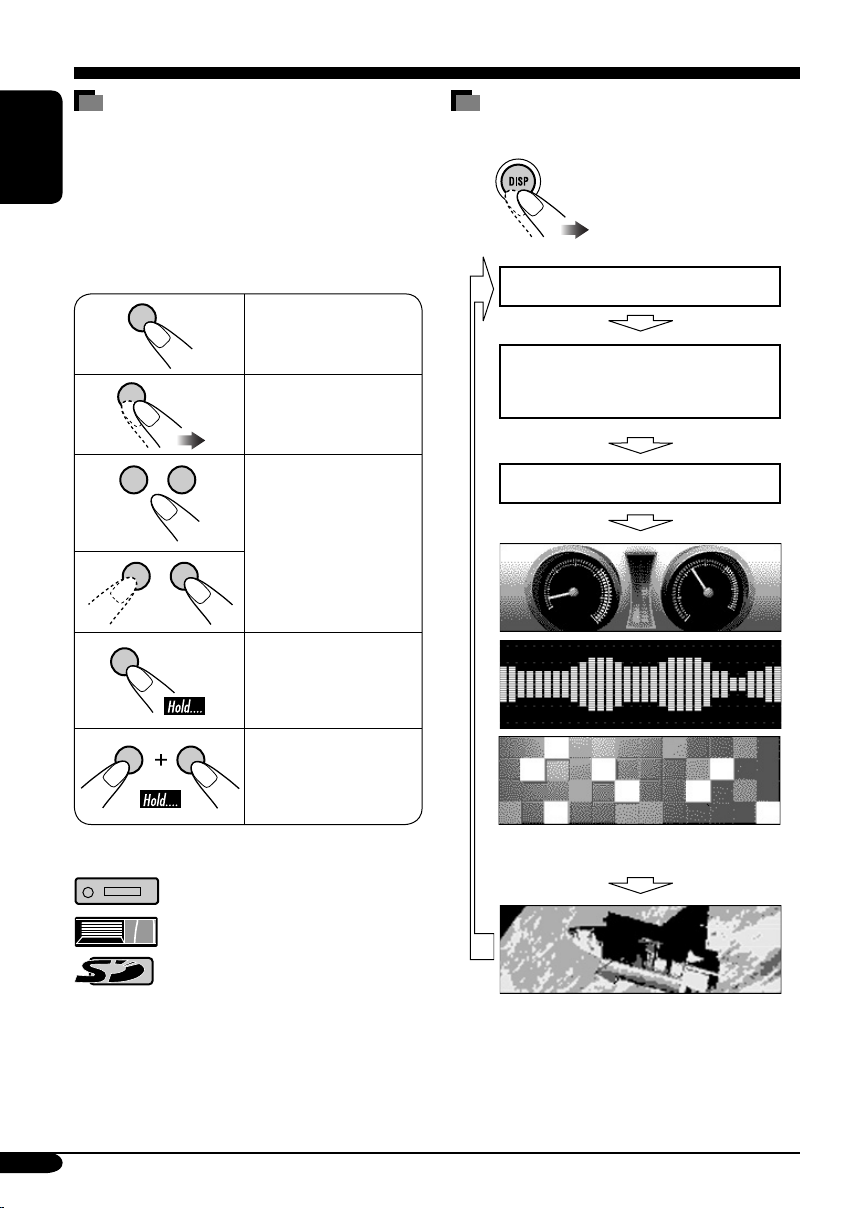

How to change the display pattern
during playback
Source operation screen
Clock time is enlarged.
Audio Level Meters*
(see “Theme” on page 32)
Graphic screen*appears only after
you have downloaded a file, see pages
26 – 29.
* These screens will be temporarily canceled
when you operate the receiver.
RDS Radiotext (RT) or DLS screen is
shown when the source is “TUNER” or
“DAB” (see pages 15 and 44)*.
EN02-07_LHX552_1[EX_EU]f.indd 4EN02-07_LHX552_1[EX_EU]f.indd 4 12/8/04 10:45:06 PM12/8/04 10:45:06 PM
5
ENGLISH

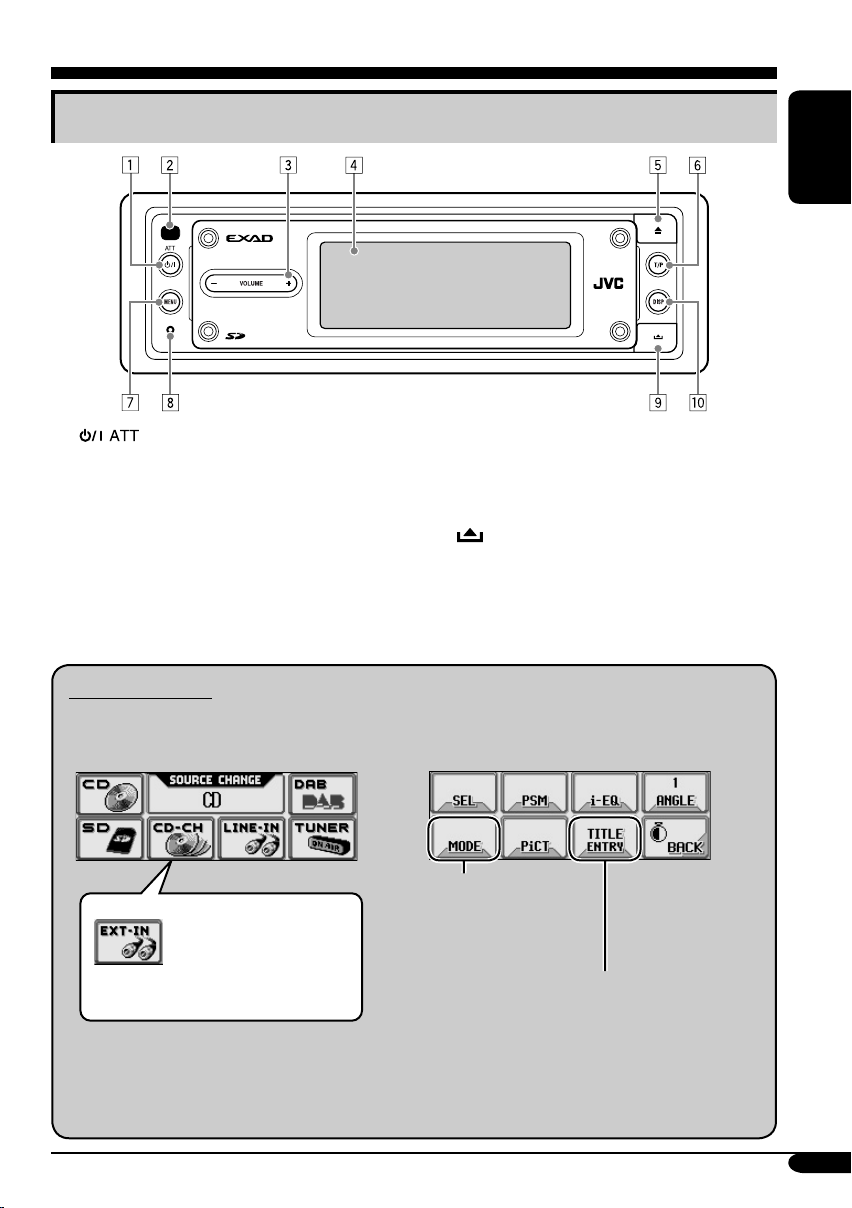

Control panel — KD-LHX552/KD-LHX551
1(standby/on attenuator) button
2Remote sensor
• DO NOT expose the remote sensor to
strong light (direct sunlight or artificial
lighting).
3VOLUME + / – button
4Touch panel
Parts identification
50(eject) button
6T/P (traffic programme/programme type)
button
7MENU button
8Reset button
9(control panel release) button
pDISP (display) button
Main touch panels
• Make sure to touch the area inside the key icon boundary when operating the touch panel.
Main MenuSource Selection Screen
Not displayed when
the source is “LINE-IN”
or “EXT-IN” (external
component).
• To return to the previous screen, press
“BACK” (if shown). See also page 46.
If the source is not ready, you cannot
select the source. Key icon appears as
negative pattern.
Either “CD-CH” or “EXT-
IN” appears depending
on the “Ext Input” setting
(see page 34). Displayed only when playing
an audio CD or when the
source is “LINE-IN” or “EXT-
IN.”
EN02-07_LHX552_1[EX_EU]f.indd 5EN02-07_LHX552_1[EX_EU]f.indd 5 12/2/04 10:40:42 AM12/2/04 10:40:42 AM
6
ENGLISH
Remote controller — RM-RK300
Main elements and features
1(standby/on/attenuator) button
• Turns on and off the power and also
attenuates the sound.
2SOURCE button
• Selects the source.
35(up) / ∞(down) buttons
• Changes the preset stations.
• Changes the services for DAB.
• Changes the MP3/WMA folders.
4VOL (volume) + / – buttons
• Adjusts the volume level.
5Number buttons
• Selects the preset station (or service) if
pressed, or store a station (or a service) if
pressed and held.
• Selects the tracks while playing an audio
CDs or CD Text.
• Selects the folders while playing
MP3/WMA discs or an SD card.
• Selects the discs while operating the CD
changer.
6ANGLE button
• Adjusts the control panel angle.
7BAND button
• Selects the band for FM/AM and DAB.
84/ ¢buttons
• Searches for stations (or ensembles) if
pressed, or skips frequencies after pressed
and held.
• Changes the tracks of the disc or of the
SD card if pressed.
• Fast-forwards or reverses the track if
pressed and held.
Installing the lithium coin battery
(CR2025)
• When operating, aim the remote controller
directly at the remote sensor on the
receiver. Make sure there is no obstacle in
between.
Warning:
• Store the battery in a place where children
cannot reach to avoid risk of accident.
• To prevent the battery from over-heating,
cracking, or starting a fire:
– Do not recharge, short, disassemble, or
heat the battery or dispose of it in a fire.
– Do not leave the battery with other
metallic materials.
– Do not poke the battery with tweezers or
similar tools.
– Wrap the battery with tape and insulate
when throwing away or saving it.
Caution:
The receiver is equipped with the steering
wheel remote control function.
• See the Installation/Connection Manual
(separate volume) for connection.
EN02-07_LHX552_1[EX_EU]f.indd 6EN02-07_LHX552_1[EX_EU]f.indd 6 12/2/04 10:40:43 AM12/2/04 10:40:43 AM
7
ENGLISH
Getting started
Basic operations
To drop the volume in a moment (ATT)
To restore the sound, press it
again.
To turn off the power
Caution on volume setting:
Discs produce very little noise compared
with other sources. Lower the volume
before playing a disc to avoid damaging
the speakers by the sudden increase of the
output level.
Voice support system (VSS)
You can select either “Beep” or “Voice” for
the VSS.
If “Voice” is selected, the language used
for VSS changes to the selected language—
English, German, or French.
To change the VSS setting, see page 34.
~

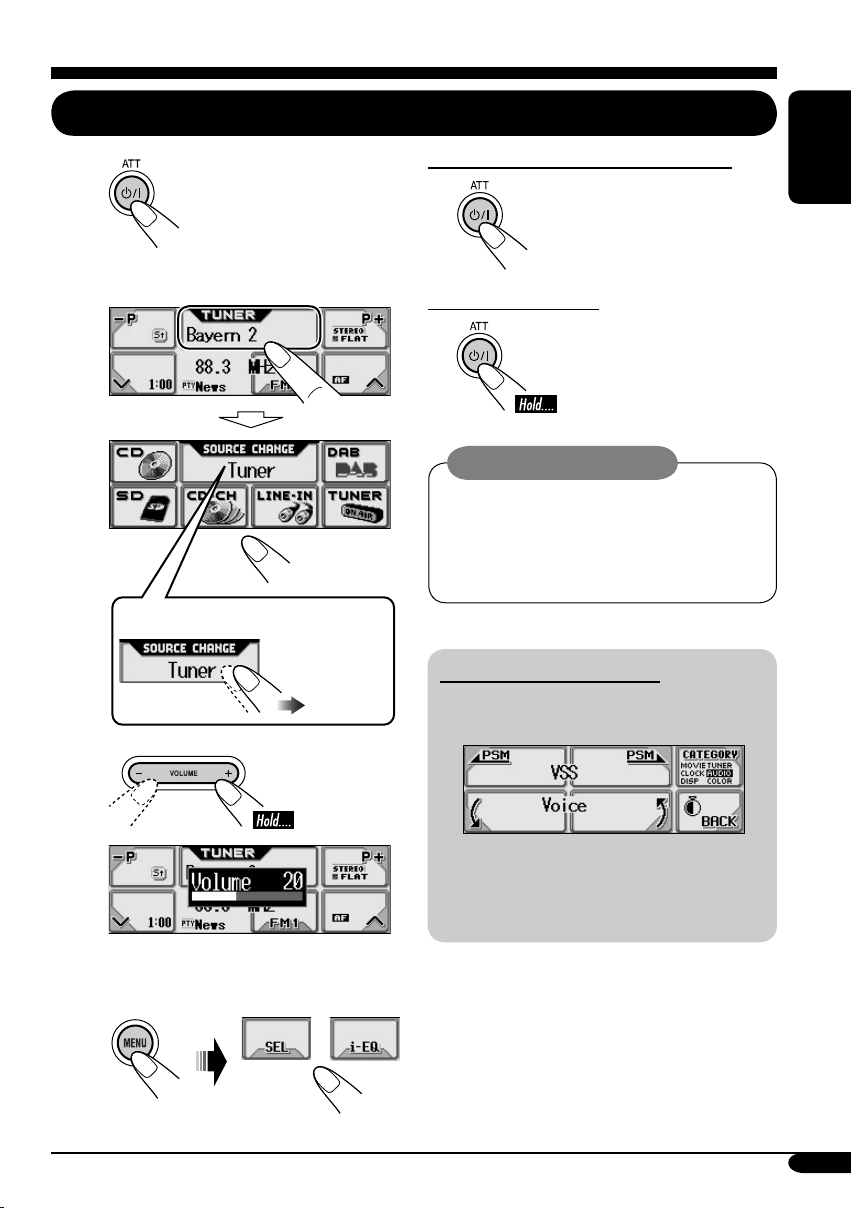

ŸSelect the source.
You can also select the source by....
!
⁄Adjust the sound as you want.
(See pages 24 and 25.)
EN02-07_LHX552_1[EX_EU]f.indd 7EN02-07_LHX552_1[EX_EU]f.indd 7 12/2/04 10:40:43 AM12/2/04 10:40:43 AM
8

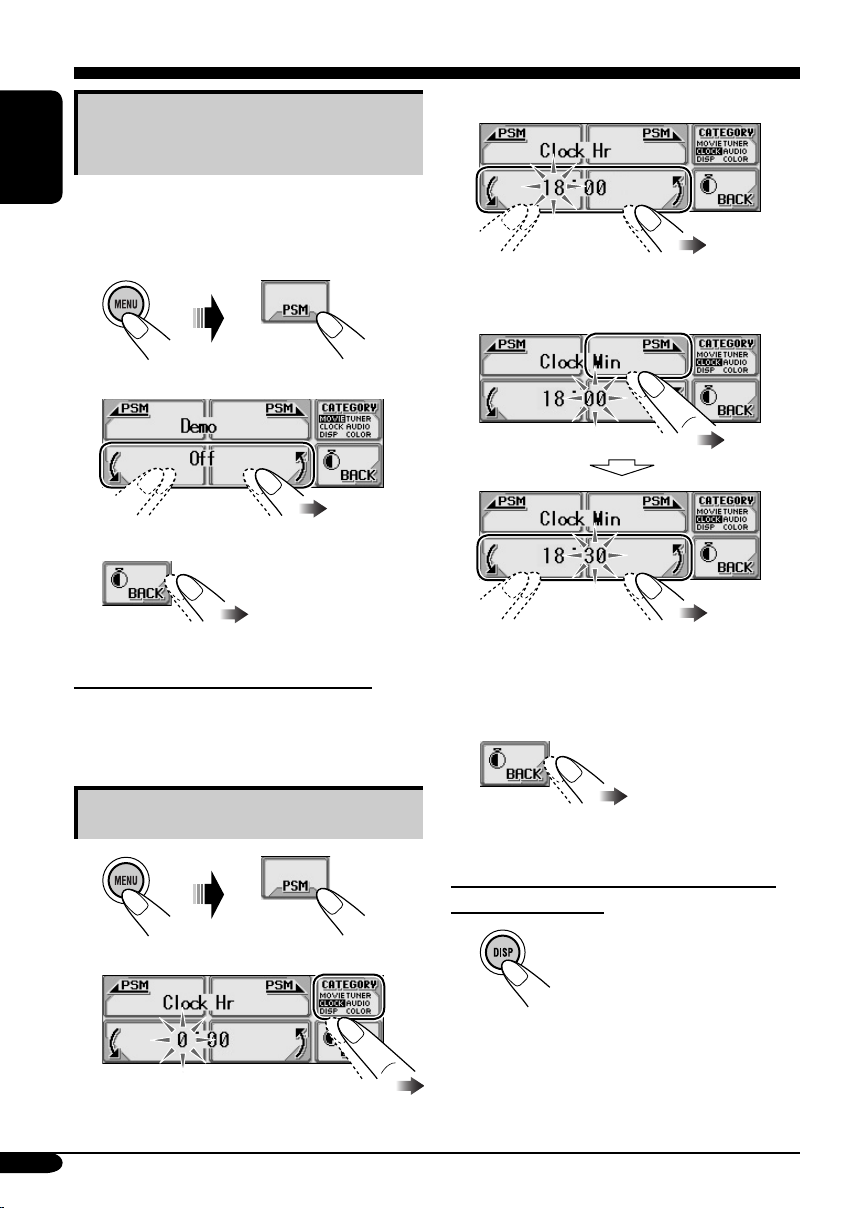

ENGLISH
3Adjust the hour.
4Select “Clock Min” (minute), then
adjust the minute.
5Select “24H/12H,” then select
“24Hours” or “12Hours.”
6Exit from the setting.
To check the current clock time when the
power is turned off
Canceling the display
demonstrations
If no operations are done for about 20 seconds,
display demonstration starts.
[Initial: Interval]—see page 30.
1
2Select “Off.”
3Exit from the setting.
To activate the display demonstration
In step 2above, select “All Time” or “Interval.”
For more details, see page 30.
Setting the clock
1
2
EN08-15_LHX552_1[EX_EU]f.indd 8EN08-15_LHX552_1[EX_EU]f.indd 8 12/2/04 10:40:05 AM12/2/04 10:40:05 AM
9
ENGLISH
To tune in to a station manually
In step !on the left...
1
2Select the desired station frequencies.
When an FM stereo broadcast is hard to
receive
1
2Select “MONO On.”
Reception improves, but stereo effect will
be lost.
3Exit from the setting.
To restore the stereo effect, repeat the same
procedure and select “MONO Off” in step 2.

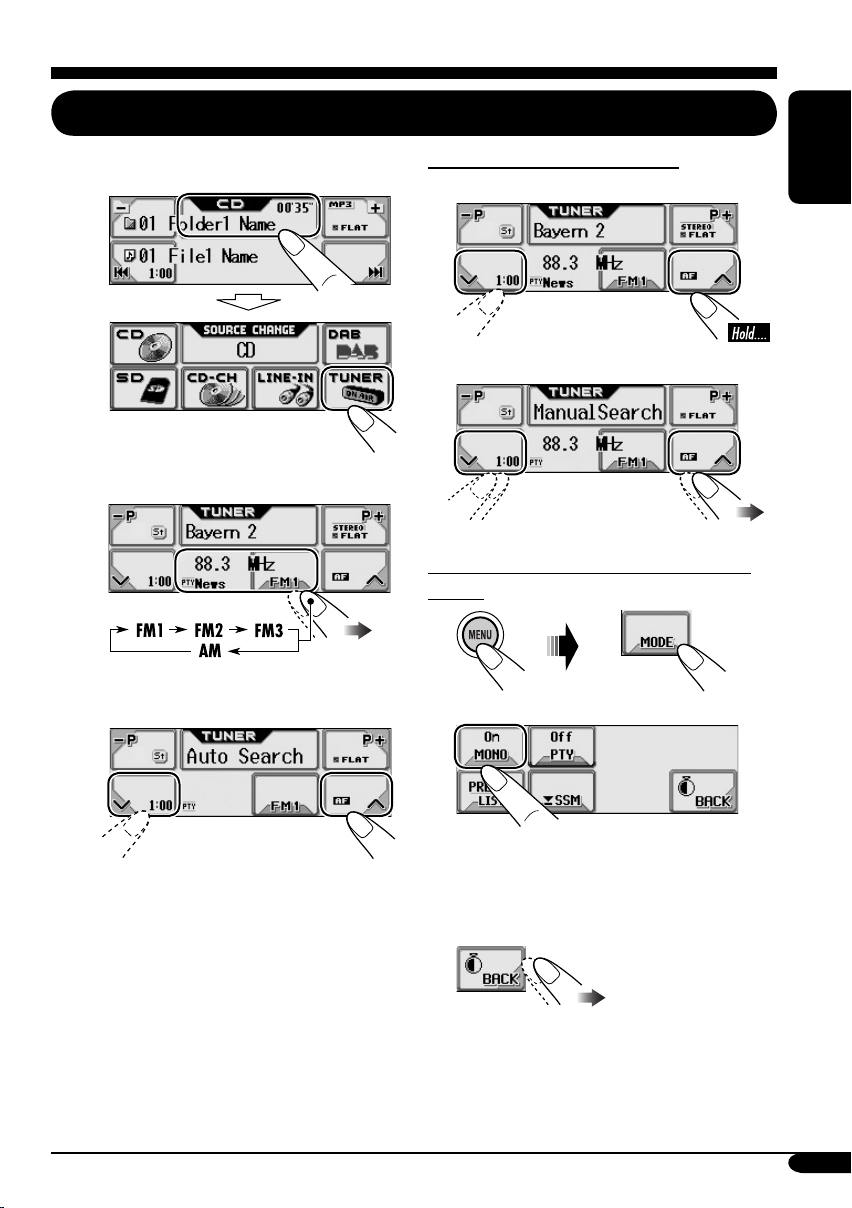

Radio operations
Listening to the radio
~Select “TUNER.”
ŸSelect the band (FM/AM).
!Start searching for a station.
When a station is received, searching
stops.
To stop searching, press the same icon
again.
EN08-15_LHX552_1[EX_EU]f.indd 9EN08-15_LHX552_1[EX_EU]f.indd 9 12/2/04 10:40:07 AM12/2/04 10:40:07 AM
10
ENGLISH

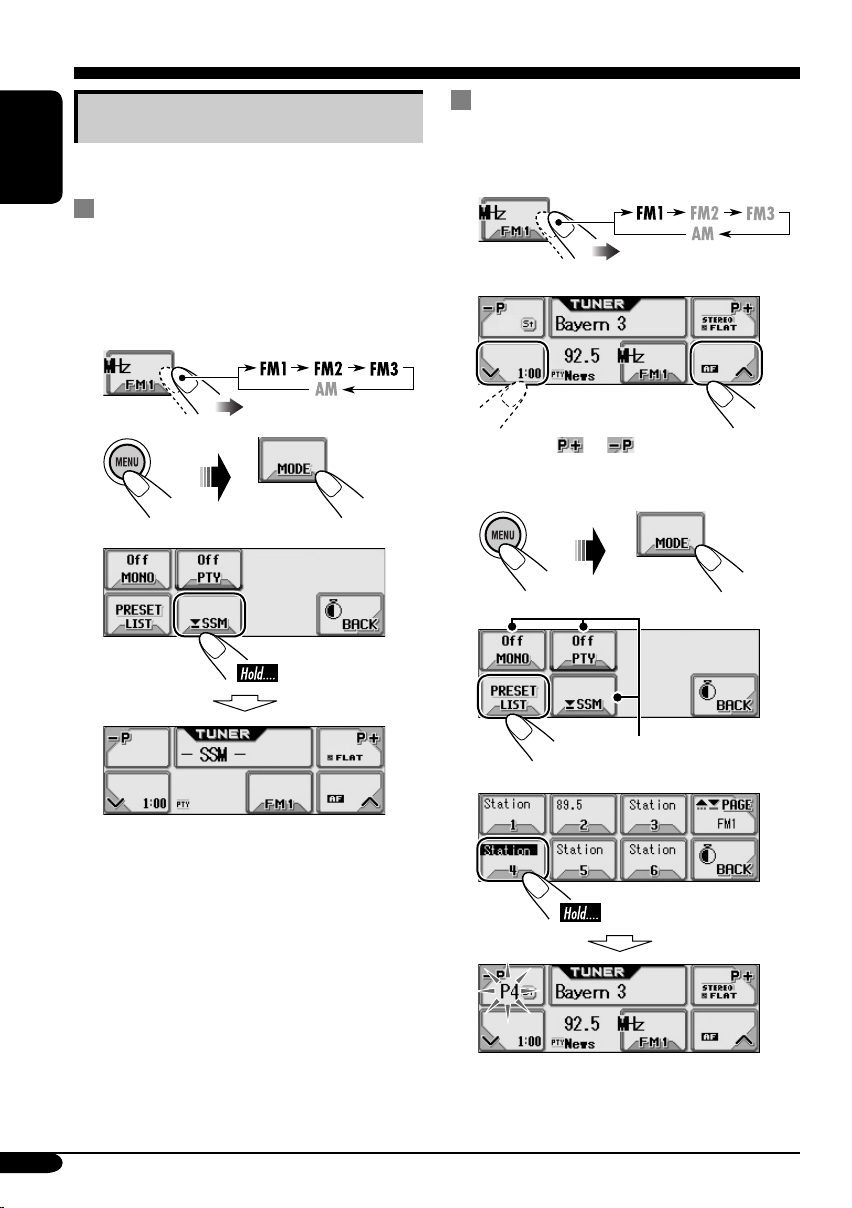

Manual presetting
Ex.:Storing FM station of 92.5 MHz into preset
number 4 of the FM1 band.
1
2
• Holding or can display the Preset
Station List (see step 5below).
3
4
5
Storing stations in memory
You can preset six stations for each band.
FM station automatic presetting—
SSM (Strong-station Sequential
Memory)
1Select the FM band (FM1 – FM3)
you want to store into.
2
3
Local FM stations with the strongest signals are
searched and stored automatically in the FM
band.
Appears only for FM.
EN08-15_LHX552_1[EX_EU]f.indd 10EN08-15_LHX552_1[EX_EU]f.indd 10 12/2/04 10:40:09 AM12/2/04 10:40:09 AM
Este manual sirve para los siguientes modelos
2
Tabla de contenidos
Idiomas:
Otros manuales de Receptor de coche de JVC
JVC
JVC KD-G425 Manual de usuario
JVC
JVC KD-S731R Guía
JVC
JVC KD-DV7401E Manual de usuario
JVC
JVC KD-AVX11 - EXAD - DVD Player Manual de usuario
JVC
JVC KD-R820BT Manual de usuario
JVC
JVC KS-FX201 Manual de usuario
JVC
JVC EXAD KD-SHX701 Manual de usuario
JVC
JVC KS-FX463R Guía
JVC
JVC KS-FX480J Manual de usuario
JVC
JVC KD-G545 Manual de usuario
