T4000 Core Router Quick Start

March 2012

Part Number: 530-046043

Revision 01

This document describes how to install the T4000 Core Router.

Contents QuickStartDescription...............................................3

Step1:PreparingtheSite..............................................4

Rack-MountingRequirements......................................4

Tools Required to Unpack and Prepare the T4000 Router for

Installation ..................................................5

Step 2: Installing the Mounting Hardware . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Installing the Mounting Hardware for a Four-Post Rack or Cabinet . . . . . . . . . 7

InstallingCageNuts,IfNeeded..................................8

Installing the Large Mounting Shelf and Spacer Bars . . . . . . . . . . . . . . . . 8

Installing the Small Mounting Shelf . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Removing the Center-Mounting Brackets . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Installing the Mounting Hardware in an Open-Frame Rack . . . . . . . . . . . . . . . 9

InstallingCageNuts,IfNeeded..................................11

Installing the Large Mounting Shelf . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Removing the Spacer Bars and Center-Mounting Brackets . . . . . . . . . . . 11

Step3:InstallingtheT4000Router.....................................12

InstallingtheRouterUsingaLift....................................12

Installing the Router Without a Mechanical Lift . . . . . . . . . . . . . . . . . . . . . . . . 13

RemovingComponents.......................................14

LiftingtheRouterintotheRack.................................16

ReinstallingComponents......................................18

Step 4: Connecting the Grounding Cable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Step 5: Connecting External Devices and PIC Cables . . . . . . . . . . . . . . . . . . . . . . . 20

Connecting to a Console or Auxiliary Device . . . . . . . . . . . . . . . . . . . . . . . . . . 20

ConnectingthePICCables........................................21

Connecting to a Network for Out-of-Band Management . . . . . . . . . . . . . . . . 22

Step6:ConnectingPower............................................24

Connecting DC Power to the T4000 Router (Six 60-A Inputs) . . . . . . . . . . . 24

Step7:PoweringOntheRouter........................................27

Powering On the DC-Powered Router . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Step 8: Performing the Initial Software Configuration . . . . . . . . . . . . . . . . . . . . . . 30

PreparingtoConfiguretheRouter..................................30

EnteringConfigurationMode......................................30

Configuring User Accounts and Passwords . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

ConfiguringSystemAttributes.....................................31

CommittingtheConfiguration.....................................32

SafetyWarnings....................................................35

ComplianceStatementsforNEBS.....................................36

Compliance Statements for EMC Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . 37

Canada .......................................................37

EuropeanUnion.................................................37

DeclarationofConformity........................................38

Junos OS Documentation and Release Notes . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

RequestingTechnicalSupport........................................39

Self-Help Online Tools and Resources . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

OpeningaCasewithJTAC........................................39

RevisionHistory....................................................40

T4000 Core Router Quick Start

Quick Start Description

This Quick Start contains information you need to install and configure the router quickly.

For complete installation instructions, see the T4000 Core Router Hardware Guide at

http://www.juniper.net/techpubs/hardware/.

WARNING: This Quick Start contains a summary of safety warnings in “Safety

Warnings” on page 35. For a complete list of warnings for this router, including

translations, see the T4000 Core Router Hardware Guide at

http://www.juniper.net/techpubs/hardware/.

The router is a complete routing system that provides Gigabit Ethernet, SONET/SDH,

and other high-speed interfaces for large networks and network applications. The router

supports up to eight Flexible PIC Concentrators (FPCs). In a standalone configuration,

the router’s maximum aggregate throughput is up to 2000 gigabits per second (Gbps),

full duplex (4000 Gbps of any-to-any, nonblocking, half-duplex) switching.

The router is shipped in a wooden crate. A wooden pallet forms the base of the crate.

The router chassis is bolted to this pallet. The shipping crate contains:

•One accessory box (the box to which this Quick Start is taped)

•One Juniper Networks router

•One Quick Start (this document)

Quick Start Description

Step 1: Preparing the Site

Before installing the router, make sure that the site meets all the power, environmental,

and clearance requirements. See the site preparation guidelines in the T4000 Core Router

Hardware Guide.

•Rack-Mounting Requirements on page 4

•Tools Required to Unpack and Prepare the T4000 Router for Installation on page 5

Rack-Mounting Requirements

•You can install the router in many types of racks, including a four-post rack or cabinet

or an open-frame rack.

•The rack rails must be spaced widely enough to accommodate the router chassis's

external dimensions: 37.45 in. (95.6 cm) high, 31 in. (78.7 cm) deep, and 17.43 in. (44.3

cm) wide. The mounting brackets extend the width to fit into standard 19-in. (48.3

cm) racks.

•The rack must be strong enough to support the weight of the fully configured router,

up to about 663.6 lb (301.0 kg). If you mount two routers in one rack, it must be capable

of supporting a combined weight of over 1327.2 lb (602.0 kg)

•For service personnel to remove and install hardware components, there must be

adequate space at the front and back of the router. At least 24 in. (61.0 cm) both in

front of and behind the rack or cabinet is required. However, NEBS GR-63 recommends

at least 30 in. in front of the rack or cabinet. See Figure 1 on page 5.

•The rack or cabinet must have an adequate supply of cooling air.

•In a closed cabinet, there must be a minimum of 6 in. (15.2 cm) of unobstructed airflow

behind the router, or airflow baffles must be installed to prevent recirculation of hot

air and overheating.

•If the router is the only unit in the rack, mount it at the bottom.

•When mounting the router in a partially filled rack, load the rack from the bottom to

the top, with the heaviest component at the bottom of the rack.

T4000 Core Router Quick Start

Figure 1: Rack Clearances and Router Dimensions

Tools Required to Unpack and Prepare the T4000 Router for Installation

•A mechanical lift—recommended

•1/2-in. or 13-mm open-end or socket wrench to remove bracket bolts from the shipping

pallet

•Phillips screwdrivers, numbers 1 and 2

•DC-powered routers: 7/16-in. (11 mm) hexagonal-head external drive nut driver, with

a torque range between 23 lb-in. (2.6 Nm) and 25 lb-in. (2.8 Nm), for tightening nuts

to terminal studs on each power supply on a DC-powered router

•Wire cutters

•Cage nuts, if needed for your rack or cabinet

•Electrostatic discharge wrist strap

Tools Required to Unpack and Prepare the T4000 Router for Installation

•Antistatic mat

•Blank panels to cover any slots not occupied by a component

T4000 Core Router Quick Start

Step 2: Installing the Mounting Hardware

To install the mounting hardware, perform one of the following procedures:

•Installing the Mounting Hardware for a Four-Post Rack or Cabinet on page 7

•Installing the Mounting Hardware in an Open-Frame Rack on page 9

Installing the Mounting Hardware for a Four-Post Rack or Cabinet

Figure 2: Mounting Hardware for a Four-Post Rack or Cabinet

An x in Table 1 on page 7 indicates a mounting hole location.

Table 1: Four-Post Rack and Cabinet Mounting Hole Locations

Small ShelfSpacer BarsLarge ShelfDistance Above U DivisionHole

–x–19.86 U34.75 in. (88.3

cm)

–x–16.86 U29.51 in. (74.9

cm)

Step 2: Installing the Mounting Hardware

Table 1: Four-Post Rack and Cabinet Mounting Hole Locations (continued)

Small ShelfSpacer BarsLarge ShelfDistance Above U DivisionHole

–x–13.86 U24.26 in. (61.6

cm)

-x–10.86 U19.01 in. (48.3

cm)

–x–7.86 U13.76 in. (34.9

cm)

xx–4.86 U8.51 in. (21.6

cm)

x––3.86 U6.76 in. (17.1

cm)

x––2.86 U5.01 in. (12.7

cm)

xx–1.86 U3.26 in. (8.3

cm)

x–-0.86 U1.51 in. (3.8 cm)3

––x0.5 U0.88 in. (2.2

cm)

To install the mounting hardware for a four-post rack or cabinet:

•Installing Cage Nuts, If Needed on page 8

•Installing the Large Mounting Shelf and Spacer Bars on page 8

•Installing the Small Mounting Shelf on page 9

•Removing the Center-Mounting Brackets on page 9

Installing Cage Nuts, If Needed

For racks without threaded holes, you must install cage nuts in the locations specified in

Table 1 on page 7:

•On each front rack rail, install cage nuts for the large shelf and spacer bars.

•On each rear rack rail, install cage nuts for the small shelf.

Installing the Large Mounting Shelf and Spacer Bars

1. On the front side of each front rail, partially insert a mounting screw into the lowest

hole specified in Table 1 on page 7 for the large shelf.

2. Install the large shelf on the front side of the front rack rails. Rest the bottom slot in

each flange on one of the mounting screws.

T4000 Core Router Quick Start

3. Tighten all the screws completely.

4. Place one spacer bar over a flange of the large shelf.

5. Partially insert a mounting screw into each of the nonthreaded holes in the recesses

of the spacer bar.

6. Repeat Steps 4 and 5 for the other spacer bar.

7. Tighten all the screws completely.

Installing the Small Mounting Shelf

The small shelf installs on the back of the rear rails, extending toward the center of the

rack. See Figure 2 on page 7.

1. Partially insert a mounting screw into the lowest hole specified in Table 1 on page 7.

2. Install the small shelf on the back of the rear rack rails. Rest the bottom slot on each

flange on one of the mounting screws.

3. Partially insert screws into the open holes in the flanges of the small shelf.

4. Tighten all the screws completely.

Removing the Center-Mounting Brackets

The router is shipped with a spacer bar attached to the back of each front-mounting

flange, and two center-mounting brackets attached to the chassis. Remove the

center-mounting brackets from the chassis by loosening the screws at the top and bottom

of each bracket.

Installing the Mounting Hardware in an Open-Frame Rack

To install the mounting hardware for an open frame rack:

•Front-mounting: Attach the large mounting shelf on the back of the rails. Remove the

center-mounting brackets from the chassis.

•Center-mounting: Attach the large mounting shelf on the back of the rails.

The small mounting shelf is not needed for open-frame racks.Table 2 on page 10 specifies

the holes in which you insert mounting screws and cage nuts (if needed).

Installing the Small Mounting Shelf

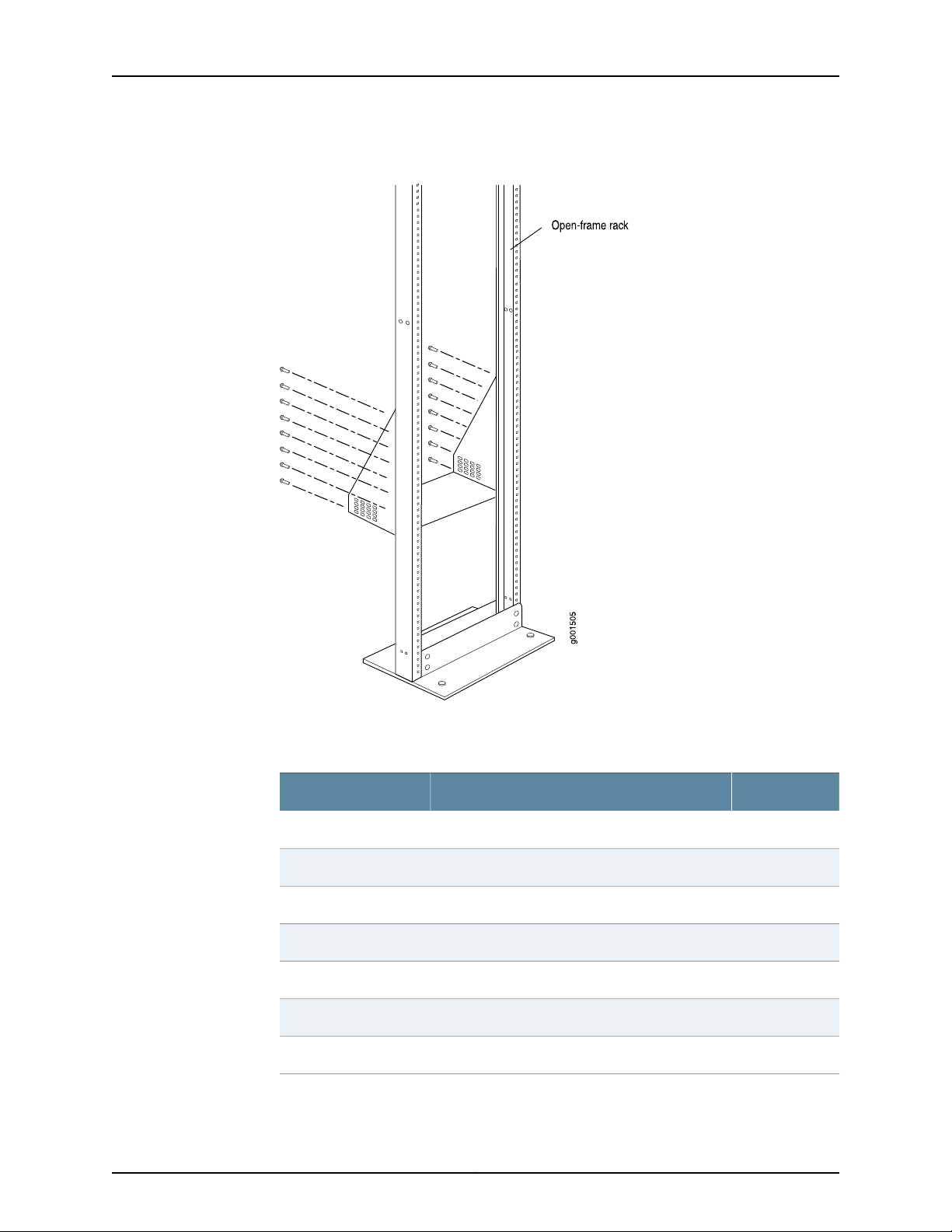

Figure 3: Mounting Hardware for an Open-Frame Rack

An x in Table 2 on page 10 indicates a mounting hole location.

Table 2: Open-Frame Rack Mounting Hole Locations

Large ShelfDistance Above U DivisionHole

x19.5 U34.13 in. (86.7 cm)59

x17.5 U30.63 in. (77.8 cm)53

x16.5 U28.88 in. (73.3 cm)50

x14.5 U25.38 in. (64.5 cm)44

x13.5 U23.63 in. (60.0 cm)41

x11.5 U20.13 in. (51.1 cm)35

x10.5 U18.38 in. (46.7 cm)32

T4000 Core Router Quick Start

Otros manuales para T4000 -

Tabla de contenidos

Otros manuales de Enrutador de red de Juniper

Juniper

Juniper ACX1000 Instrucciones de instalación

Juniper

Juniper T1600 Manual de usuario

Juniper

Juniper M20 Manual de usuario

Juniper

Juniper EX4500 Series Manual de usuario

Juniper

Juniper MX480 Instrucciones de instalación

Juniper

Juniper T4000 - Instrucciones de instalación

Juniper

Juniper Juniper Networks Instrucciones de instalación

Juniper

Juniper ACX5096 Manual de usuario

Juniper

Juniper ACX500 Instrucciones de instalación

Juniper

Juniper PTX10016 Manual de usuario

Juniper

Juniper ACX1000 Instrucciones de instalación

Juniper

Juniper E120 - RELEASE 11.1.X HARDWARE GUIDE... Instrucciones de instalación

Juniper

Juniper MX204 Manual de usuario

Juniper

Juniper E320 Manual de usuario

Juniper

Juniper TX MATRIX PLUS Instrucciones de instalación

Juniper

Juniper ACX500 Manual de usuario

Juniper

Juniper MX104 Instrucciones de instalación

Juniper

Juniper NetScreen-5GT Wireless Manual de usuario

Juniper

Juniper JUNOS OS 10.4 Manual de usuario

Juniper

Juniper J-Series Manual de instrucciones

Juniper

Juniper QFX10002 Manual de usuario

Juniper

Juniper M120 Instrucciones de instalación

Juniper

Juniper ACX4000 Manual de usuario

Juniper

Juniper ACX5448-D Instrucciones de instalación

Manuales populares de Enrutador de red de otras marcas

Allnet

Allnet ALL0333AU Manual de usuario

HomeSeer

HomeSeer HT-SEL Manual de usuario

Sercomm

Sercomm Genesis OC3505D Manual de usuario

Billion

Billion BIPAC 5102 Series Manual de usuario

TP-Link

TP-Link TD-8817 Manual de usuario

Motorola

Motorola MR1900 Manual de usuario

Digi

Digi IX14 Manual de usuario

Cisco

Cisco NCS 540 Manual

XAVi

XAVi X8821e Manual de usuario

BEC

BEC 6200WZL Manual de usuario

MikroTik

MikroTik hAP ac3 Series Manual de usuario

Korenix

Korenix JetNet 5428G Series Manual de usuario

NETGEAR

NETGEAR FS526T - Switch Manual de usuario

Korenix

Korenix JetNet 5710G Series Manual de usuario

Automated Logic

Automated Logic ZN551 Manual del propietario

Cisco

Cisco ASR 1000 Series Manual del operador

EnGenius

EnGenius ESR-9710 Manual de usuario

Cisco

Cisco 805 Series Instrucciones de funcionamiento y seguridad
